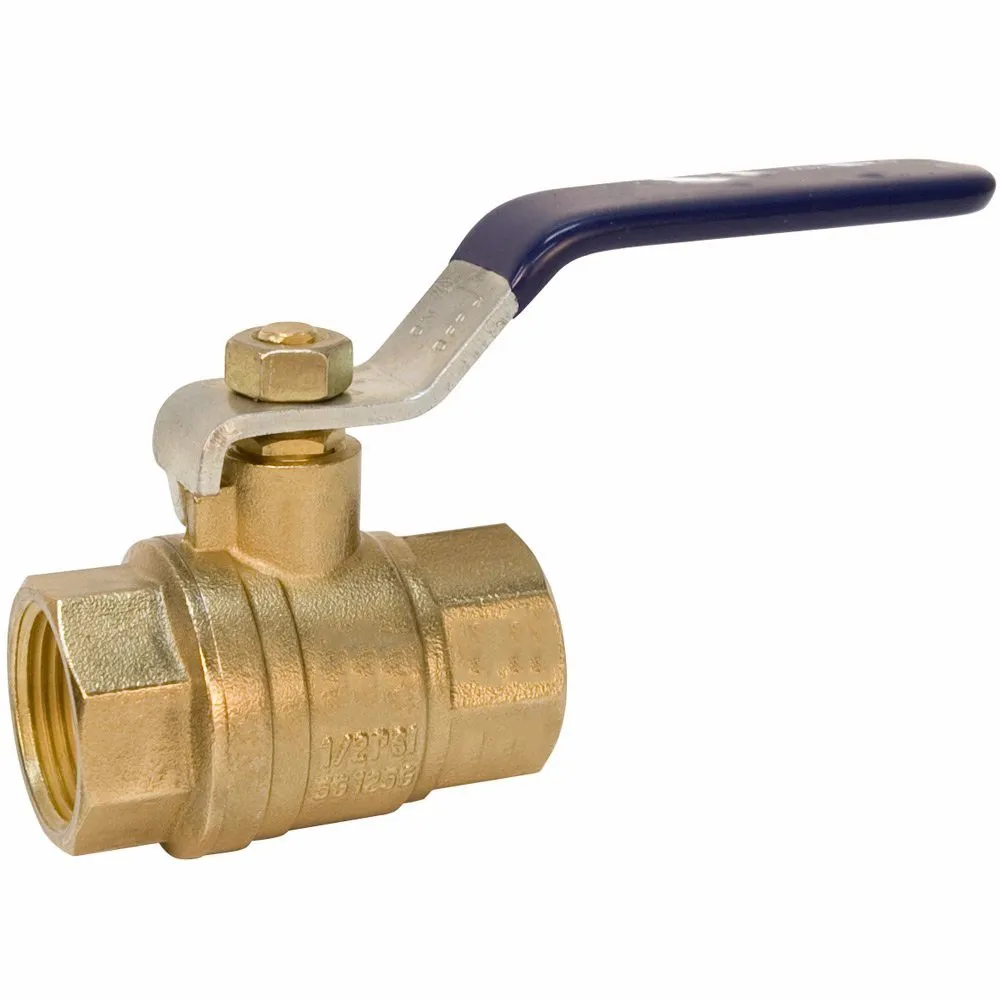

1 Inch IPS 600WOG Full Port FIP Ball Valve Lead Free Brass Non Stiff Open/Close Lever with Hard Chrome Plated Ball
- Category: >>>
- Supplier: Yuhuan Aqua-Migen Machinery Co. Ltd.
Share on (60723524740):
Product Overview
Description
Product Description
Description of product:
NICKEL PLATED BRASS BALL VALVE, FULL PORT 600 PSI (WOG)
NPT Ball Valve(Lead Free)
Forged brass body full port
600 PSI Non-Shock WOG
Packing gland and O-ring on stem is reliable seal mode
Heavy duty rust resistant handle with grip
Thread ends comply with ANSI B1.20.1
Material:C37700、C46400
1/4"~2" ：-40ºC to 65ºC (-4ºF to 149ºF). temperature range
2 1/2"~4"：-20ºC to 65ºC (-4ºF to 149ºF). temperature range
Detailed Images
1/4" Imported Brass Ball Valve from Aqua Valve
Company.
Full Port. Female NPT x Female NPT.
Features:
-For control or air, water, oil and gas in hose or pipe lines.
-Rated to 600 PSI WOG; 150 PSI WSP.
-Forged brass bodies.
-Blow-out proof stems.
-PTFE seats, seals and thrust washers.
-Chrome plated brass balls and plated steel handles.
-Max temp 366ºF.
-NSF61 Approved.
More detailes
Product Name | |
Product Depth (in.) | 2.75 |
Product Height (in.) | 2 |
Product Width (in.) | 5.5 |
Compatible Pipe Material | Copper |
Features | Lead Free,Quarter Turn |
Handle Style | Lever |
Maximum Pressure (psi) | 200 |
Maximum Working Temperature (F) | 200 |
Product Weight (lb.) | 0.7lb |
Payment | L/C,D/P,T/T,Western Union,Credit Card |
Delivery | Ningbo Port,28 days after payment |
Connection End | Female Thread |
Handle Color | Blue |
Valve guarantee | 10000 Times 10 Years |
Function | Kitchen, Home, Commercial, Garden and General |
Products Display
In our own CNAS laboratory, we normally do the
1. life test
2. Dimension
3. Apprearance testing
4. Leakage testing
If you have some specific test we also can do it for you.
Quality Control
The production follow the valve standard strictly. Toyota Lean Production line used by Aqua aim to improve the quality.
We test each piece valve during the production, quality control in forge, machine, assemble and all the process in order to guarantee the quality.
Automatic Machine.
Aqua replace automatic machine to most old type of machine so as to make the products best
Forge Process
1. Automatic forging machine
2. Constant temperature
3. 100% Anneal
Brass Test
Every batch of Valogin test 100%
Other hot sales
If you need more detailes
pls contact :SANDY
Phone :+0086 13864174408
If you need more detailes
pls contact :Dalila
Phone :+0086 13777621981
Packing & Delivery
FAQ
Q1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.Contact Here
Q2. Do you have any MOQ limit for valve order?
A: Low MOQ, 500 pcs for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q4. How to proceed an order for valve?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 10 years warranty to our products.
