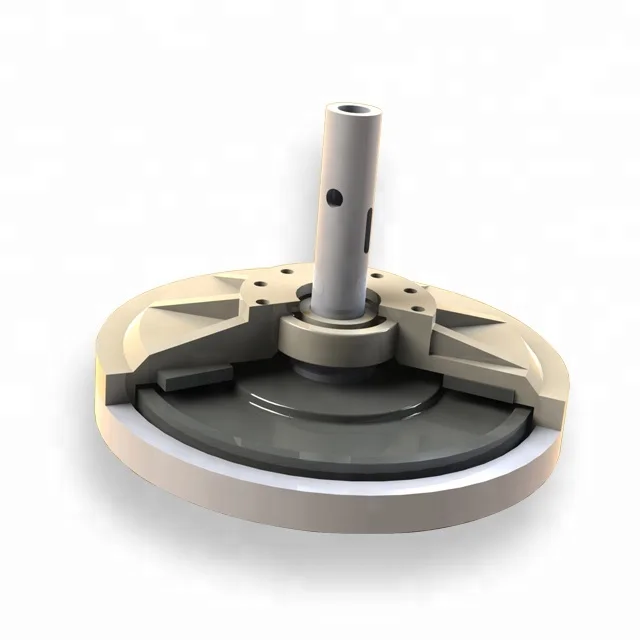

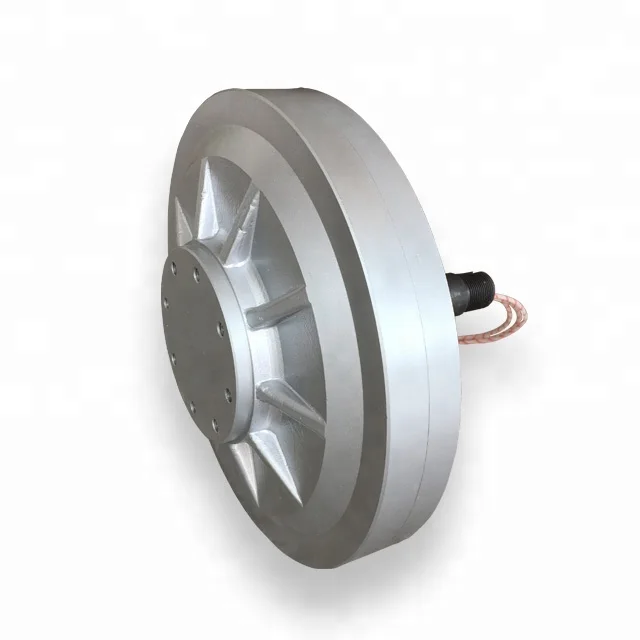

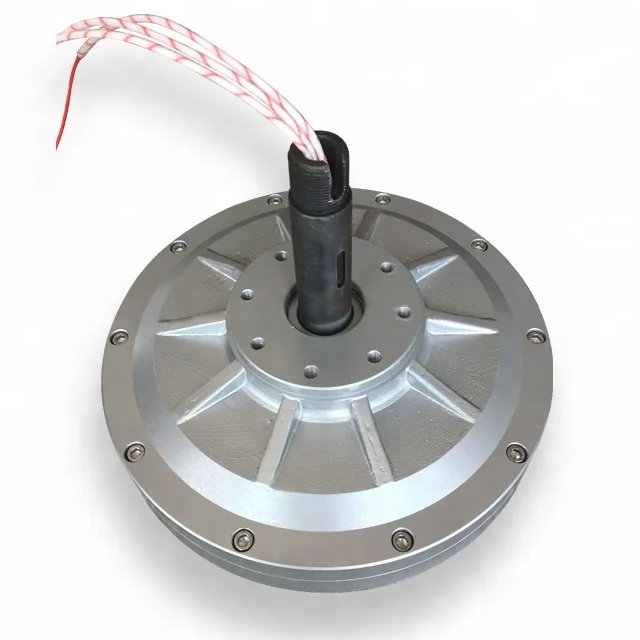

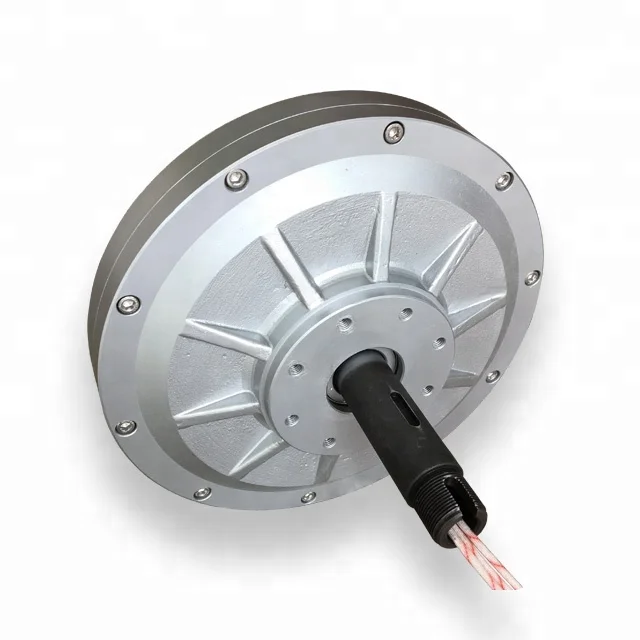

1.2KW low rpm PM generator three phase 320RPM for vertical wind turbine PMG320 1.2KW 320R

PMG320-1.2kW-320R design for 0.5-1kw vertical wind turbine; gasoline generators; hydroelectric generator.

Our disc coreless PMG have advantage in lowRated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure, High efficiency etc.

1. Coreless, anhysteresis, slotless, have low starting torque.

2. No iron loss, have high efficiency

3. Adopt unique coreless precision winding technology design precision coil

4. Adopt the rare earth permanent magnet, which is multiple, mean gap, high power density and high output power.

5. Low speed direct driving, no torque fluctuations

6. Compact structure, high ratio of power to volume

7. No iron loss, low calorific value, small temperature rise

8. Simple structure, easy to install

9. The brushless structure, free maintenance
