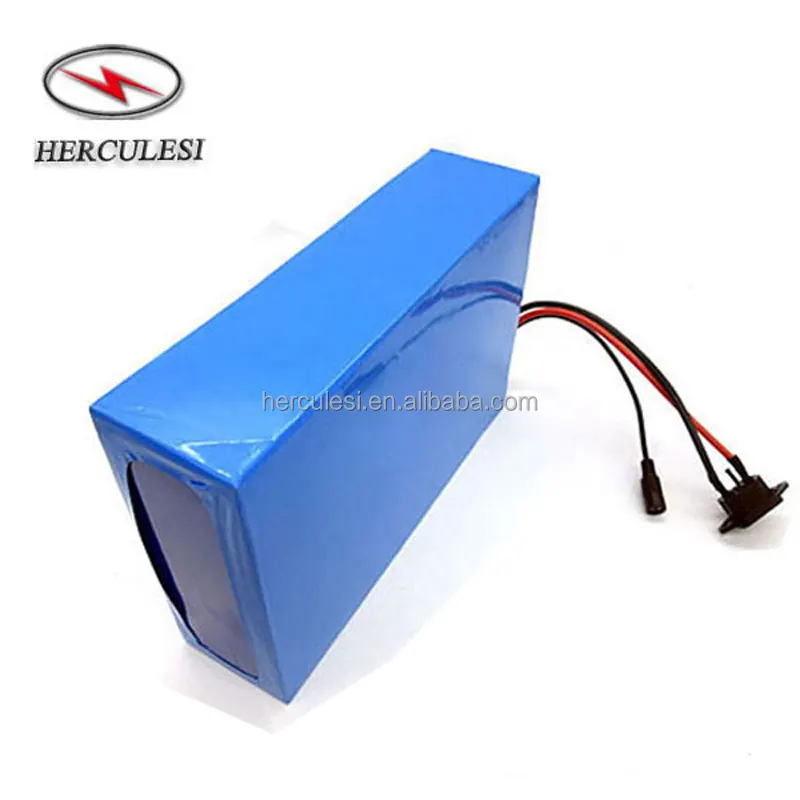

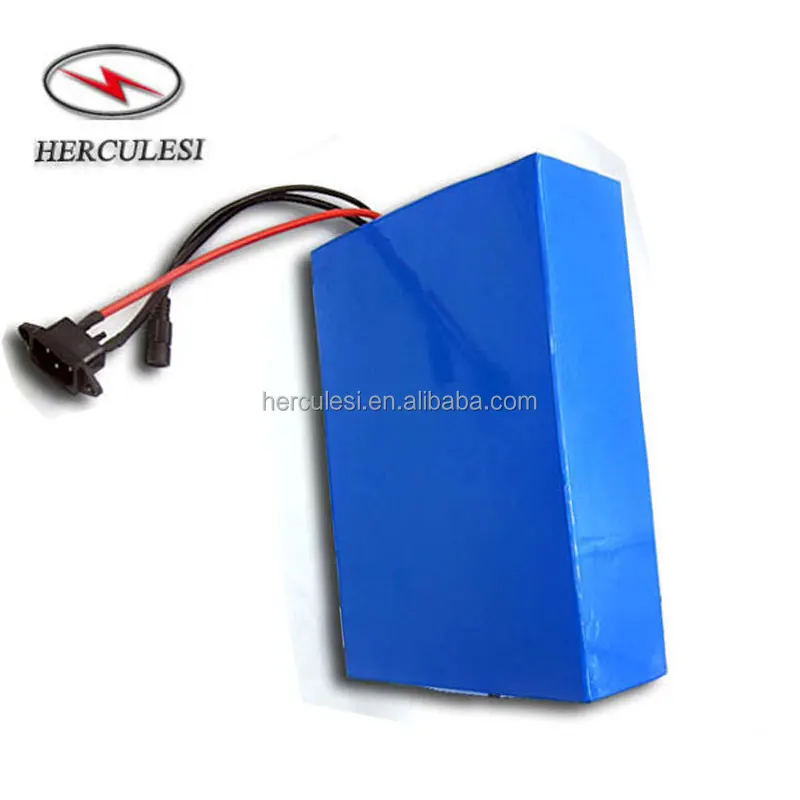

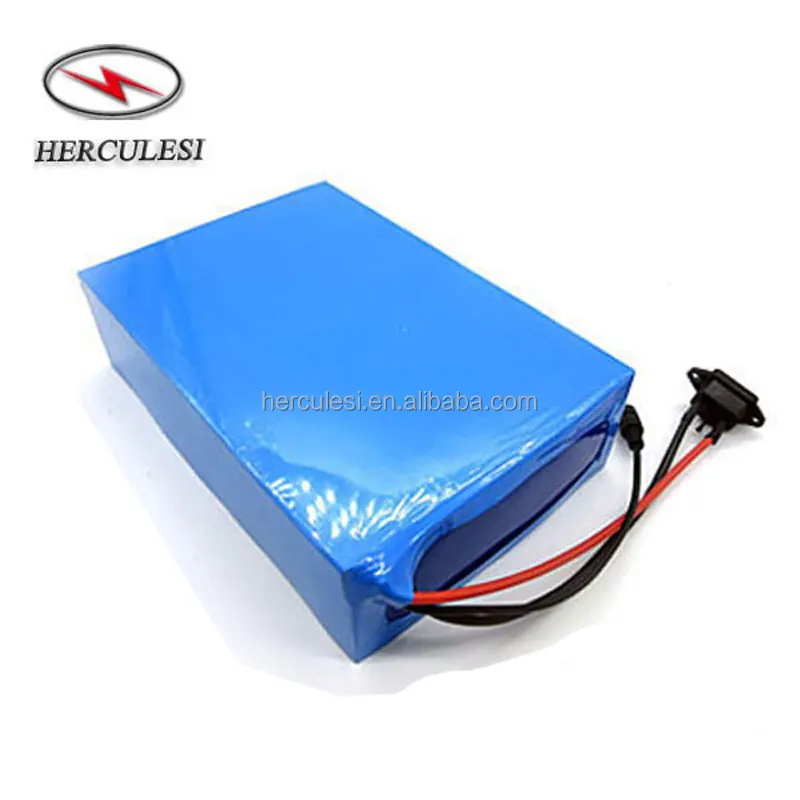

1000W 1500W Electric ATV Quad Bike Lithium Battery 48 Volt 20Ah 30Ah 40Ah 50Ah Li Ion 18650 Battery Pack

 - 48V 20Ah Lithium Ion Battery (LiNiMnCoO2 (NMC) Lithium-ion 18650 cell)
- Nominal Voltage: 48V
- Nominal Capacity: 20Ah
- Battery Energy: 960Wh (Approx.)
- 13 series 9 parallel = 117 18650 3.7v 2200mah cells
- Spot welded with pure nickel strips
- 30A max continuous balancing function built-in BMS
- 60A peak discharge

- Charging Model: CC /CV

- Charging Cut-off Voltage: 54.6V

- Discharge Cut-off Voltage: 36V +/- 1V
- Recommend for motor: 48V 1200W 1000W 750W 500W 350W

- Application: E-Bicycle, Tricycle, Motorcycle, Scooter...
- Dimension: 70*170*255mm
- Weight: about 6 Kg
- Charging/ Discharge Temperature Range: 0~45°C / -20~65°C
- Cycle Life: 800~1000 times

- Passed ISO9001, UL 1642, CE, ROSH, UN38.3

- Battery Warranty: 13 Months

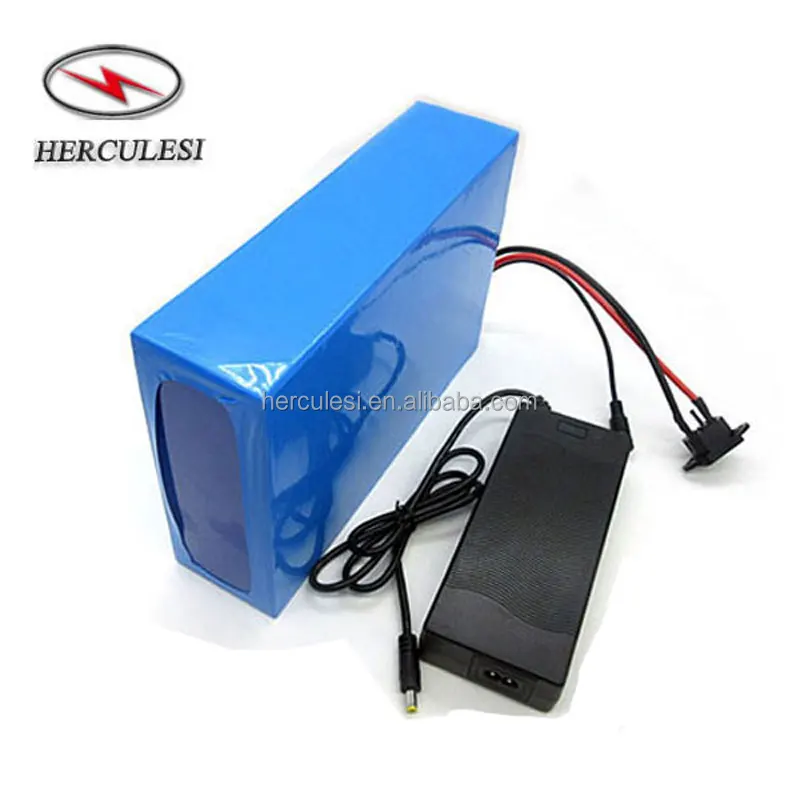

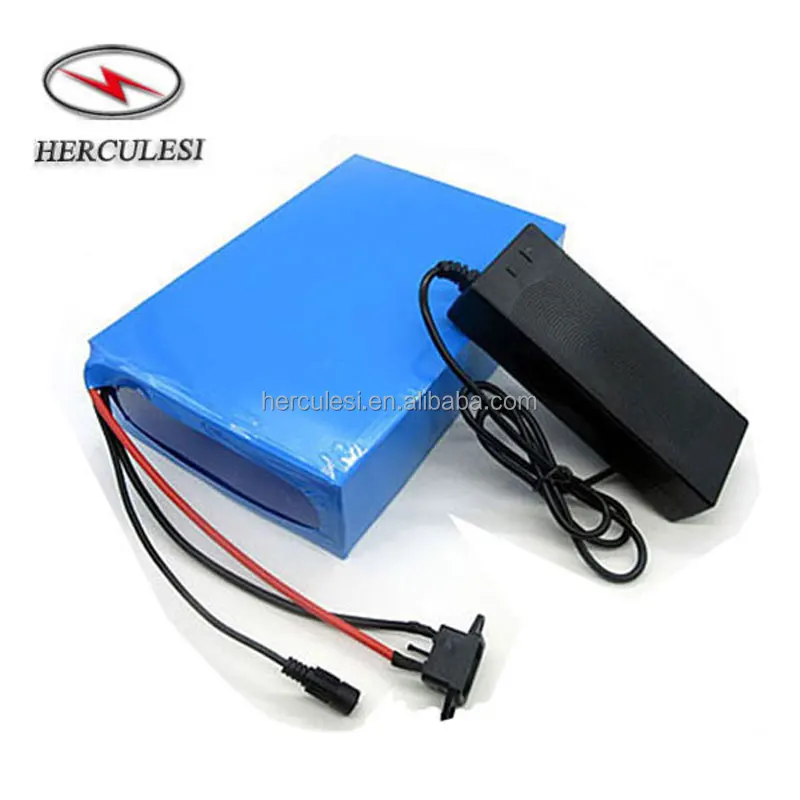

- Part Includes: 1× 48V 20Ah Lithium Ion Battery Pack
                           1× 54.6V 2A Charger

- Charger Specifications:

2A Standard Charger (LED Indicator)
Charging Model: CC/CV
INPUT: 100-240VAC 50/60HZ
OUTPUT: 54.6VDC 2Amp
