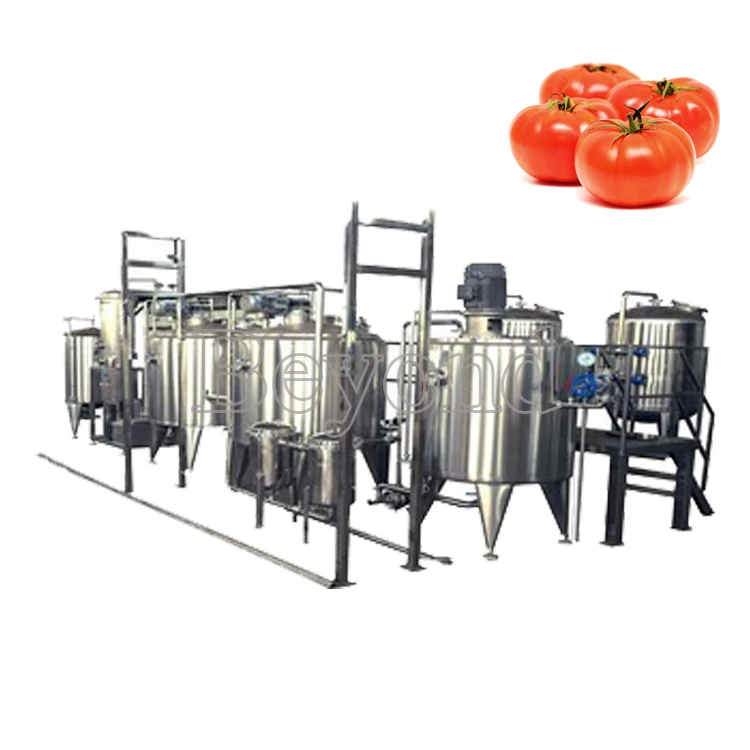

Tomato Paste/sauce/ketchup Making Machine Processing Line Multifunctional Customized

Shanghai beyond offers complete set of  tomato puree production machinery on turnkey basis to produce the following end products from tomatoes.

1. Tomato Puree from  tomato processing line


2. Tomato Paste from  tomato paste production line


3. Tomato Ketchup/Sauces from tomato ketchup puree plant


4. Tomato Juices from tomato juice processing plant

Packing lines can be offered depending upon the requirement like Product in glass bottles, Cans, Drums, etc. Manufacturing process involves most modern technology of vacuum evaporation using forced circulation evaporators/scrapped surface evaporators. Evaporation plants are versatile in nature and can concentrate other juices also.

SALIENT FEATURES:

• High yield up to 90% of juice


• Low energy cost.


• Low temperature evaporation resulting improved quality of products.


• User friendly.


• Semi-automatic as well as fully automatic system available.


• Both hot break and cold break systems available.

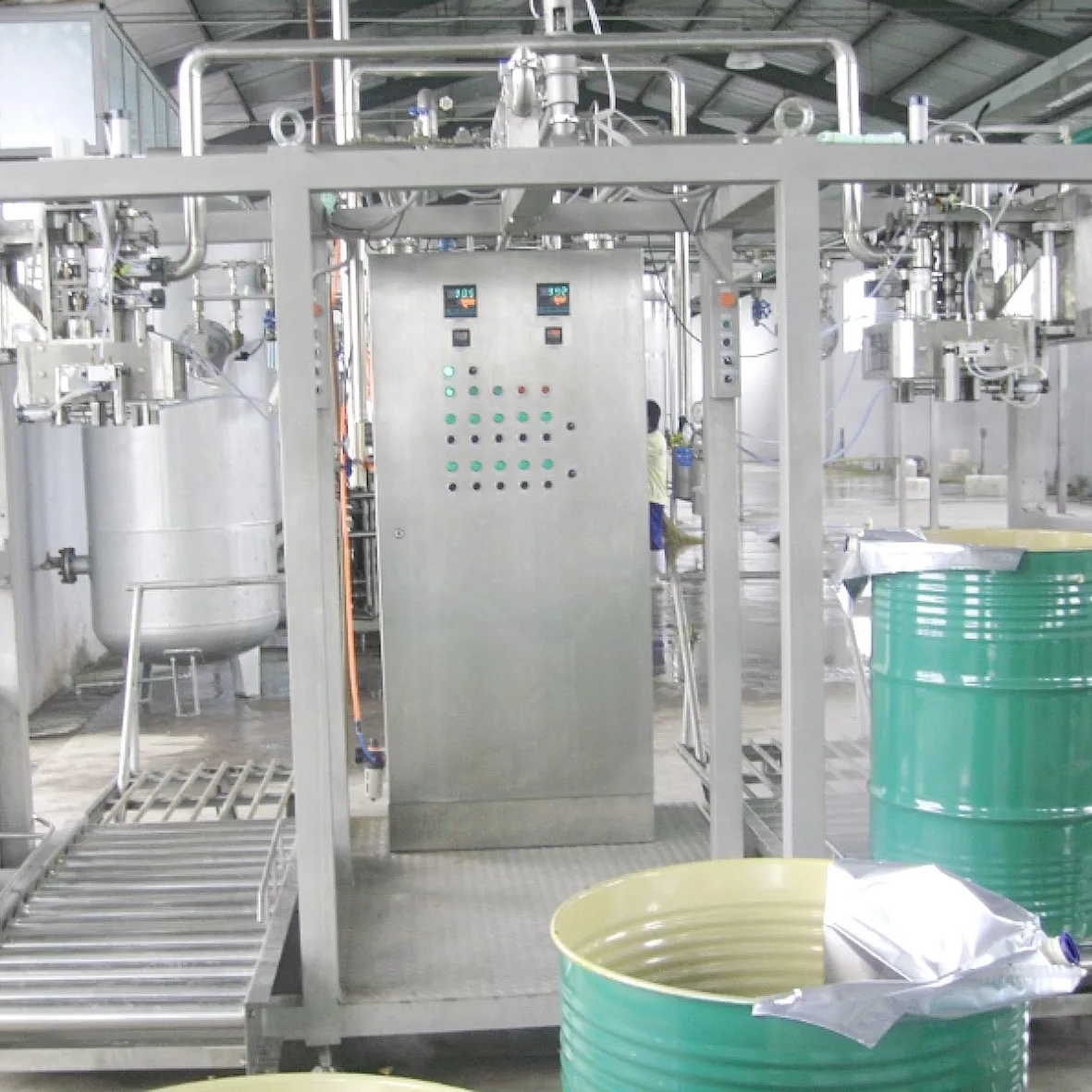

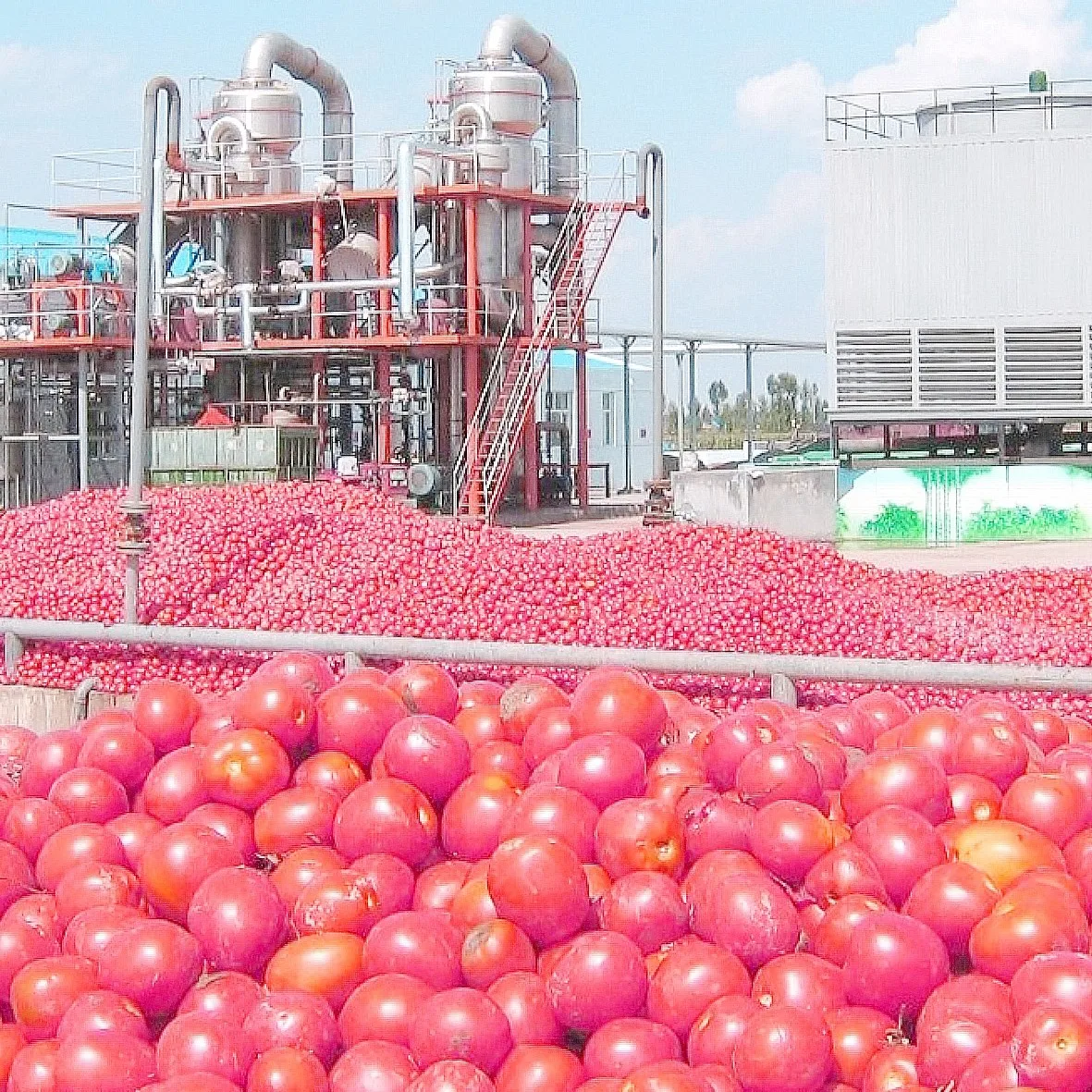

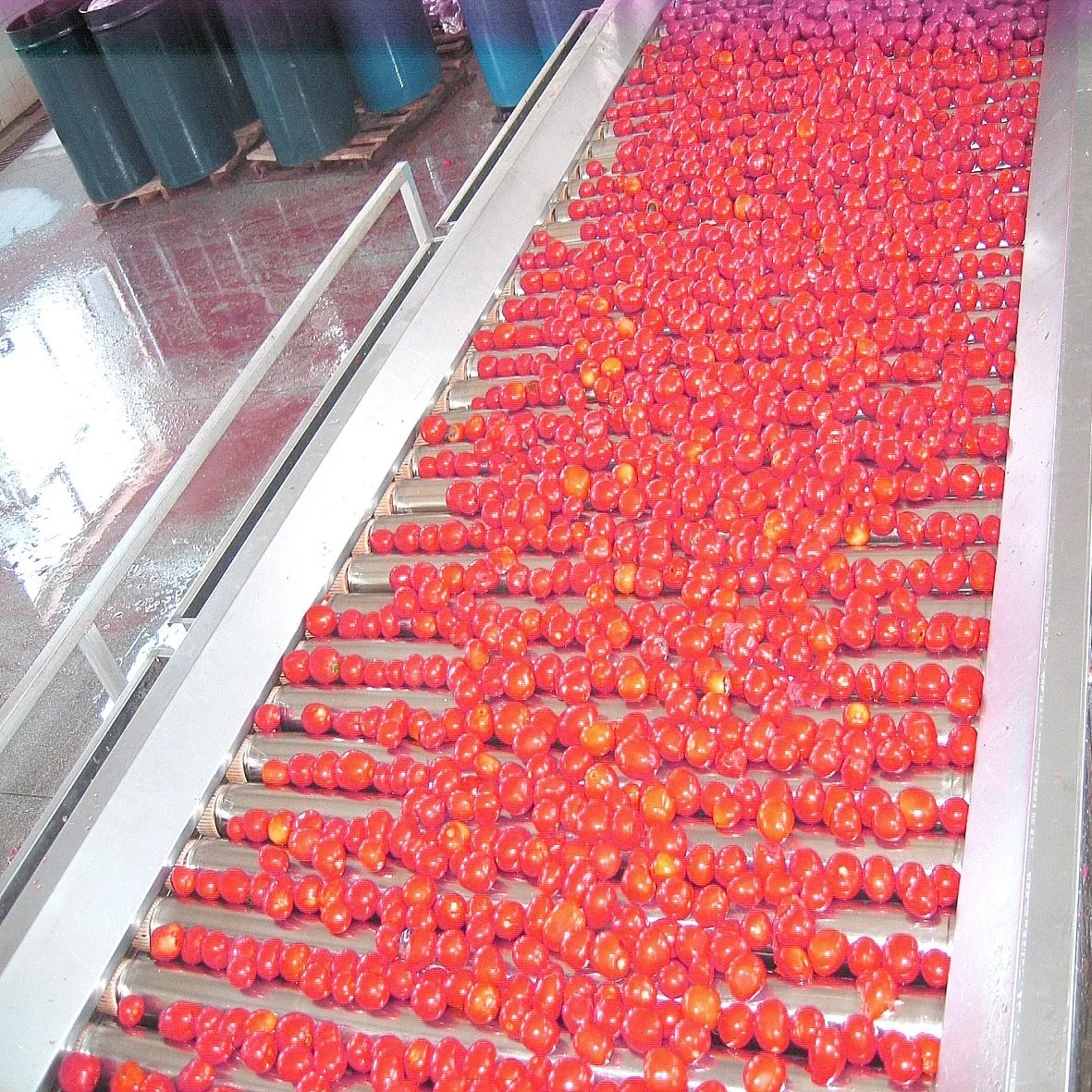

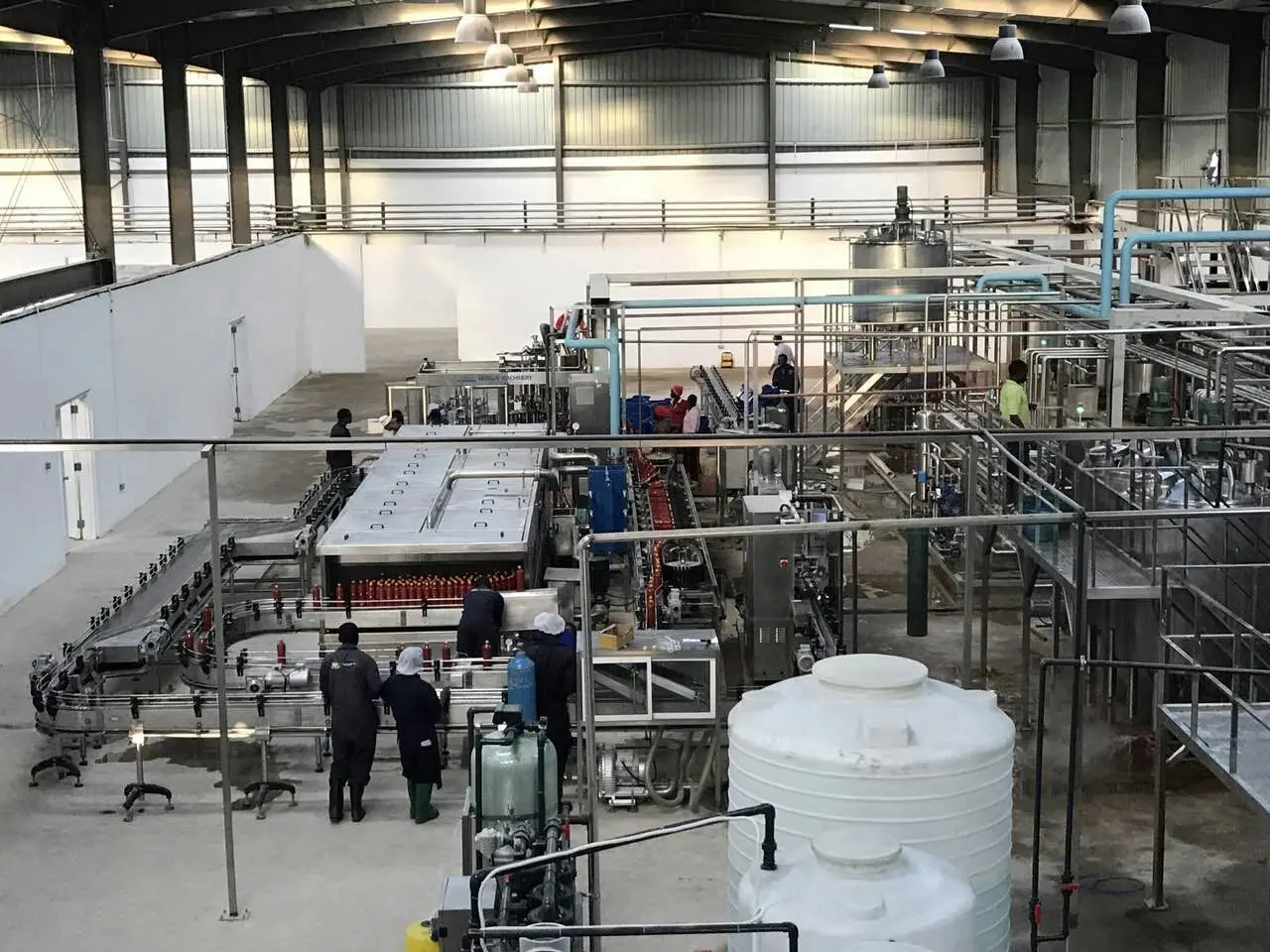

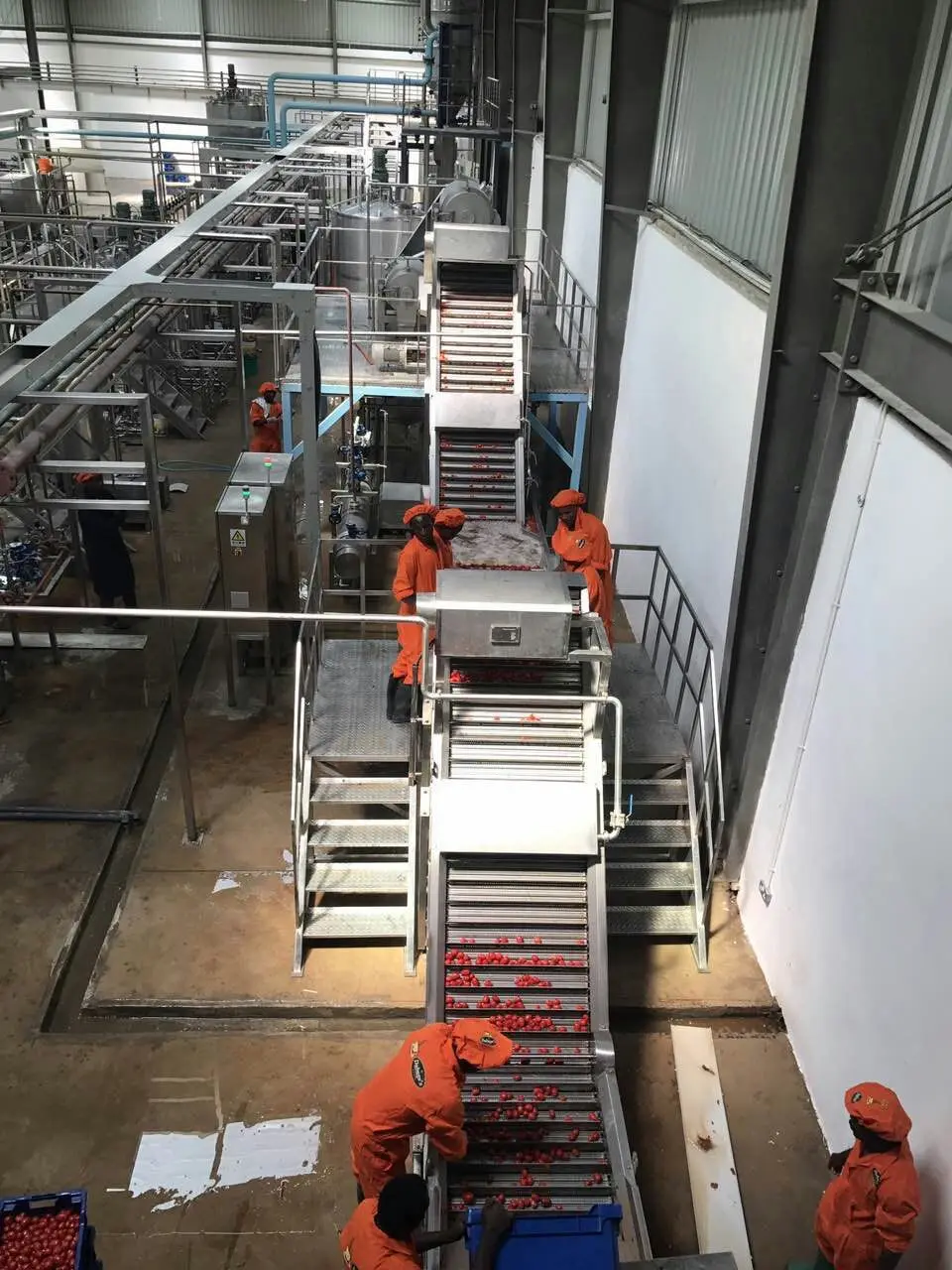

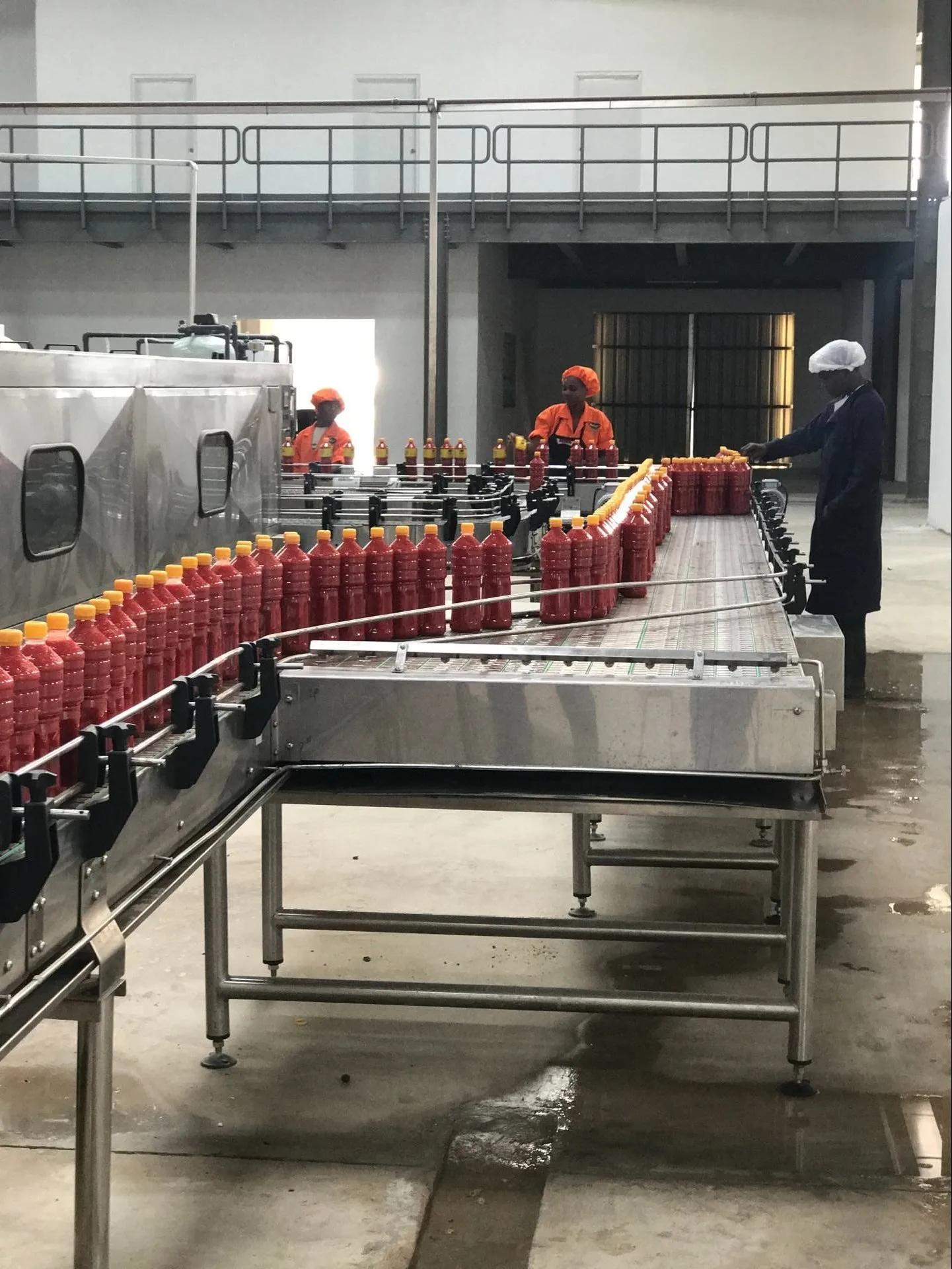

Project Photos Show:

Related machinery of fruit processing line

Fruit storage silo-- Washing, sorting machine-- Grading/classifier machine

Squeeze extractor--Juice refiner—separator—evaporator-- Juice concentrate product

Fruit flesh/pulp collector-sterilizer--filling machine—fruit flesh

Essential oil refiner—fruit oil

Fruit residues collector—animal feed

Soaking extraction, pre-cooking, pulping, quick freeze, stemmer, ultra-filtration, decolor, destoner, crusher, stone washer, brusher washer, pine apple extractor, refiner, enzymolysis, filtration, CIP cleaning system

Service flow chart
