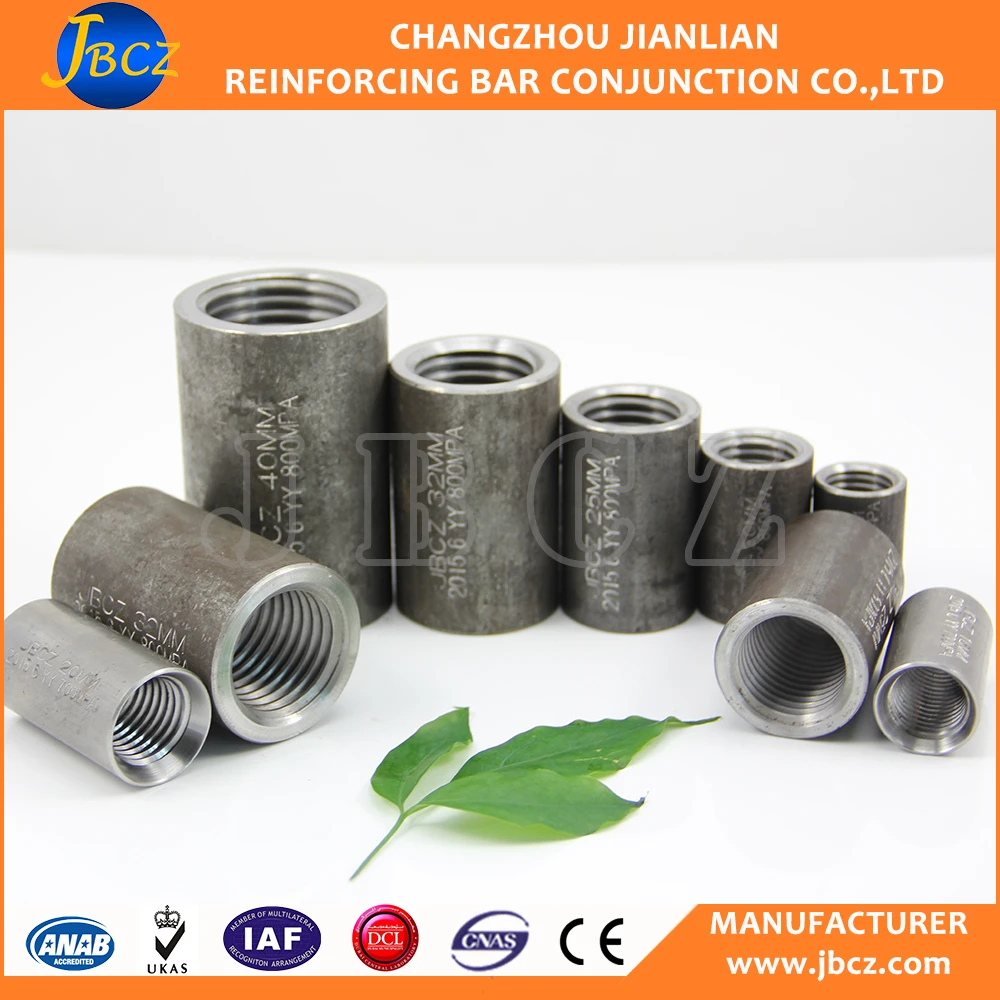

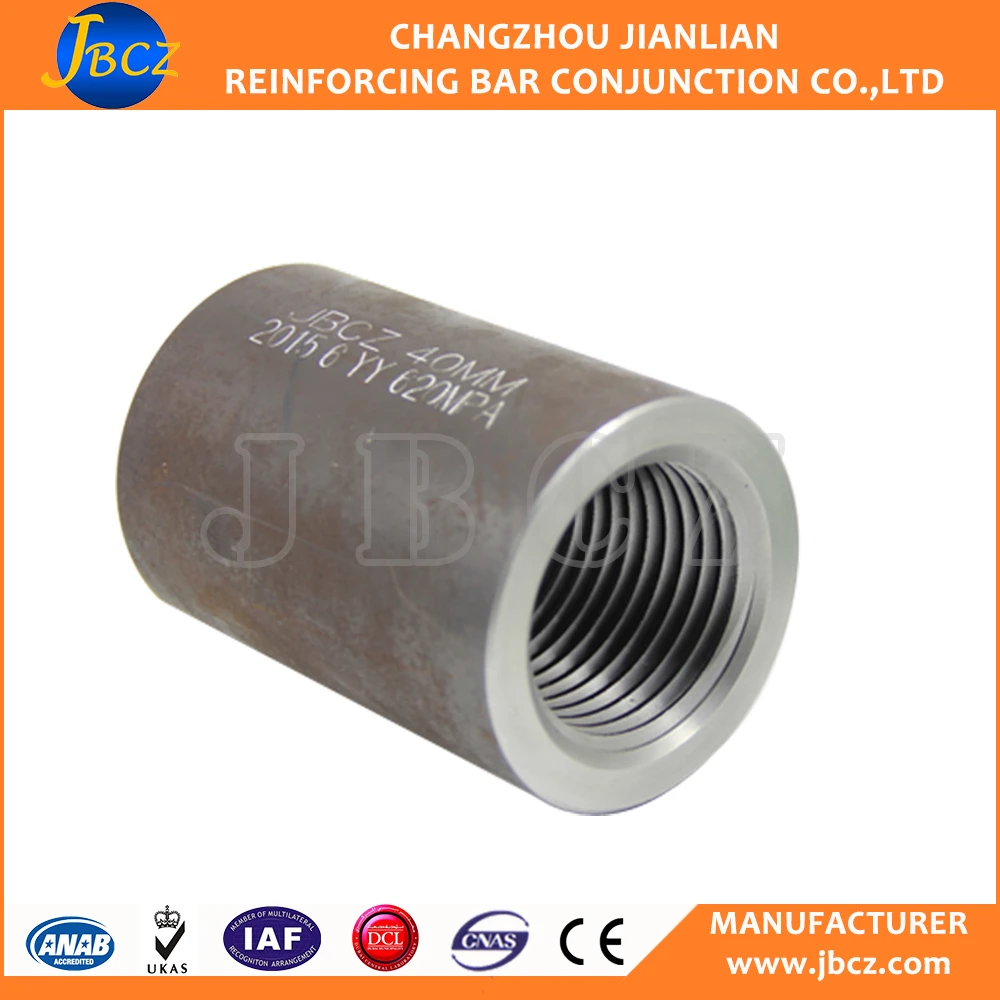

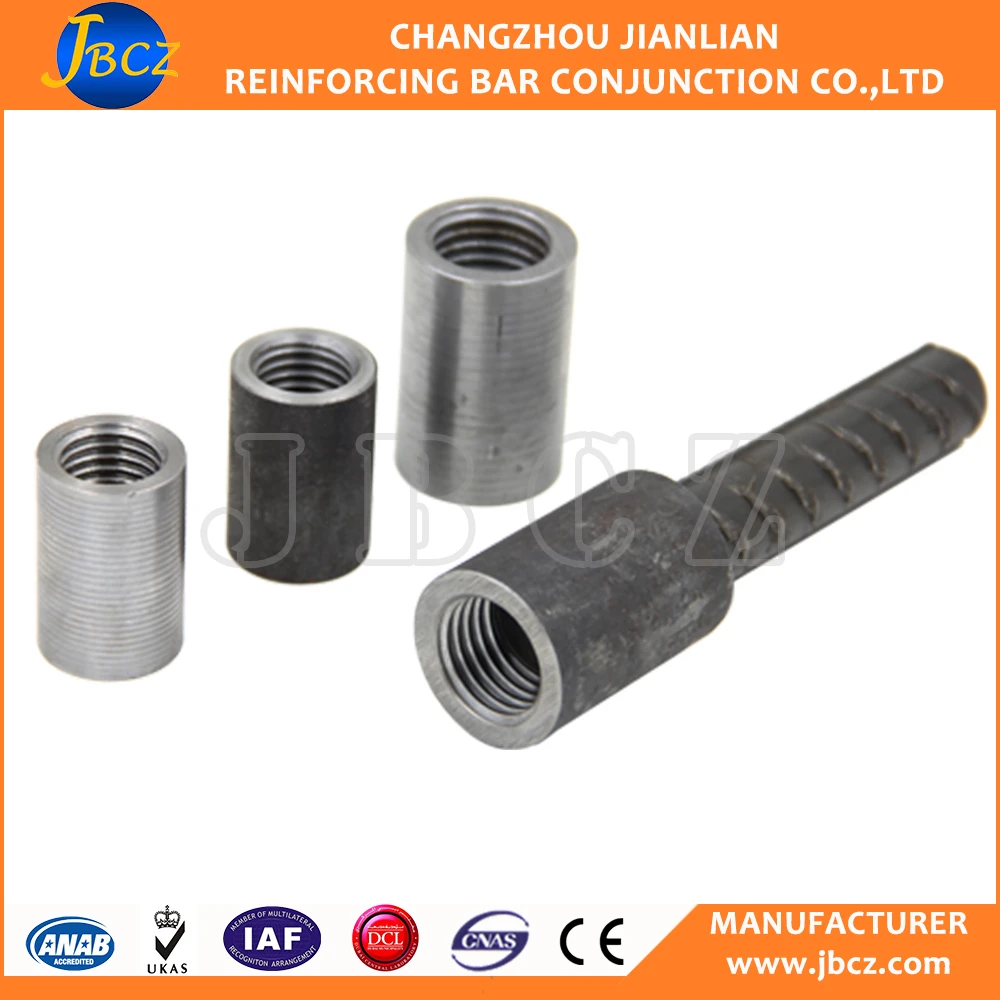

bartec type 2 thread splice rebar coupler for construction

Product Overview

Description

bartec type 2 thread splice rebar coupler for construction

Some of the early-stage ways of reinforcing bar connection used in construction mostly can be divided into two ways. One is welding,the other one is overlapping.In the memory of everyone,there are always some welding workers with masks in the construction site.For the people who have not used rebar mechanical splicing before or who do not understand the technology,a new product,whether it is suitable for reinforcing bar connection and how the quality after connecting?How about the comprehensive costs?

These issues always confuse us,JBCZ entered into reinforcing bar connection since 1987 including R&D ,manufacturing,at the same time we have more than 400 job-site workers.We used our own products in the construction site ,contracted projects and personally experienced the projects.So we have professional experience in the field of site operation,connection speed,connection effect,connection quality, Artificial application, material application as well as comprehensive cost.

Rebar straight thread coupler connection is 100% higher than the strength of rebar base material,100% ensure that break on steel bar outside coupler during the ultimate tensile test .meet the standard of American ACI-318 Type 2,pass CARES test TA1-A,the highest authority of International test. Application of British standard BS4449,American standard ASTM,German standard,French standard,Korea,etc.All of different strength of reinforcing bar connection.

bartec type rebar coupler

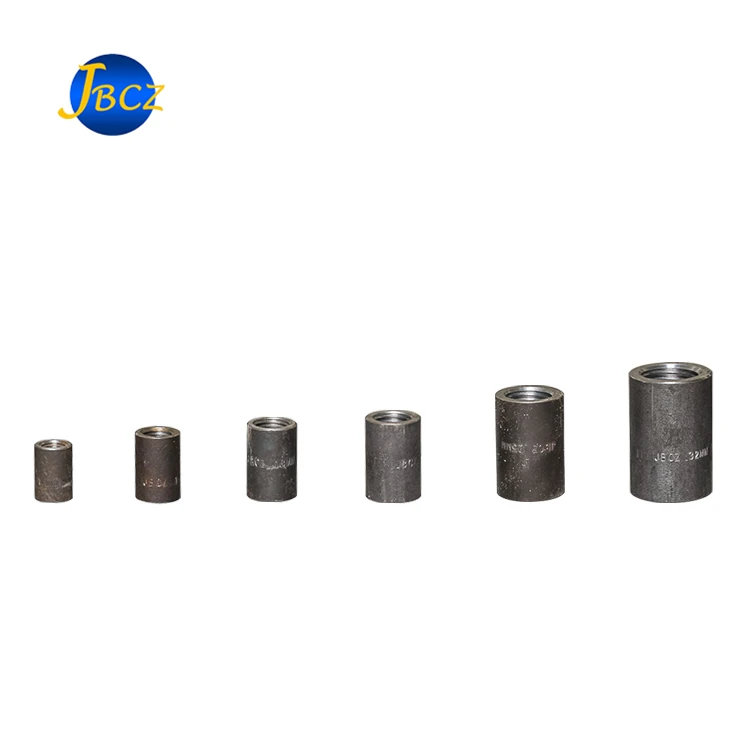

Steel bar Diameter(MM)	Out Dia.(MM)	Length of Coupler(MM)	Size of Thread(MM)
12	20	30	M14*2
14	22	34	M16*2
16	26	40	M20*2.5
18	29	44	M22*2.5
20	32	48	M24*3
22	36	52	M27*3
25	40	60	M30*3.5
28	44.5	66	M33*3.5
32	50	72	M36*4.0
36	56	80	M39*4.0
40	62	90	M45*4.0

Upset forging parallel thread steel bar coupler can make sure 100% Bar Break Performance, it can connect steel bar diameter from 12mm to 40mm.

Description of construction material thread rebar couplers :

1. This type of construction building material threading rebar coupler is matching rebar thread processed by rib peeling thread rolling machine.

2. Reliable quality, the raw material origin and production batch can be traced.

3. Full implemention according to ISO9001:2000 quality management system.

4. Can link rebar with diameter from 16 mm to 40mm.

5. The tensile strength of splicing is equal to the rebar.

6. Easy operation and rapid connection.

7. Protective plastic cap for Mechanical rebar coupler and cover for threaded bar is available.

bartec type rebar coupler

Remarks:

According to Chinese standard GB 1499.2-2007,

For rebar HRB400:Tensile strength≥540Mpa,Yeild strength≥400Mpa;

For rebar HRB500:Tensile strength≥630Mpa,Yeild strength≥500Mpa.

The upset forging parallel thread connection technology can not only be used for the connection of HRB400 rebar, but also for other rebar, such as HRB500, Gr.60, Gr.75, Gr.80, B500B,B500C, etc. Those of tensile strength is more than 700Mpa and so on.

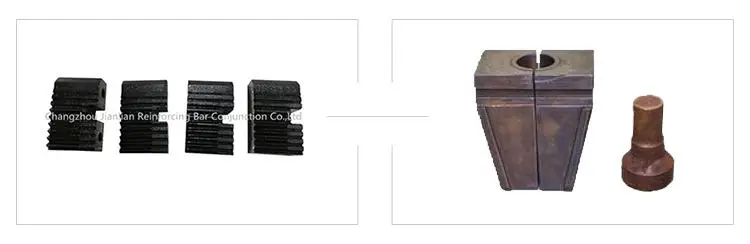

Machine Parts    Name: Chaser    Brand:JBCZ    Original: China    Make thread on enlarged rebar.    used in GZL-45 threading machine    Process range: 12-40MM    Lifespan:promise to process HRB400 rebar 25MM for                 example,can  process 2000pcs,will be more than 2000 pcs actually.

Machine Parts Name: Chaser Brand:JBCZ Original: China Make rebar end enlarged. Used in GD-150Forging machine Process range: 12-40MM Lifespan:promise to process HRB400 rebar 25MM for example,can process 2500pcs,will be more than 3000 pcs actually.

Packing Details :Machines are packed into wooden cases, or according your requirements; rebar couplers are packed in carton box with antirust bag;

Delivery Details : Within 7-25 days after receiving the payment.





1. Shorten your engineering period -- the two rebars can be connected within 35 seconds;

2. Catch the highest quality -- 100% broken rebars, no safety worrying, can past any safety quality test;

3. Save rebars -- give up weld and colligation rather than our connecting methods, can save many rebars materials.

4. JBCZ certifications-- satisfy DCL, ACI-318, KBR, ISO9001, BS8110, Slip Test, American Element Test and so on.

5. JBCZ is the first manufacturer of rebar splicing system in China, since 1987.

6. JBCZ is not only having Chinese Production Line, but also having CNC Production Line.

JBCZ entered into reinforcing bar connection since 1987 including R&D ,manufacturing,at the same time we have more than 400 job-site workers.We used our own products in the construction site ,contracted projects and personally experienced the projects.So we have professional experience in the field of site operation,connection speed,connection effect,connection quality, Artificial application, material application as well as comprehensive cost.

bartec type rebar coupler

                 JBCZ enterprise established in 1987, covered an area of 30,000 m², building area of 20,000 m², who

               has Chinese government's official Land Certificate and Premises Permit. JBCZ has 300 staffs, and

               includes Production Department, Domestic Engineer Construction Site Department, International

               Trade Department, International After-sale Department, New Product Research and Develop

               Department, Corporate...

bartec type rebar coupler

1. How many set machine a 20 foot container can put?

4sets Upset forging parallel thread machine. Total 10 wooden cases.



2. How can I know the quality of JBCZ rebar coupler?

We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.



3. Where is your company?

Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!



4. Are you trading company or manufacturer ?

We are manufacturer, you are welcome to visit our factory.



 5.How long is your delivery time?

Generally it is within 5-10 days if the raw materials are in stock. or it is within 15-20 days if the raw materials are not in stock, it is according to quantity.



 6.Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge.



 7.What is your terms of payment ?

A: Payment 100% in advance. Can communicate.

B: All the payment go through Aliababa Onetouch or Alibaba assurance payment.



8. What’s your tensile strength and yield strength?

Our standard rebar couplers can reach tensile strength over 620MPA; and yield strength over 420MPA.

We also can manufacture super strength rebar couplers, just please tell us your requirements.
