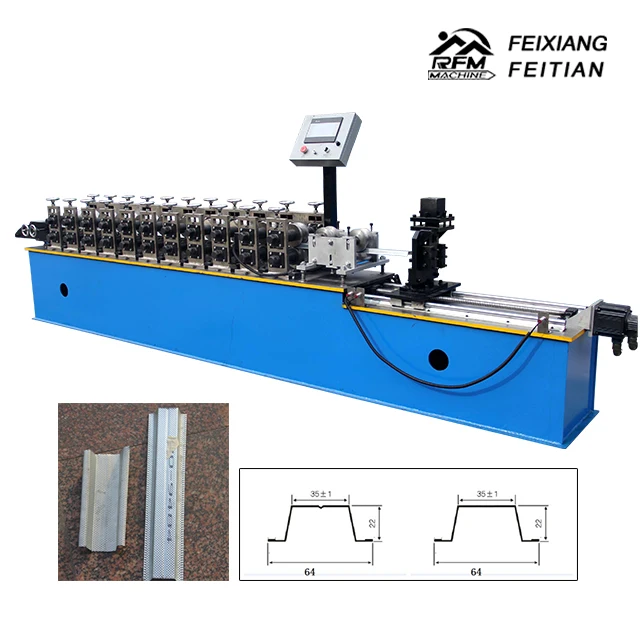

NEW type top hat ceiling batten roll forming machine
- Category: >>>
- Supplier: Dongguang County Feitian Cold Roll Forming Machinery Co. Ltd.
Share on (60723652595):
Product Overview
Description
NEW type top hat ceiling batten roll forming machine
Product Description
Summary of furring channel making machine
1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 1 7 + years experience ;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 60m/min ;
5). Very easy to install and operate the roll forming machine.
Machine working flow of furring channel making machine:
Machine Technical Specifications of furring channel making machine:
About raw material and product for roll forming machine
Material &product | Feeding width | according to profile |
Effective width | according to profile | |
Raw material | galvanized steel strip | |
T hickness | 0.3-0.7 mm | |
Yield strength | 280-350 MPA |
How to load the material??→Decoiler
Manual decoiler | Inner diameter:450-550mm | Expand by band |
Outer diameter:1500mm | ||
Max Coil width :30 0mm | ||
Capacity: 1.5T | ||
Decoiler dimension:1.5 *1.5*1.5m | ||
Decoiler weight:355KGS | ||
Quantity: 1set | ||
Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system | ||
What the main forming machine will be???→as below
Main Forming machine | Forming steps | 12 steps |
Shaft diameter | 50mm | |
Machine stand | Individual Arch Plate | |
Machine frame | steel plate welded | |
roller material | Cr12 | |
shaft material | 45# steel with quenching and tempering | |
Work speed | standard: 20---25m/min; 45---60m/min | |
Transport | By gear | |
Power of main machine | 4kw | |
Voltage | 380V-50HZ-3P(as required) | |
Machine dimension | 5.5*0.8*1.5m | |
Machine weight | About 2.5T | |
Machine color | Yellow and blue(as required) | |
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. | ||

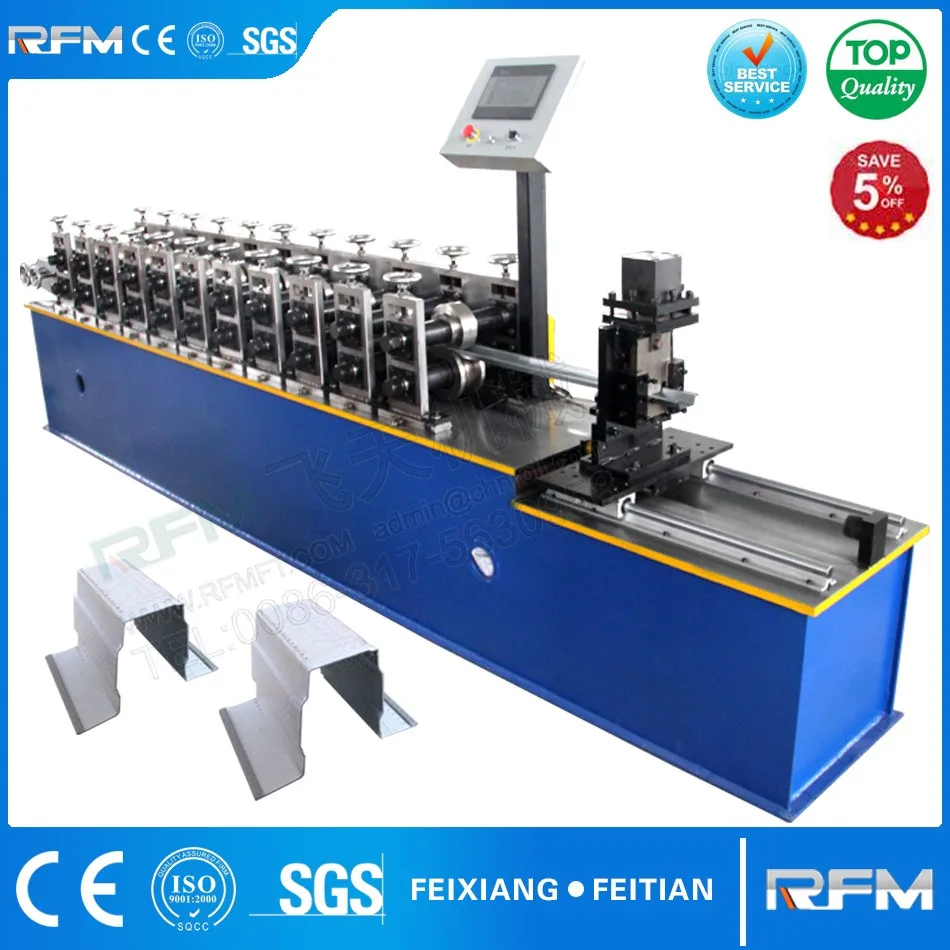

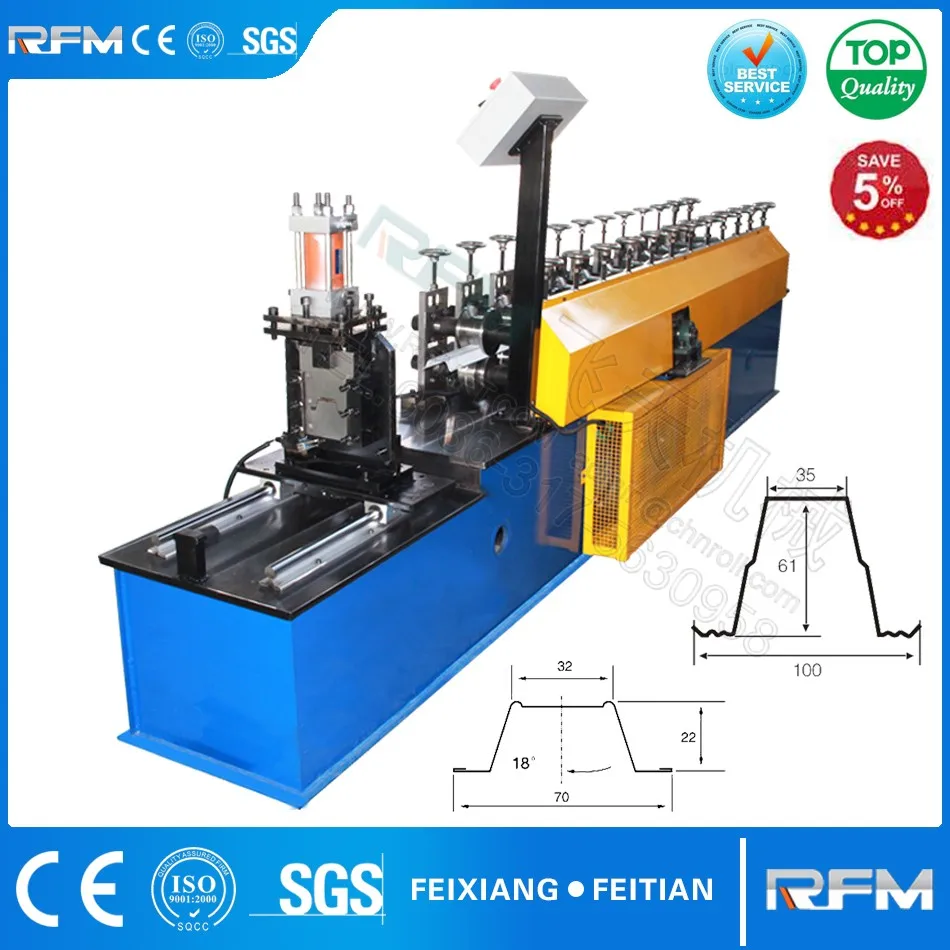

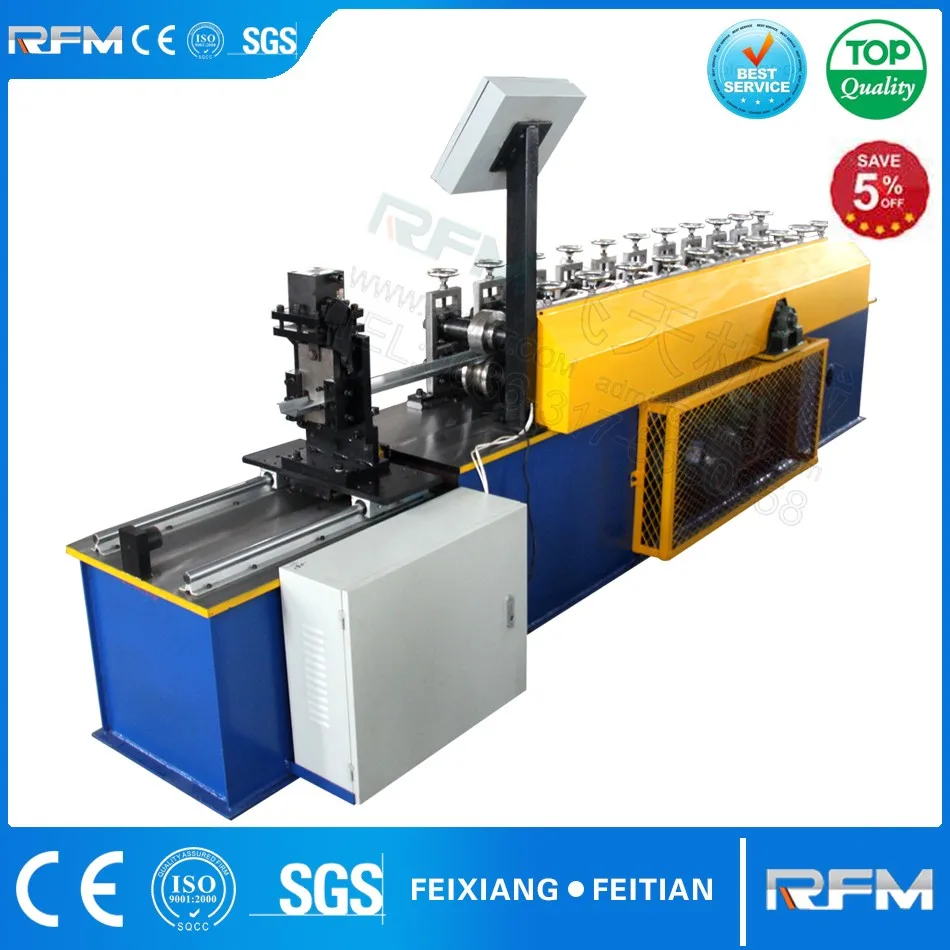

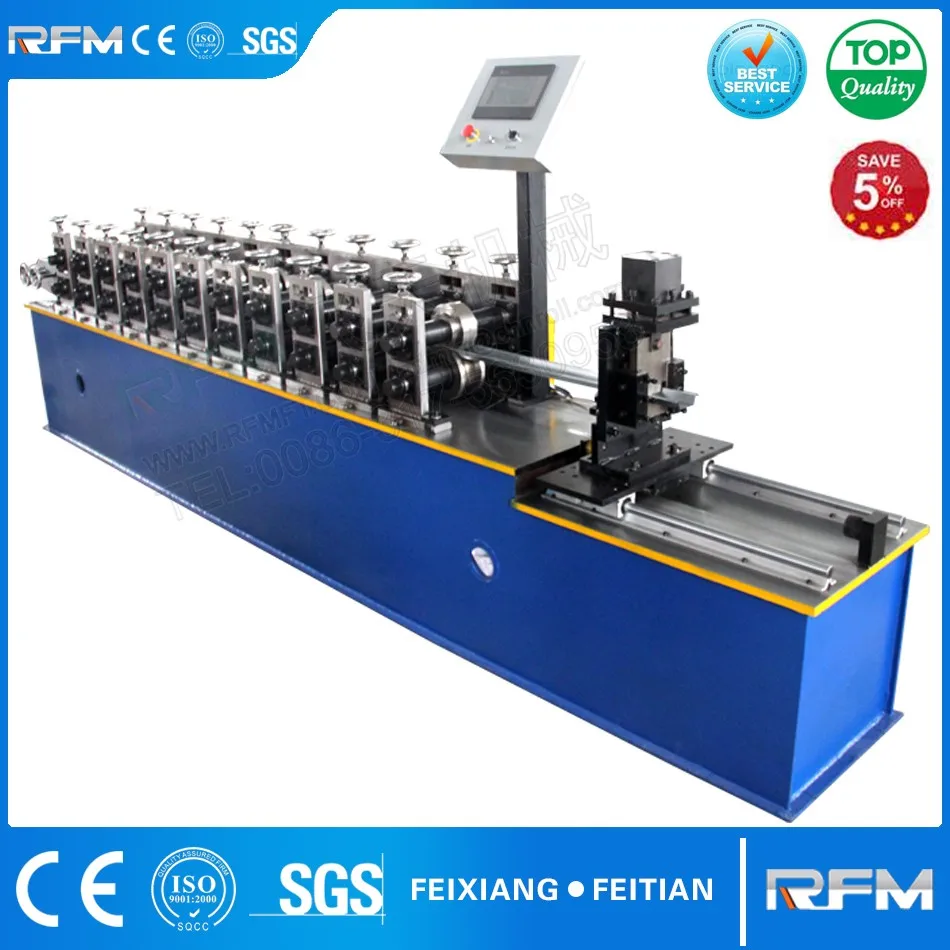

Product Pictures
Our Customers
We do together , dear customers !
Meeting you, growing with you, enjoying with you, supporting you!
Shipment
Package
Main machine: all rollers will be brushed unti-rusty oil, and packed with waterproof plastic film
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation
Company Information
Our company is located in Botou City of Hebei Province, next to 104 National Highway. We are specialized in producing different types of automatic cold roll forming machines, such as stone-coated roofing tile line, Light keel roll forming machine, shutter and door frame roll forming machine and automatic partial adjustment C purlin machine.
At present, steel construction is widely used and in great demand. In order to meet the increasing market demand for roll forming machines in different shapes of metal sheets, we have made great investment to improve flawless techniques. Our professional technicians and skilled workers ensure high quality products for our customers with perfect quality management and testing systems.
The success of our company comes from success and development of our customers. We bear this in mind in the whole process from design, product research and development to after sales service. What we value is reputation and service, what we sell is quality and technology.
We warmly welcome old and new clients from all over the world to visit our company and establish business relationships with us. We do believe our mutual cooperation will create a brilliant future.
FAQ
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
