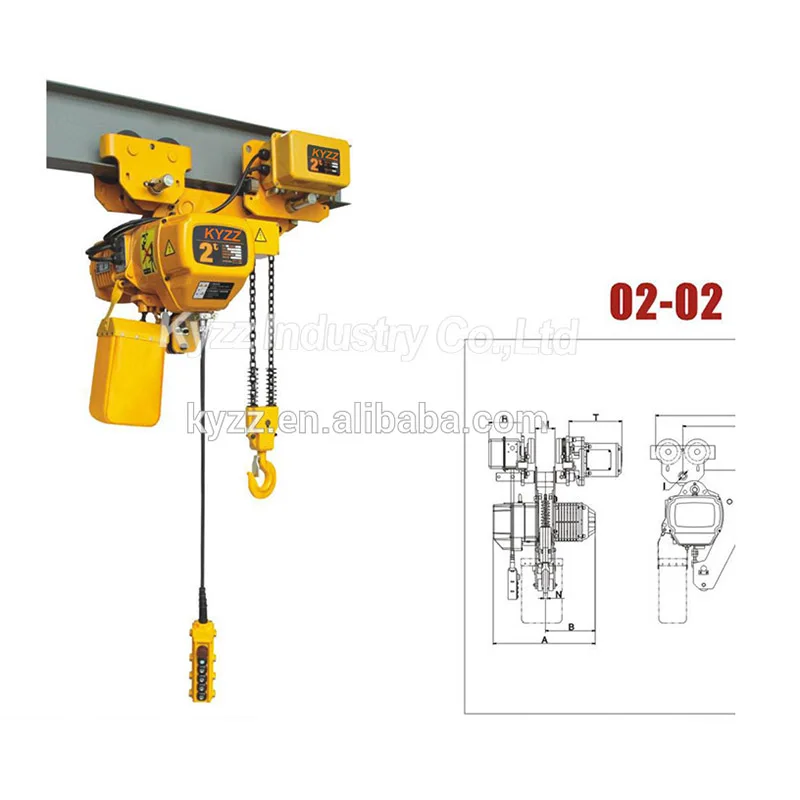

2 ton Electric Chain Hoist with Electric Monorail Trolley
- Category: >>>
- Supplier: Shanxi Kyzz Industry Co. Ltd.
Share on (60723695318):
Product Overview
Description
3 ton electric lifting hoist crane with Monorail Trolley
Product Description
2 ton Electric Chain Hoist with Electric Monorail Trolley
Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.
Technical Parameters:
| Technical Specification | ||
| 2t Electric Chain Hoist With Hook Type — HHBB02-01SE | ||
| Model | HHBB02-01SE | |
| Capacity(t) | 2 | |
| Standard Lifting Height(m) | 3 | |
| Lifting Speed(m/min) | 6.6 | |
| Lifting Motor | Power(kw) | 3 |
| Rotation Speed(r/min) | 1440 | |
| Phases | 3 | |
| Voltage(v) | 200-660 | |
| Frequency(Hz) | 50/60 | |
| Operating Motor (Electric Trolley Type) | Power(kw) | 0.4 |
| Rotation Speed(r/min) | 1440 | |
| Operating Speed(m/min) | 11/21 | |
| Phases | 3 | |
| Volatge(v) | 200-660 | |
| Frequency(Hz) | 50/60 | |
| Load Chain Falls | 1 | |
| Chain Specification | Ø10.0 | |
| Test Load(t) | 2.5 | |
| Weight(kg) | 115 | |
| I-Beam(mm) (Electric Trolley Type) | 82-178 | |
| Chain Add Weight Per Meter(Kgs) | 2.3 | |

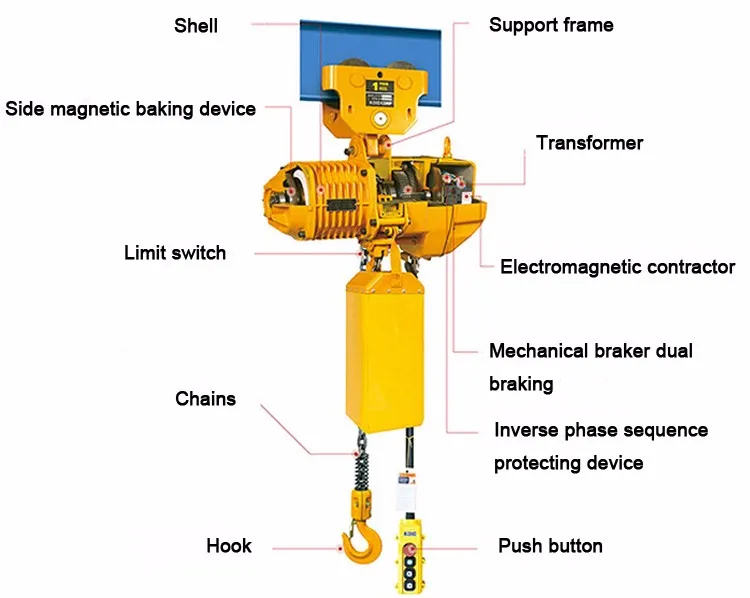

* Sheel:
1. The Electric Chain Hoist is made of light aluminum alloy shell, light but hard.
2. With cooling fin, easy and quick Bring the Heat out.
* Break System:
1. Side Magnetic Braking Device, Ensure lock the hoist
2. Mechanical braker, Dual braking system, much more safety.
* Limit Switch:
With up & down Limit Switch, to prohibit the chains from exceeding for safety.
* Chain:
FEC G80 Chain, Origina imported from Japan. Anti-Rust and Anti-corrosion
* Electromagnetic contactor:
1. With Schneider Electric (TESSIC), can be used safely under high frequency.
2. Can be installed Variable-Vrequency Drive (VFD Electric) Can be suitable for Singlle Phase Power supply.
* Inverse phase sequence protecting device:
It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.
* Gear:
The gear made of alloy steel, Through the heat treatment.
* Level of Protection Grade(IP Grade):
1. Hoist IP Grade: IP54
2. Push Buttom IP Grade: IP65
* Power supply:
All kinds of voltage can be custom-made. 200V-660V, 50HZ/60HZ, 1P/3P
2 ton Electric Chain Hoist with Electric Monorail Trolley
* Working Grade:
M4/1Am
