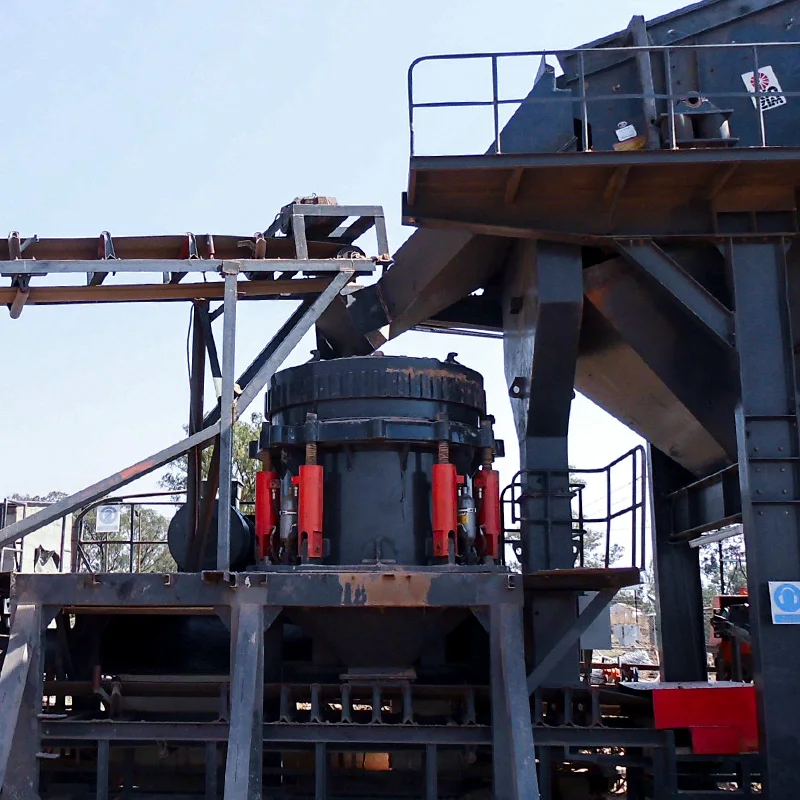

Energy Saving Single Cylinder Hydraulic Cone Crusher From Zhongde

Product Overview

Description



Single-cylinder hydraulic cone crusher is designed for crushing medium-hard to hard mineral rocks, stones, ores, and other materials. This equipment is typically used for secondary, tertiary or quaternary crushing, serving as an ideal complement to jaw crushers or gyratory crushers.



Its outstanding features include high crushing ratio, high production capacity, low energy consumption, large processing capacity, and low operating cost.



Single-cylinder cone crushers are widely used in mining, metallurgy, construction, chemical and energy industries.



Applicable Materials





The compression strength of the materials to be crushed is less than 320 MPa. Single-cylinder cone crusher can be used to crush gold ore, construction waste, concrete, asphalt, limestone, cobble, granite, quartz, dolomite, marble, basalt, iron ore, copper ore, glass, gypsum, kaolin, bluestone, etc.

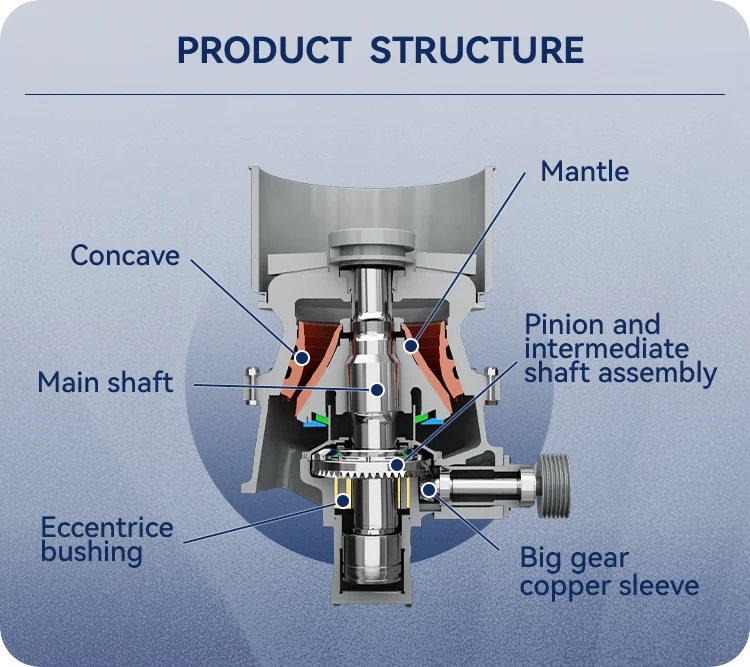

Product Structure



The main components of the single-cylinder cone crusher are concave, mantle, bowl-type bearing, copper bush, main shaft, etc.



Wearing parts, including bowl lining, concave, main frame, adjusting ring, pinions, and gears, require regular maintenance and replacement to ensure consistent production efficiency and prevent unexpected downtime. By proactively addressing the maintenance needs of these components, our customers can optimize their operational continuity and productivity.





Outstanding Advantages



Zhongde Mining Machinery's single-cylinder hydraulic cone crusher offers large production capacity and high crushing efficiency.



1. Key feature: The single-cylinder hydraulic cone crusher has powerful crushing capability, suitable for all demanding crushing requirements, effectively crushing various hardness and types of ores, rocks, and other materials.



2. Large production capacity: the maximum production capacity can reach 2,181 t/h, meeting the requirements of large-scale production.



3. Excellent discharge quality: Our unique crushing chamber design and laminated crushing principle result in superior particle shape of the output, as well as higher production capacity.



4. Fully automatic control system: The control room can adjust key parameters or start and shut down equipment according to your plant's characteristics.



5. Less downtime: Hydraulic pressure and lubrication adopt double insurance control, which effectively improves equipment safety and stabilizes production.



6. Easy maintenance: Maintenance personnel can enter key components from the top of the crusher to ensure personnel safety.





During the operation of the single-cylinder hydraulic cone crusher, the motor drives the eccentric sleeve through V-belts, a transmission shaft, and a transmission gear. The dynamic cone make a circular motion under the influence of the eccentric sleeve, causing the moving cone to approach or deviate from the fixed cone intermittently. As a result, the material is subjected to compression, impact, and fragmentation within the crushing cavity, and the broken material is discharged from the bottom.







Model	Cavities	Feeding Size (mm)	Maximum Feeding Size (mm)	Minimum Discharging Size (mm)	Power(kw)	Capacity (t/h)
SC100	F1	150	120	10	90	45-135
	F2	90	70	10		43-118
	F3	38	30	4		25-40
SC160	F1	200	160	13	160	69-215
	F2	115	90	10		57-184
	F3	35	25			70-90
SC250	F1	240	190	16	250	116-396
	F2	140	110	13		97-346
	F3	70	55	9		90-251
SC315	F1	275	220	32	315	177-662
	F2	215	170	29		209-643
	F3	175	140	29		162-552
	F4	85	70	19		175-325

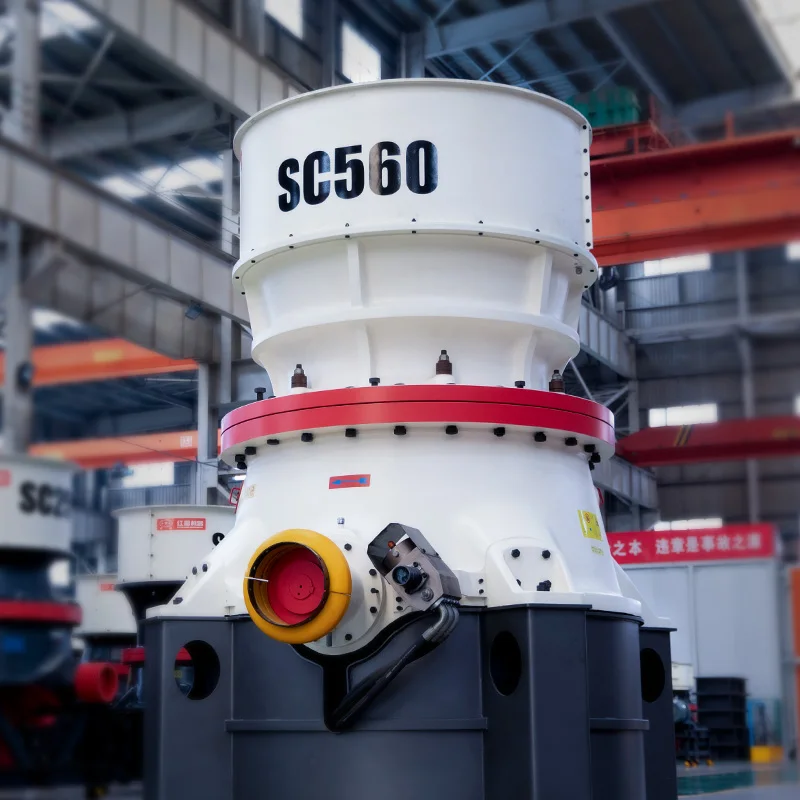

SC560	F1	300	240	22	560	448-1512
	F2	195	155	19		380-1373
	F3	90	70	13		357-912
SC750	F1	370	295	25	750	394-2181
	F2	300	240	19		342-2020
	F3	230	185	16		267-1814
	F4	120	95	13		248-1165
	F5	85	70	10		185-1170







Henan Zhongde Mining Machinery Co., Ltd was founded in 1982 in Zhengzhou, Henan, the capital of Chinese machinery manufacturing. The company is large in scale and has four major production bases with a total area of 500,000 square meters, of which standardized heavy industry plants cover an area of 360,000 square meters, providing advanced and reliable infrastructure for production.





Our company focuses on the development and production of mining machinery, including crushers, mills, beneficiation equipment, briquette machines, rotary kilns and other products, which are widely used in mining, chemical industry, construction, coal, ceramics, and other industries. With excellent quality and professional solutions, it has won the trust of customers around the world.





Our Services



1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.



2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.



3. We visit customers regularly to provide lifelong service and technical support.



4. Except for wearing parts, we provide one-year warranty, long-term supply of spare parts, and two-year maintenance of major parts if used correctly.





Quality Control



1. Our equipment holds ISO 9001, CE, and GOST certifications and all equipment undergoes pre-wiring, assembled, and factory tested at our manufacturing facility.



2. We take a test on each machine before delivery.
