Chinese supplier high speed price of hydraulic gear motor CMZS2050
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60723869062):
Product Overview
Description
Product Description
Chinese supplier high speed price of hydraulic gear motor CMZS2050
Performance Character:
1. The external material is made of high strength aluminum alloy.
2. High reliability, good on-off performance under high temperature.
3. High working pressure, high volume efficiency.
4. Small starting torque and large output torque.
5. Small output flow pulse, motor runs smoothly and with low noise.

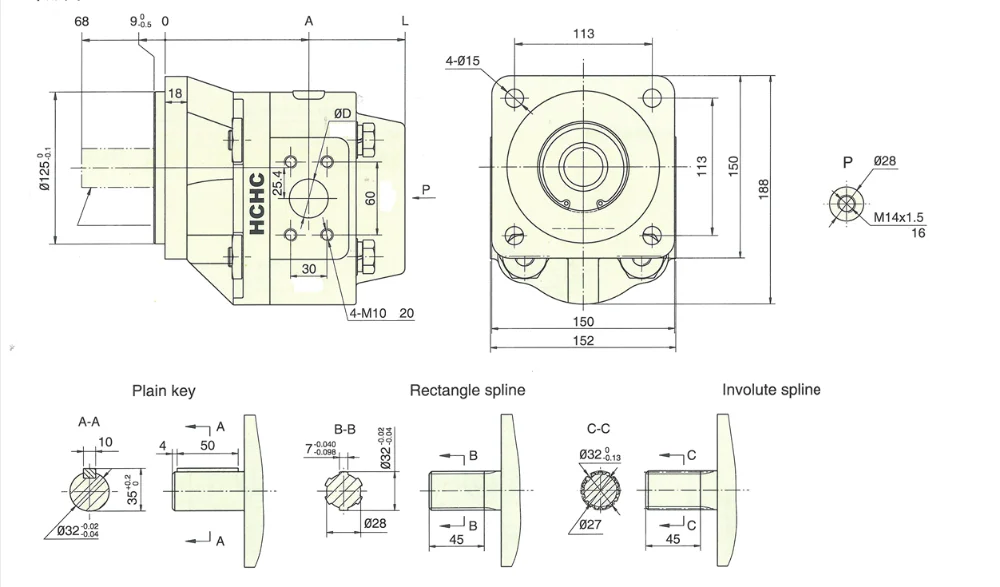

Specification
Model code
CMZS - 2050 - B F * S
① ② ③ ④ ⑤ ⑥ ⑦
①\tProduct model
②\tProduct series: 2
③\tNominal displacement: 50mL/r
④\tMounting type: B=square flange
⑤\tJoining port type: F=flange
⑥\tShaft extension type:
P=plain key, H=rectangular spline, X=involute spline
⑦\tRotation direction: S=double rotation
Model | Nominal Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volume Efficiency (≥%) | Output Torque (N.m) | Weight (kg) | ||||||
Rated | Max. | Min. | Rated | Max. | ||||||||
CMZS2050-BF*S | 50 | 20 | 25 | 600 | 2000 | 3000 | 90 | 127.4 | 9.9 | |||
