Product Overview

Description

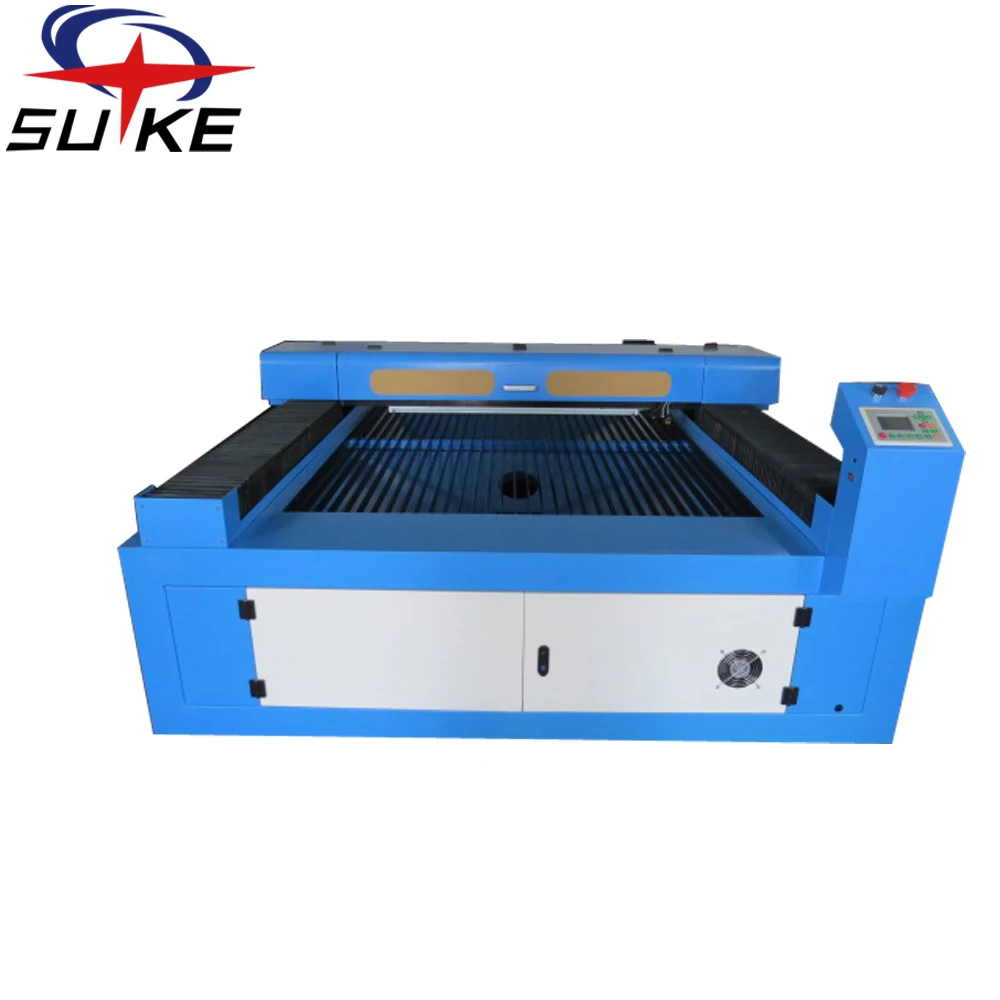

Wood Acrylic 1400*900mm 100W Laser Cutting Machine	Charming crystal diamond engraving machine	trade assurance credit card payment laser engraver cutting machine 1325

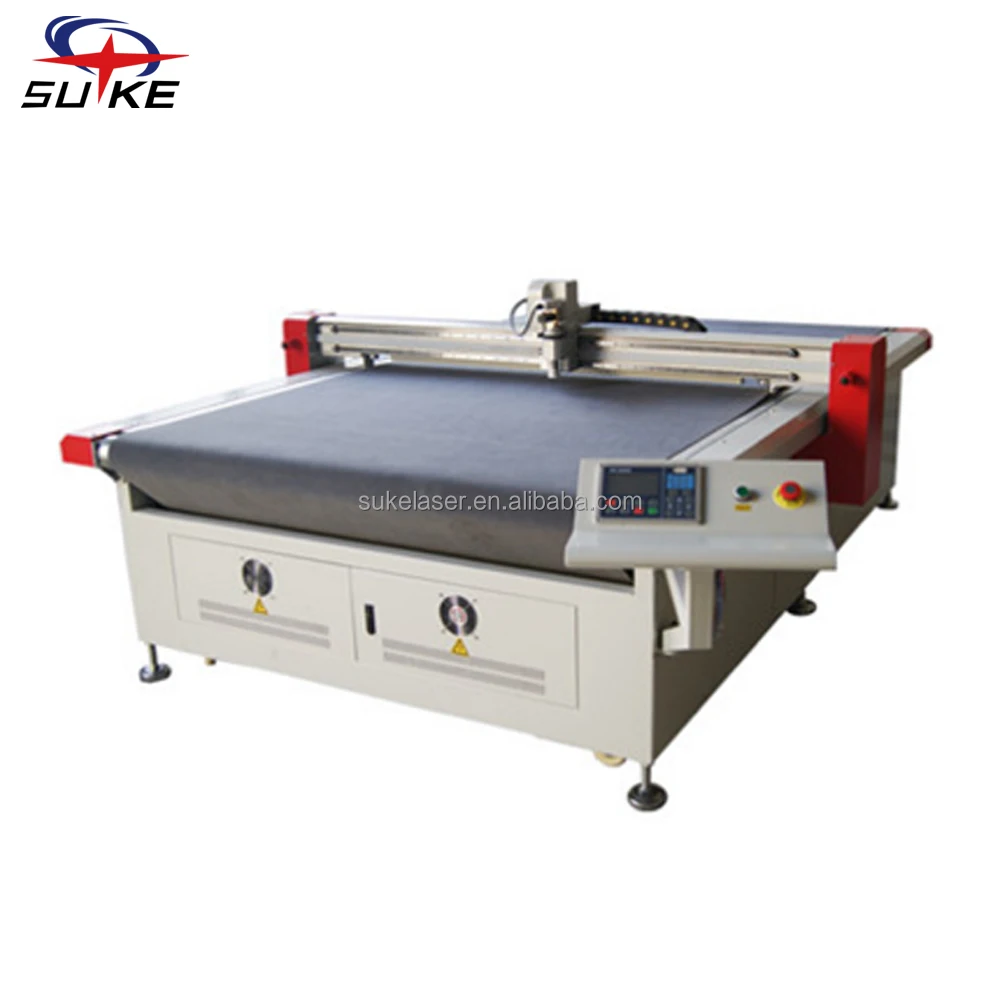

Newest high precision laser textile fabric cutting machine Co2 laser cutter

A:automatic fabric cutting machine Applicable industries:



Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.



B: cutting automatic fabric cutting machine features :

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2. The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.

3. The anti-collision and the built-in auto-sensing devices ensure the security of cnc oscillating knife leather cutting machine.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precision CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.



C:automatic fabric cutting machine product description



Model	SK1625
Working area	2500×1600mm
Machine size (mm)	3550×2800×1220
Vacuum pump power	9KW
Fixed mode	flat plate table
Multifunctional head	Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.
Tool configuration	Multiple cutting knives
Safety device	Using infrared sensors,  responsive, safe and reliable.
translational velocity	800-1200mm/s
Cutting speed	400-800mm/s(according to different cutting materials)
Cutting thickness	≤20mm(according to different cutting materials)
Cutting materials	Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
Repeated accuracy	≤0.1mm
Capacity	2GB
Transmission system	imported(Digital servo motor, linear guide, synchronous belt, ball screw)
Instruction system	HP-GL compatible format
Voltage	380V±10%
Other configuration	Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table,  auto feeding, Taiwan Hiwin rail, 7.5kw vacuum pump



D:knife cutting machine basic configuration

Tool: Seamless welding processing technology

Platform table: whole aluminum, high-precision processing technology, flatness processing error within 0-0.5mmMotor: Panasonic or Yasukawa servo motor

Guide: Taiwan PMI linear guide

Knife: Swiss technology high frequency vibration knife

Blade: Import cutting blade

Panel: with a separate control panel, you can insert the U disk for offline work

Transmission system: fixed desktop does not use Fulong steel wire belt drive

Automatic feeding using rack drive system

E:Optional configuration

Paintbrush: Marking the processing material, marking the serial number and processing the car model

Punching knife: pre-punch according to the required industry use, reduce the follow-up processing steps, improve production efficiency

Plotter: Use the template to scan for subsequent styling

F:Samples





G:FAQ

Q1: How to choose a suitable machine?

A: In order to get the most suitable machine model, please let us know the following detailes:

    1.What is your material?

    2.The size of material?

    3.The thickness of material?

Q2: This is the first time I use this kind of machine, is it easy to operate?

A: There are English manual or teaching video that show how to use machine.If there is still have any question, please contact us by e-mail / Skype/ phone /trade manager online service at any time.

Q3: What's MOQ?

A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q4: What is the payment term?

A: 30% deposit in advance, 70% balance should be paid before delivery.

Q5: Warranty?

A: Machine warranty for 2 years, laser tube for 10 months. Lens for 3 months.
