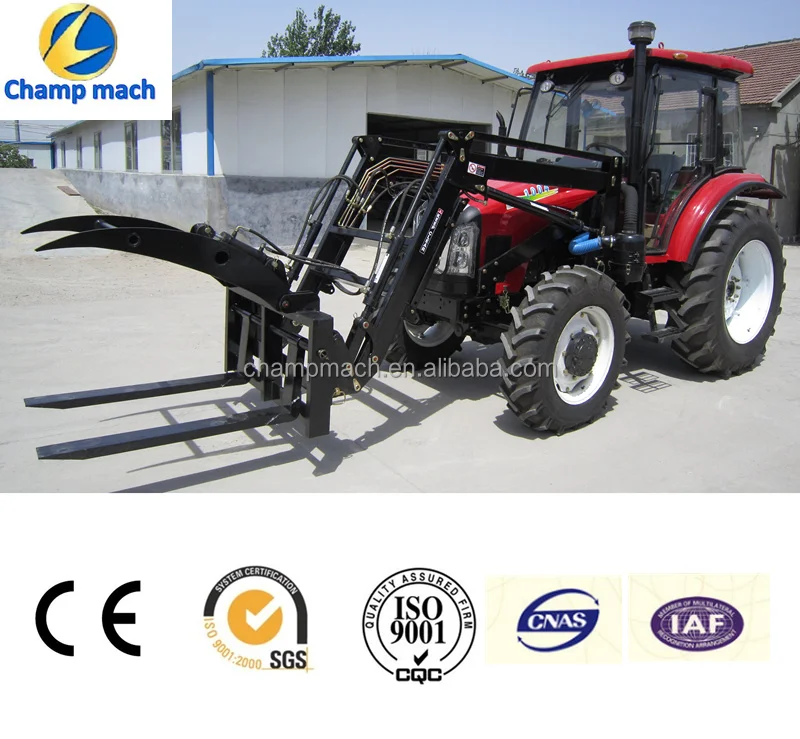

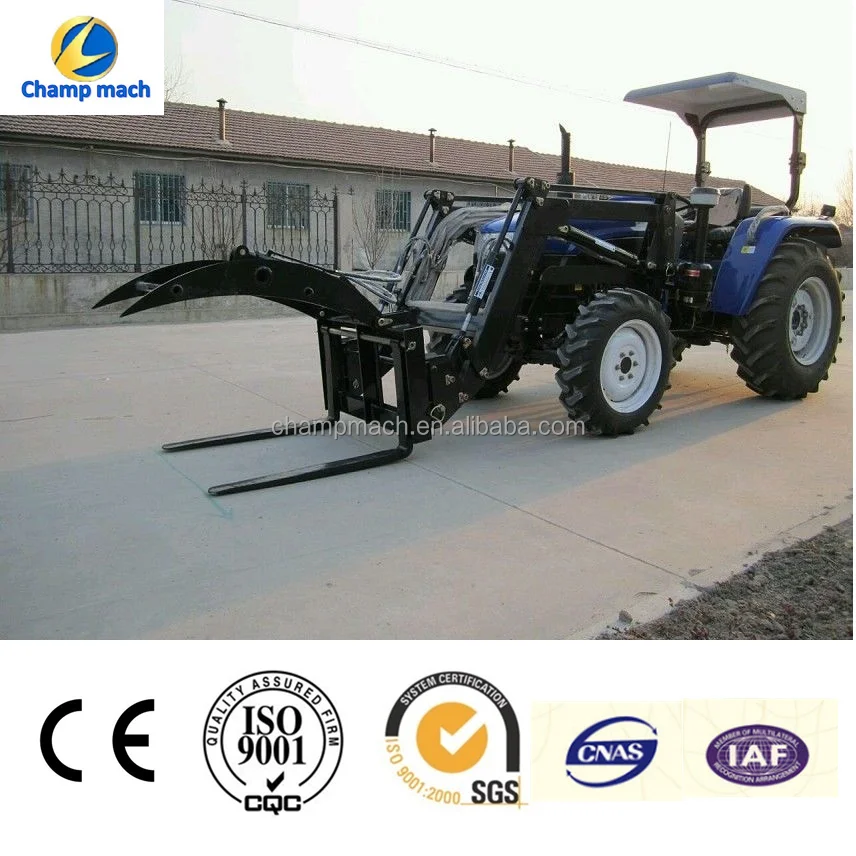

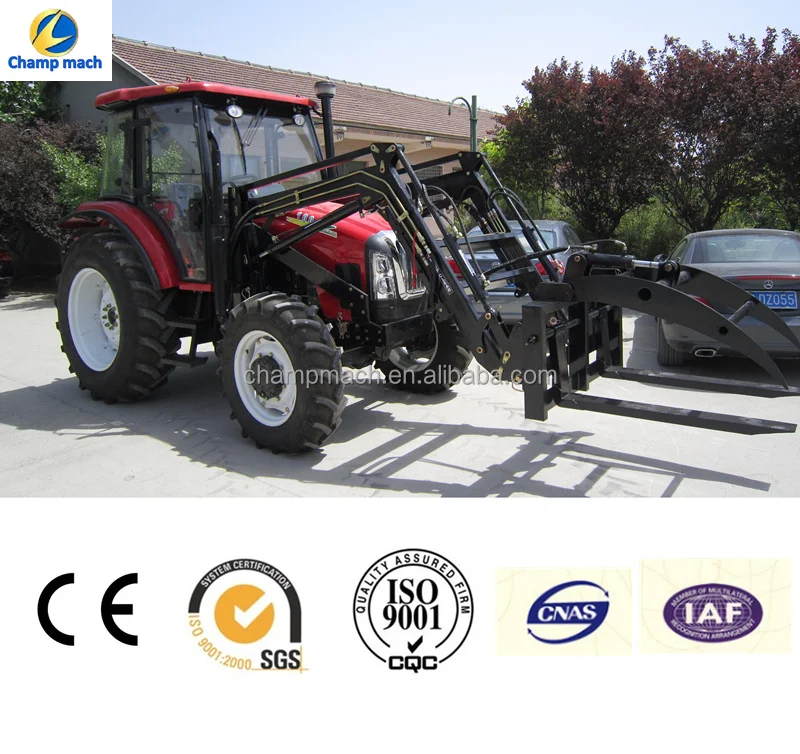

farm tractor front end loader with log grapple
- Category: >>>
- Supplier: Weifang Champion Farm Machinery Co. Ltd.
Share on (60723893688):
Product Overview
Description
product descprition

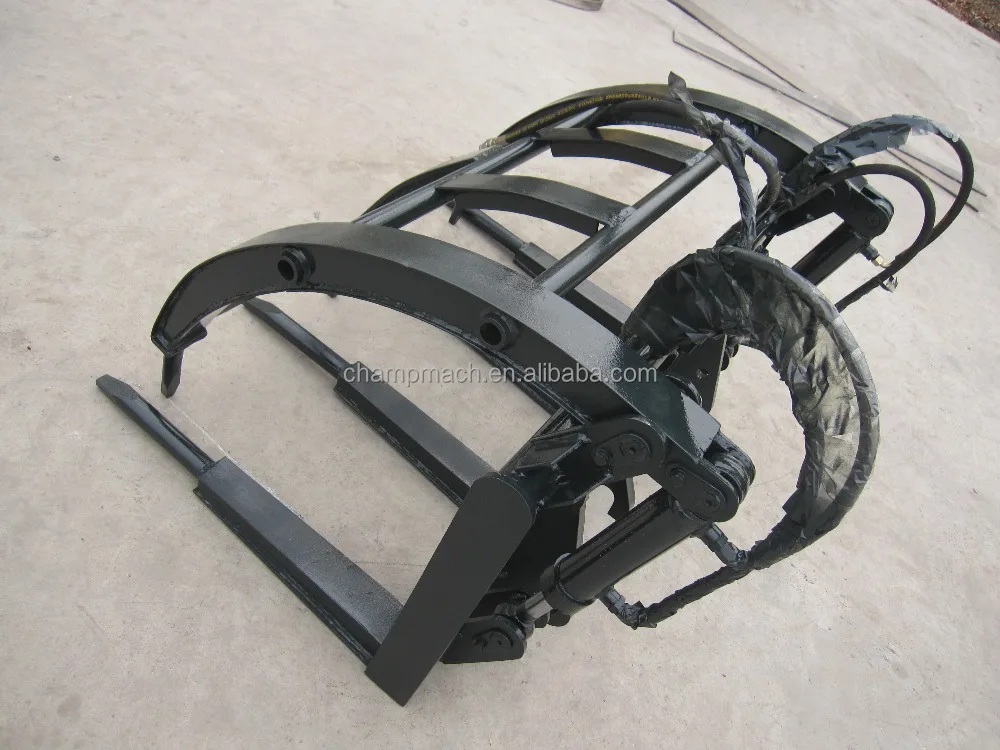

front end loader with log grapple attchment introduction:
1.TZ series tractor front end loaders can be mounted on tractors
ranging from 25 to 120HP.
2.TZ series tractor front end loader can be used in farming land for loading, unloading, transportation.
3.TZ series tractor front end loader can be used in garden for grabbing grass/ bale, snow removal.
4.TZ series tractor front end loader can be used in forest for
loading timber.
front end loader with log grapple specifications:
| Main specification of TZ series tractor front end loader | |||||
| Loader Model | TZ-3 | TZ-4 | TZ-8 | TZ-10 | TZ-12 |
| Overall dimensions(mm): | 4100×1600×1580 | 4100×1600×1580 | 4900×1739×2494 | 4900×1739×2494 | 5350×1800×3000 |
| Power(HP): | 20—30 | 30-45 | 50-70 | 80-90 | 100-125 |
| Max. dump height(mm): | 1800 | 2000 | 2200 | 2400 | 2800 |
| Max. dump distance(mm): | 900 | 900 | 960 | 1000 | 1100 |
| Bucket rollback angle (degree): | 42° | 42° | 42° | 42° | 42° |
| Max. unloading angle (degree): | 47° | 47° | 46° | 46° | 46° |
| Max. scraping depth(mm): | 100 | 140 | 160 | 160 | 160 |
| Lifting time to pivot pin(S): | 7 | 7 | 8 | 8 | 10 |
| Descending time(S): | 3.5 | 3.5 | 4 | 4 | 10 |
| Bucket width(m): | 1.35 | 1.5 | 1.8 | 2 | 2.2 |
| Bucket capacity(m3): | 0.2 | 0.23 | 0.43 | 0.6 | 0.65 |
QC
front end loader with log grapple Quliaty control
