FEATURE: 1,Can be adjust protect parameter according to customer 2,RS485,RS232,CAN bus 3,Communication protocal can be programed according to customer 4,Smart battery management Software of PC via USB bridge tool 5,Can communication with our handing device to fault detection
KEY SPECIFICATION
Items
Specification
unit
min
typical
max
Manage Cells
serial
7
Customized
24
Dimension
100A:157mm(L)x150mm(W)x25mm(H)
Accuracy of measurement
SOC (0%~20%)
%
2
SOC (80%~100%)
%
2
SOC (20%~80%)
%
6
Cells measurment
mv
2
5
10
current (>0.1A,<5A)
A
0.01
current (>5A,<20A)
%
0.5
current t(>20A)
%
0.5
temprature(-40~120)
℃
1
Over Voltage Protect
OVP Detect for cell Max
V
4.19
4.2
4.21
OVP Release for cell
V
4.14
4.15
4.16
OVP Detect Delay Time
Sec
4
Under Voltage Protect
UVP Detect for cell
V
2.74
2.75
2.76
UVP Detect Delay Time
Sec
4
UVP Release for cell Min
V
2.95
3
3.05
Charge Protect
Over Charge Current Protect
A
100
Over Charge Current Protect Detect Delay Time
S
4
Discharge protect
Continuous Discharge Current=<
A
100
Over-Load Current Protect>
A
101
Over-Load Current Protect Delay Time
S
10
Over-Load Current Protect>=
A
180
Over-Load Current Delay Time
S
4
Load Short Circuit Protect
A
400
Short Circuit Protect Delay Time
uS
220
Short Circuit Protect
YES
Voltage Balance
Balancing Volt @ Volts variance>20mV
V
4
Voltage BalanceReset @ Volts Var.<20mV
V
4
Balancing Current
mA
1000
Temperature Protect
OTP @ Charging
℃
65
OTP Reset @ Charging
℃
55
OTP @ Discharge
℃
75
OTP @ Discharge Reset
℃
60
Current Consumption
Working Current Consumption
uA
600
Shutdown Current Consumption @ Vcel=3
uA
20
Temperature
Working Temperature
℃
-20
25
75
Ambient Temperature
℃
-20
25
45
Storage Temperature
℃
-30
25
80

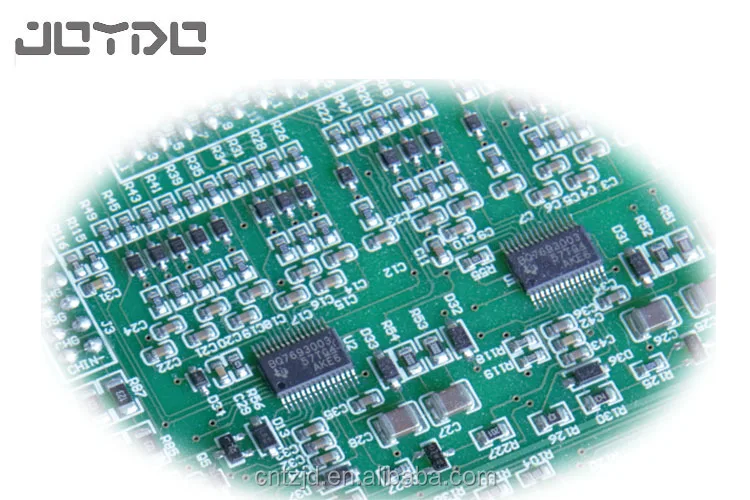

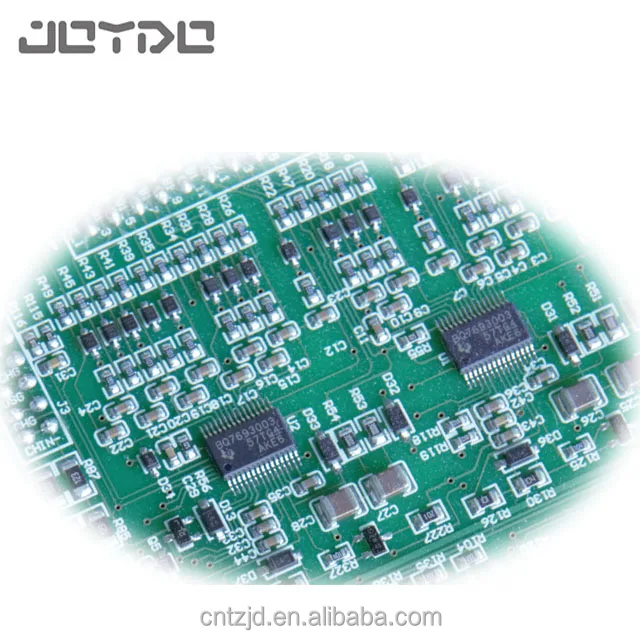

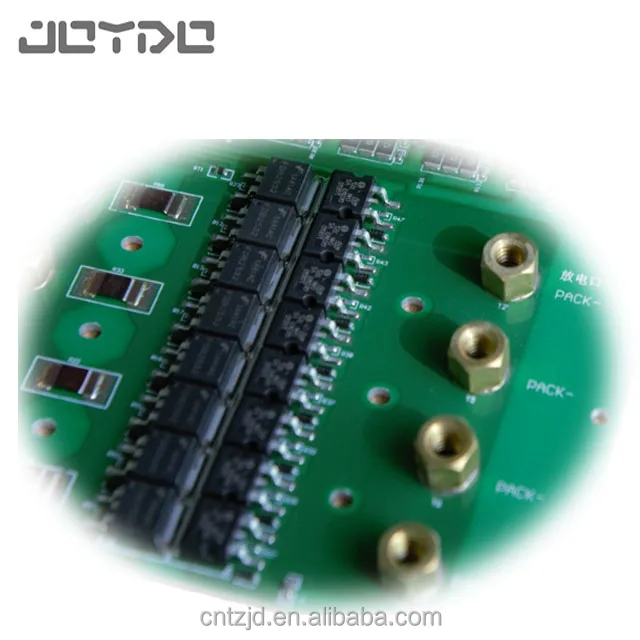

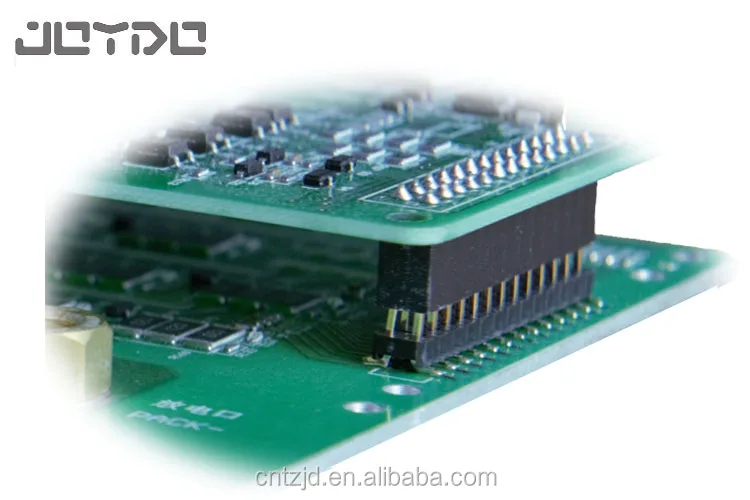

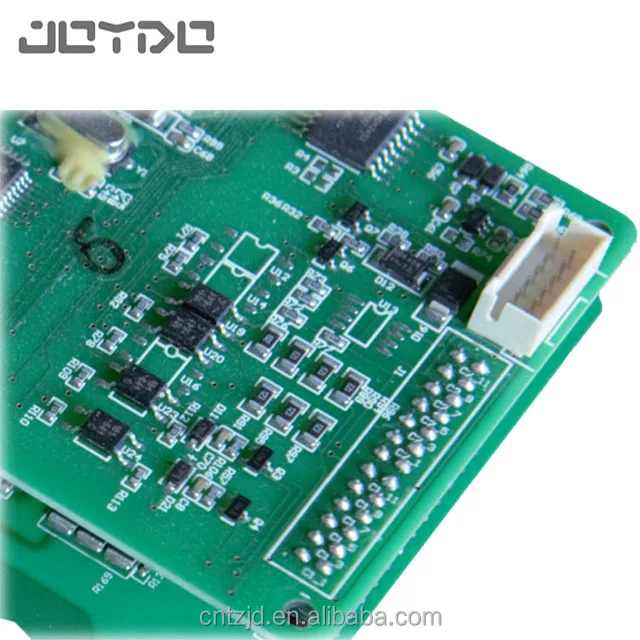

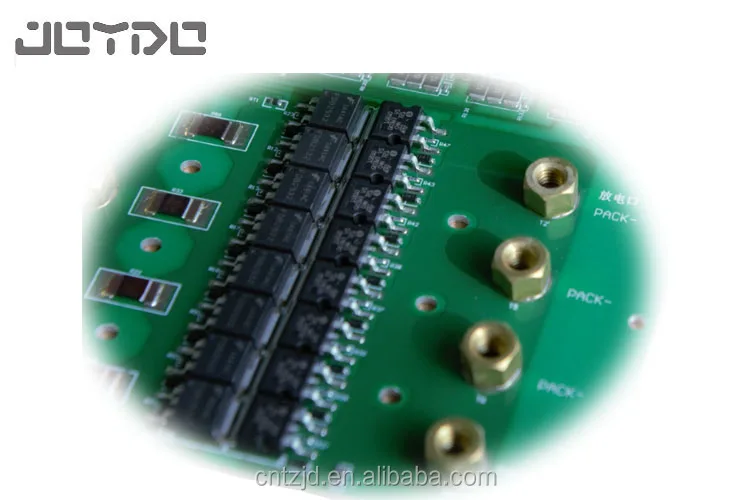

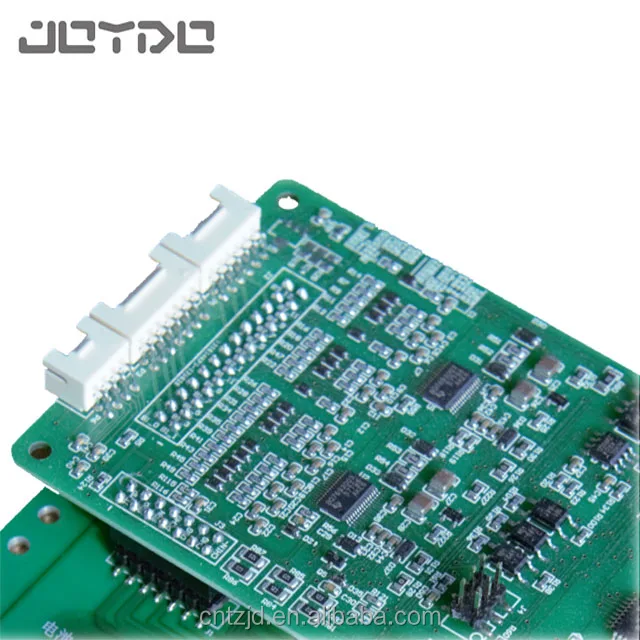

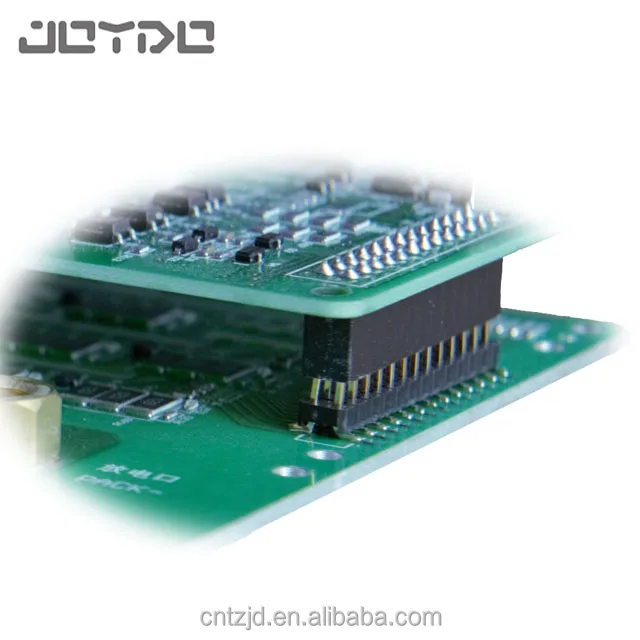

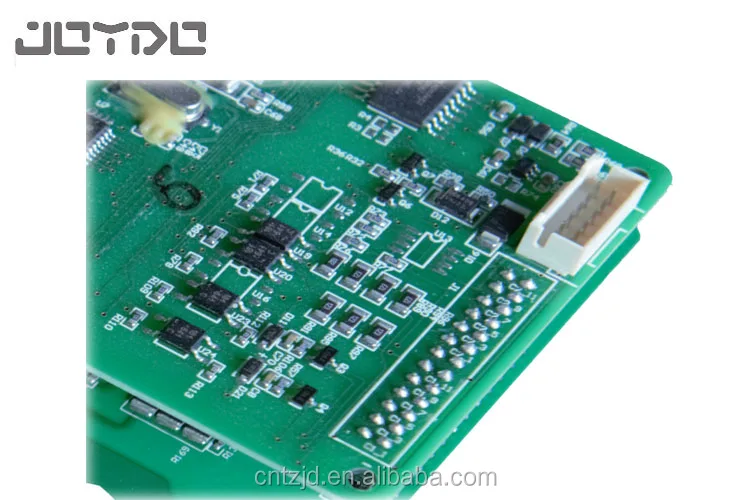

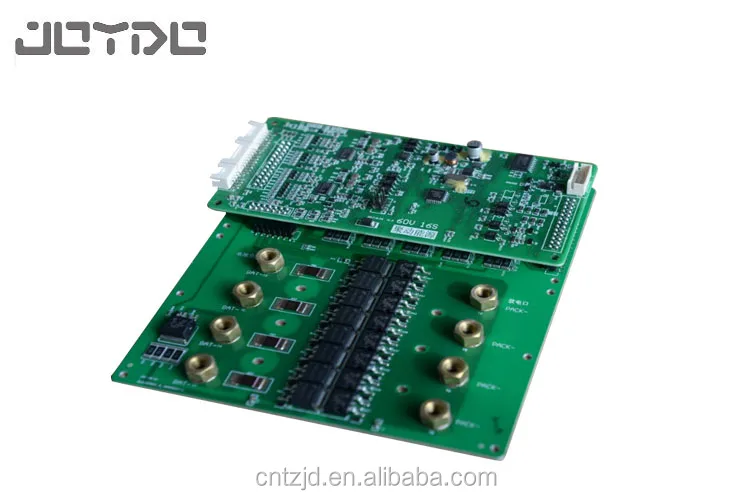

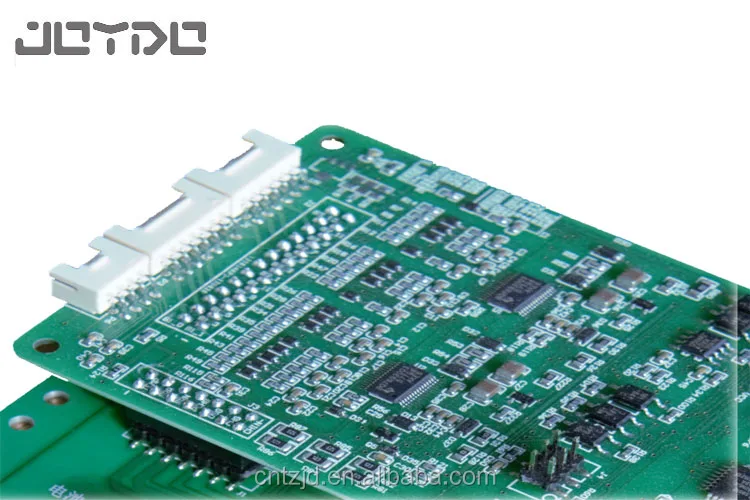

Product display
Company Information
Certifications
Packaging & Shipping
FAQ
1. Q: Can I havesamples to test? And what islead time for sample order?
A: Yes, we can supply samples in 5-20 days depending on the product buyer want, and buyer pay for sample cost and shipping cost.
2. Q: Can we redesign the BMS?
A: Yes, we can redesign theBMS according to customer size and CAN orRS485 protocol. Please let us know your requirement.
3. Q: Can we customize special voltage and capacity of batteries?
A: Yes. Please let us know your voltage and capacity requirement.
4. Q: Can we customize special shell of batteries?
A: Yes. We have industrial design engineer, we can design according your requirement. We can provide ironaluminumplastic material.
5. Q: What's your guarantee for battery quality?
A: All our batteries enjoy 2 year warranty after shipping.
6. Q: Can we customize special size batteries?
A: Yes, we provide custom design. Please let us know your customization requirement.
