Xiamen Standing Seam Metal Roof Sheet Making Machine Roofing Tools
Standing Seam Roofing Forming Machine with Straight&Tapered
Technical Parameters
Dimension
5800*1700*1500mm
Weight
7000KGS
Voltage of Motor
380V/50HZ/3PH, or as per your requests
Main Motor Power for Running
7.5KW*2 sets
Hydraulic Power for Cutting
2.2KW
Forming Steps
13
Working Speed
0-15m/min
Height of Roofing
65mm
Effective Cover Width
200mm,475mm
Feeding Material Width
320mm to 620mm
Thickness for Al Sheet
0.8-1.2mm
Thickness for Steel Sheet
0.6-1.0mm
Min. Width of Tapered Roofing
250mm
Min. Length of Tapered Roofing
1000mm
Cutting, Forming Tolerance
±2mm
Roller material
45# steel with machining----Fine Machining
---Polishing---Plated Chrome---Polishing;
Material of shaft
High grade 45# forged steel
Shaft Diameter
85mm;
Main Accessories
No
Items
Quantity
Remarks
1
Manual/Hydraulic Uncoiler
1set
Up to customer
2
Main forming machine
Pre-cutting device
1set
Up to customer
Feeding device
1set
Hydraulic system
1set
Roll forming system
1set

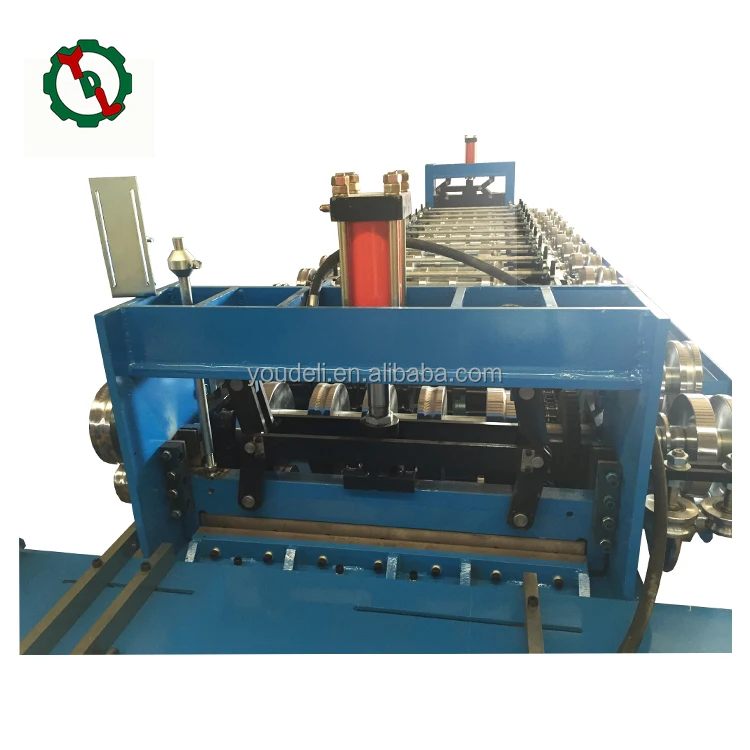

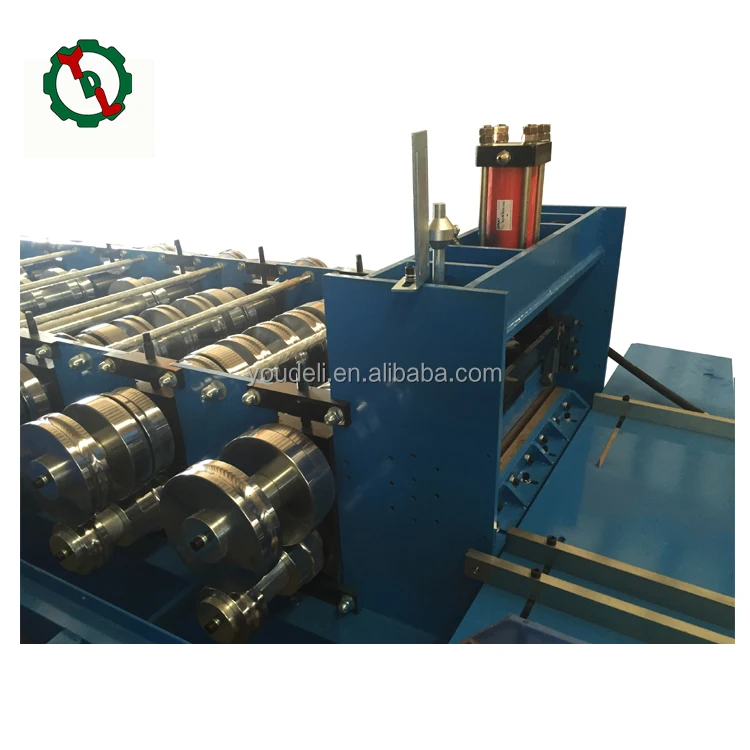

Post cutting device
1set
Protective cover
1set
Up to customer
3
PLC control system with touch screen
1set
4
Run out table
4pcs
Up to customer

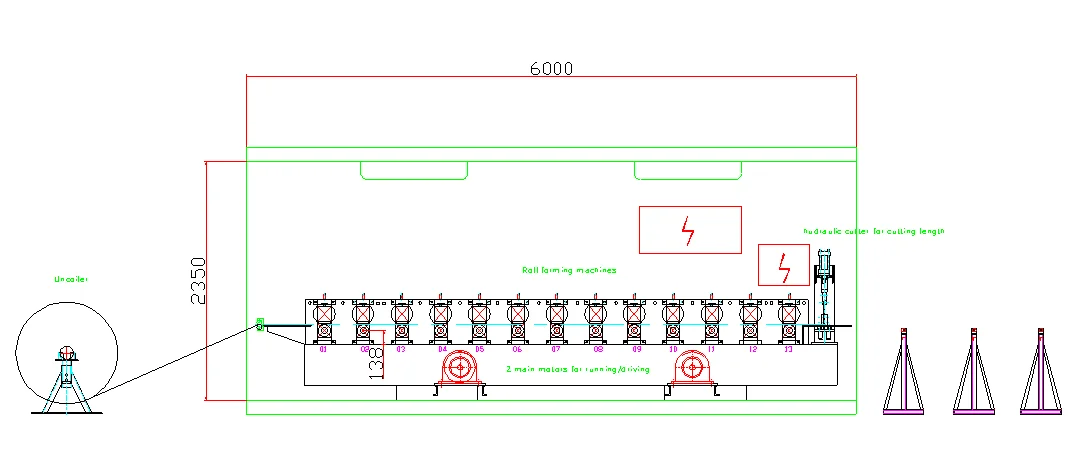

Flow Chart

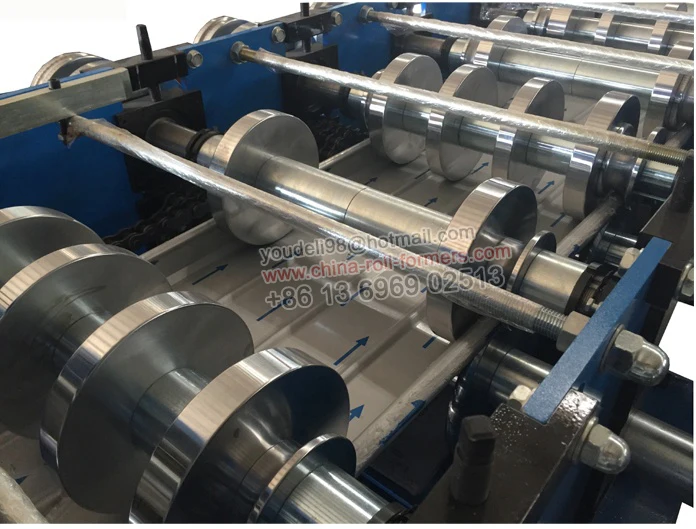

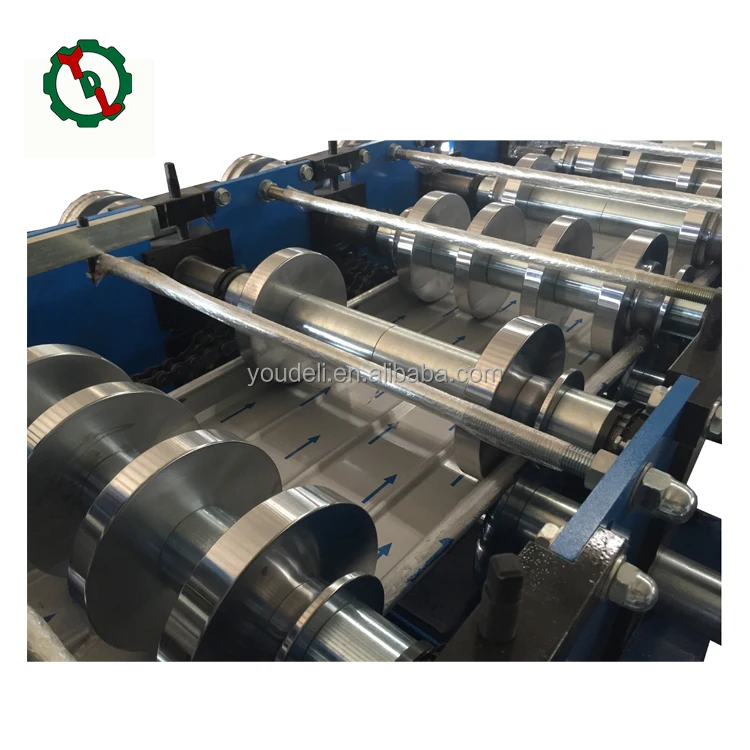

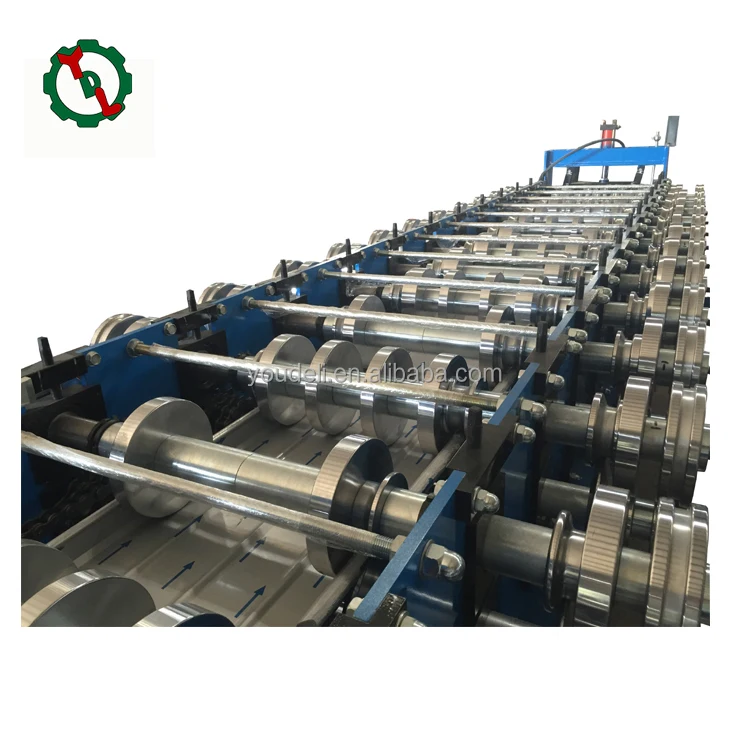

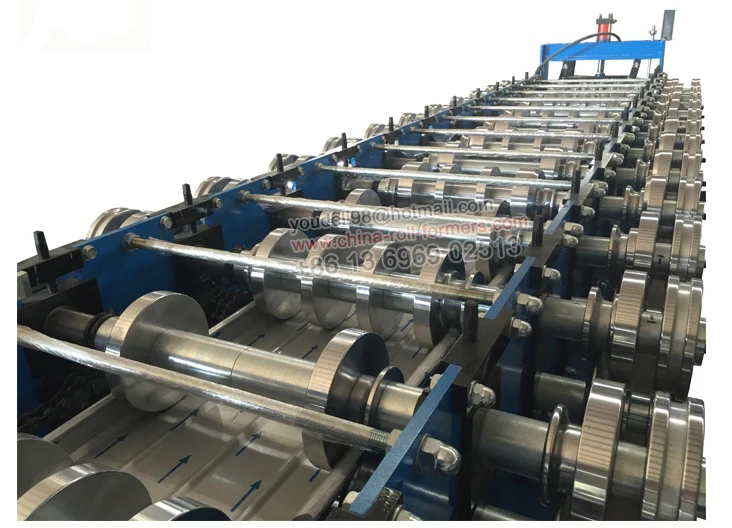

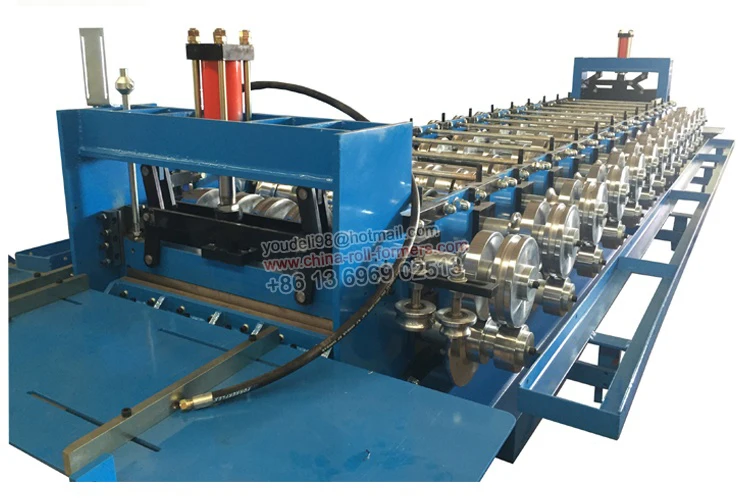

Product Show
FAQ
1. Are you the trade company or factory?
We are professional manufacturer for making cold metal roll forming machines.
2. How to visit your factory?
We can pick up you at the Xiamen International Airport or Xiamen North Railway Station
to our factory.
3. Do you provide customized machines?
Sure, we can design and make the machines as per your requests. We are the professional
designer and manufacturer for cold metal roll forming machines.
4. Does one machine can only produce one size?
Not exactly, it depends on the machine.
5. Is there quality control when manufacturing the machines?
Yes, we have responsible teams who will be in charge of the quality control from laying off the raw material, processing the machine frame, rollers, shafts and the other parts, making heat treatment the rollers and shafts, installing, adjusting, testing and packaging, etc.
6. Why your price is higher than others?
Because we insist on that every company must attach importance to the quality at first
place, we must confirm to do well every step of processing the machines, to get better quality for the machines, and supply good services for our customers.
7. What can you do if the machine broken?
The warranty period of our machines is one year.
If there are any problem with any parts within guarantee time, we will courier the new ones for replacing within one week. If after the warranty period, we can solve the problems by negotiation each other as per the actual situation of machines. Anyway we can promise to provide our technology supports for the whole life of our machines.
8. Do you have after technology support?
Yes, we are glad to give suggestions and also have skilled technicians available to service
machinery oversea if you needed.
9. Do you have oversea engineers?
Yes, we can supply not only good skilled technicians to oversea, and also provide
technology training.
10. Can you response for the transport of machines?
Yes, please check us your destination port or address, we have good services of
