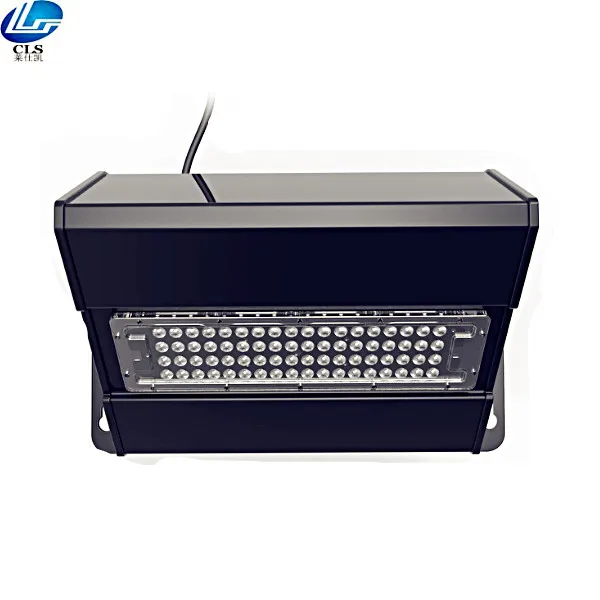

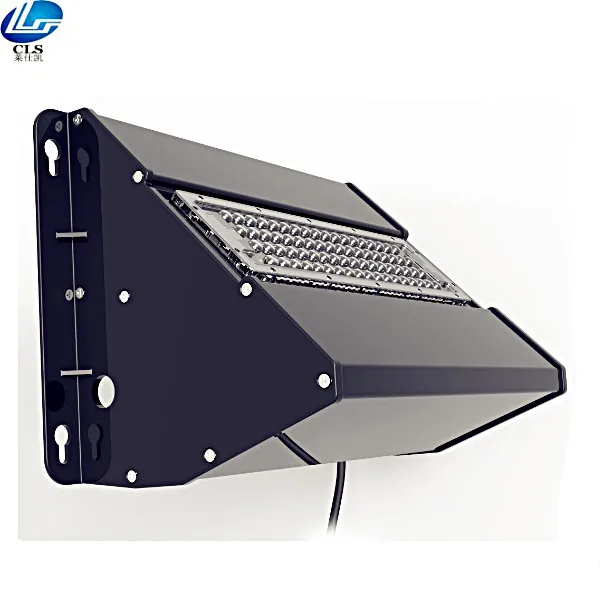

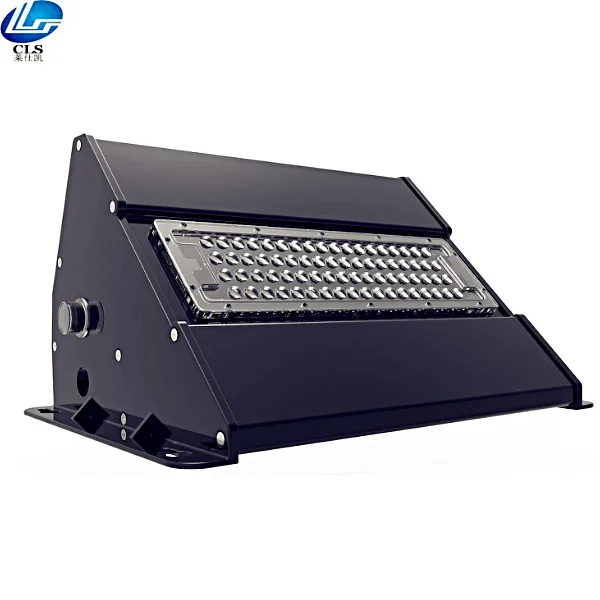

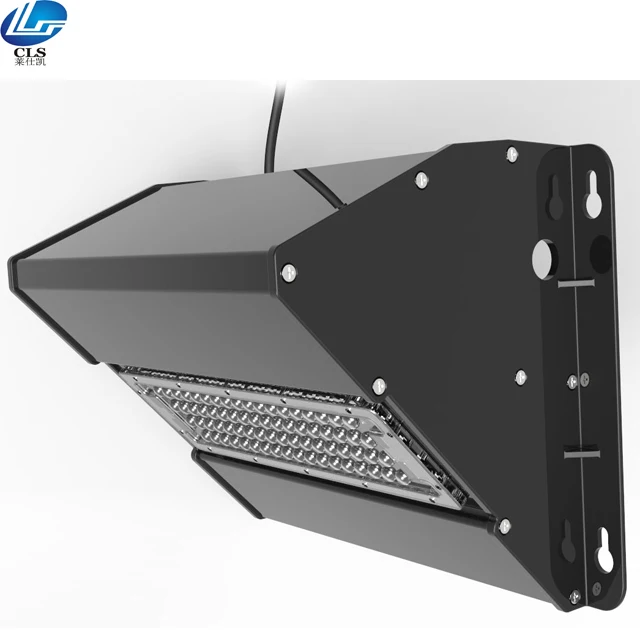

40W 60W 100W indoor outdoor factory workshop lighting led wall pack light
- Category: >>>
- Supplier: China Light-Sky Technology Co. Ltd.
Share on (60723992406):
Product Overview
Description
Specification
| Setting Information of LED wall pack light | |
| Other Power | 20w/40w/60w/80w/100w |
| Rated voltage | AC100-227V |
| Material | Aluminum |
| Housing color | Black/White/Grey |
| Temperature | 5000K |
| Shelf life | 5 years |
| SKU | CLS-WK060 |
| Watts | 60W |
| HID Equiwalents | 120w |
| Luminous Flux | 7200 |
| Luminous Efficiency | 120lm/w |
| Power Factor | ＞0.90 |
| Imput Voltage | AC100-227V |
| CCT | 4000K,5000K,5700K |
| CRI | Ra＞70 |
| LED Chip | SANAN 3030 |
| Housing Colour | Black,Gray,White |
| IP Grade | IP65 |
| Material | Aluminum+PC |
| Working Envieonment | -30℃~50℃ 10%-90%RH |
| Beam Angle | 90° |
| Lifespan | ＞50000hrs（LM80） |
| Warranty | 5 Years |
Product Description
High efficiency led driver
Adopting high efficiency, high quality, super competitive led driver, constant current mode. Equipped with active PFC protection, short circuit protection, over temperature protection and over voltage protection.
High efficiency up to 97%, IP67 grade, suitable for outdoor and indoor.
SANAN LED CHIP
SANAN led chip, high luminous efficiency, LM80 standard, long life, high stability.
Housing
Luminous efficiency: 120 lm/w
Die-casting aluminum, good appearance and heat
dissipation performance.

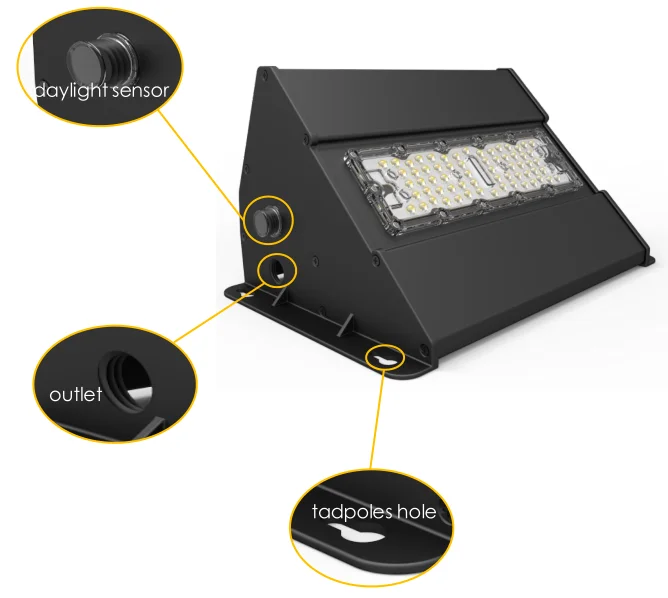

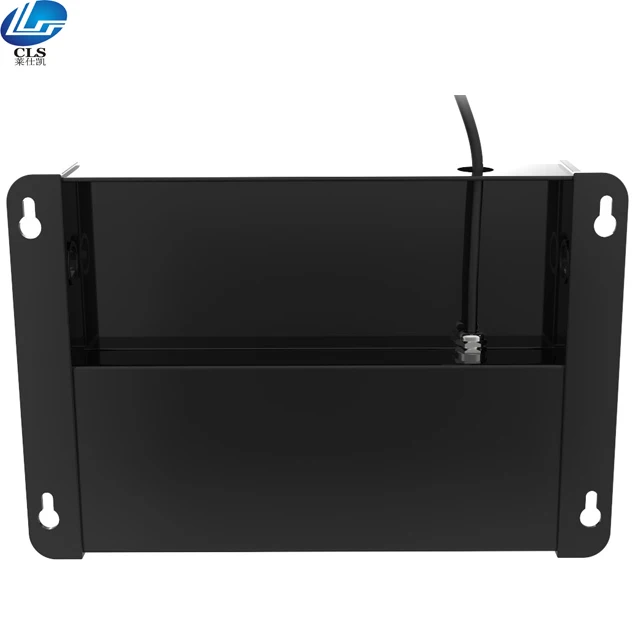

Tadpoles hole make it easier for installation, wall pack can fix on the screws directly
Equipped with daylight sensor, energy saving.
Housing

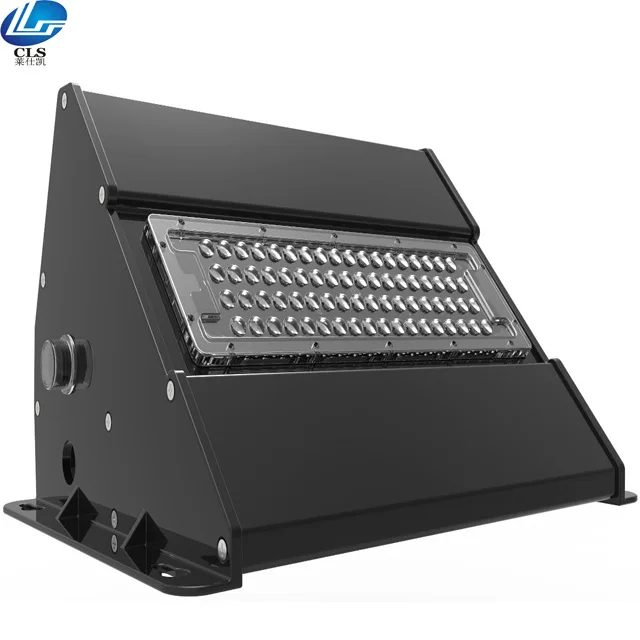

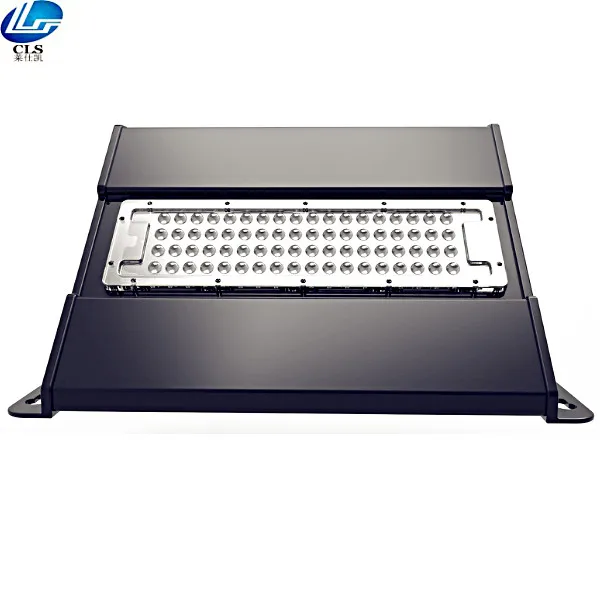

90 degree PC lens, suitable for different lighting
requirement.

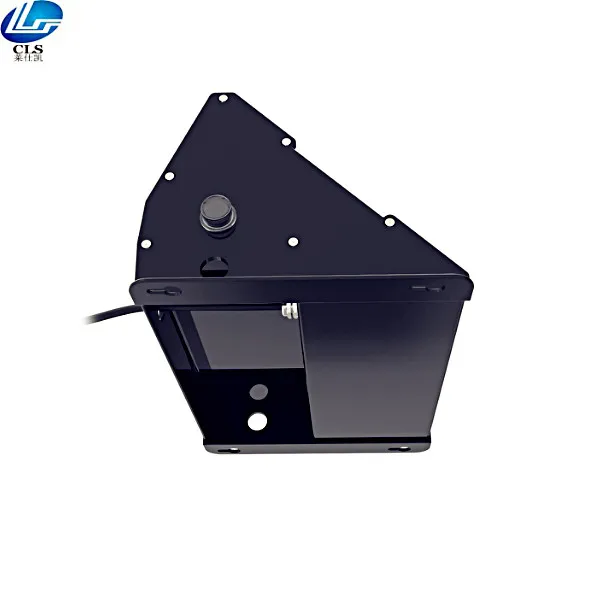

Simple design for easy installation, with outlet from
Left, right and back.
Outlet inner box adopt trapezoidal design, less volume ,saving delivery cost.
Inner box adopt trapezoidal design, less volume saving delivery cost.
Working temperature: -30°C- +50°C
IP65 grade

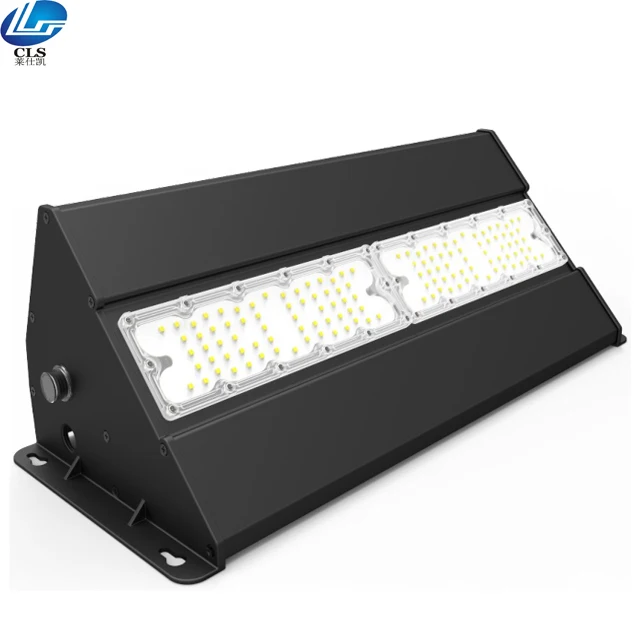

| CLS-WK020 | CLS-WK040 | CLS-WK060 | CLS-WK080 | CLS-WK100 | |
| Power | 20w | 40w | 60w | 80w | 100w |
| Luminous Flux | 2400lm | 4800lm | 7200lm | 9600lm | 1200lm |
| LED Qauntity | 28pcs | 48pcs | 64pcs | 96pcs | 128pcs |
| Wall led lights size | L330*W211*H174mm | L544*W211*H174mm | |||
| Package Carton | 6pcs/carton | ||||
| Net Weight | 2.5 KG | 2.7KG | 3.0KG | 4.2KG | 4.5KG |
| Gross Weight | 18KG | 20KG | 21KG | 29KG | 31KG |
| Dimension Weight | 20KG | 32KG | |||
| Packaging Size | L640mm*W382mm*H388mm | L: 640mm*W: 382mm*H: 602mm | |||
| Warranty | 5 Years | ||||
| Luminous Efficiency | 120lm/w | ||||
| LED Chip | SANAN 3030 | ||||
| CCT | 4000K,5000K,5700K | ||||
| Beam Angle | 90°*120° | ||||
| Lifespan | ＞50000hrs（LM80） | ||||
| IP Grade | IP65 | ||||
| Power Factor | ＞0.90 | ||||
| Certification | CE,ETL, DLC, ROHS | ||||
Packing information
| SUK | PCS/CTN | Net Weight | Cross Weight | CBM |
| CLS-WK060 | 6 | 3.0kg | 21.0kg | L640*W382*H388mm≈0.010m³ |

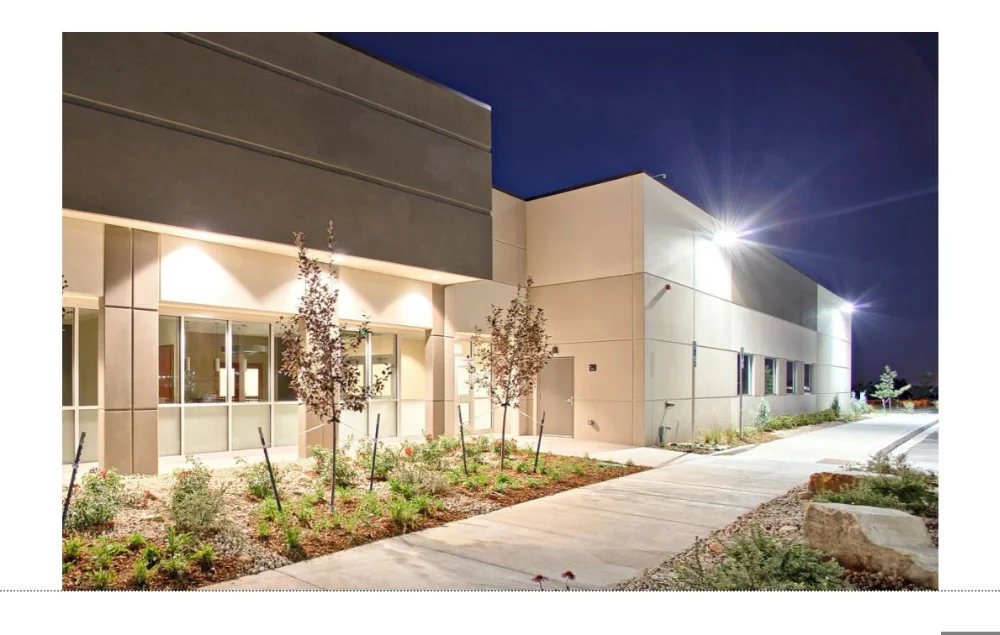

Applications
FAQQ4. How do you ship the goods and how long does it take to arrive?
Q5. How to proceed an order for led light?
Q6. Is it OK to print my logo on led light product?
Q7: Do you offer guarantee for the products?
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
