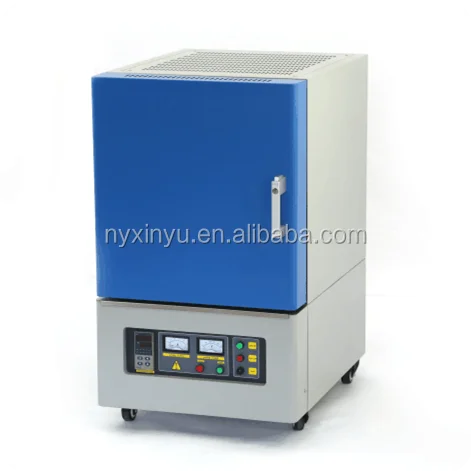

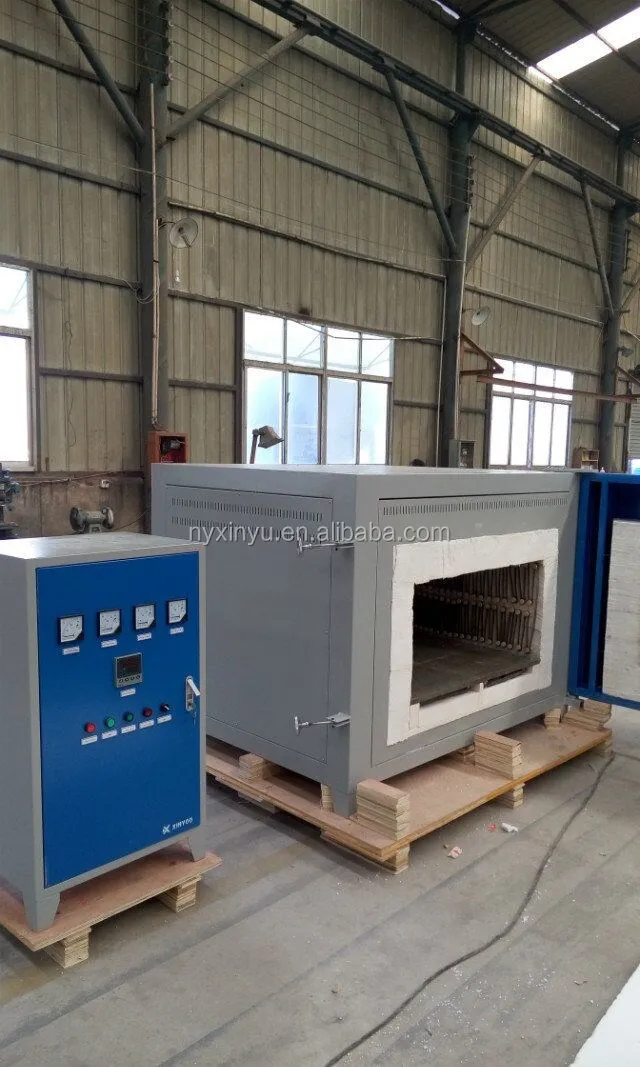

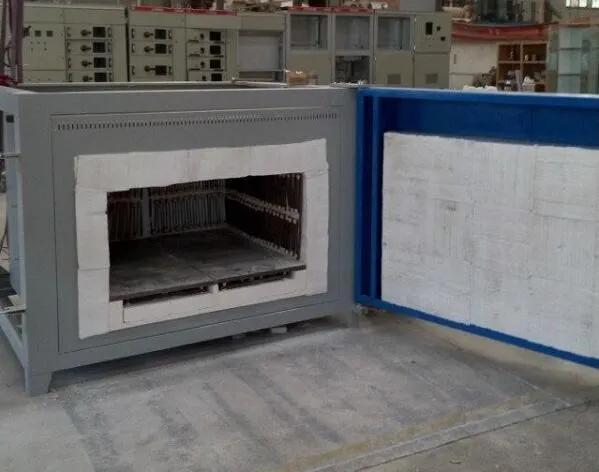

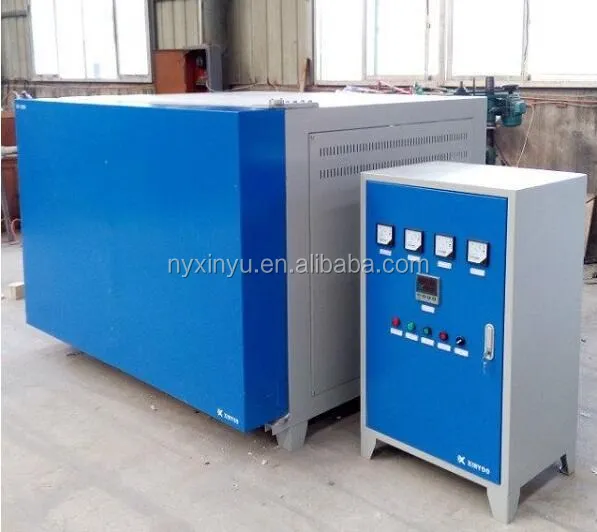

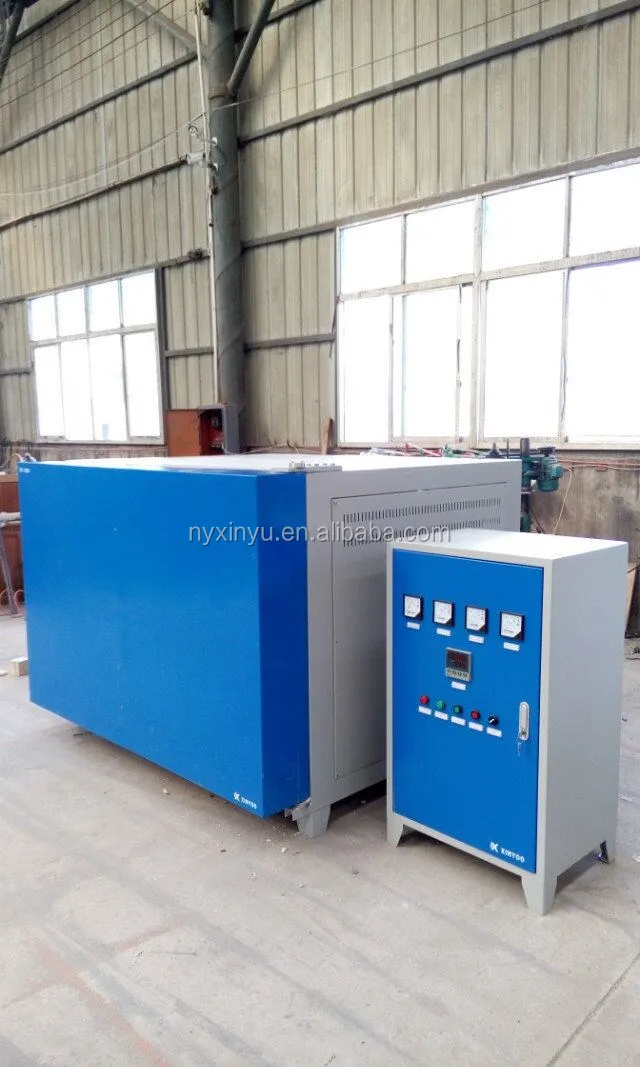

1700 degree large capacity heat treatment electric Resistance muffle Furnace for sintering ceramic

Product Overview

Description

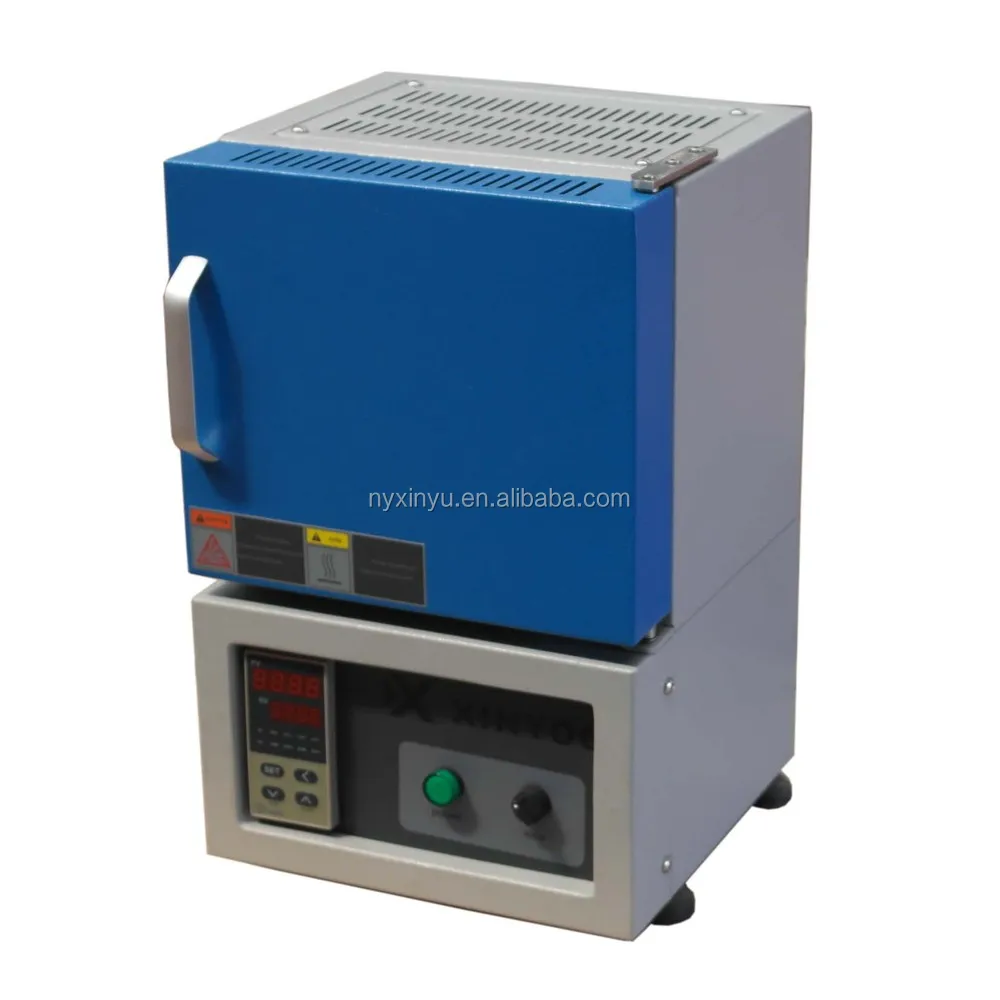

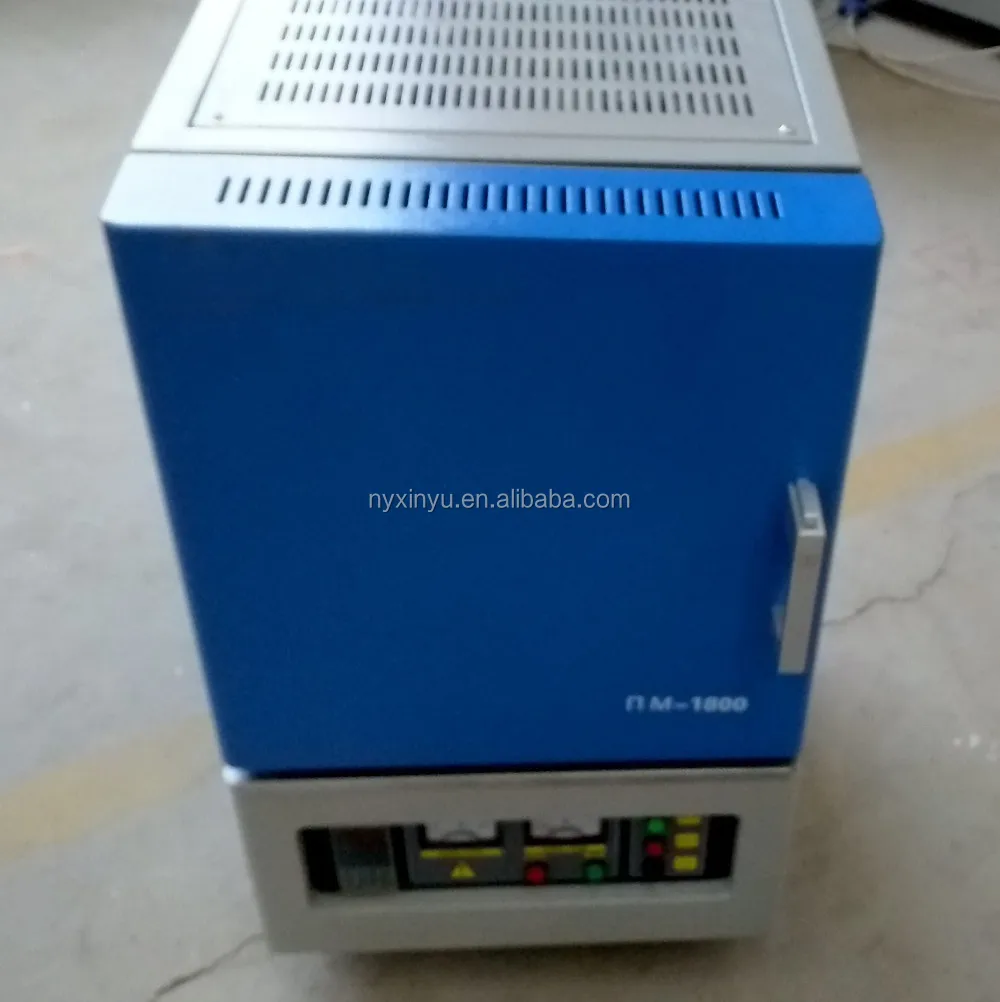

1700 degree heat treatment electric Resistance muffle Furnace for sintering ceramic

Many experiments and procedures taken in the lab requiring extreme heat environment from

400-1800.C. For this purpose, the high temperature muffle furnace steps in as the necessary

part of laboratory equipment. Xinyu furnace are providing the muffle furnace at a affordable cost

including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.

The sizes of the muffle furnace various from the smaller furnaces which are conveniently placed on

 a workbench, to the larger units that has a coveted capacity and competent for all duty.



1700 degree muffle furnace structure:

High purity fibrous alumina insulation for maximum energy saving 60-80% less power consumption than other old style.

Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.

Double temperature controller to ensure furnace never over-shoot in any accident.

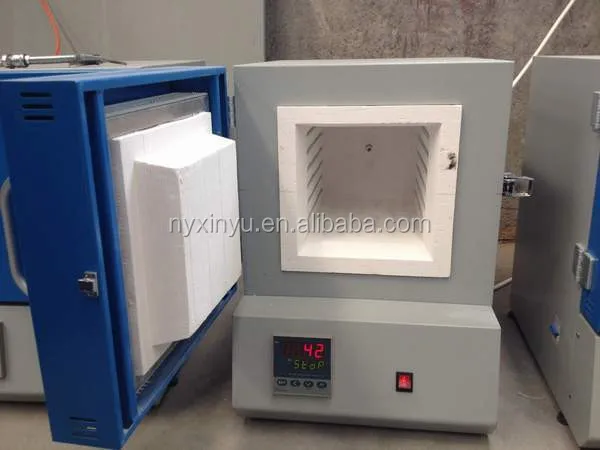

Design of drop down door is for loading sample at easy.

Gas inlet and venting port are installed for using at oxygen or inert gas atmospheres.

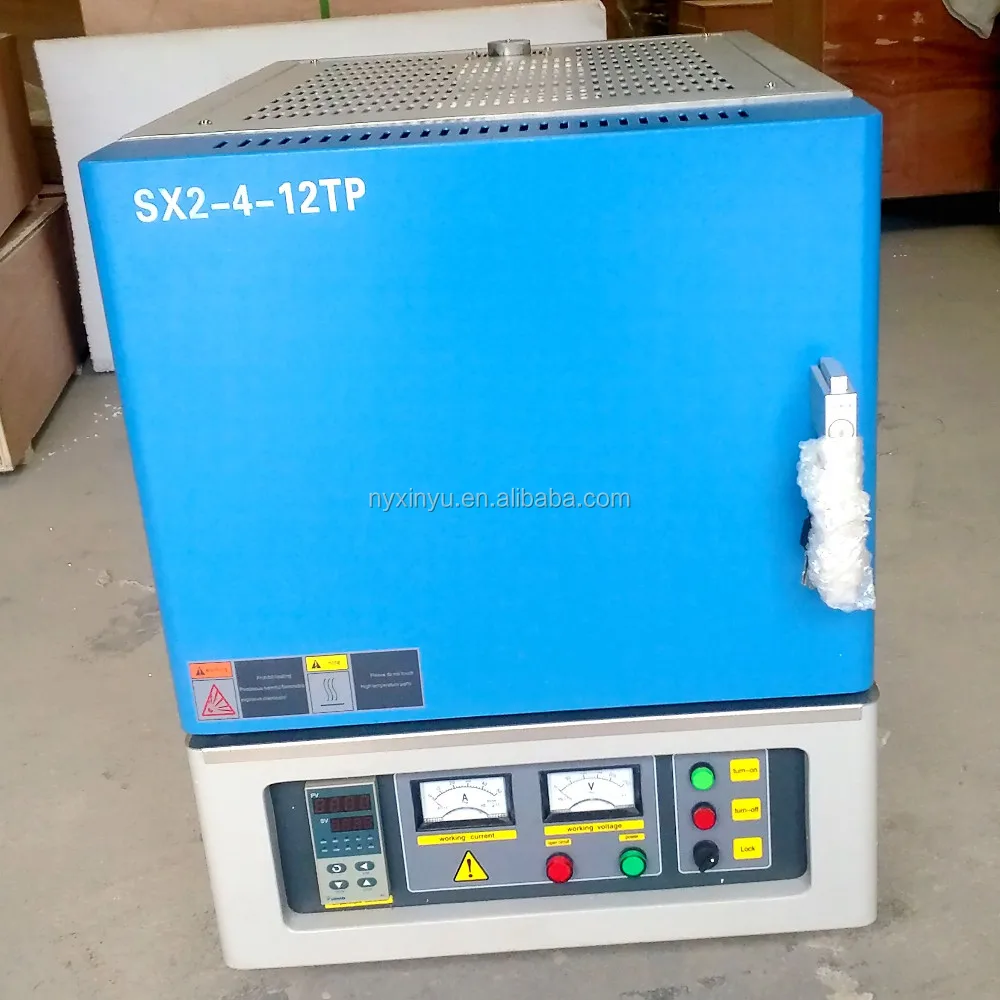

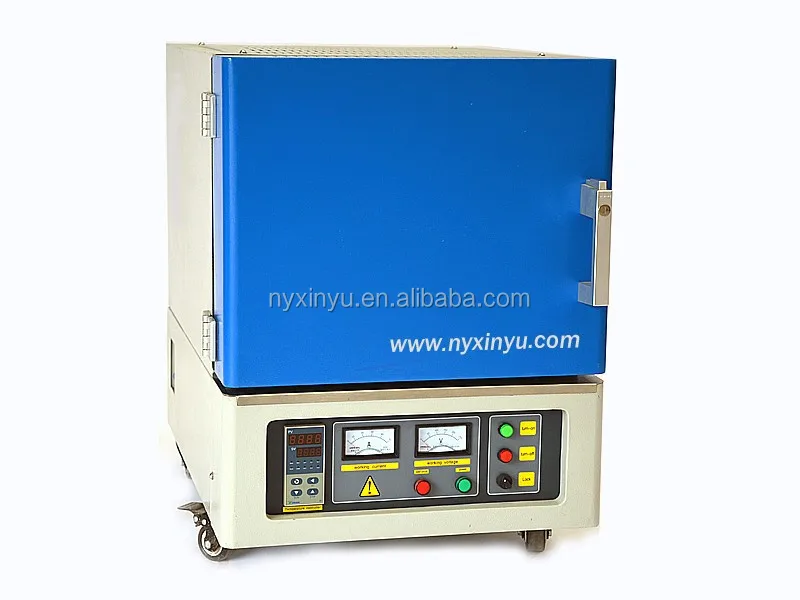

1400 degree electric muffle furnace specification:

Chamber size: 400x300x300 mm;

Capacity: 36 liter;

Power: 16kW Max.  ( power cord is included ).

Voltage: AC 380V 50/60 Hz;

Max. Temperature :1700.C  (< 1 hour);

Continuous Working Temperature:1600.C;

Max. Heating Rate:30.C /min;

Temperature Controller :

PID automatic control and auto-tune function.

30 programmable segments for precise control.

Built in protection for over-heating and broken thermocouple.

Large digital control panel (48 x 96 mm) for easy operation.

Temperature Accuracy :+/- 1.C;

Heating Elements : SiC.

Thermocouple : S type.

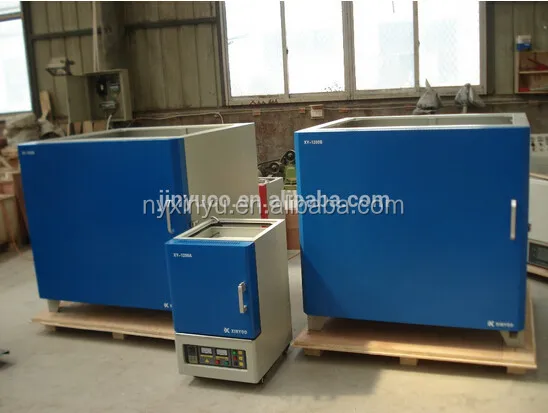

Muffle furnace Standard Sizes:

Type	Furnace size	Working/Max.temperature	Delivery time
1700.C muffle furnace	100x100x100mm	1600.C/1700.C	1-3 days
1700.C muffle furnace	200x150x150mm	1600.C/1700.C	1-3 days
1700.C muffle furnace	300x200x200mm	1600.C/1700.C	1-3 days
1700.C muffle furnace	400x300x300mm	1600.C/1700.C	1-3 days

LED or Touch screen temperature controller optional:

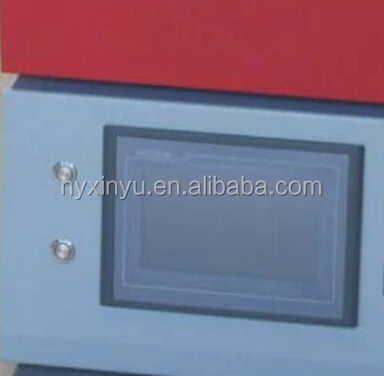

LED controller           Touch screen controller

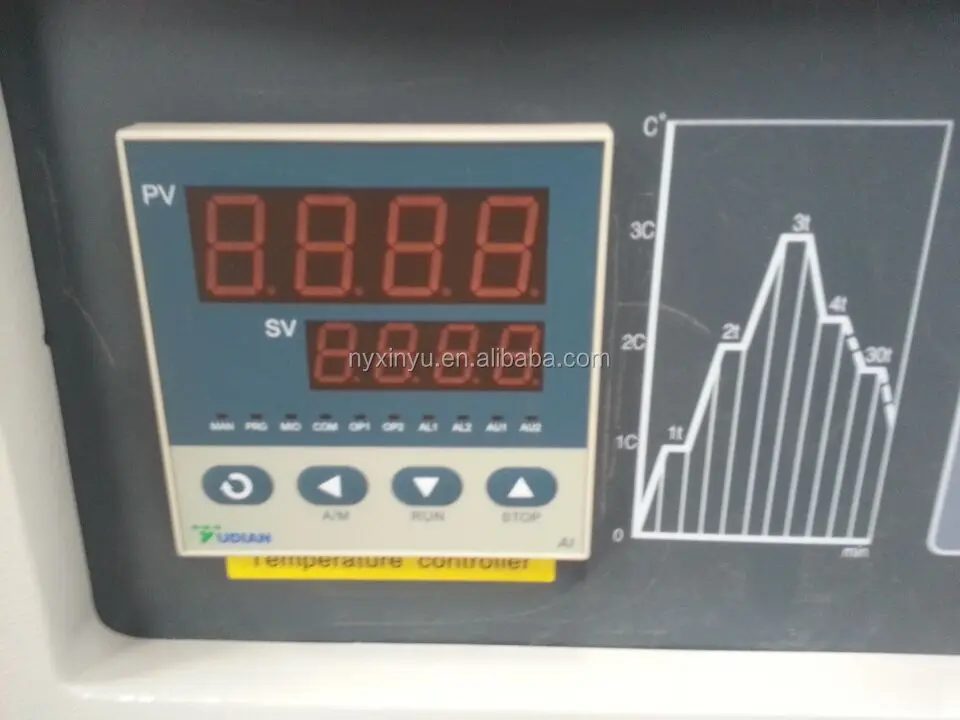

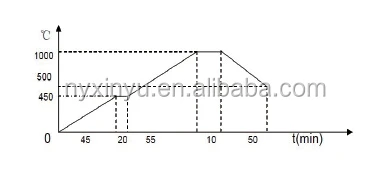

Temperature’s curve for your reference as below.( for example: 6 segments)

Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
