DH DW16E Automatic Metal Craft Scroll Bender Machine

Product Overview

Description



DH-DW16E Wrought Iron Scroll Bending Machine is the best choice for producing steel scroll pattern.



1. Special machine that bending C, S, P and abnormity scroll pattern.

2. Wide material range include flat steel, square bar, round bar, round pipe.

3. 200+ molds for choosing and accept customized design.





Here are DH-DW16E Wrought Iron Scroll Bender Machine Details:

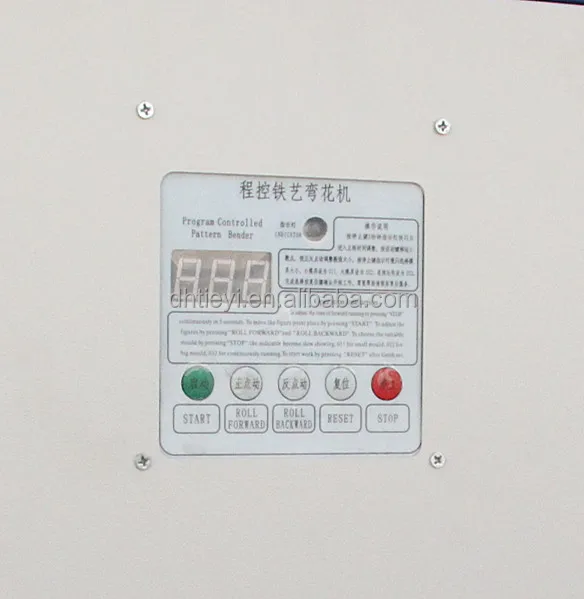

1. Control Panel.

PC Programm Controlled, hugely improve repeat precision for scroll mass production.







2. Working Area.

Big mold space, big material process space, big capacity.

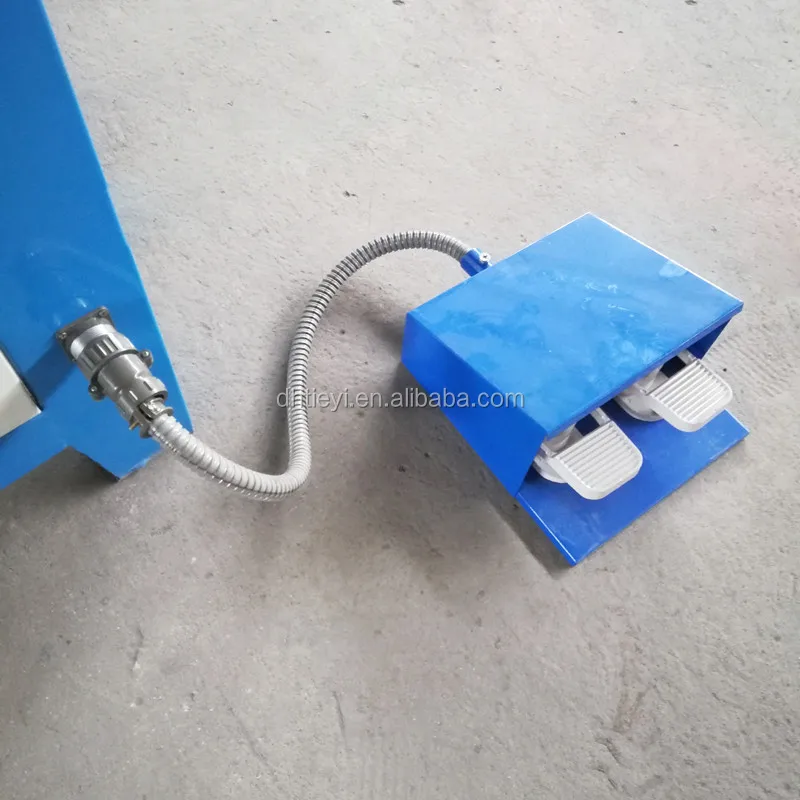

3.  Foot Switch.

Release the hands, improve working efficiency.

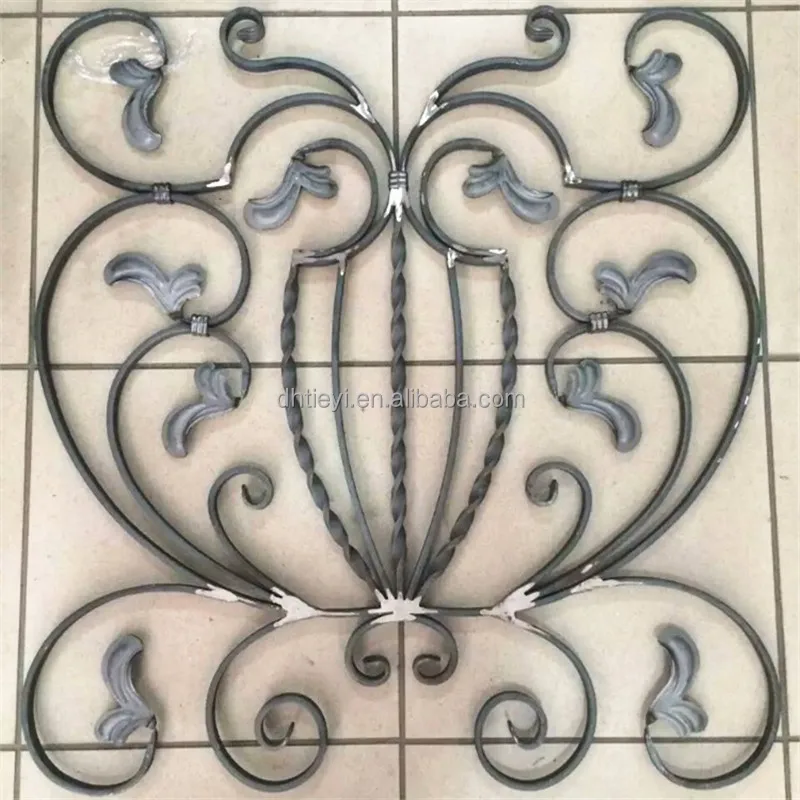

4. Can Make Various Scroll Pattern.

Standard scoll, Coil Scroll, Fishtail Scroll, Pipe Scroll; accept custom design.







Here are DH-DW16E Electric Decorative Metal Craft Scroll Bending Machine Specification:



DH-DW16E Electric Scroll Pattern Bending Machine
Max. Working Ability	Flat Steel	≤50x10MM
	Square Bar	≤16X16MM
	Round Bar	≤ Ø16MM
	Round Tube	Ø8-12MM   1-1.5MM Thk.
Power		1.5KW   380V  50HZ  3PHASE

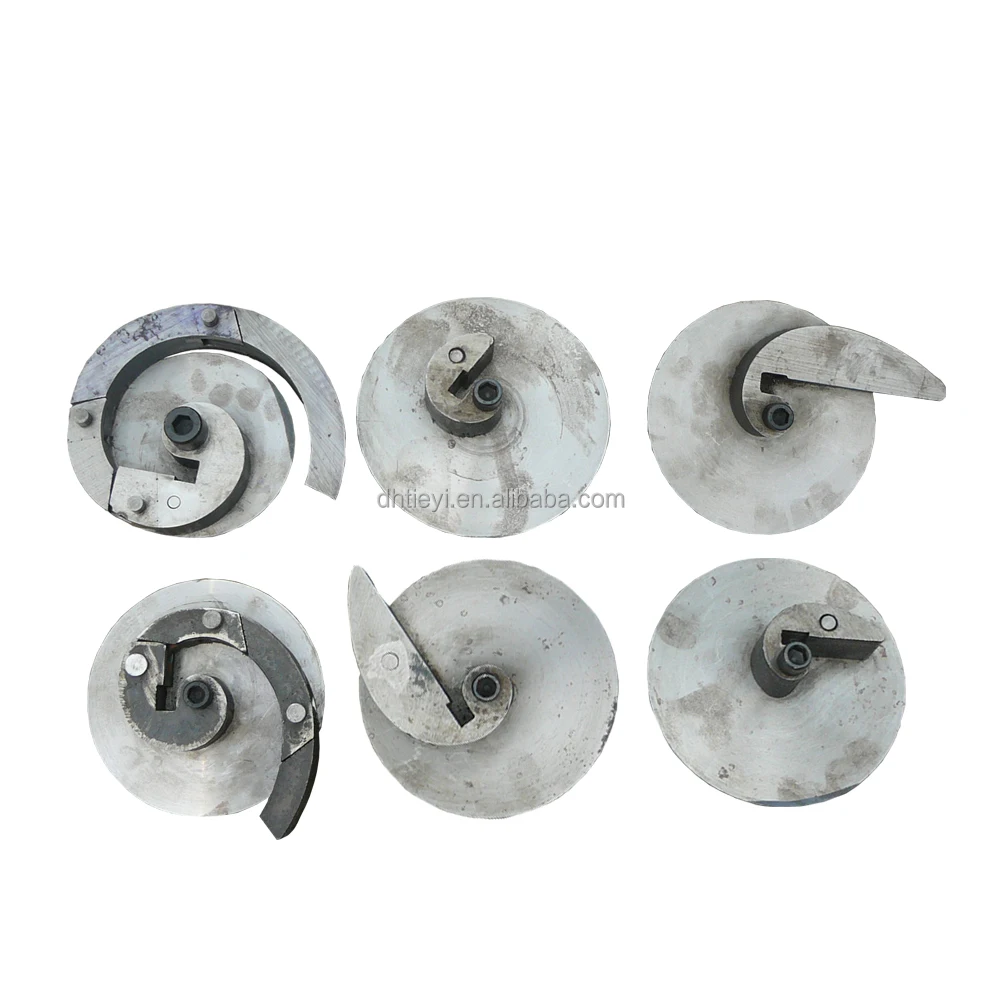

Free Molds		DW-01, DW-02, DW-03, DW-04, DW-05, DW-13
Main Features		1. Automatically control pattern bending, time and location; high repeat precision. 2. Excellent mold quality, smooth and level, no hollow default. The mold open space large, easy operate. 3. Quick mold change, only need 4-8 seconds. 4. Larger working ability, max. process 16x16MM square bar. 5. High capacity, 500pcs per hours for make standard C pattern. 6. Complete products range include C, S, P pattern, all size. 7. The new improved mold without eccentric shaft increase the working range and working efficiency.
Dimension		800x550x1100 MM
Weight		350 KG





We supply complete wrought iron making machine line.

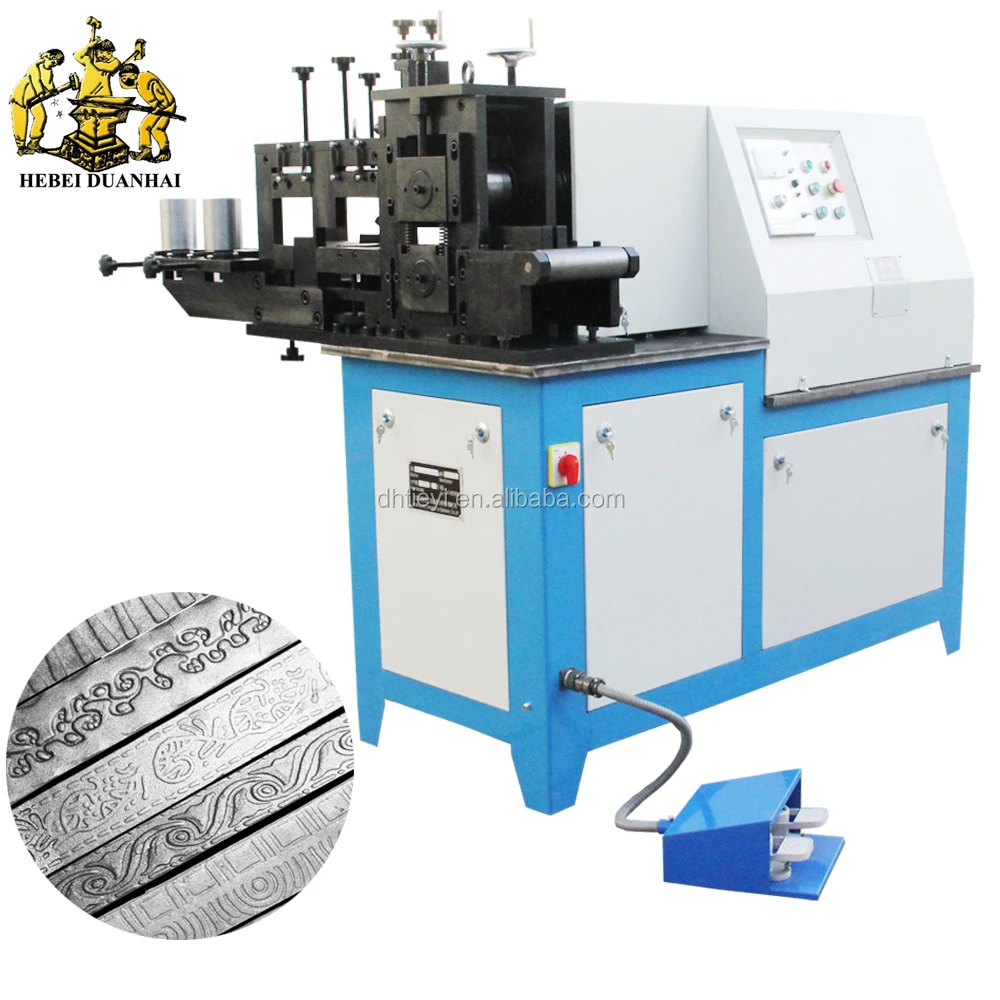

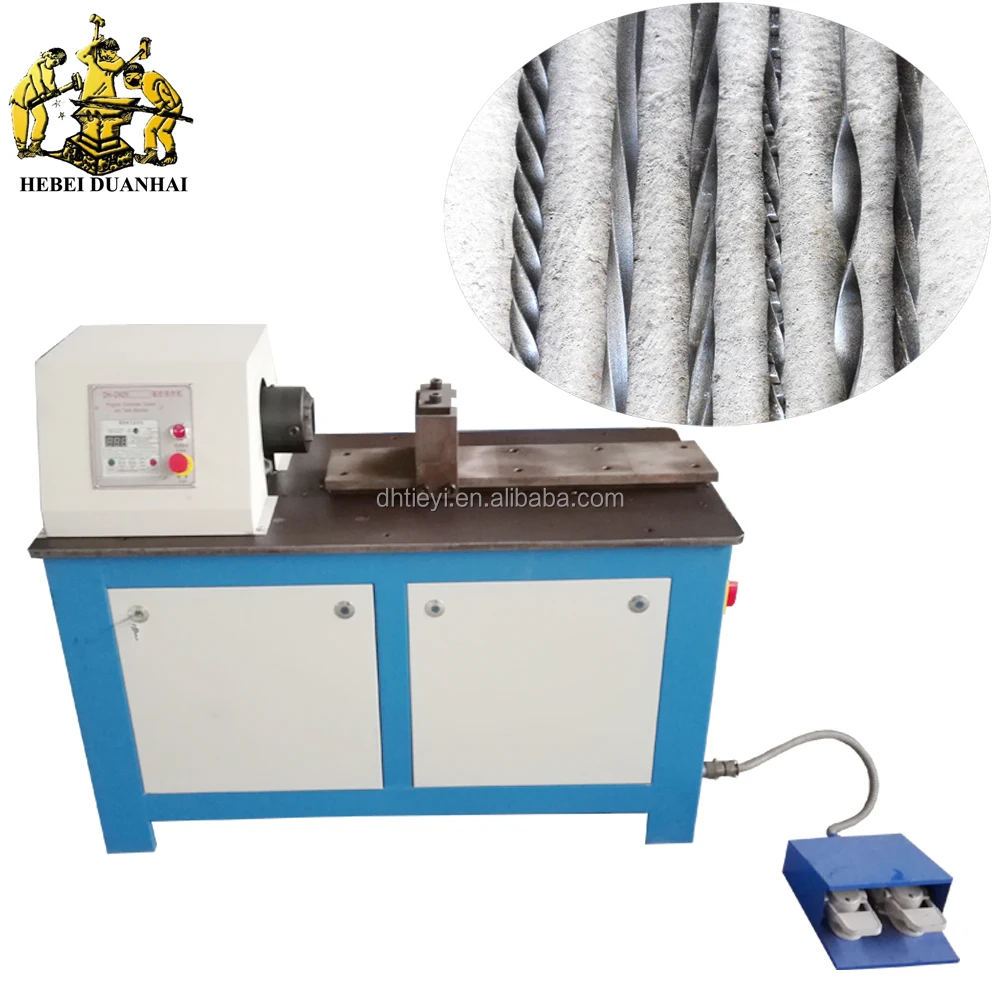

DH-60A Cold Rolling Embossing machine               DH-TDE Round Pipe Embossing Machine         DH-DN25A Steel Twist Machine







Hebei Duanhai Wrought Iron Machinery Co., Ltd. is a professional manufacturer who produce wrought iron machines, wrought iron fittings and components and various wrought iron products.

With the whole series of manual and electric wrought iron making machines, hundreds of pressed, elaborately cast and forged craft fittings as well as iron craft standard single flowers and all kinds of finished iron craft groupware, Duanhai not only processes domestic market in more than 20 provinces, cities and municipalities but also exports the products to Western countries, the Southeast Asia and the Middle East, such as Romania, Lebanone, Australia, Canada, Veitnam and so on.















1. Are you a factory or trading company?
We are the leading factory of Wrought Iron Machine in China. We welcome you visit us!



2. How about the product quality?
Each machine will be tested more than 24 hours after finishing.
All elements are use reliable and famous brand that work with us over 20 years.



3. What about the warranty and after-sale service?
Our machine has 12 months guarantee, electrical parts has 6 months guarantee.
Our engineers are available to serve oversea.



4. Are you providing training about machine installation and operation?
Yes, our engineer can teach your worker in our factory OR give them a class in your factory.



5. Is it possible to use our LOGO or special custom design?
Yes, no problem.. We have a professional technology team for new research and development.



6. How long the lead time is?
Usually 7-10 Days is enough.



7. What is the price term and payment method?
We can quote EXW, FOB, CIF and CNF price. You can pay us by T/T, L/C or Western Union.



8. How I contact you?
Skype: peterishere86;   Mob / Whatsapp / Wechat / Viber: 0086-13930187175.
