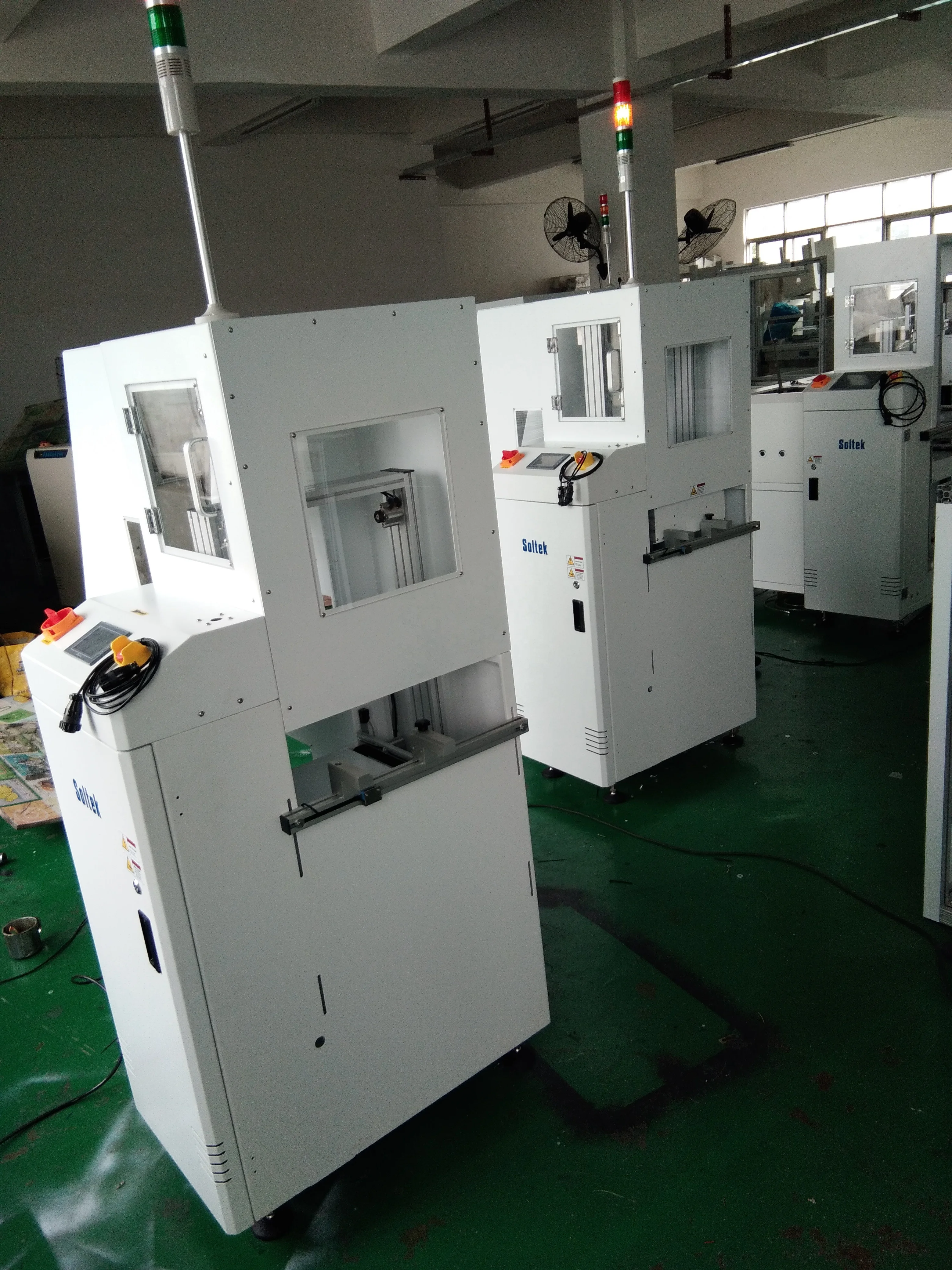

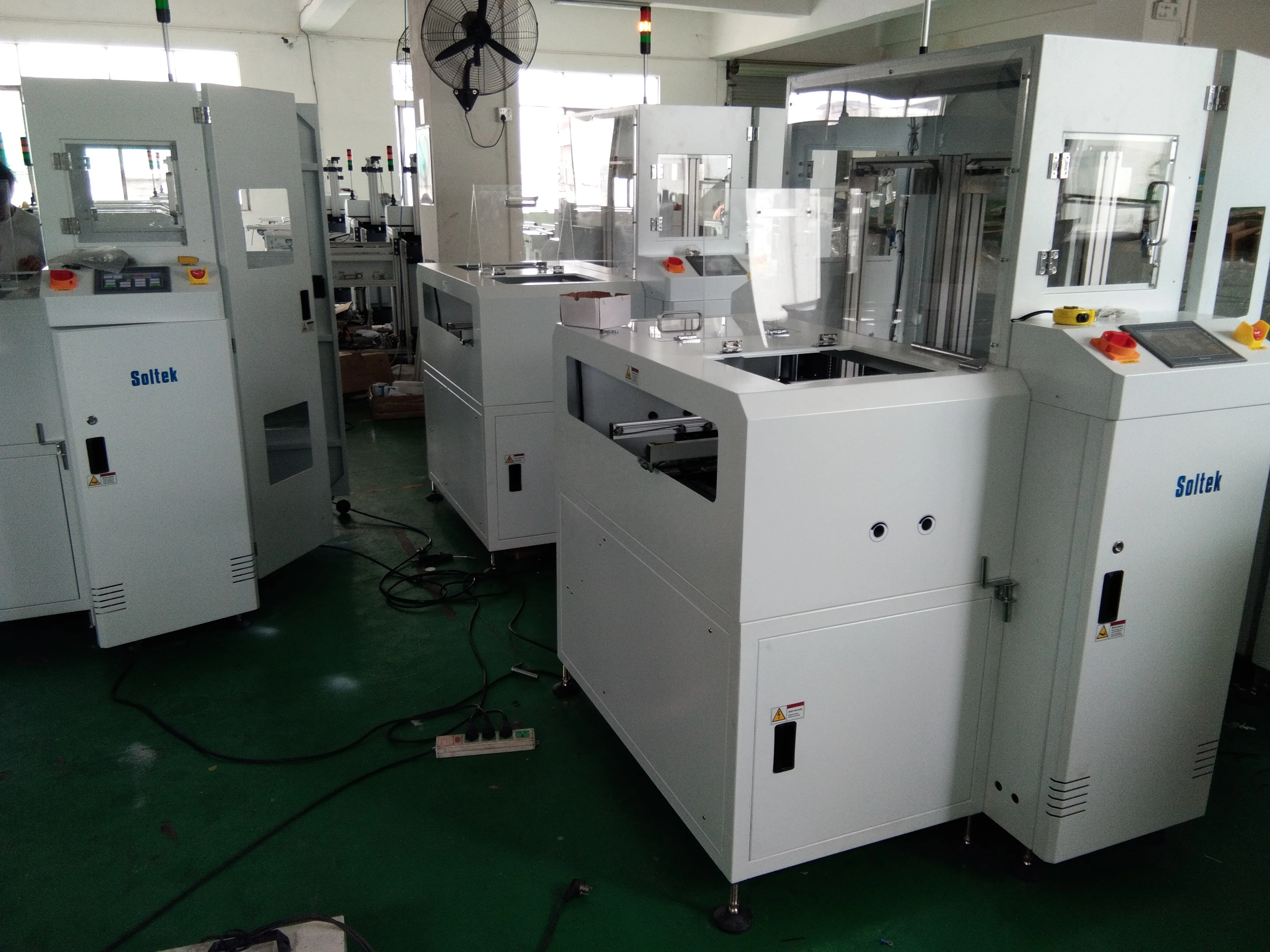

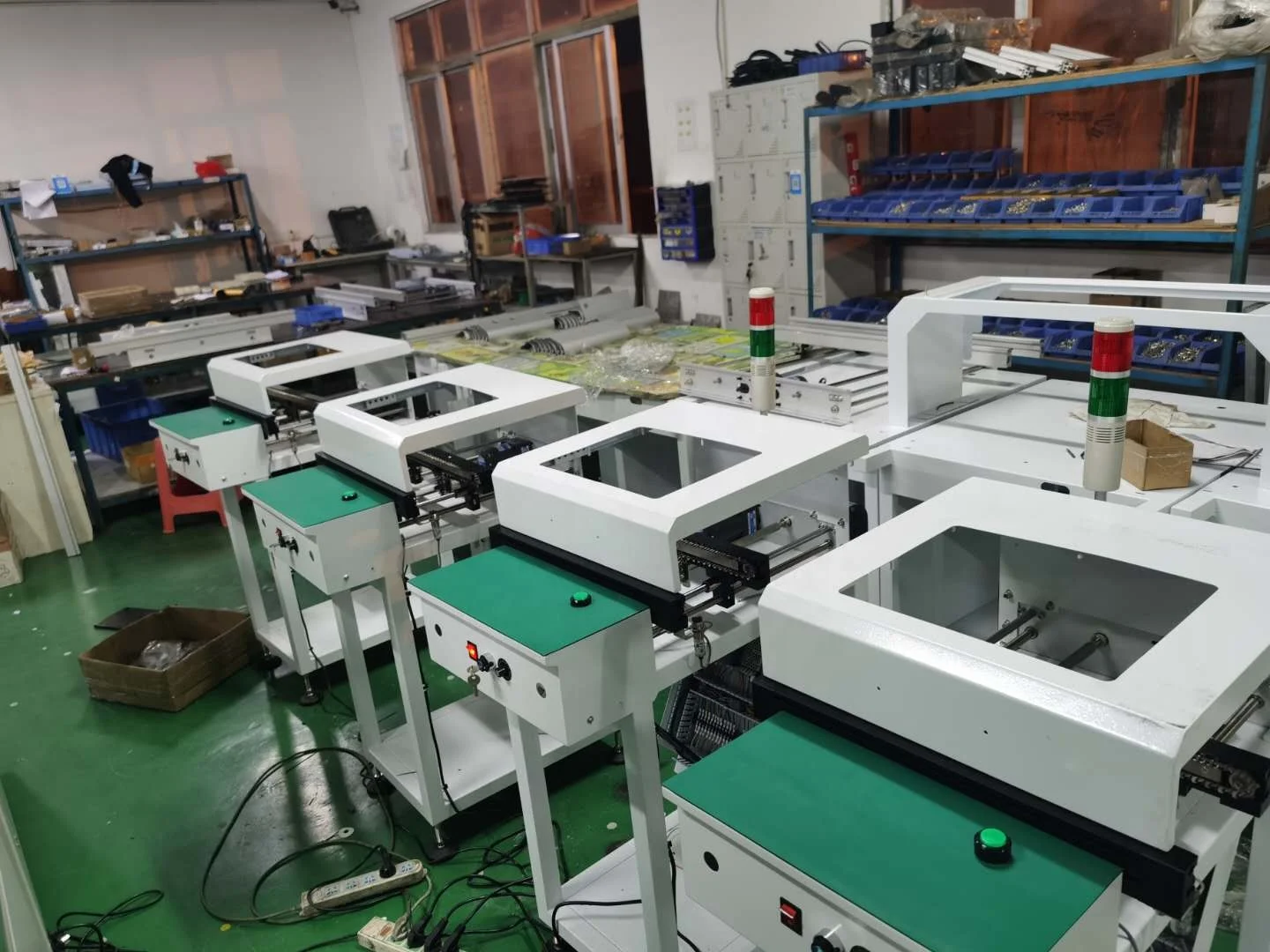

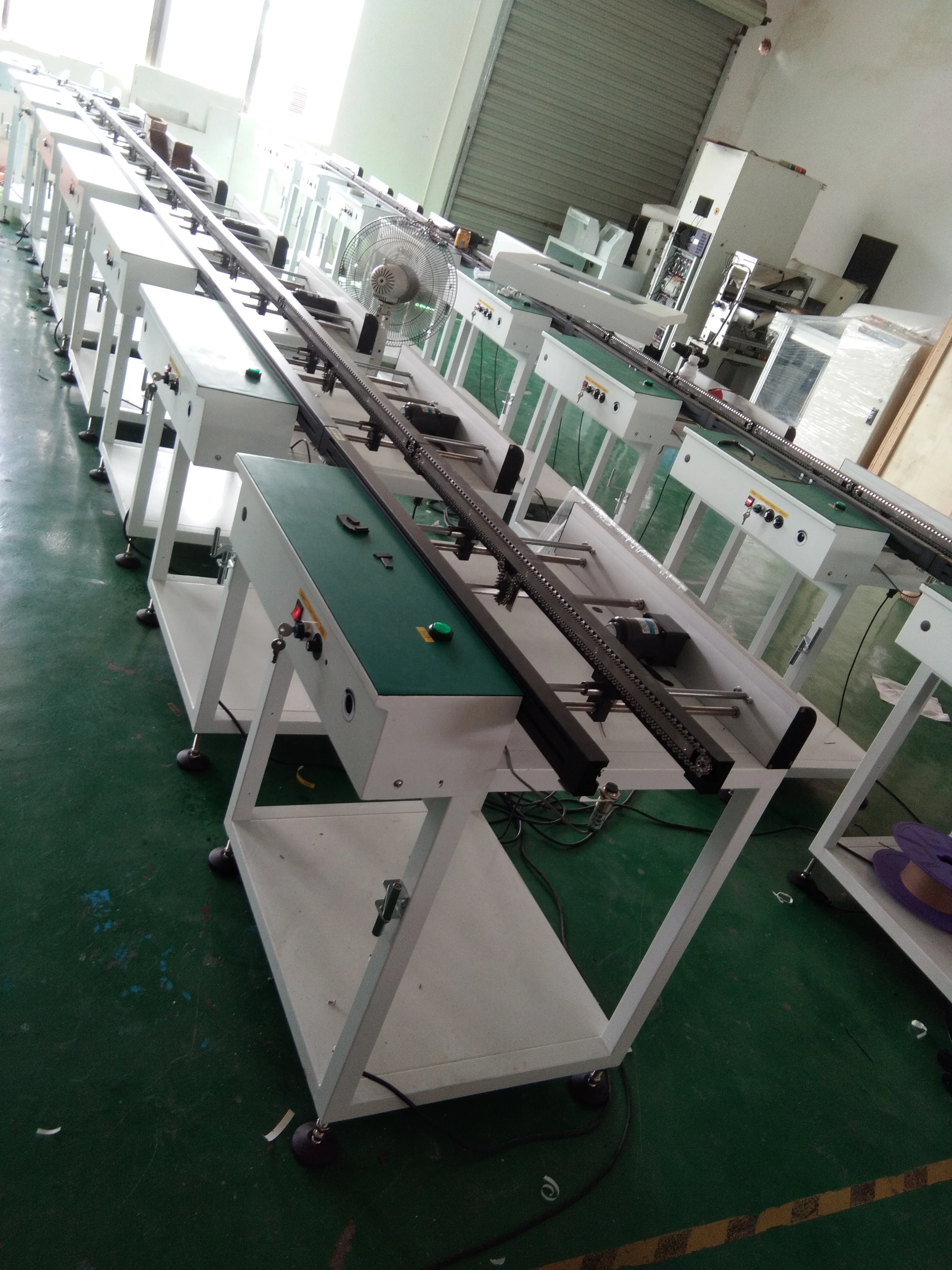

Soltek pcb Magazine Loader and Unloader with EN

Description

 This unit is used for loading of PCBs

 Time Feed PCB

  seconds 6 Approx

 Magazine Change Over Time

 Approx.30 seconds

 Power Source & Consumption

 100-230VAC(specify),1ph, 300VA max

 Air Pressure & Consumption

 4-6 bar, 10 Ltr/min max

 Conveyor Height

 910±20mm (or specify)

 Conveyor Direction

 L----R / R----L(Option)

 PCB Thickness

   0.4 mm min

 No. of Magazine

   Upper Conveyor: 1magazine

Lower Conveyor: 2magazine

 Indexing Pitch

   1-4 (10mm pitch)

Model

SOLTEK-L1

SOLTEK-L2

SOLTEK-L3

SOLTEK-L4

Effective PCB Size

(L×W)~(L×W)

 (50x50)~(350x250)

 (50x50)~(455x330)

 (50x50)~(530x390)

(50x50)~(530x460)

Dimension
(L×W×H)

1400×800×1200

1650×880×1200

1800×940×1200

1800×1010×1200

Size Of Magazine
(L×W×H)

 355×320×563

 460×400×563

 535×460×570

535×530×570

Weight

Approx.140kg

Approx.180kg

Approx.220kg

Approx.260kg
