Hydraulic Cheap Mineral Animal Lick Salt Block Press Machine

Product Overview

Description

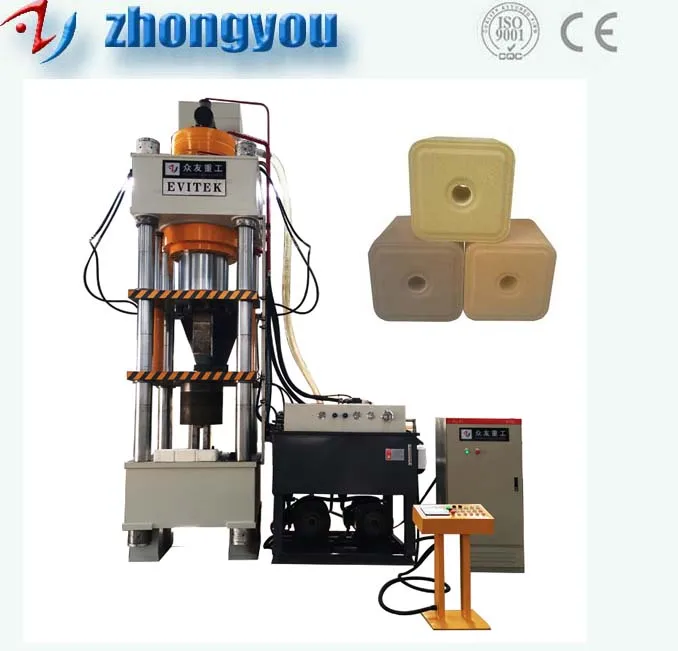

            2 KG Animal Mineral Salt Brick Automatic Block making machine

Product Description & Advantage

1. Structure: it consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The Salt table making hydraulic press machine column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing.

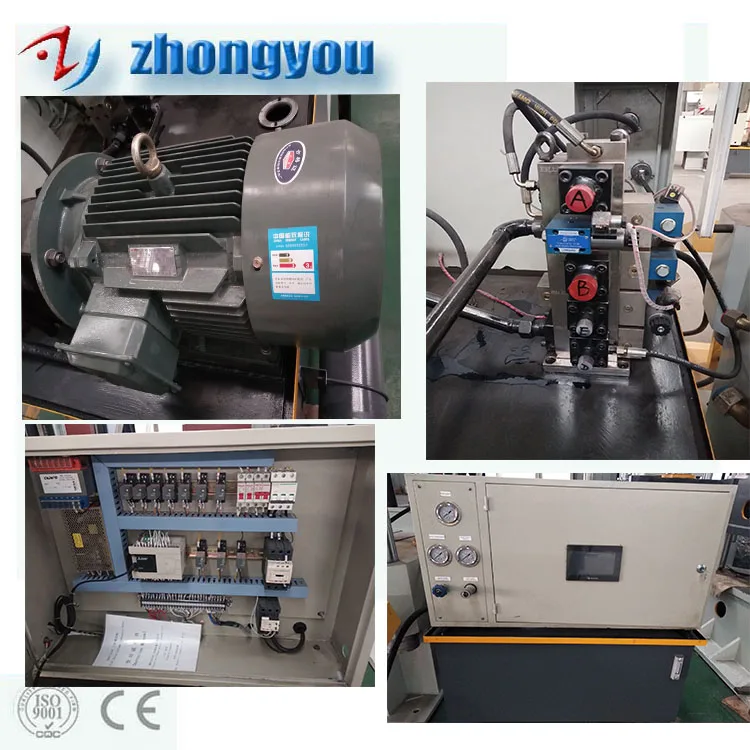

2. Hydraulic System: The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.

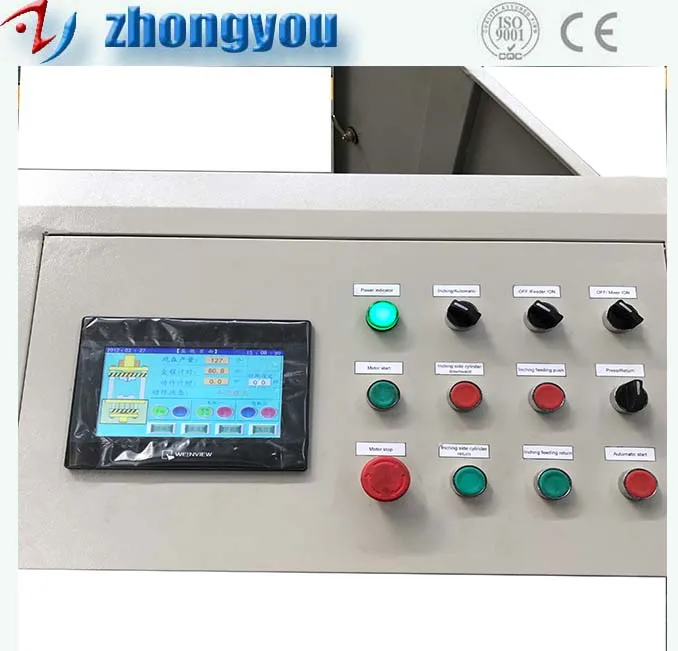

3. Electrical Control System: an independent electric cabinet and a centralized control panel.

4. Operation: Two working modes as inches and semi-automatic strokes.

5. Security: The emergency stop button can stop the machine immediately. The slide has Limit Switch on both up and down of the work table. Hydraulic support safety circuit is arranged in the cylinder piston inside of the hydro-cylinder.



Parameters & how to choose proper Hydraulic press Machine for salt block



Parameters	YQ32-200	YQ32-315	YQ32-500	YQ32-630	YQ32-800
Nominal Force(KN)	2000	3150	5000	6300	8000
System Pressure(Mpa)	25	25	25	25	25
Max opening distance(mm)	900	1000	1500	1800	1800
Slider effective stroke(mm)	600	600	900	1000	1000
Effective worktable size(mm) -L.RXF.B	800x800	800x800	1400x1400	1500x1500	1500x1500
Nominal force of upper ejection clinder(Kn)	400	630	1000	1000	1000
strok of upper ejection cylinder(mm)	220	300	300	350	350
Slider descending speed(mm/s)	100	120	150	150	150
Slider press speed(mm/s)	5-10	8-15	10-22	10-20	10-20
slider return speed(mm/s)	90	90	120	120	120
Salt Block Weight (Kg)	2	2-5	5-10	10-15	15-20

 PS: Color, Motor power, Workbench size, Opening height, Effective stroke can all be customized, Size of salt block mold  included,As your requirement please Click me Here.

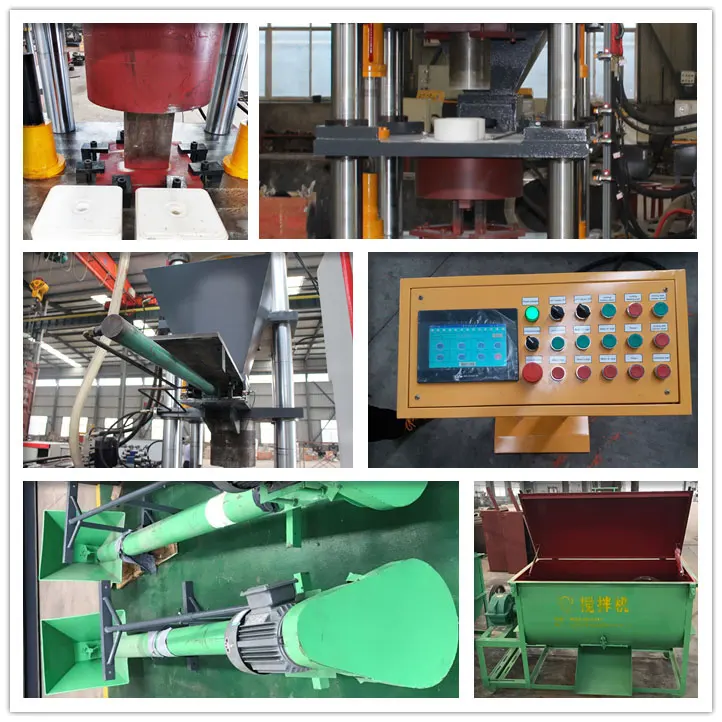

Molds and Accessories:

2 KG Animal Mineral Salt Brick Automatic Block making machine Components

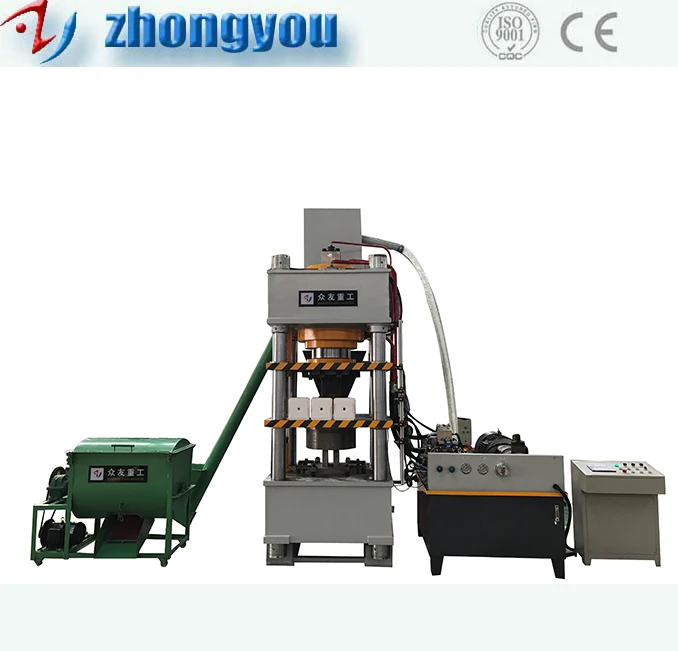

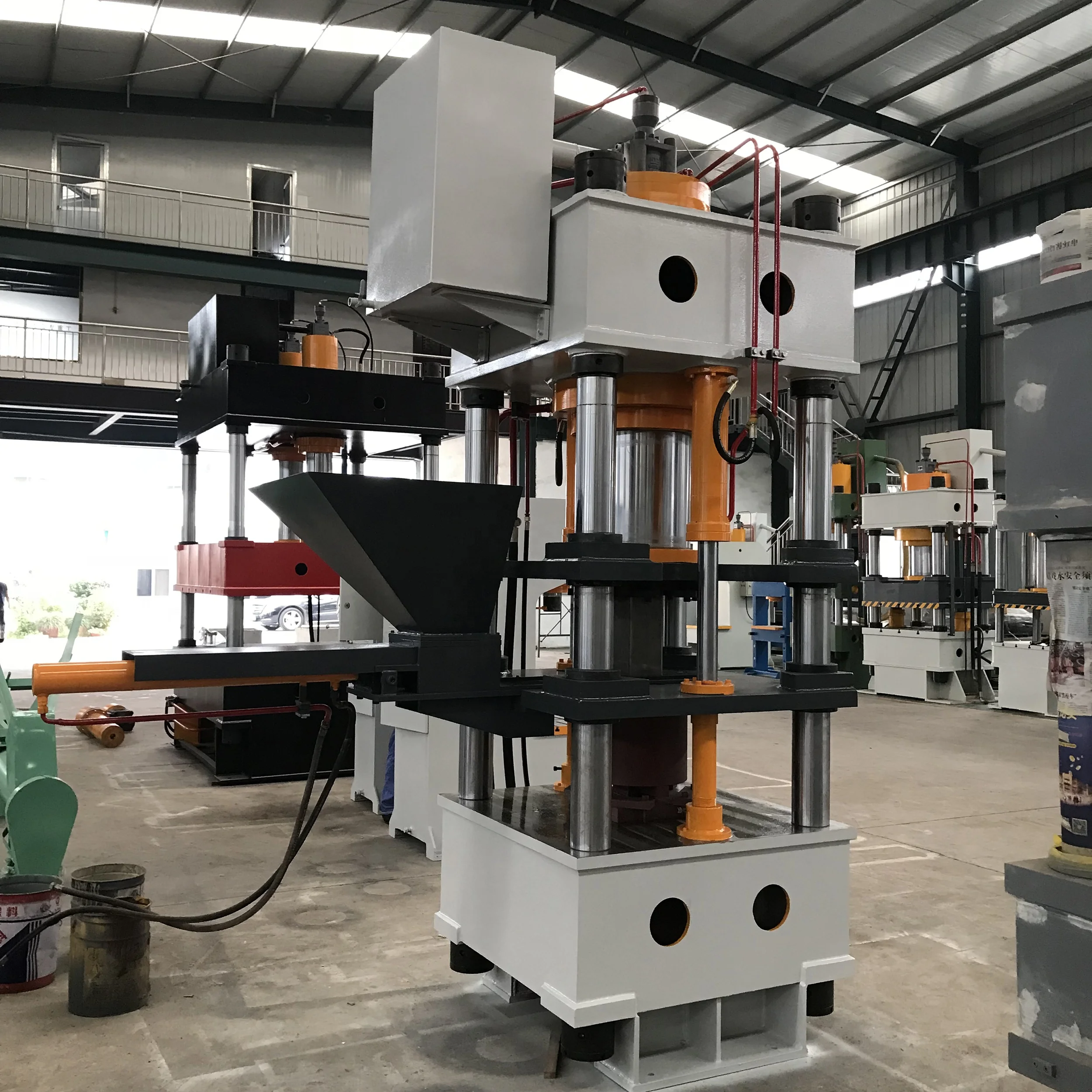

Split Design Automatic Block making machine:

1.hydraulic salt Block Making machine automatic feeding machine,

2.hydraulic block Making machine 315/500/800 ton,

3.hydraulic oil press system,

4.power Distribution cabinet, electronic control system,

5.Button console station.(PLC selected)

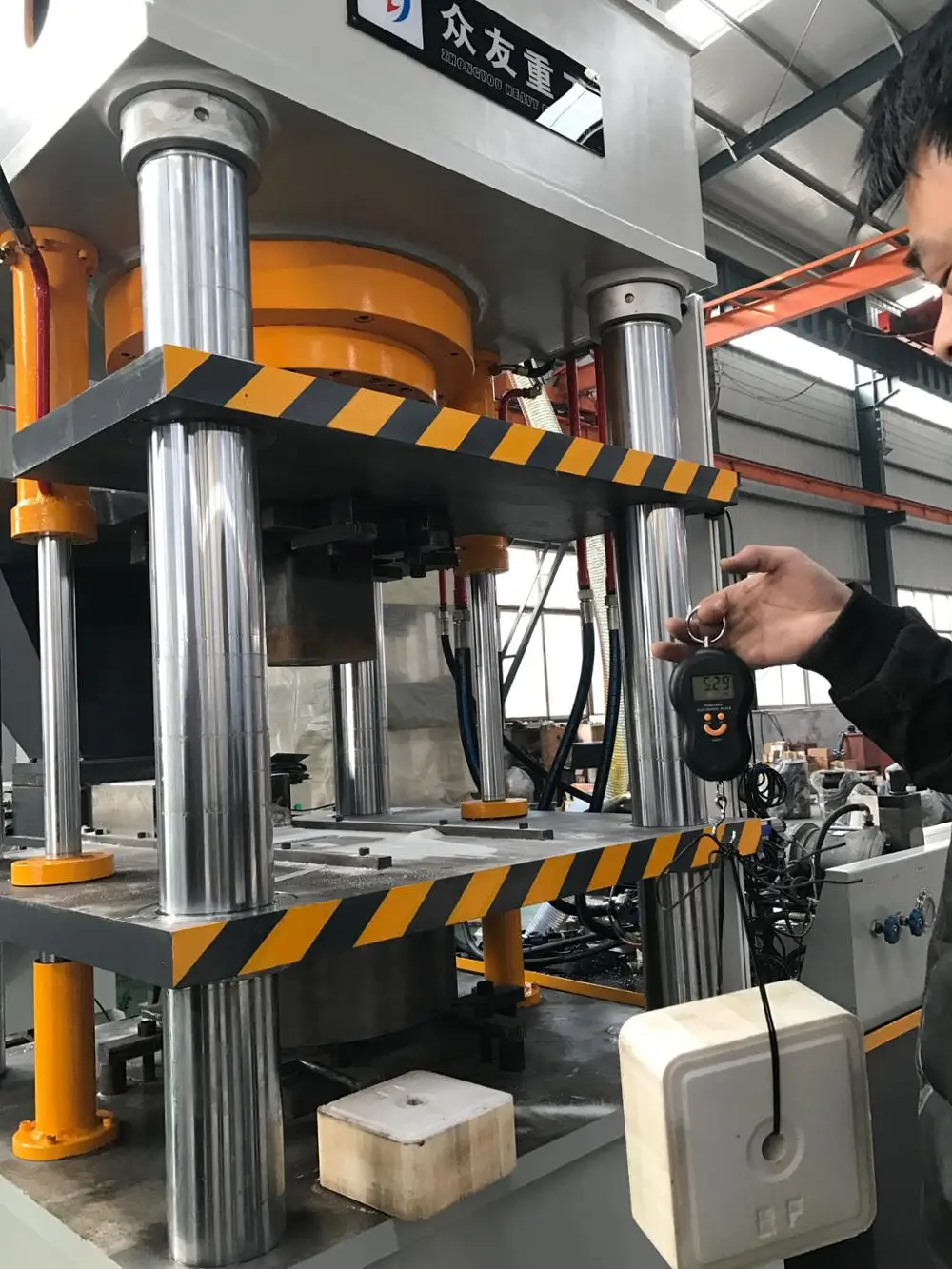

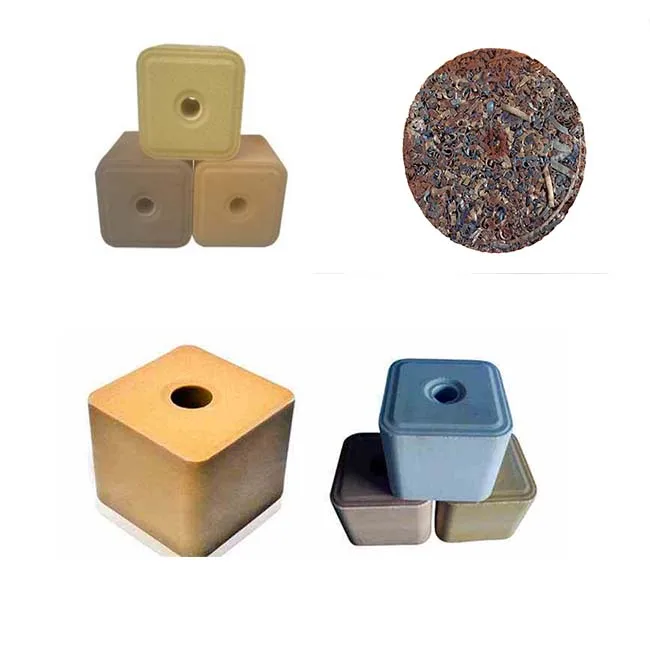

Samples and Application:

The lick salt hydraulic press machine produced by our factory is a kind of hydraulic pressure block machine, the pressure is large, it can be formed once, the density is high, the product appearance of theautomatic hydraulic press machine is clean and beautiful.If customers want to produce products of different specifications, they can customize multiple sets of molds to achieve a multi-purpose goal.



Package&Shipment:



Package:

1.Wooden Box: If the cattle licking salt making Hydraulic press machine is not big enough.

2.Container:  Use plastic film pack the four colum hydraulic press machine , then put into the container,and fasten the hydraulic machine with the container.

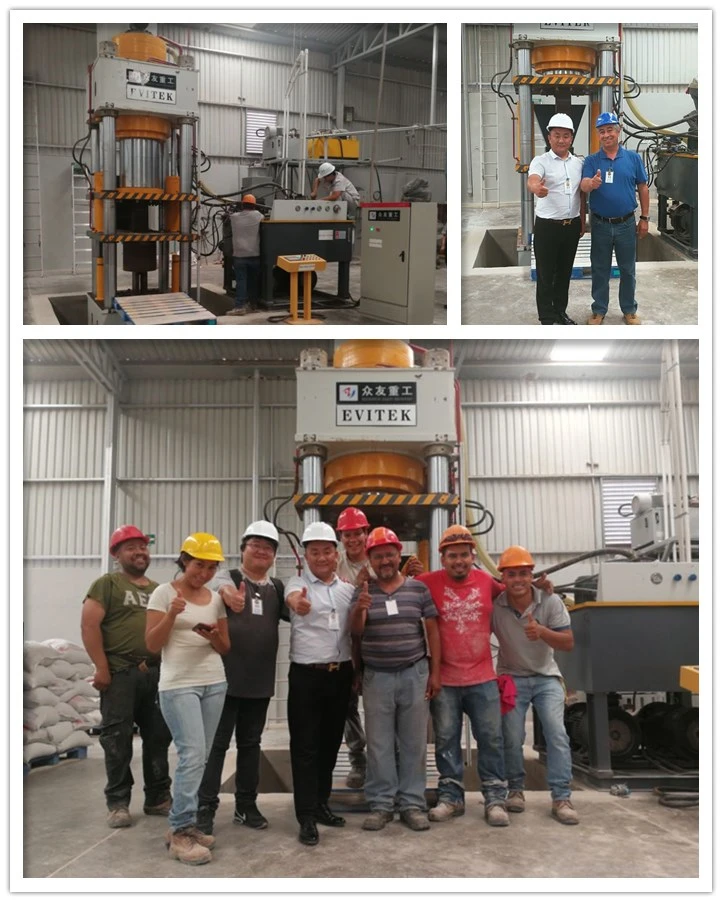

Company Information & Workshop shows

Zhongyou Heavy Industry Machinery Equipment Co;Ltd

          -----Professional to create a leading brand of Animal Salt Block hydraulic press machine

                                   16 years of accumulated experience

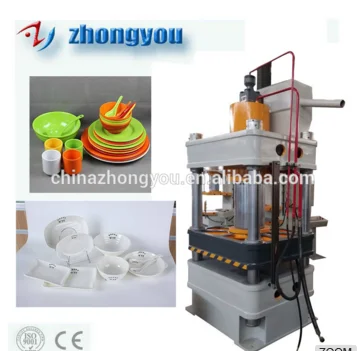

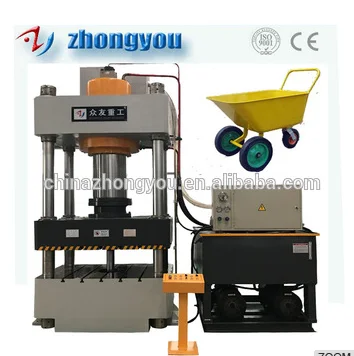

Related Products

Below is our Best sale Products for your Check.













Certificates:









FAQ

1.How to control quality?

all cow salt mineral licking block press machine shall be inspected by the inspection personnel of the manufacturer before they go out.

2.Are we a manufacturer?

Yes, we are engaged in the production of hydraulic salt block press machinery manufacturers.

3.Where is our company?

No.219,Xingye North Road,Economic Development Area,Tengzhou City,Shandong Province.
