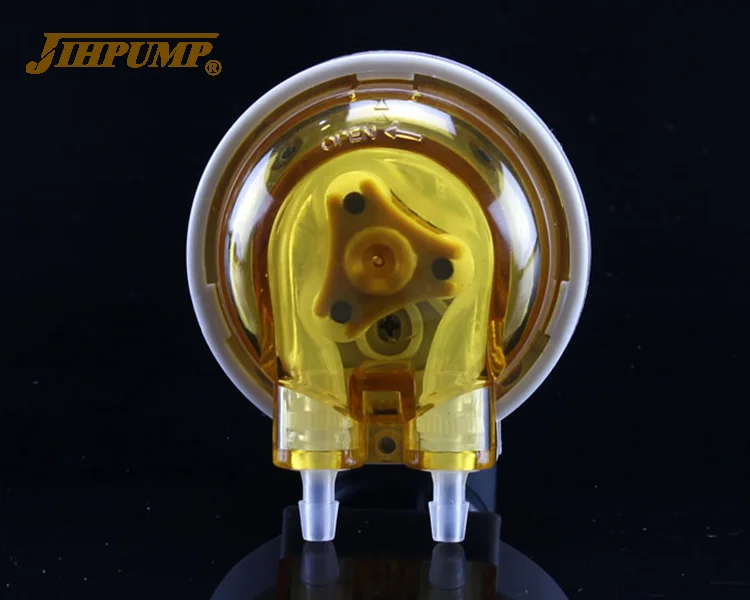

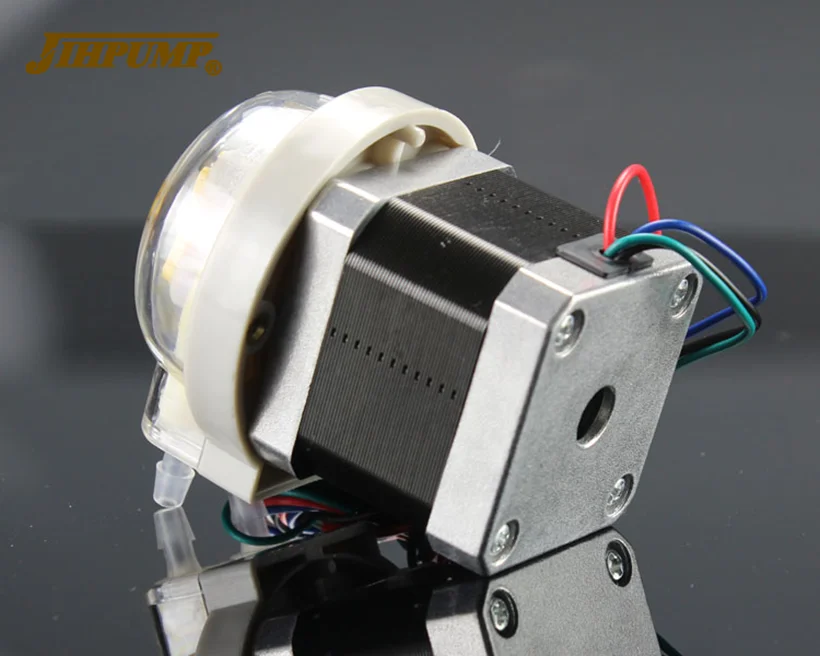

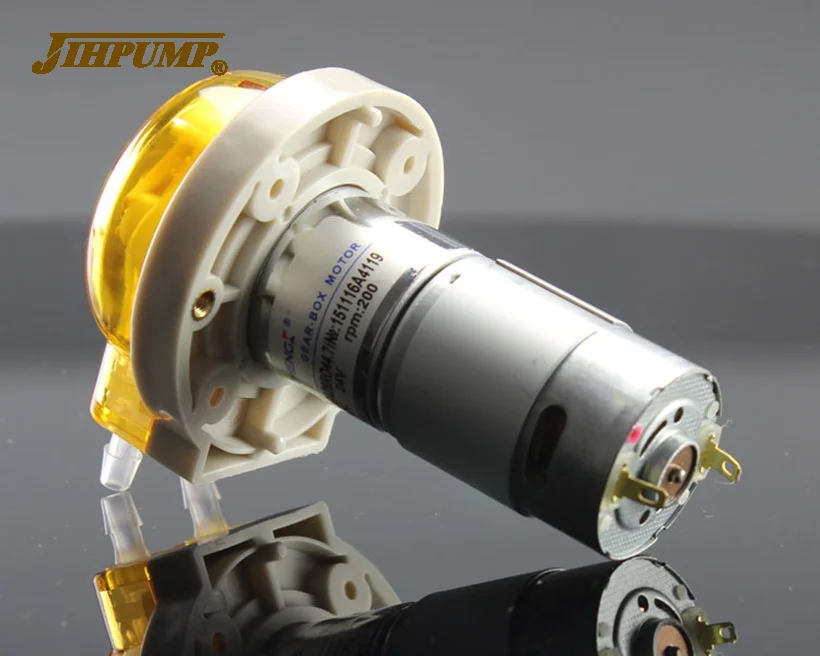

Low Price Peristaltic Pump 24V 12V DC Motor Stepper Motor with Silicone Tubing
- Category: >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (60724121416):
Product Overview
Description
Low Price Peristaltic Pump 24V 12V DC Motor Stepper Motor with Silicone Tubing
Flow Rate(ml/min, medium: clean water, inside silicone tube)
Tube Size | 14#(in option) | 16#(standard) | 25#(in option) |
MN2/ZL(DC Geared Motor) | |||
100rpm | 16 | 40 | 75 |
150rpm | 18 | 50 | 95 |
200rpm | 25 | 70 | 130 |
MN2/ZLX(DC Planetary Motor) | |||
100rpm | 13 | 35 | 60 |
150rpm | 18 | 50 | 95 |
200rpm | 23 | 60 | 115 |
MN2/BT(Stepper Motor) | |||
200rpm | 23 | 60 | 115 |
Parameters

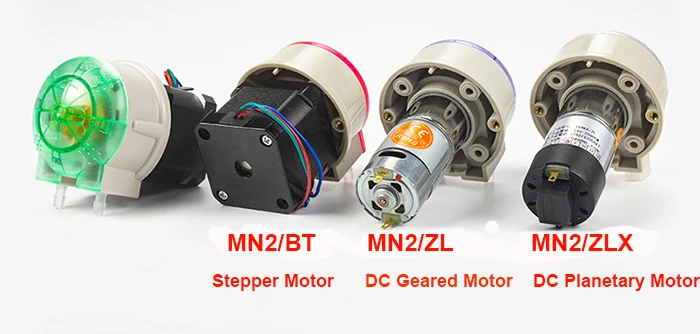

Model | MN2/ZL | MN2/ZLX | MN2/BT |
Motor type | DC Geared Motor | DC Planetary Motor | Stepper Motor |
Speed range | 12V: 100,150,200r | 24V:100,150,200r | 0.1~200r |
Tube size | 14#, 16#, 25# | ||
Flow rate range | 13~115ml/min | 13-130ml/min | ≤115ml/min |
Roller qty | 3 Rotors | ||
Power | 24W | 48W | |
Driver | DC Motor Driver: JZL-A &JZL-B | Stepper Motor Controller | |
Voltage | DC12V, 24V | DC24V | 12V~24V |
Net Weight | 176g | 228g | 335g |

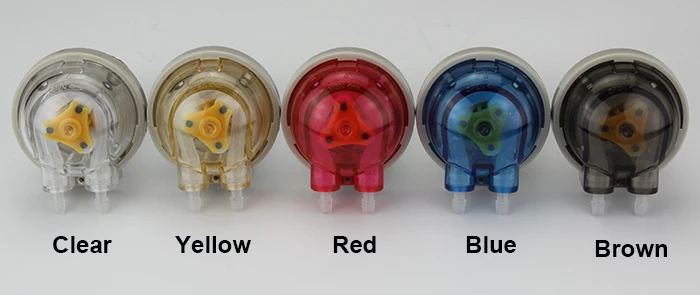

Optional Colors

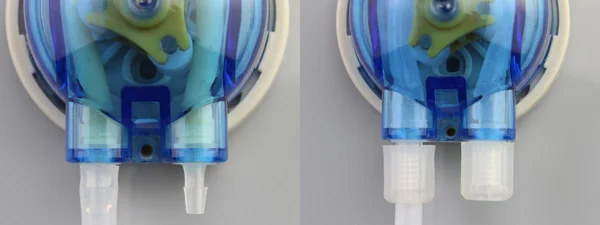

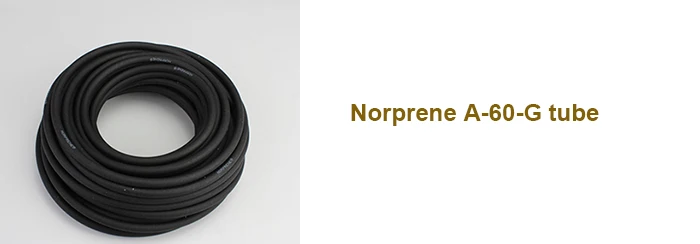

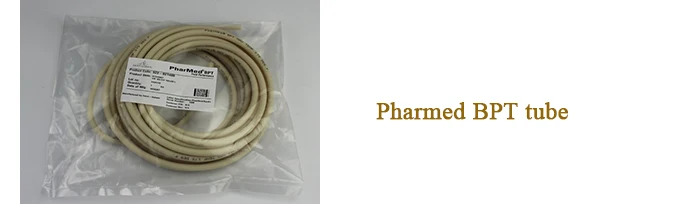

Optional Tube type & Fittings
Standard fittings & Hard tube fittings & threaded fitting
![%0ZF[ZUJB$4]RZ}CMB95~ZE.png](https://sc03.alicdn.com/kf/H75cf0117a4bb46c4b802581a900954d3B/226598799/H75cf0117a4bb46c4b802581a900954d3B.png)

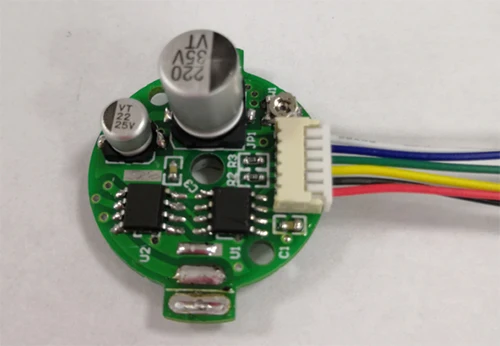

Speed Controller for DC Motor
--Adjust speed on DC motor, DC planetary motor

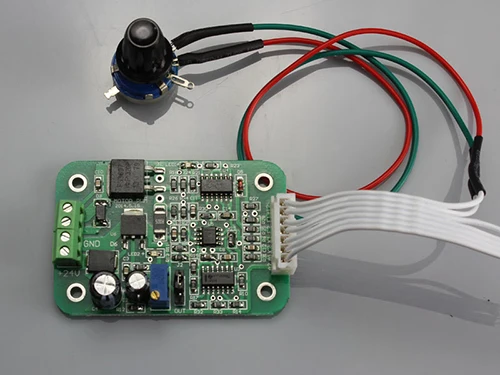

JZL-A
JZL-B--can be fixed on the DC motor

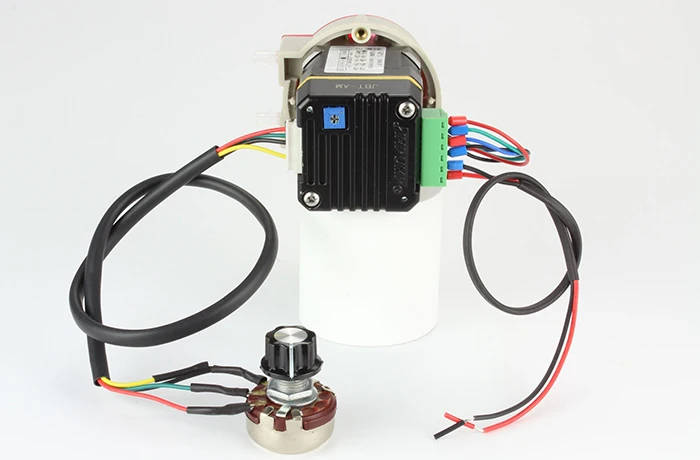

Speed Controller for Stepper Motor
| JBT-AM | Internal and external potentiometers adjust the speed, with start/stop, speed up/down and forward/reverse functions |
| JBT-AP | Accept voltage and PWM pulse to adjust speed, data can be added, built-in potentiometer to adjust current, with start/stop, speed up/down and forward/reverse functions |
| JBT-AT | MODBUS control speed, start/stop and forward/revers |
| QBT-M2 | Built-in potentiometer to adjust current, capable of receiving pulse, direction and enable signal |

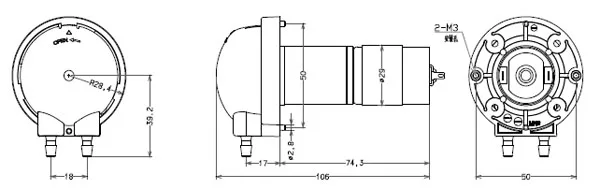

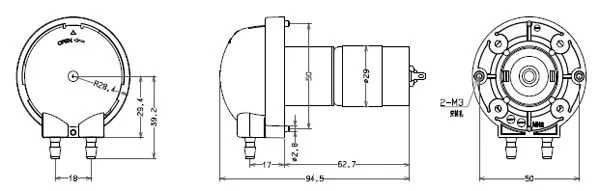

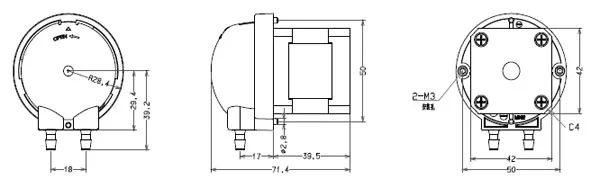

Dimension
MN2/BT
MN2/ZL
MN2/ZLX
