This machine is to mix and plasticize the plastics ( such as TPR, EVA, color master batch, rubber etc..) in the airtight, pressure, heating conditions (temperature and pressure are all controllable).It is a small machine with the virtues of small volume, low consumption, high precision controlling of temperature, pressure controllable and easy handling of loading and discharging materials, etc., which is suitable for sampling and improving formulas in plastics. It is also feasible for small production, which can avoid wasting resources by using big power machineries for sampling or for small production. The machine is suitable for testing and production in all professional granule factories.
Technical Parameter
Rubber(Plastic) Pressure Rotating Kneader
Model
X(S)N-20
X(S)N-35
X(S)N-55
X(S)N-75
X(S)N-95
X(S)N-110
Mixing Capacity
20L
35L
55L
75L
95L
110L
Actuating Motor
37KW
55KW
55/75KW
90/110KW
132KW
160/200KW
Tipping Angle
1.5kw
2.2kw
3.0kw
4.0kw
5.5kw
5.5kw
Turnover Angle
110
140
140
140
140
140
Air Compressor
3.0kw
5.5kw
7.5kw
11kw
15kw
15kw
Suction Cleaner
HLL-10
HLL-10
HLL-15
HLL-20
HLL-30
HLL-30
Water Cooling (rubber refining)
0.2-0.4 mpa
0.3-0.4 mpa
0.3-0.4 mpa
0.3-0.4 mpa
0.3-0.4 mpa
0.3-0.4 mpa
Steam Heating (plastic refining)
0.5-0.8 mpa
0.5-0.8 mpa
0.5-0.8 mpa
0.5-0.8 mpa
0.5-0.8 mpa
0.5-0.8 mpa
Electrical Heating (plastic refining)
9kw
12kw
15kw
18kw
24kw
24kw
Weight(kgs)
4500
6500
7800
10500
12500
14500
Dimension(L*W*H)
2.6*1.4*2.6
3.2*1.9*3
3.5*2.6*3.3
3.9*2.9*3.4
4*3.2*3.7
4.1*2.9*3.8

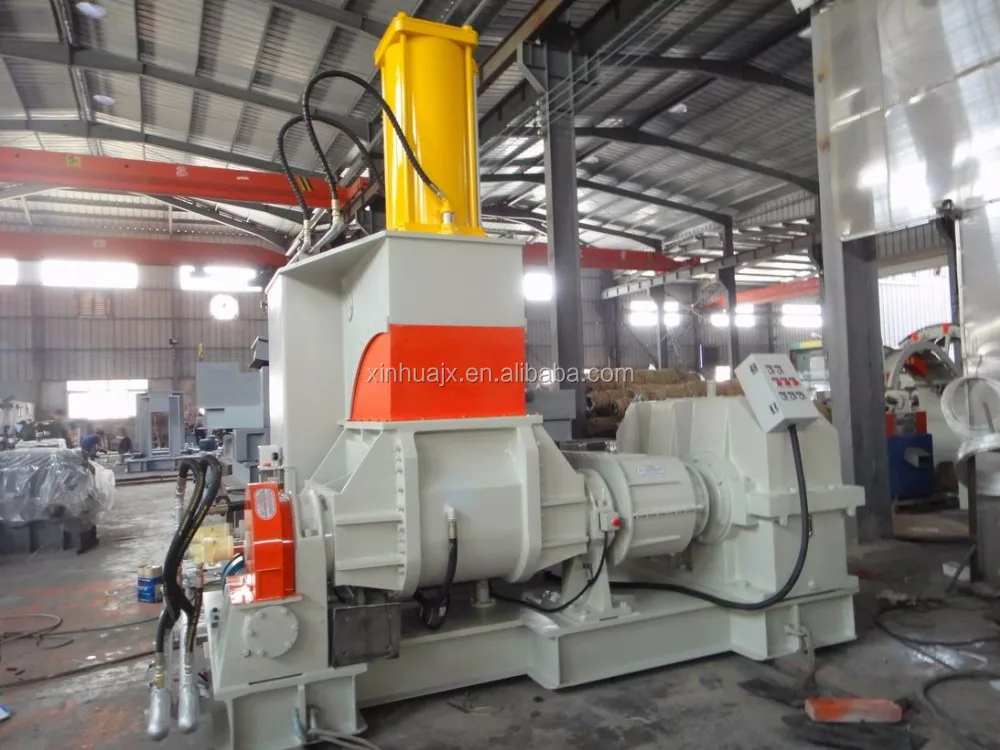

Product Show
Packing & Delivery
Packaging
Size
3.9*2.9*3.4
Weight
10.5T
Packaging Details
For the full container, it's usually nude packing. (with pe film)
