Product Overview

Description

QQ20170916135211

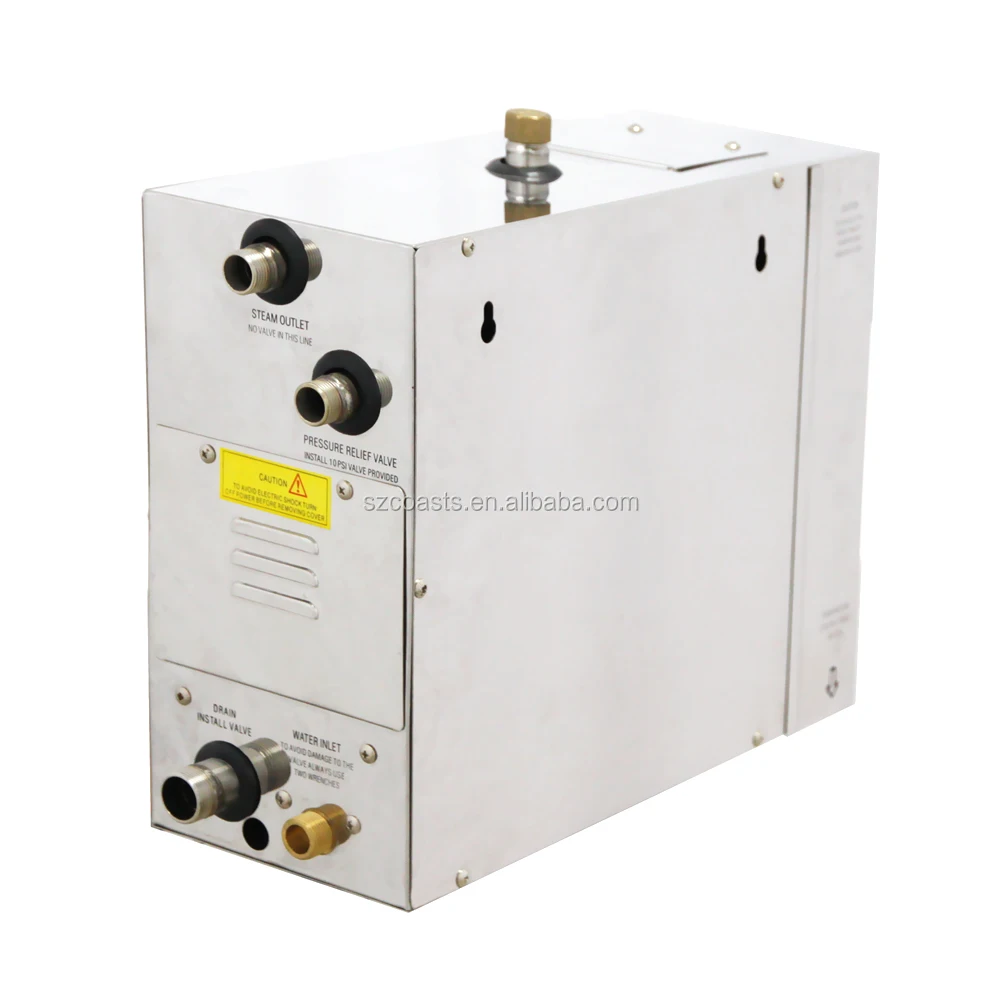

  Home Sauna Parts 9KW 220V Steam Generator For Home Sauna And Bath



KSA series steam generator is our BEST-SELLER. It is suitable for both residential and commercial use.  Equip  with water-proof tuch panel KS-150.



Full set steam include Digital control panel, auto drain system , #304 stainless steel water tank, new safety valve, water-proof connector, new quiet steam nozzle ,temperature sensor and control cable.











Time range(minute)  Temperatrue display range  Temperatrue adjustment range Dimension(mm)KS-150-2.jpg
 1-60 or none stop

 6-60℃

(43-140℉)

        35-55℃

(95-131℉)

 80*101*20

Functions:

1. Touch buttons, water-proof and steam-proof           2. Digital display for both temperature and time
3. Heating status LED indicating                                  4. Self-diagnostic function and Error message display
5. Lack- water and over-heat protection                      6. Steam room light control button.
7. Automatic water feed-in and drain control.





Introduction:

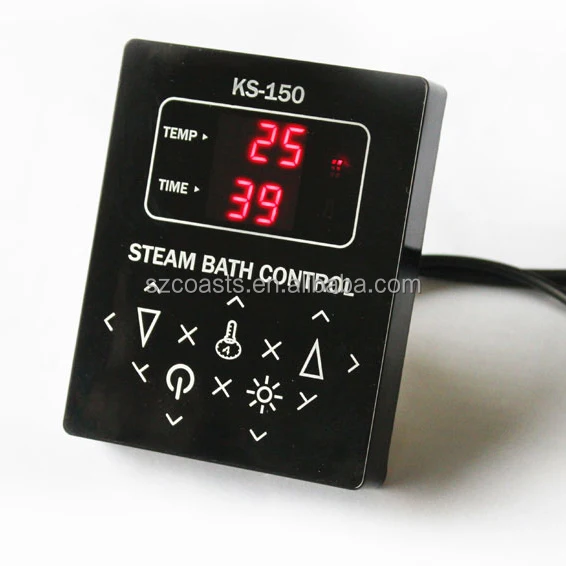

1. NEW steam-proof touch button control panel KS150,Could be installed inside steam room for easy operation. (Available in black and white)



2. Unique water level sensor design for large power unit,significantly improved the stability and life of water level sensor,so as prolong the life of the steam generator.



3.  Unique step-heating function.The special fuction will make the steam output continuous and stable,also make the unit enery-saving and last longer.



4. Powerful automatic drainage system with manual-drain button, Powerful automatic drainage system could refresh the water inside water tank quikly to keep water clean,reduce the mineral accumulation and so to prolong the life of heating elements.



5.Water-proof connector for control wire and temprature sensor.



6.Use UL cerficated heating elements.



7.CE  cerficate product.





Upgrade options:



Upgrade to #201 stainless steel shell or Upgrade to #304 stainless steel shell or Add top service hole.

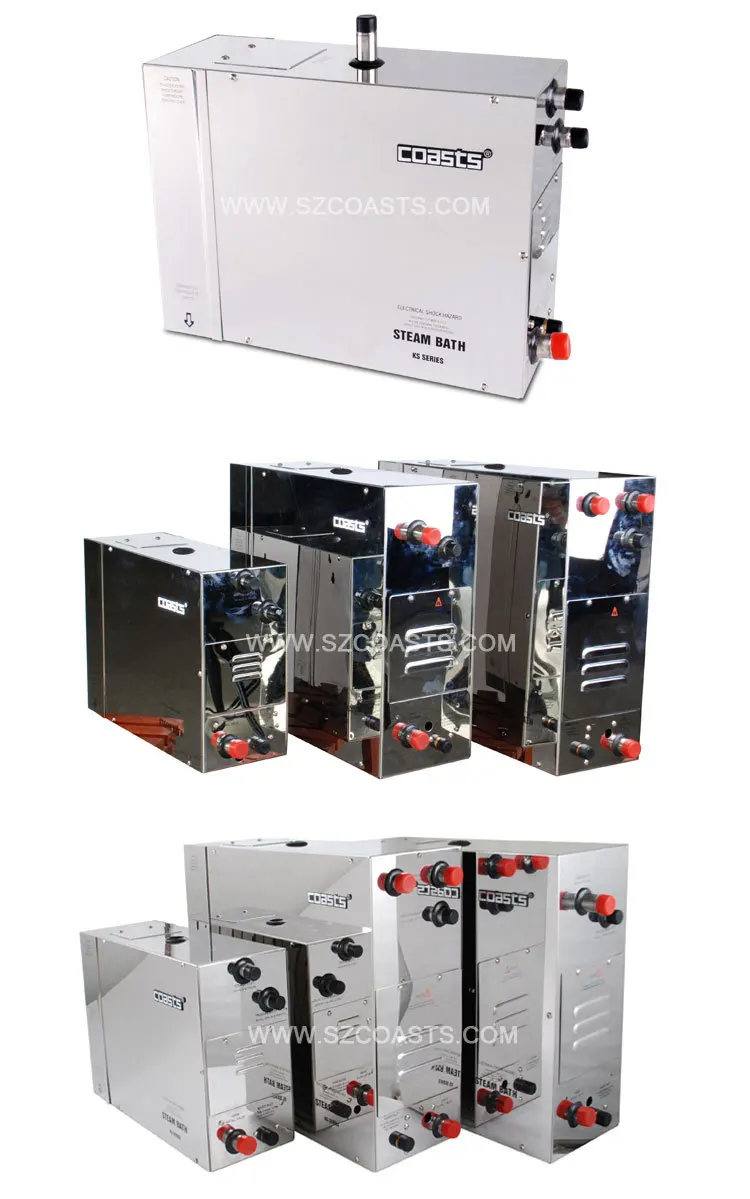

Reference pictrues:





.jpg







Parameters:

Model

Power         kW

Power requirement 50/60Hz

Current (A)

Power wire (Copper)

N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-30

3.0

220-240V~

13.6

3*2.5

42.5*16*30

54.5*21.5*42

10.5~11

KSA-40

4.0

220-240V~

18.2

3*2.5

KSA-45

4.5

220-240V~

20.5

3*2.5

380-415V3N~

6.8

5*1.5

KSA-50

5.0

220-240V~

22.7

3*2.5

380-415V3N~

9.1

5*1.5

KSA-60

6.0

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

KSA-70

7.0

220-240V~

31.8

3*6.0

47.5*18.5*45

53.5*23*59

15.6~16.2

380-415V3N~

11.4

5*2.5

KSA-80

8.0

220-240V~

36.4

3*6.0

380-415V3N~

13.6

5*2.5

KSA-90

9.0

380-415V3N~

13.6

5*2.5

16.4~17

KSA-105

10.5

380-415V3N~

15.9

5*2.5

KSA-120

12.0

380-415V3N~

18.2

5*2.5

KSA-150

15.0

380-415V3N~

22.7

5*2.5

51*18.5*46

56.5*23*59

17.5~18.5

KSA-180

18.0

380-415V3N~

27.3

5*4.0

KSA-225

22.5

380-415V3N~

34.1

5*6.0

KSA-240

24.0

380-415V3N~

36.4

5*6.0

Notice: KSA steam generator are equiped with auto drain system. 9~12 KW units could be customized to 220~240V on request.





More images:




Lower noise and dffusion steam shower nozzle



steam head.jpgsensor.jpg

Big powerful automatic draining system







KSA updated draining system.jpg



.jpg



1.Standard Export package for long-distant shipment and tough handling.

2. We ship goods by UPS/DHL/FEDEX/TNT/EMS express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
