Product Overview

Description

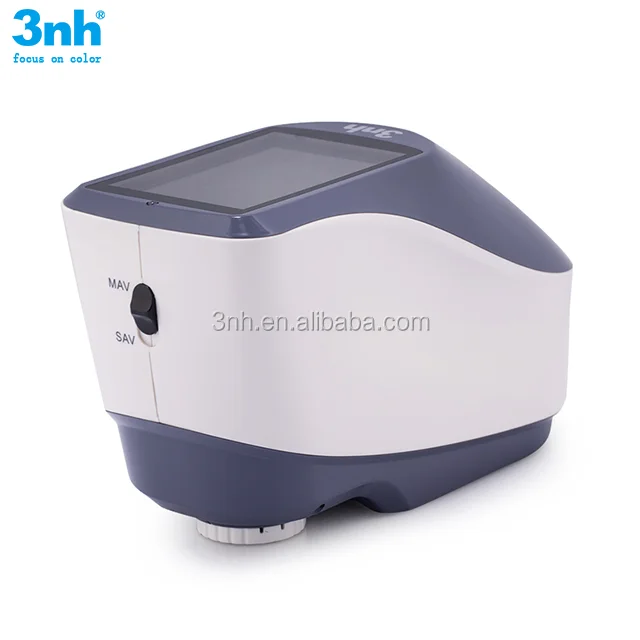

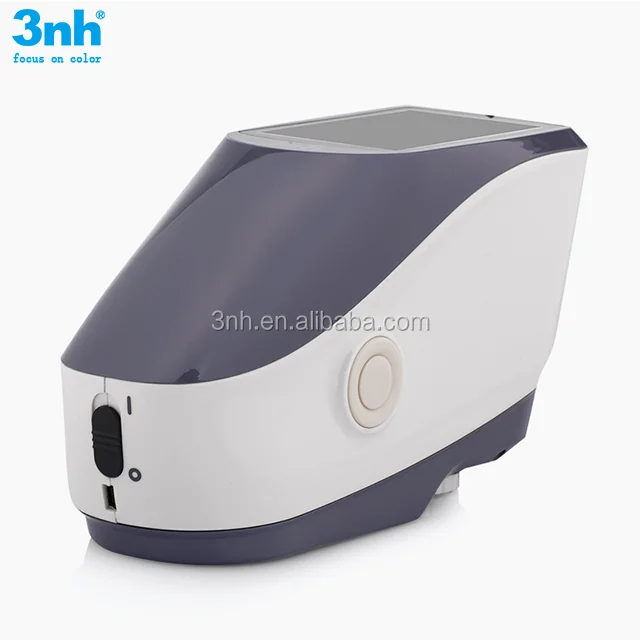

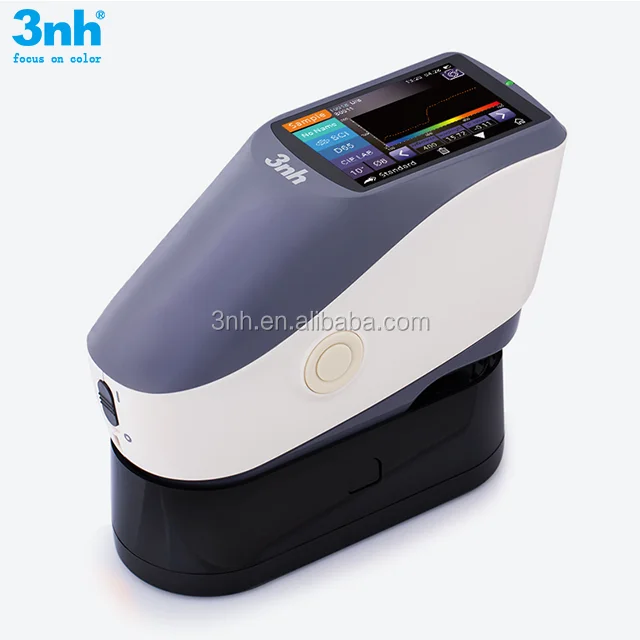

YS3010 spectrometer

Exterior wall paint color check spectrophotometer for whiteness brightness test ys3010 3nh with high accuracy 0.05


YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.

YS3060 UV Grating Spectrophotometer

Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.

YS3020 Grating Spectrophotometer

Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.

YS3010 Grating Spectrophotometer

4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.

Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.

Main Features

A.Perfect combination of beautiful appearance and the human body mechanics structural design;
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C.Use long life and low power consumption combined LED light source, including UV/excluding UV;

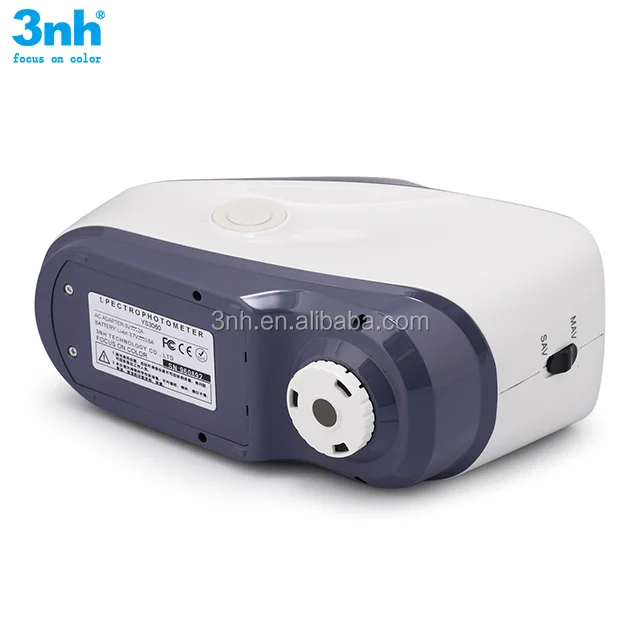

D.Switchable Φ8/4mm aperture, adapt to more samples; support both SCI and SCE at the same time;
E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
G.USB/Bluetooth 2.1, dual mode, widely useful;
H.Super stain-resistant and stable standard white calibration plate;
I.Large capacity storage space, over 20,000 measurement data;
J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
K.Camera Locating Function, better position;

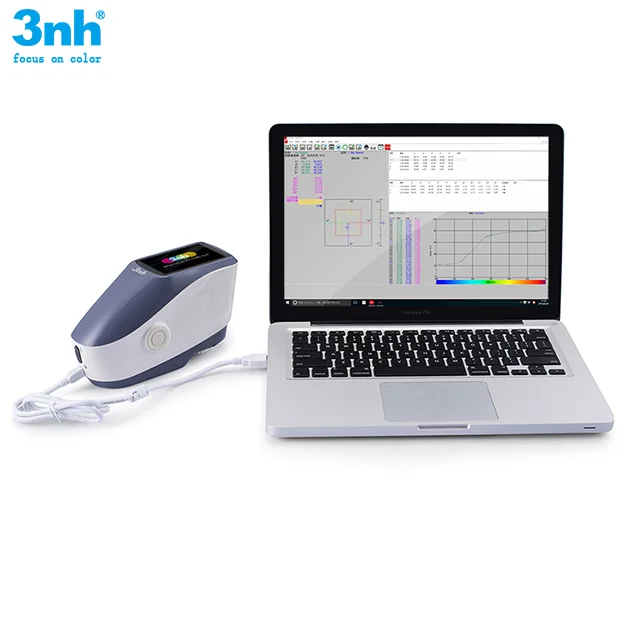

l.PC software has a powerful function extension.

\t
SPECIFICATIONS FOR YS3060 & YS3020 & YS3010 Spectrophotometer
\t
Model Items
\t
YS3060
\t
YS3020
\t
YS3010
\t
Optical Geometry
\t
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
\t
Integrating Sphere Size
\t
48mm
\t
Light Source
\t
Combined LED Light, UV Light
\t
Combined LED Light
\t
Spectrophotometric Mode
\t
Concave Grating
\t
Sensor
\t
256 Image Element Double Array CMOS Image Sensor
\t
Wavelength Range
\t
400-700nm
\t
Wavelength Interval
\t
10nm
\t
Semiband Width
\t
10nm
\t
Measured Reflectance Range
\t
10nm
\t
Measured Reflectance Range
\t
0-200%
\t
Measuring Aperture
\t
MAV : Φ8mm/Φ10mm

SAV : Φ4mm/Φ5mm
\t
Customized Aperture: 8mm/4mm/1×3mm
\t
Single Aperture: MAV : Φ8mm/Φ10mm
\t
Specular Component
\t
SCI&SCE
\t
Color Space
\t
CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
\t
Color Difference Formula
\t
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
\t
Other Colorimetric Index
\t
WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
\t
Observer Angle
\t
2°/10°
\t
Illuminant
\t
D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
\t
D65, A, C, D50, D55, D75, F2, F7, F11
\t
D65, A, C, D50
\t
Display Data
\t
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
\t
Measuring Time
\t
2.6s
\t
Repeatability
\t
MAV/SCI: ΔE*≤0.03
\t
MAV/SCI: ΔE*≤0.05
\t
MAV/SCI: ΔE*≤0.06
\t
Inter-instrument Error
\t
MAV/SCI: ΔE*≤0.15
\t
MAV/SCI: ΔE*≤0.2
\t
MAV/SCI: ΔE*≤0.4
\t
Measurement Mode
\t
Single Measurement, Average Measurement
\t
Locating Method
\t
Camera View Finder Locating
\t
Battery
\t
Li-ion battery. 5000 measurements within 8 hours
\t
Dimension
\t
L*W*H=184*77*105mm
\t
Weight
\t
600g
\t
Illuminant Life Span
\t
5 years, more than 3 million times measurements
\t
Display
\t
3.5-inch TFT color LCD, Capacitive Touch Screen
\t
Data Port
\t
USB, Bluetooth 4.0
\t
USB
\t
Data Storage
\t
Standard 2000 Pcs, Sample 20000 Pcs
\t
Language
\t
English, Chinese
\t
Operating Environment
\t
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
\t
Storage Environment
\t
-20~50℃, 0~85%RH (no condensing)
\t
Standard Accessory
\t
Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
\t
Optional Accessory
\t
Micro Printer, Powder Test Box
\t
Notes: The specifications are subject to change without notice.

Product Application

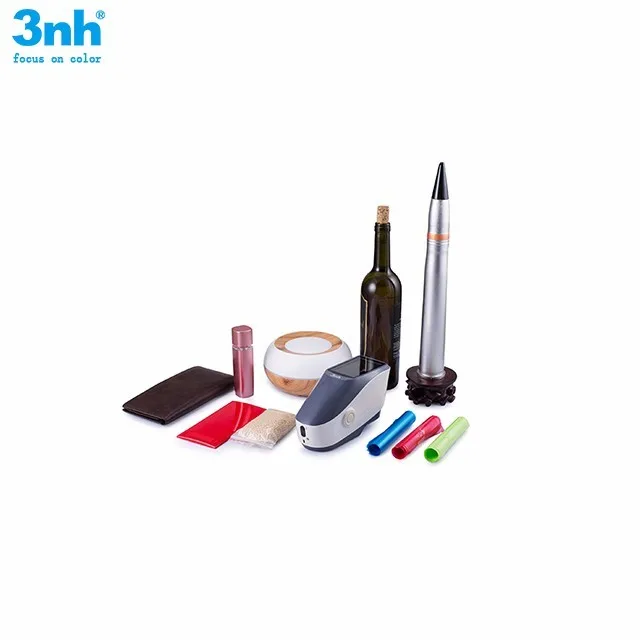

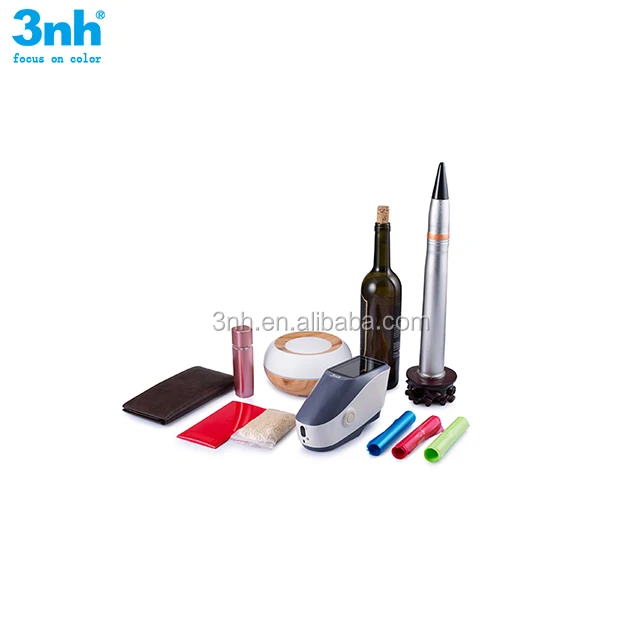

Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

Certifications
\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t
F A Q

Q: Are you trading company or manufacturer ?

A: We are a professional factory located in Shenzhen city. Welcome to come to visit and purchase from us.


Q: When did you start your company?


A: We start from 1998, and we have 19 years focus on color industry.

Q: How long is your delivery time?

A: Generally it is 1-3 working days if the goods are in stock.

Q: Do you provide samples ? is it free or extra ?

A: Yes, and customers need to pay for the freight.

Q: What is your terms of payment ?

A: Payment is 100% T/T in advance.

Q: What's your MOQ?

A: Our MOQ is 1 set. If you order more than 5 sets, we could give quantity discount.


Q: What is your warranty?


A: We offer 1 year warranty for all products except consumables.

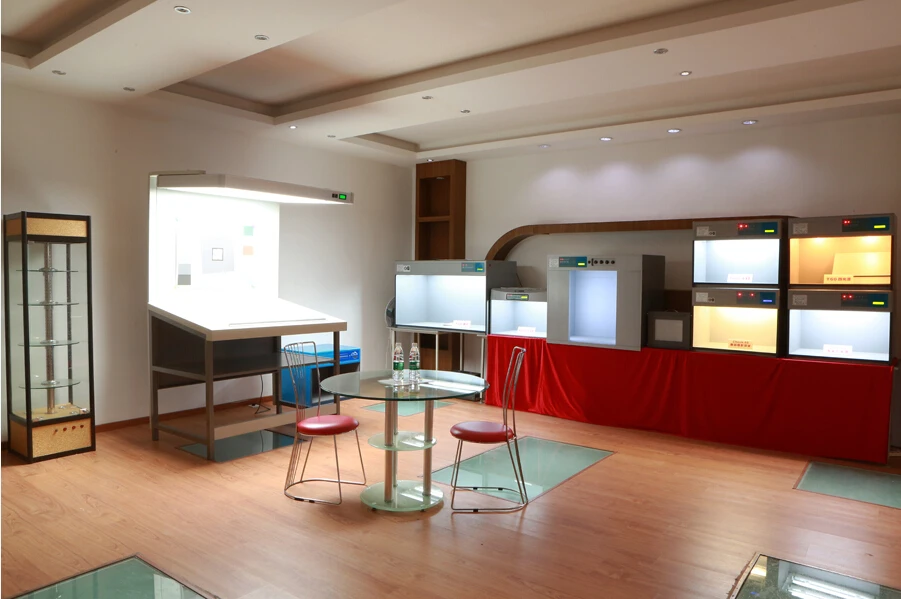

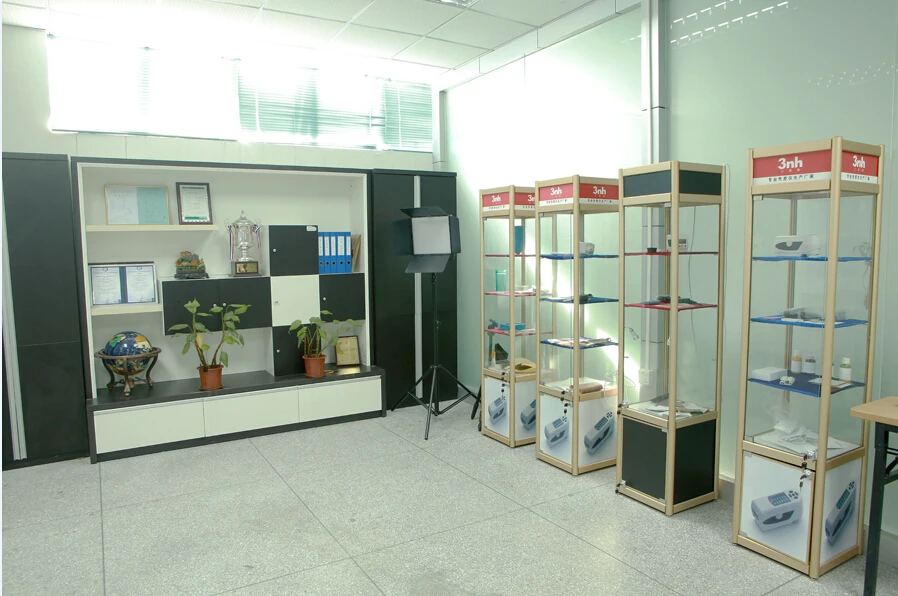

Company Profile

Shenzhen 3nh Technology Co., Ltd.is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. After years of intensive research, 3nh launched NH series colorimeter with high precision and high stability, high definition ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
