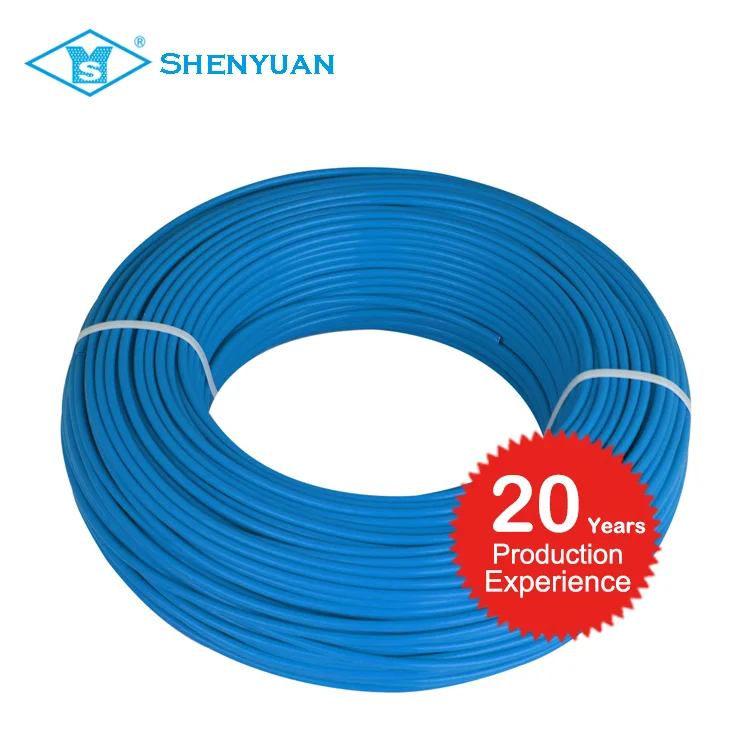

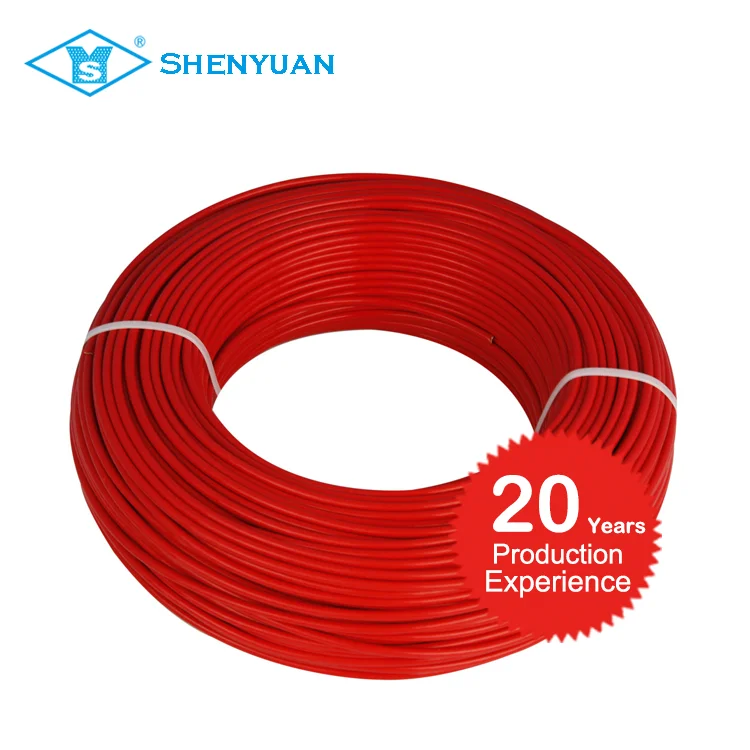

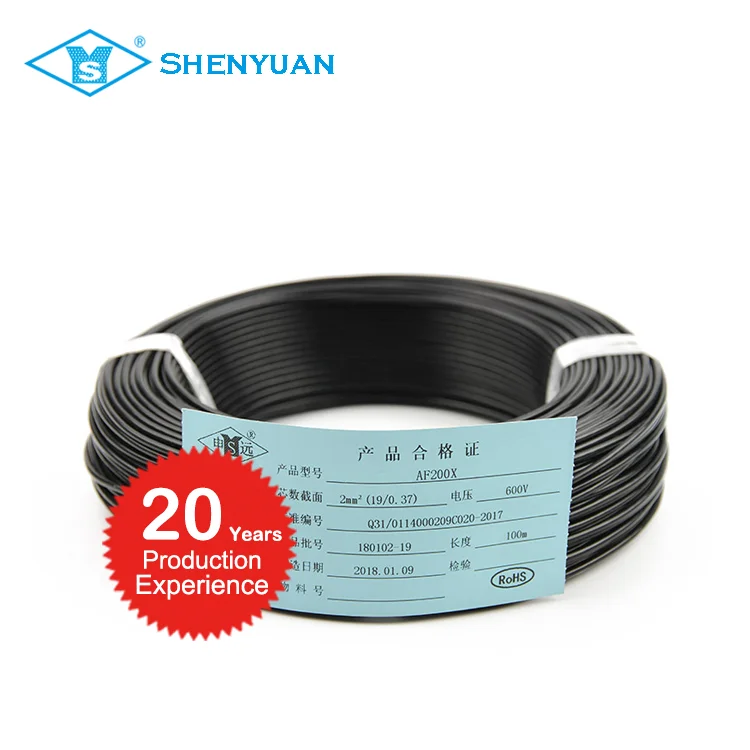

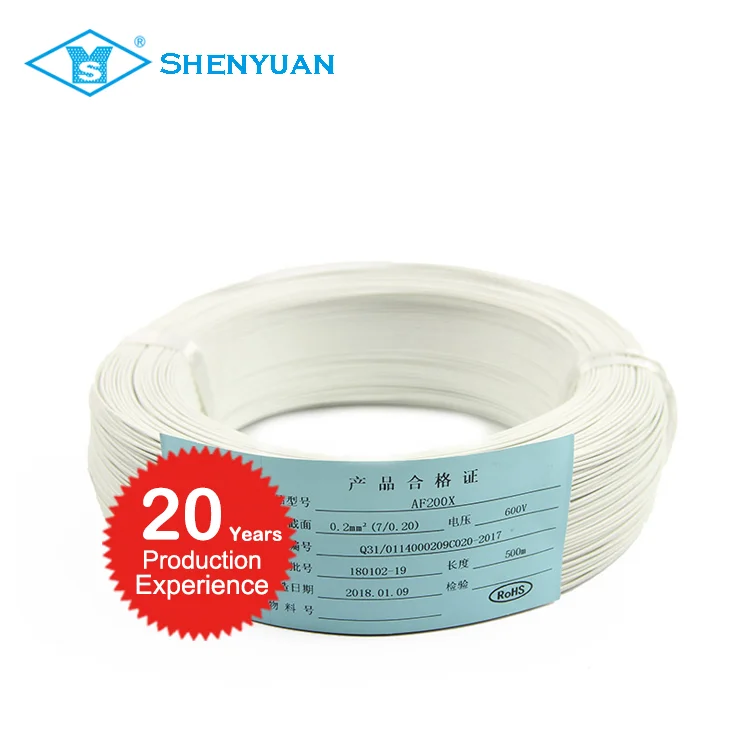

0.2mm 0.5mm 1 sq mm solid FEP single core wire cable

0.2mm 0.5mm 1 sq mm solid FEP single core wire cable

Category: >>>
Supplier: Shanghai Shenyuan Hi-Temp Wire Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

_11_01

Description

1) Product Name:silicone wire
2) Style No.: AF200
3) Size: 0.01~30sqmm
4) Rated Voltage: 600V
5) Rated Temperature:-100°C~+200°C
6) Conductor: tinned, silver or Nickel copper
7) Insulation: FEP

8) Color:red / yellow / blue / white / black/ yellow green / brown / orange / purple / green / etc

Product features
Has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Applications
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

Section Area mm²	Conductor construction NO.×mm	Insulation Thickness mm	Outer Diameter mm	m/coil
0.014	7×0.05	0.15	0.45	500
0.035	7×0.08	0.15	0.54	500
0.05	1×0.26	0.17	0.6	500
0.07	1×0.30	0.2	0.7	500
0.08	7×0.12	0.2	0.76	500
0.12	7×0.15	0.2	0.85	500
0.2	7×0.20	0.25	1.1	500
0.35	19×0.16	0.25	1.3	200
0.5	19×0.18	0.25	1.4	200
0.75	19×0.23	0.275	1.7	200
1	19×0.26	0.25	1.8	200
1.2	19×0.28	0.3	2	200
1.5	19×0.32	0.3	2.2	200
2	19×0.37	0.3	2.45	100
2.5	19×0.41	0.4	6.86	100
4	37×0.37	0.4	3.38	100
