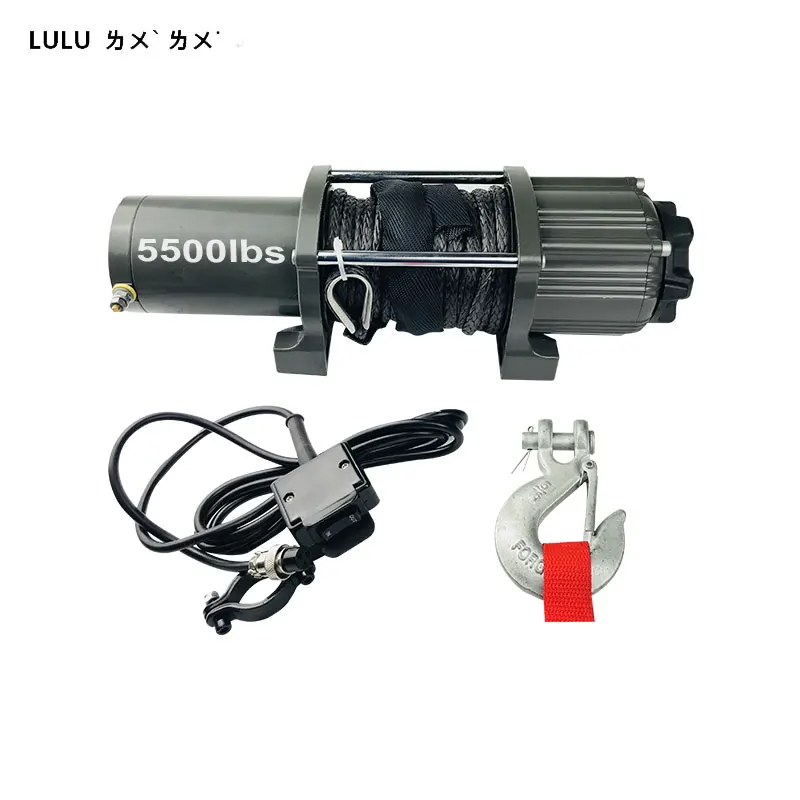

LULU Brand 5500lbs micro 12v electric winch motor

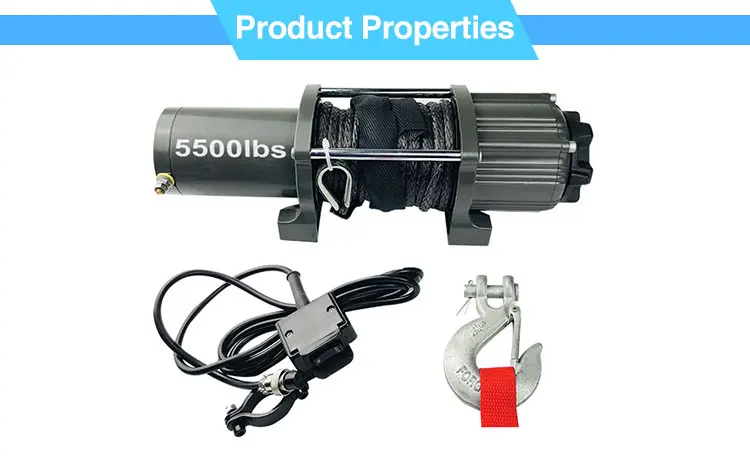

Product Display
| 5500lbs Features and Specifications | |||
| HJEW-L45 | HJEW-L50 | HJEW-L55 (This Product) | |
| Rated line pull | 4500lbs. (2041kgs) Single Line | 5000lbs. (2268kgs) Single Line | 5500lbs. (2595kgs) Single Line |
| Voltage | 12V | 12V | 12V |
| Motor | 12V DC, 1.35hp (1.01kW) Permanent Magnet, Sealed | 12V DC, 1.5hp (1.12kW) Permanent Magnet, Sealed | 12V DC, 1.8hp (1.34kW) Permanent Magnet, Sealed |
| Color | Grey Powder Coat or Customer Requirement | Grey Powder Coat or Customer Requirement | Grey Powder Coat or Customer Requirement |
| Motor Leads | 10 Sq.mm x 860mm | 13.3 Sq.mm x 860mm | 13.3 Sq.mm x 860mm |
| Geartrain | 3-Stage Planetary | 3-Stage Planetary | 3-Stage Planetary |
| Gear Ratio | 166:1 | 166:1 | 166:1 |
| Clutch (freespooling) | Turn | Turn | Turn |
| Brake | Spring | Spring | Spring |
| Drum Diameter / Length | 1.9 in (50.4mm) 4.9 in (124mm) | 1.9 in (50.4mm) 4.9 in (124mm) | 1.9 in (50.4mm) 4.9 in (124mm) |
| Cable Diameter / Length | 5/32 in (6.0mm) 49.9ft. (15.2m) | 1/4 in (6.4mm) 49.9ft. (15.2m) | 1/4 in (6.4mm) 49.9ft. (15.2m) |

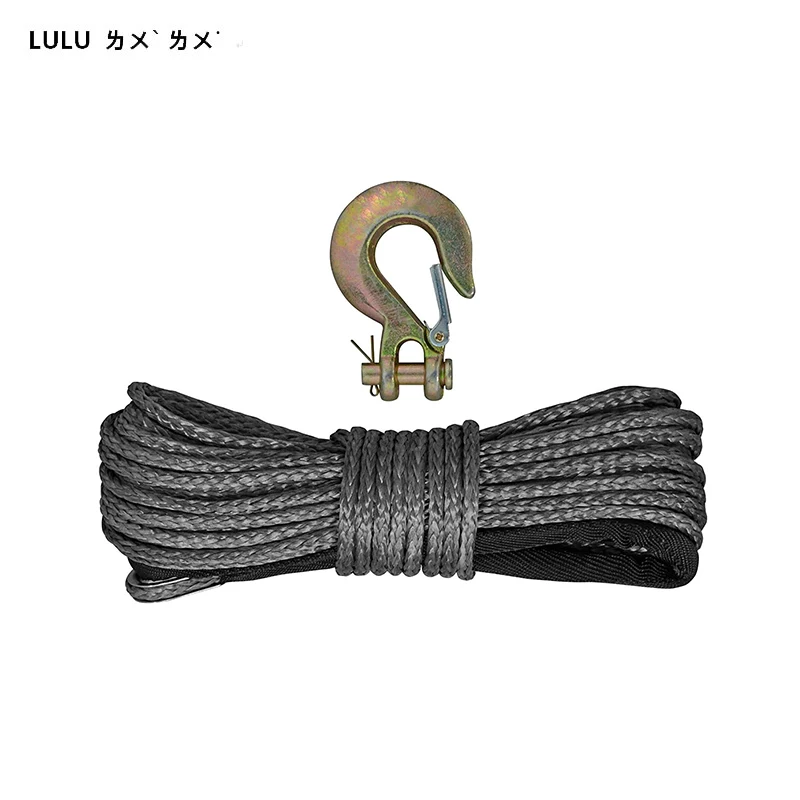

| Cable Type | Synthetic | Synthetic | Synthetic |
| Wireless remote controller | 3-0.5 Sq.mm x 30m | 3-0.5 Sq.mm x 30m | 3-0.5 Sq.mm x 30m |
| Wire remote controller | Option | Option | Option |

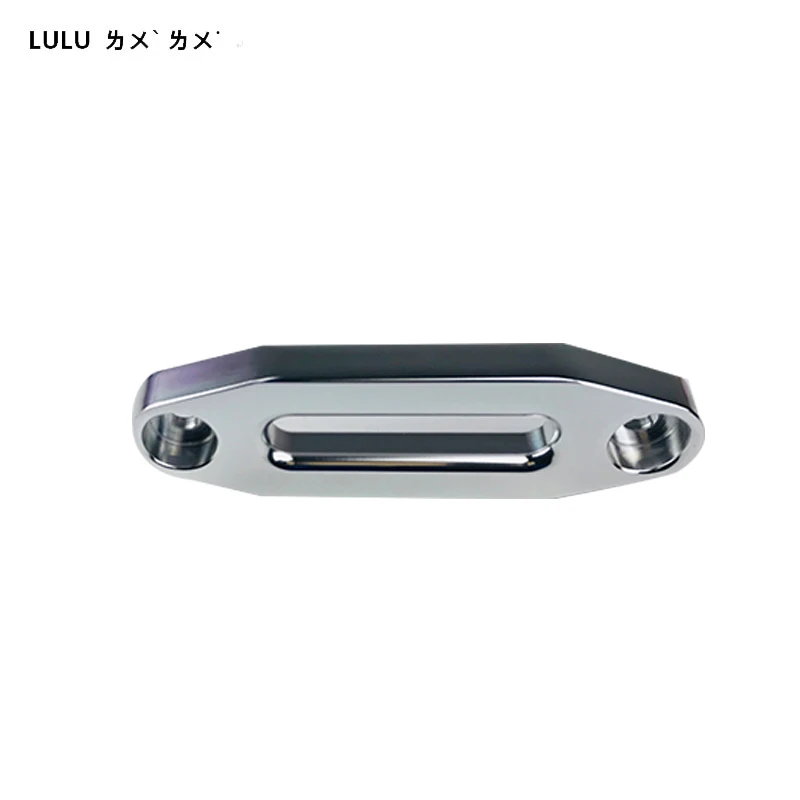

| Fairlead | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Battery Leads | 10 Sq.mm, 69 in (1.76m) | 13.3 Sq.mm, 69 in (1.76m) | 13.3 Sq.mm, 69 in (1.76m) |
| Finish | Grey Powder Coat | Grey Powder Coat | Grey Powder Coat |
| Weight | 10kg | 10kg | 10kg |
| Mounting Bolt Pattern | 3 in x 6.6 in (76.2mm x 168mm) | 3 in x 6.6 in (76.2mm x 168mm) | 3 in x 6.6 in (76.2mm x 168mm) |

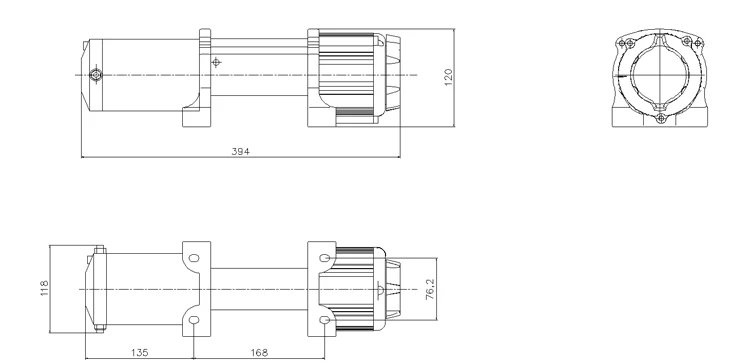

| Overall Dimensions | (L x W x H) 15.5 in x 4.6 in x 4.6 in 394mm x 118mm x 118mm | (L x W x H) 15.5 in x 4.6 in x 4.6 in 394mm x 118mm x 118mm | (L x W x H) 15.5 in x 4.6 in x 4.6 in 394mm x 118mm x 118mm |
| Performance Data | |||
| Line Pull Lbs.(Kgs.) | Line Speed FT./min (M/min.) | Motor Current (Amps) | Pull by layer / Rated line pull Lbs (Kgs.) |
| 0 | 19(5.8) | 30 | 1/5500(2500) |
| 1000(454) | 14.2(4.4) | 100 | 2/4550(2068) |
| 2000(907) | 12.4(3.8) | 150 | 3/3836(1744) |
| 3000(1361) | 8.52(2.6) | 210 | 4/3385(1538) |
| 4000(1818) | 5.57(1.7) | 260 | |
| 5500(2500) | 3.93(1.2) | 330 | |
Welcome to LULU winch:www:![]()
luluwinch.com.cn

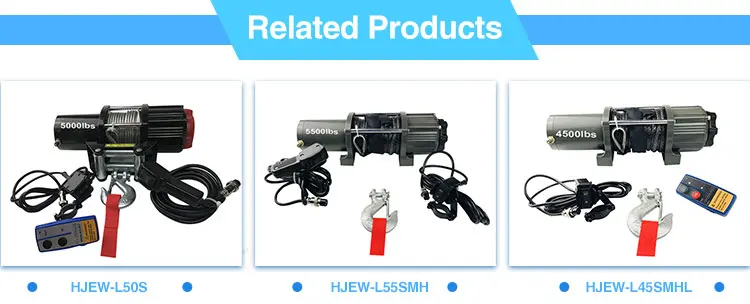

Related Products
