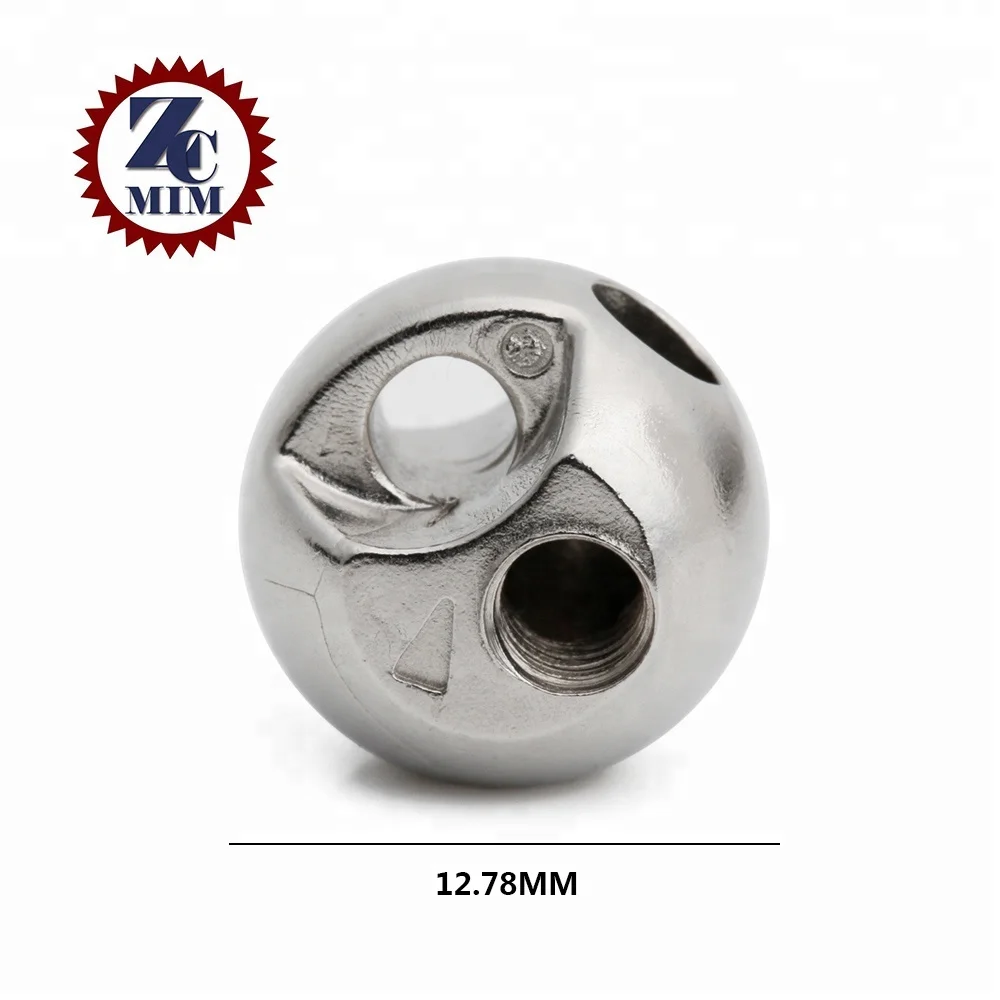

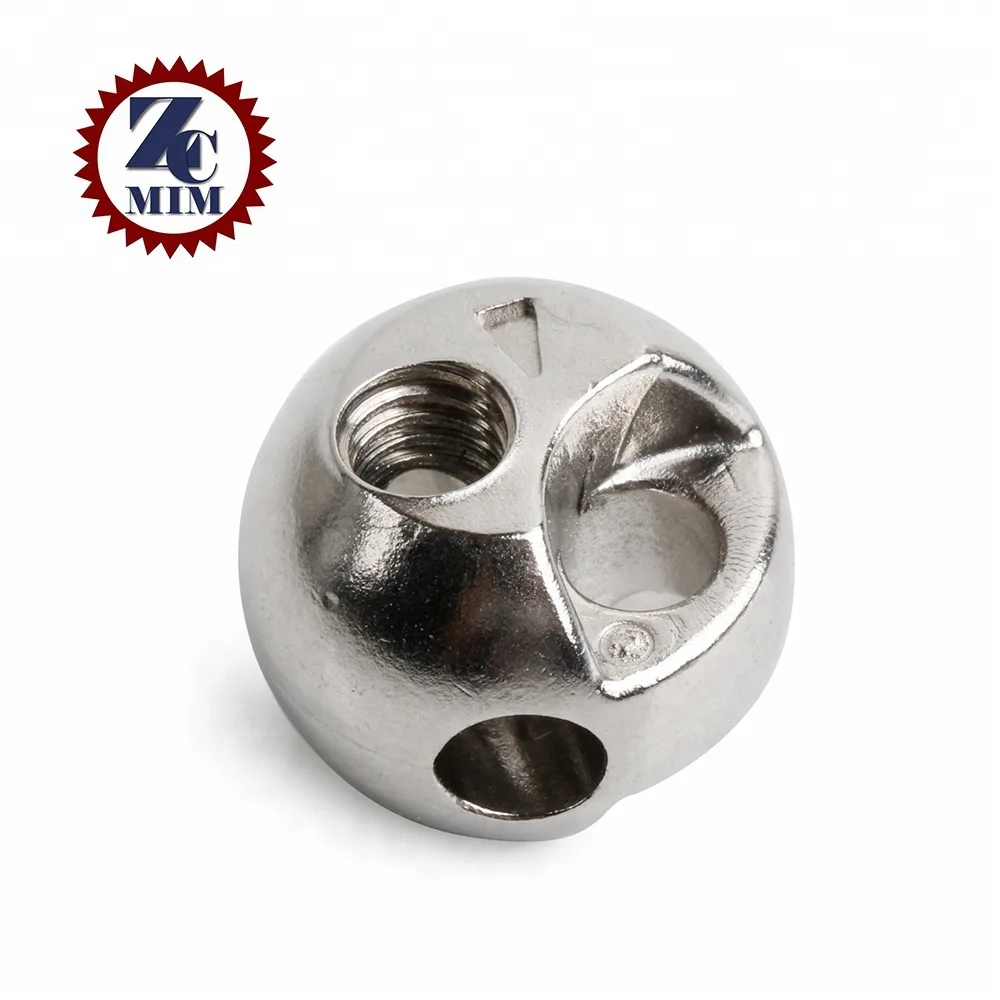

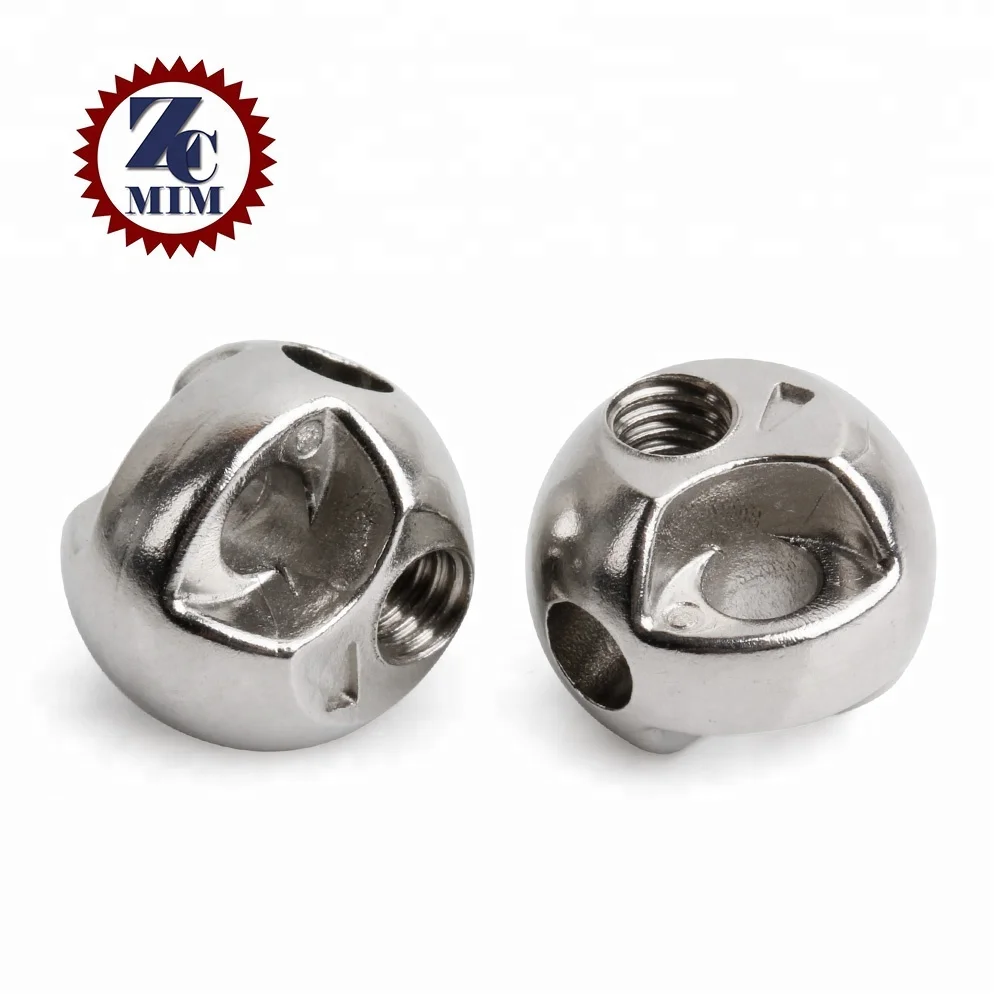

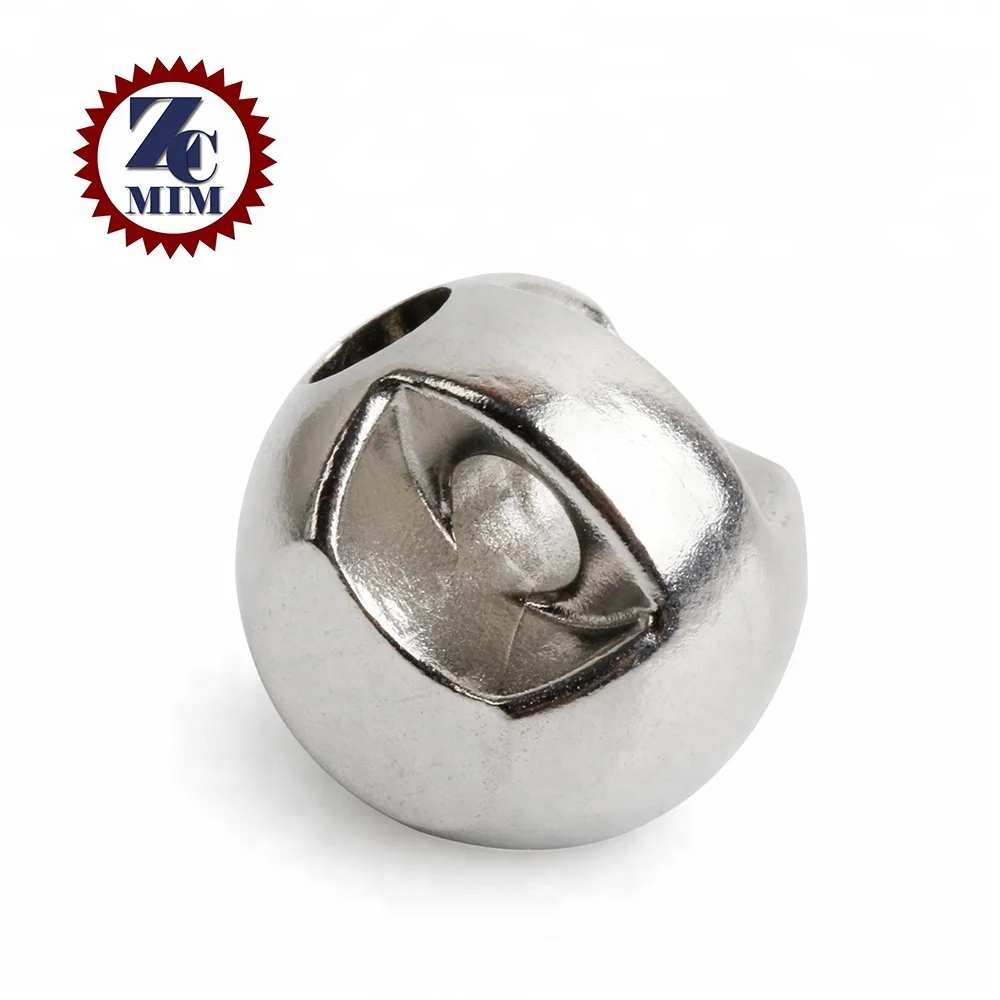

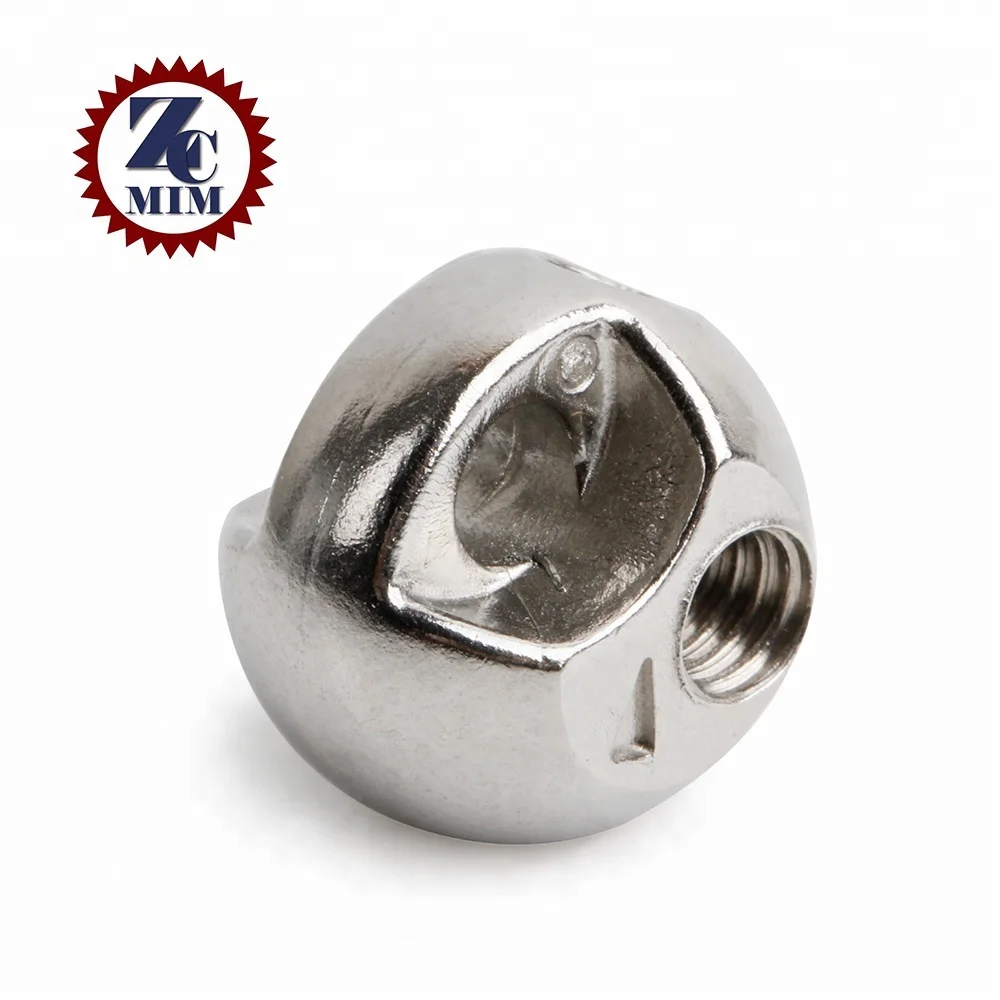

PM powder metallurgy sintered metal components jump rope

Product Overview

Description

PM powder metallurgy sintered metal powdered components spare parts  jump rope

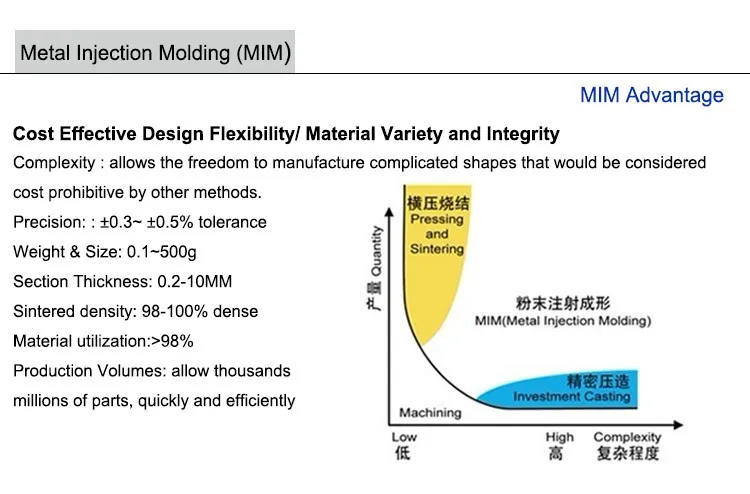

Contrast for MIM and Traditional Process

Item	Metal Injection Mold(MIM)	PM	Precision Casting	Machining Operation	Stamping
Density	98%	86%	98%	100%	100%
Tensile Strength	High	Low	High	High	High
Surface Finish	High	Medium	Medium	High	High
Small size	High	Medium	Low	Medium	High
Thickness	High	Medium	Medium	Low	High
Complexity Level	High	Low	Medium	High	Low
Design Tolerance	High	Medium	Medium	Medium	Low
Capacity	High	High	Medium	Medium-High	High
Range of Applying Material	High	High	Medium-High	Medium	Medium
Supply Ability	High	High	Medium	Low	High



Contrast for MIM and Precision Casting Molding

Property	MIM	Precision Casting Molding
Minimum Thickness	0.4mm	2mm
Maximum Thickness	10mm	Unlimited
Minimum Diameter	0.4mm	2mm
Tolerance of Diameter 4mm	+/-0.06mm	+/-0.2mm
Surface Roughness	1μm	1μm



 Sample and Shipping



Molding Time(T0)	First Sample	Shipping Express
15days	7days	UPS, FedEx,DHL,TNT

FAQs

1.  What is Powder Metallurgy technology (PM)?

Powder Metallurgy (PM) is a manufacturing technology that combines the shape making complexity of Plastic Injection Molding with the material flexibility of Powder Metallurgy.



2. Is the metal melted during the molding process?
No, only the binders are melted allowing the powders to flow like a plastic material. Upon cooling the binders solidify giving the part strength for handling. The part must be subsequently sintered to high density to achieve the required mechanical properties.



3. How does MIM differ from the Conventional Powder Metallurgy (PM) process?
Conventional PM uses high, uniaxially applied pressure to coarse metal powders in a die set to produce moderately complex components. Typically, no further densification is gained during the sintering process. Densities achieved by this method are typically in the range of 80-90% of theoretical which limit the physical properties that can be achieved for the given alloy. MIM products are not limited in shape complexity due to the flexibility of the injection molding process. The fine metal powders used - combine with higher sintering temperatures to allow MIM to achieve near full density in the final article. This allows MIM products to have similar properties as wrought materials.



4. Does the part shrink during removal of binders?
No, the part will not change size in the debinding phase of the process. However, since sintering achieves near full density of the powders, the part will undergo a size change of up to 20%.



5. Why should I use Powder Metallurgy (PM)?
Powder Metallurgy (PM)excels in producing small, highly complex parts that are difficult or cost prohibitive to produce with conventional technologies such as machining or casting.
