Pharmceutical grade Filter Housing Heaters and Vent Filter Heater Jacket
Product Description

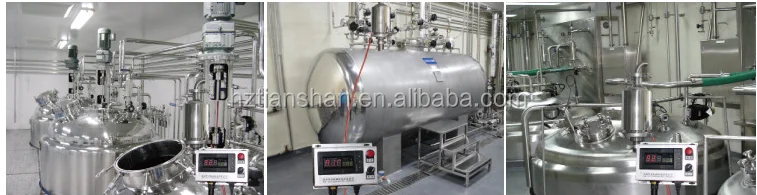

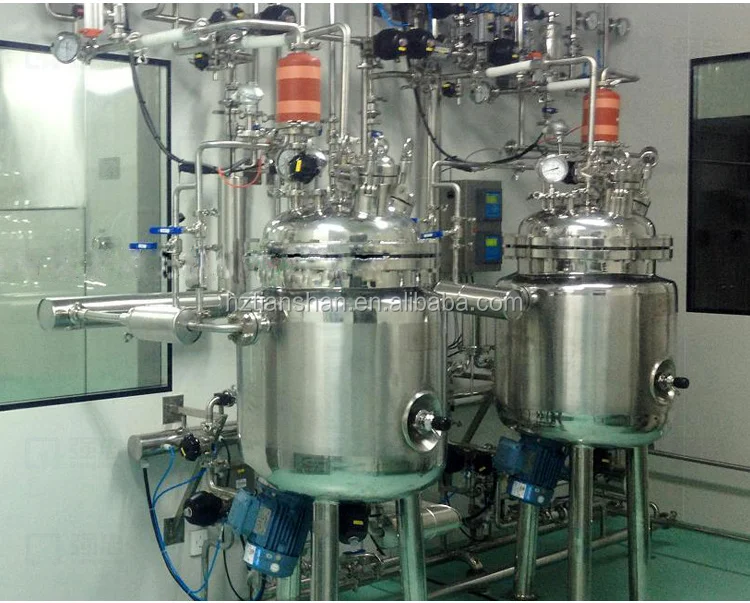

electrical heating tank vent filter tank breather is designed according to GMP requirements, by the flexible heating insulation and temperature control box composed of two parts. Mainly used for the filter shell to provide heating and insulation function to prevent the accumulation of condensate and microbial growth. Widely used in biological products, pharmaceuticals, fermentation and other industries in the water system, filtration and purification processes and tanks and containers of filters and respirators.
Advantage of the electrical heating tank vent filter:

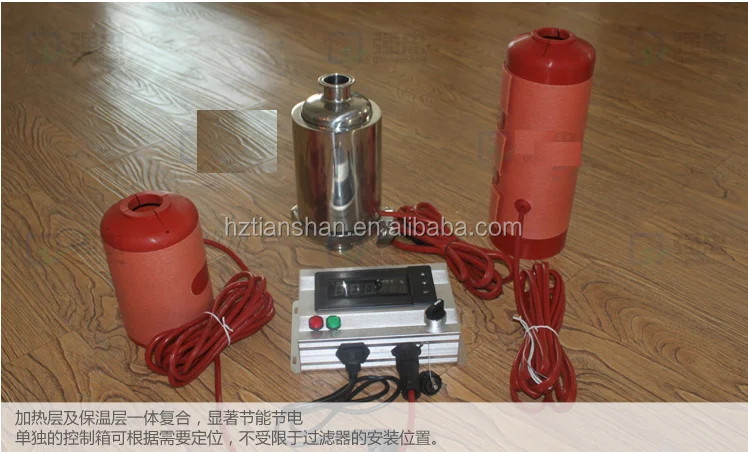

Special design of the flexible heating sleeve can fit the filter shell, easy to install
Easy to upgrade the existing filter shell, without repeated investment
Heating layer and insulation layer integrated, significant energy saving
A separate control box can be positioned as needed without being limited to the installation location of the filter
LED digital temperature control system, can set their own temperature, easy to operate
Multiple safety protection measures to adapt to different environments
The heater surface can be safely touched.
Specifications
Meet The GMP Requirements
Electropolished, smooth and hygienic design by
avoiding dead space

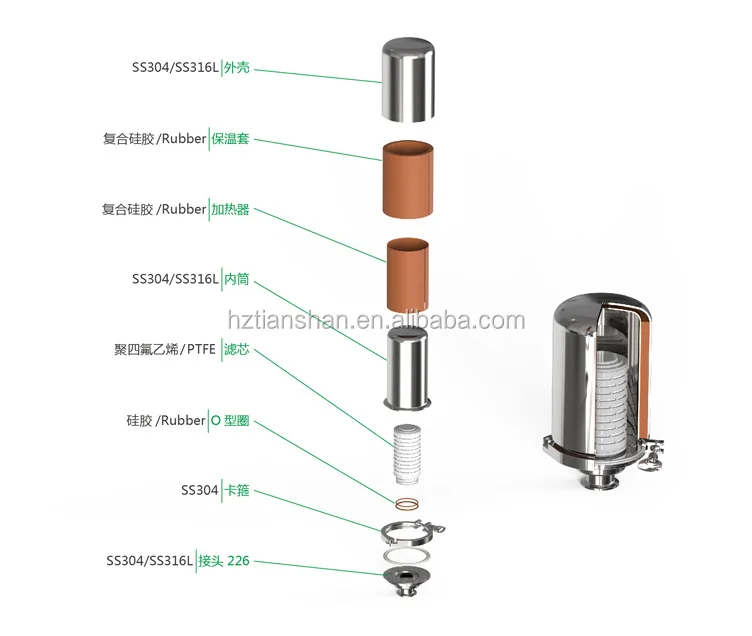

Complete Stainless Steel Structure
Made of 100% 304 or 316L stainless steel of the
highest quality
Easy To Install Design, Easy to Clean
Available in tri-clamp(coupling) or flanged
connections
Typical Applications
Gas filtration
Sterile air filtration
Fermentation air filtration
Technical Specification
Designed Pressure:9.6bar(139psi)with in 30mins.
Max.operating pressure:6.0bar(87psi)
Surface finish:
Electro polished, Ra≤0.2um
SPECIFICATIONS
Cartridges
Body Closure
Dimensions(mm)
Nos.
Length
d
Outlet/ Inlet type
D
B
H
1
5"
Ferrule clamp, Flange
3/4 inch
Tri Clamp or Flange
102
180
340
10"
1 inch
450
20"
1 inch
690
30"
1 1/4 inch
940
3
10"
Flange, Stud bolts
2 inch
Flange
184
325
755
20"
2.5 inch
995
5
10"
3 inch
Flange
219
380
880
20"
4 inch
1180
ORDER INFORMATION
PRODUCT
MATERIAL
CARTRIDGE NOS.
ADAPTER
LENGTH
How to Order?- Example
BJQ
304-SUS304
01 - Single
AA-DOE
10" - 10
Material: SUS304
316-SUS316L
03 - Three
CN-226/FIN
20" - 20
Cartridge Nos.: Single
05 - Five
BN-222/FIN
30" - 30
Cartridge adapter:
226/FIN
AF-220/FLAT SEAL
5" - 05
Cartridge length: 10"
BF-222/FLAT SEAL
Other - XX
CF-226/FLAT SEAL
Selection Code is:
BJQ30401CN10
