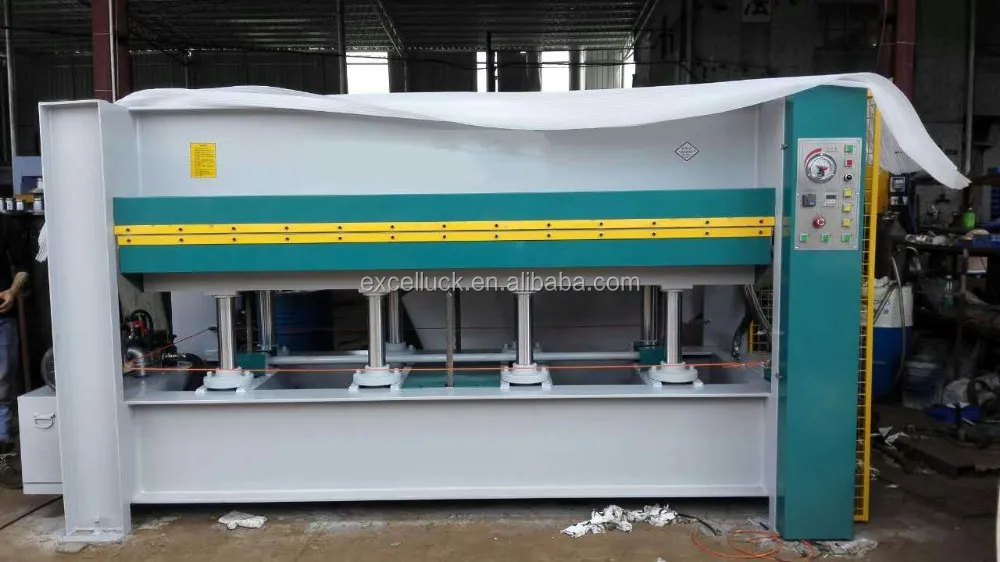

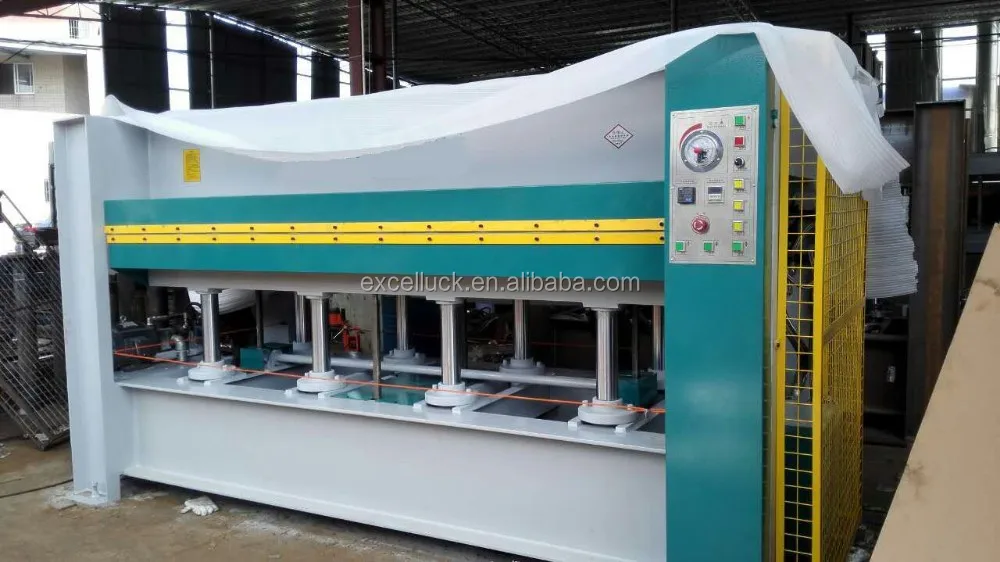

veneer hot press and hot press machine
- Category: >>>
- Supplier: Qingdao Excel Luck Industry Co. Ltd.
Share on (60724238687):
Product Overview
Description
veneer hot press and hot press machine
Specification:
Automatic device for controlling of close and open.
Solid boring heat transmitting plate.
Food step emergency button.
Heat type:
1. Electric calefaction with circulating heat-transmission oil.
2. Steam gas calefaction with circulating heat-transmission oil.
3. With both electric and steam gas calefaction, suitable for(Three calefaction model can be made as per customers’ need) key spare parts, pump, are imported from Japan, Taiwan.
Parameter:
Type | EL2513X120T(1) |
Table size | 2500x1300x42mm |
Max. pressure of work table | 120T(3.1kg/cm2) |
Pressure of hydraulic system | 200kg/cm2 |
Max. platen opening | 150mm |
Oil cylinder | 100x8pcs |
Layer | 1 |
Hydraulic pump power | 5.5kw |
Hot oil pump power | 2.2kw |
Heating pipe power | 48kw |
Overall Dimensions | 3000×1600×2740mm |
Net Weight | 6000kg |
More pictures:
