hot selling China hydraulic pump small hydraulic gear pump CBGTF
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60724253795):
Product Overview
Description
Product Description

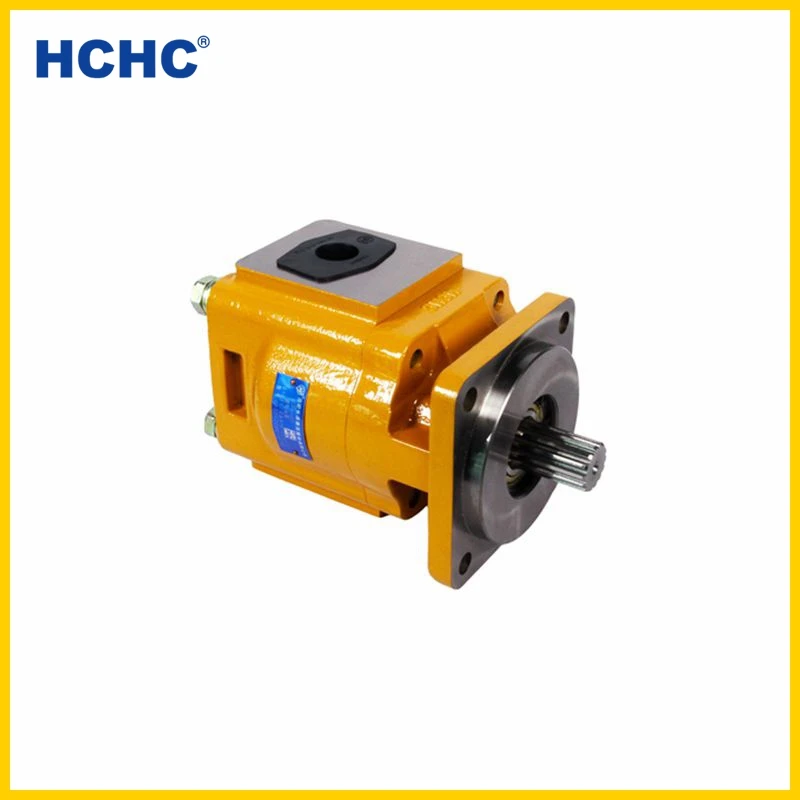

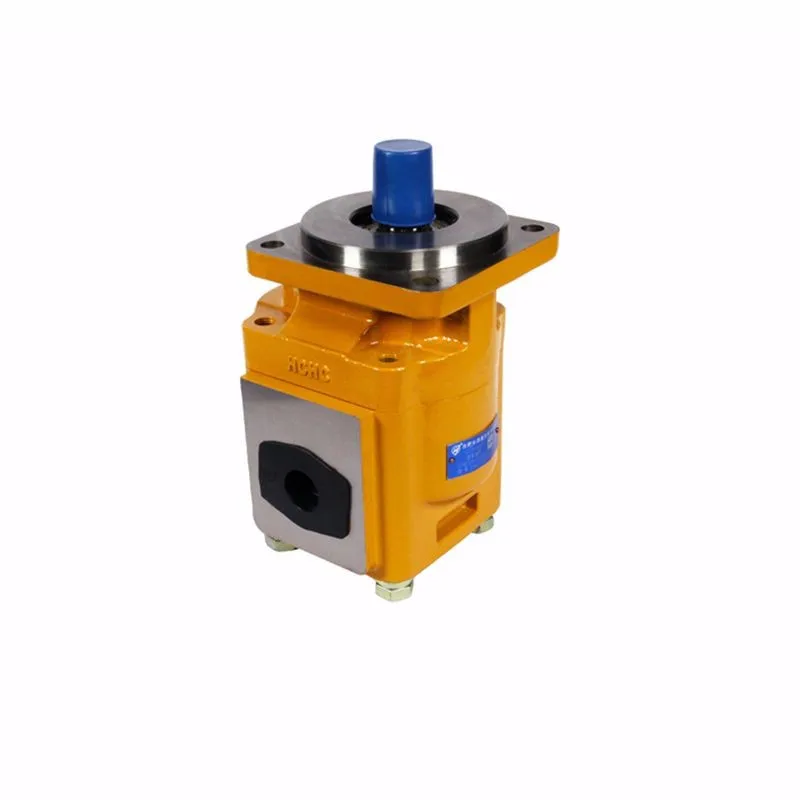

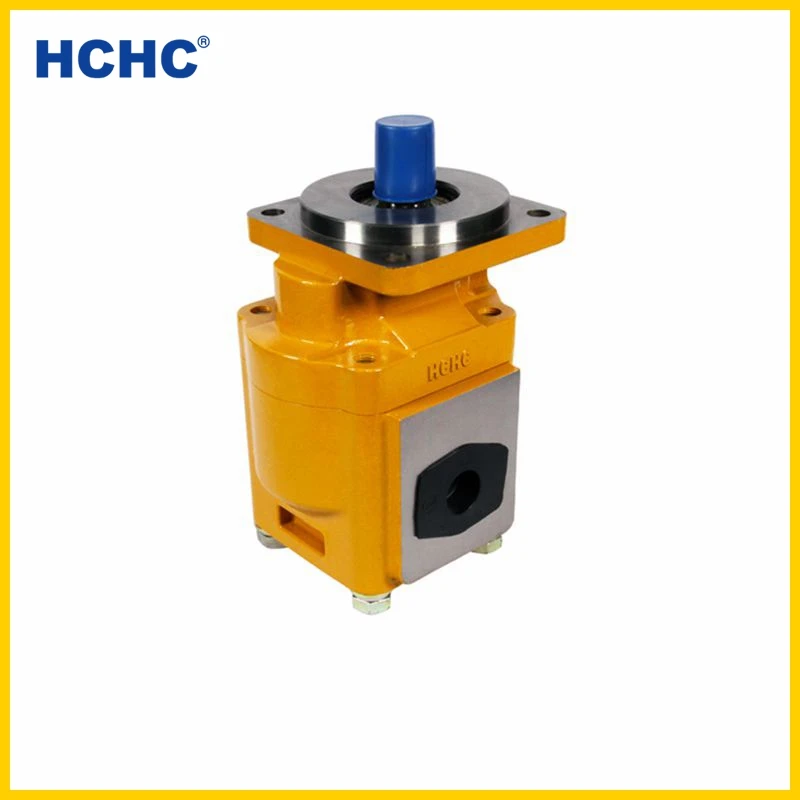

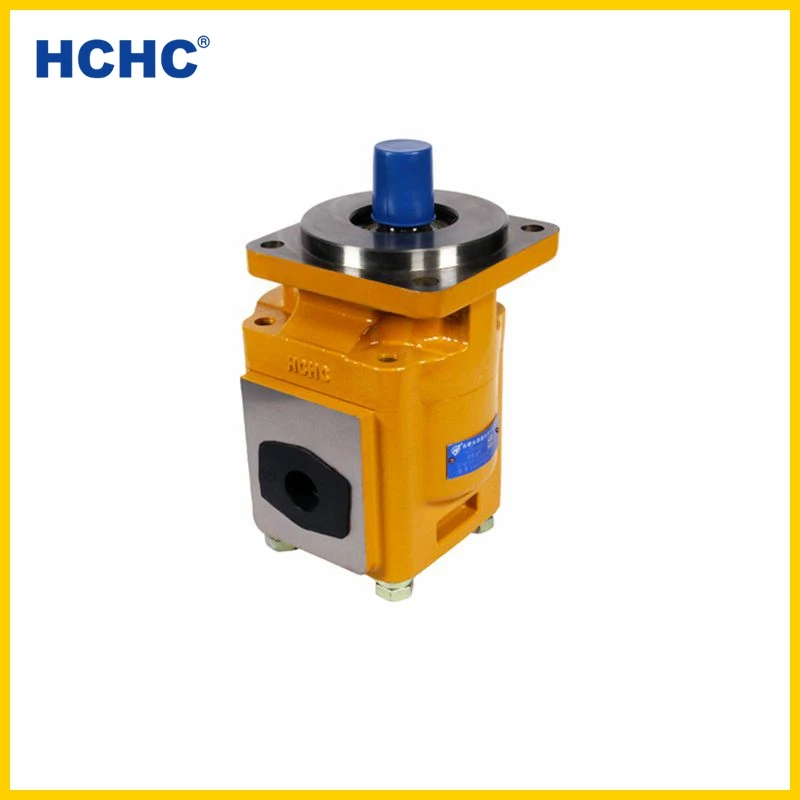

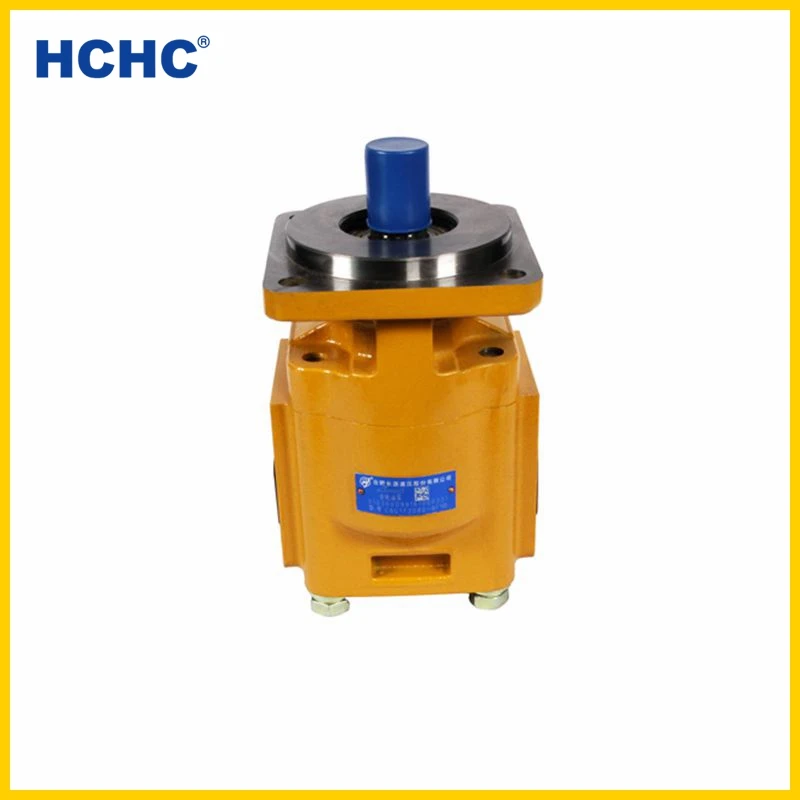

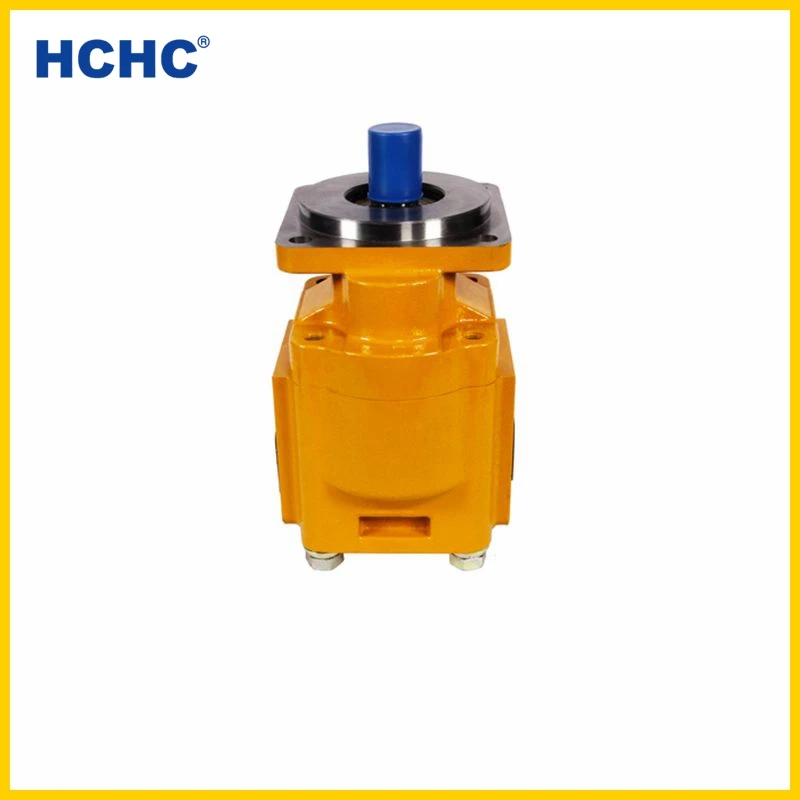

hot selling China hydraulic pump small hydraulic gear pump CBGTF for tractor
Performance Characteristics:
★ High strength cast iron material housing makes stronger bearing capacity, high working pressure.
★ Technology of patent design ensures that the gear pump with longer service-life and higher reliability.
★ The joining type of inlet/outlet position, flange (F) or thread (L).
★ The type of shaft end: plain key (P), rectangular spline (H), SAE spline, metric involute spline.
★ The auto-compensation unit of axial clearance ensures the high volumetric efficiency.

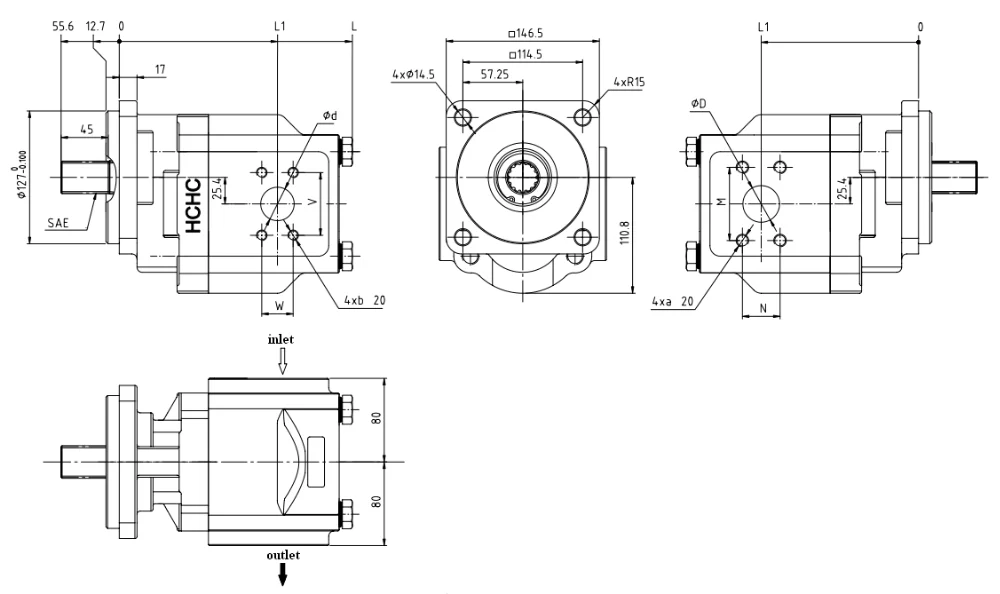

Specification
Model Code
CBGTF - 2 *** - B F1 Φ
① ② ③ ④ ⑤ ⑥
①Product model
②Product series③Nominal displacement (mL/r)
④Mounting type: B=square flange
⑤Joining port type: F1=special flange
⑥Shaft extension type: Φ=SAE spline
Model | Nominal Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volume Efficiency (≥%) | ||||||
Rated | Max. | Min. | Rated | Max. | ||||||
CBGTF2080-BF1φ | 80 | 25 | 28 | 800 | 1500 | 2500 | 92 | |||
CBGTF2063-BF1φ | 63 | |||||||||
CBGTF2050-BF1φ | 50 | |||||||||
CBGTF2040-BF1φ | 40 | |||||||||
CBGTF2032-BF1φ | 32 | |||||||||
Production Process
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Packing & Shipping
