Industrial 8ft-24 ft giant hvls ceilign fan prix
US $920.00-$1220
Тихий смешанный потоковый встроенный вентилятор с контроллером скорости 6 дюймов 150 мм 40 Вт энергосберегающий вентилятор
- Category: Ventilation Fans >>>
- Supplier: Shenzhen Shengshida Electronics Co. Ltd.
Share on (60724264185):
Product Overview
Description
Product Description

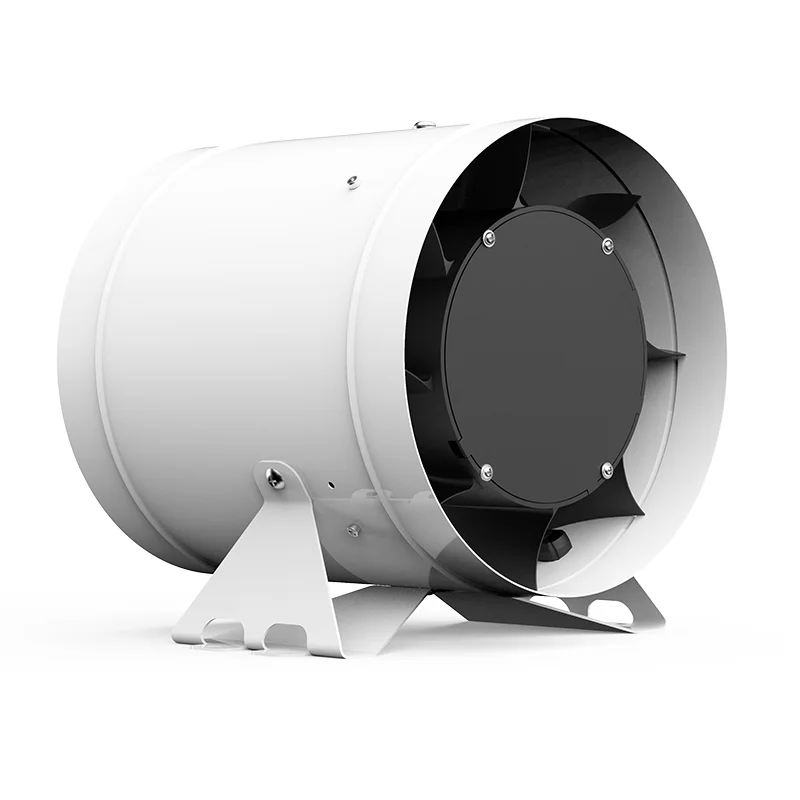

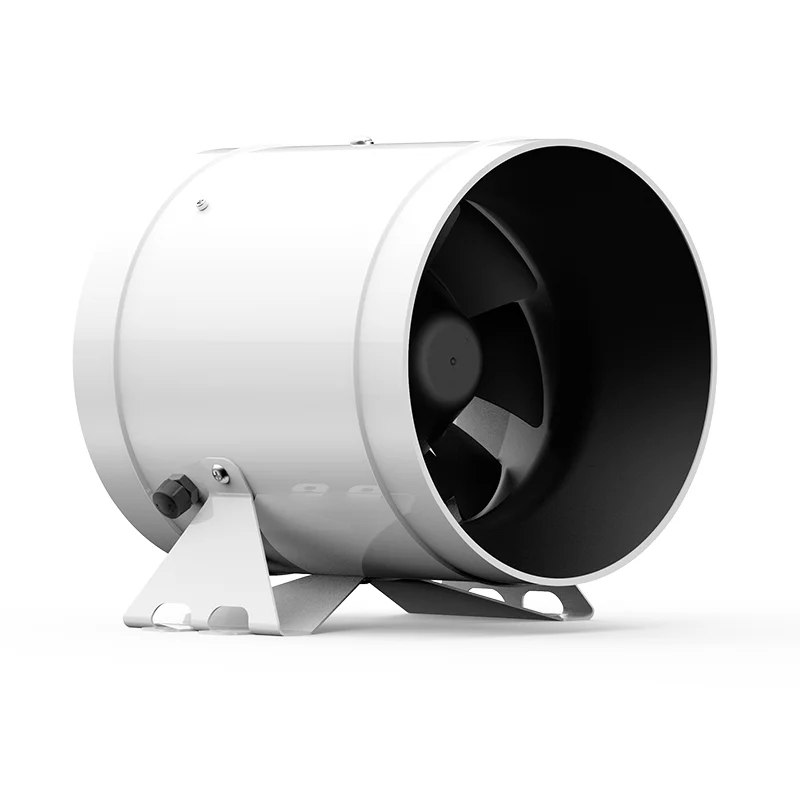

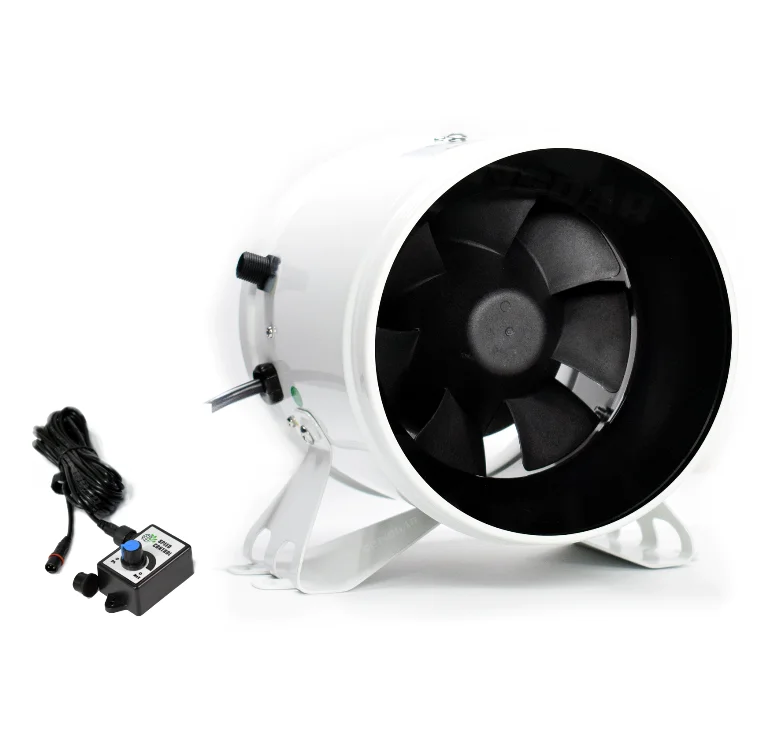

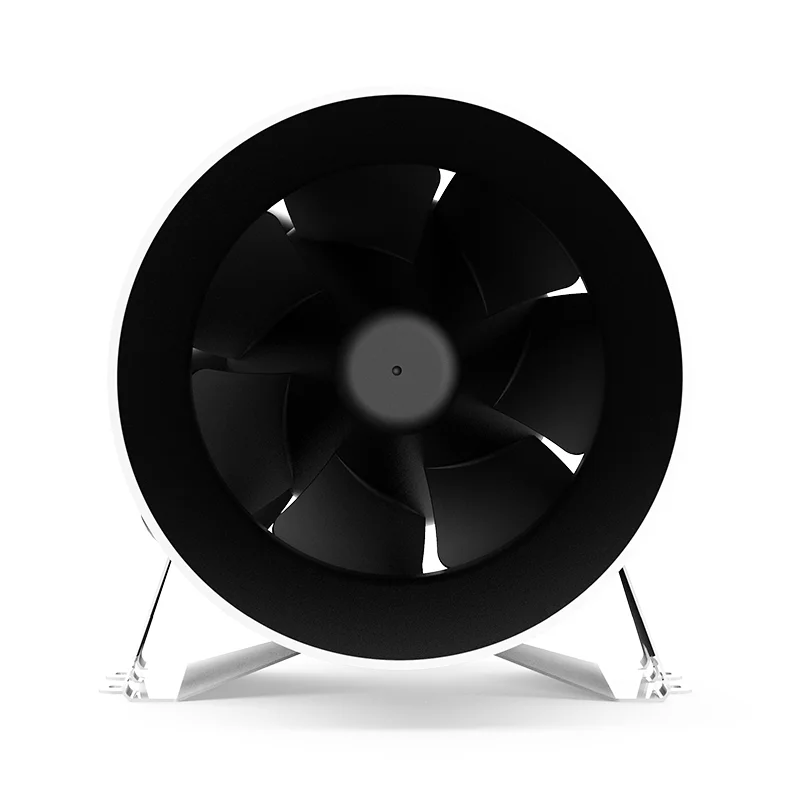

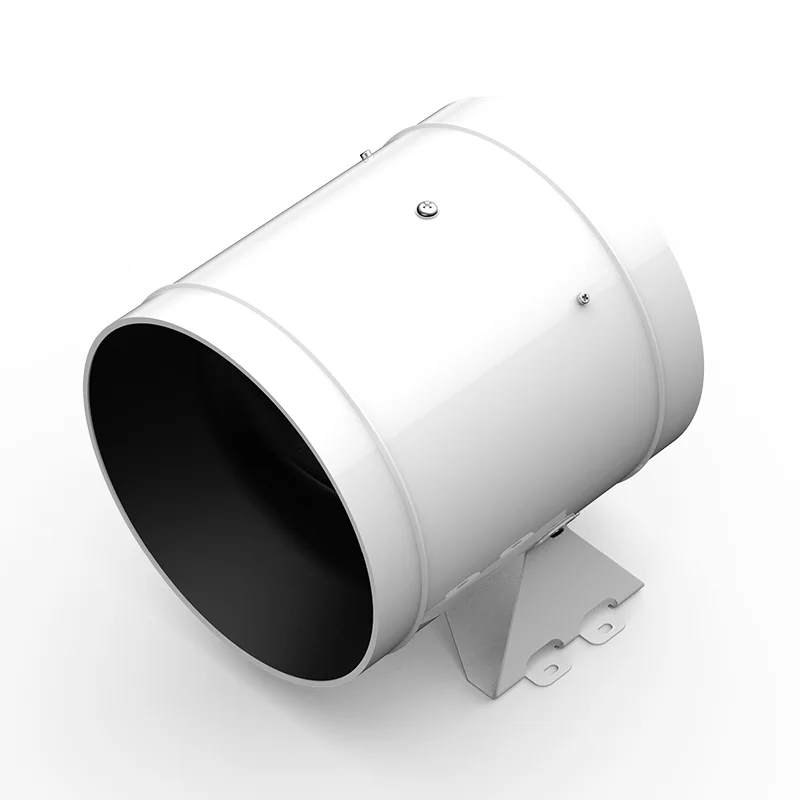

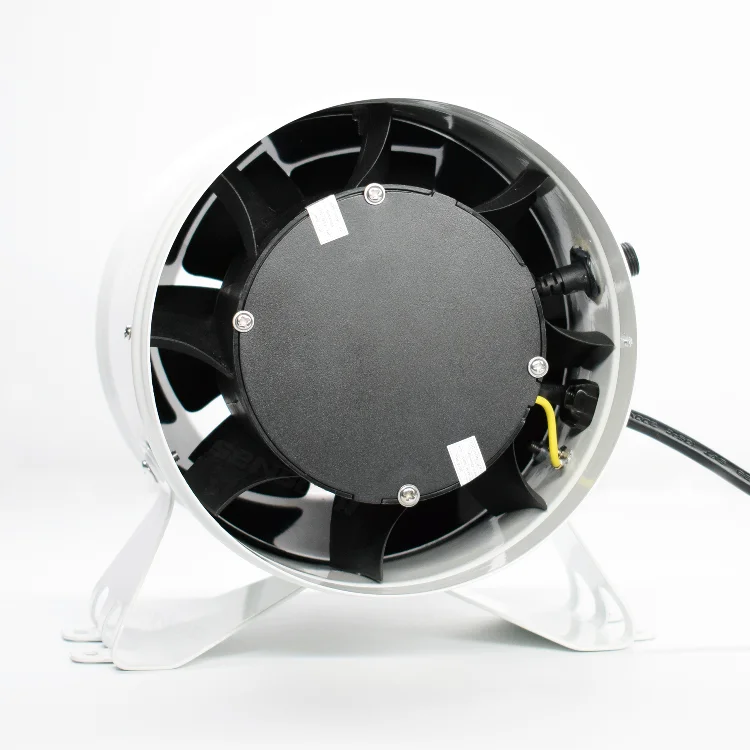

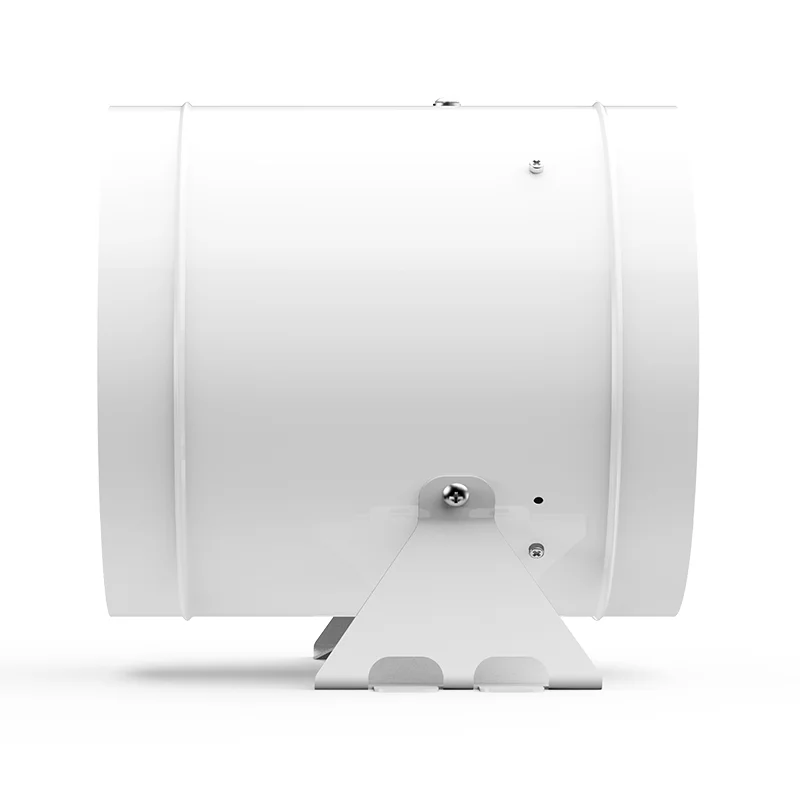

150mm 6" EC mixed flow inline duct fan
Product Features:
Energy Saving with low working power than competitors, saving more than 50% energy cost.
Built with cold-rolled steel housing and jet-engine design double impellers, and equipped with the cutting-edge brushless EC motor.
6-Poles Brushless Motor with Sine Wave.
Double Heavy Duty NMB Ball Bearing, low temperature, not easy fever, its life expectancy up to 85,000 hours.
IPX4 protection class, waterproof and dustproof more effective.
Locked Motor Protection [ Auto- Restart ] ; Soft- Start Motor; Over-Voltage Lockout Protection
Customized Feature: PWM / Countrol by 0-10V / Voltage output / Tacho Output / IP68 waterpoof and dustproof.
Model | SE-A150Z | SE-A200Z | SE-A250Z |
Fan Size | 6inch/150mm | 8inch/200mm | 10inch/250mm |
Rated Voltage | 110V-120V,220V-240V | 110V-120V,220V-240V | 110V-120V,220V-240V |
Max. Power C. | 40W | 75W | 150W |
Frequency | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
Max Speed | 5000RPM | 3800RPM | 3200RPM |
Max Airflow | 350CFM | 710CFM | 1065CFM |
Static Pressure | 500Pa | 520Pa | 510Pa |
Noise Level on High | 50dBA | 51dBA | 55dBA |
Motor Type | EC Motor | EC Motor | EC Motor |
IP Rating | IPX4 | IPX4 | IPX4 |

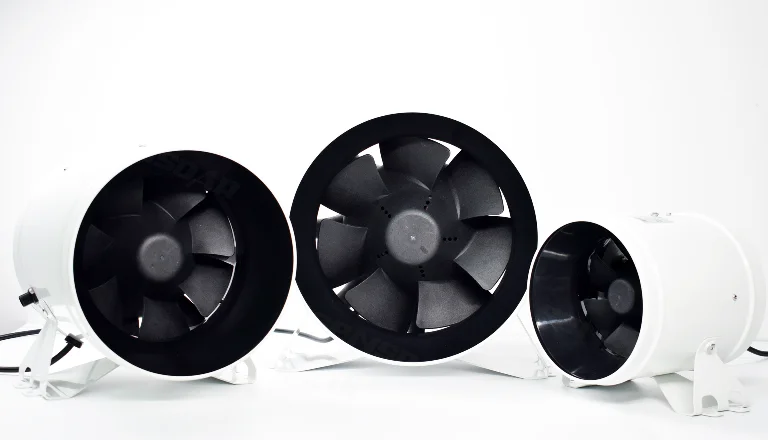

Products Show
Our Service
High Quality.
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Aslo meet the standard of UL / ETL / CCC & CE.
A good production line
A unity and professional Team and Good Service Team
A professional R&D Team
Quality Production Team
Quality Control and Quality Assurance Team
Domestic Sales and Foreign Sales Team
Financial Department
Management department
Our Company
About SENSDAR
SENSDAR established in 1999 as a manufacturer of ventilation fan. Until now , factory cover more than 10,000 square meter .
SENSDAR well managed under ISO09001 certified in 2012 and built to meet the high quality standard of UL / ETL / OCC & CE.
SENSDAR has been dedicated to the development and manufacturing of all kinds of industrial fans and supplying to a diverse national and international OEM/ODM client base, empowering green ventilation systems around the globe.
Our Certifications
Applications
Widely Application:
Residential & Commercial & Industry
Bathroom , Hydroponics , Hotel, Hot pot restaurant, Factory, Gym Center & Sports Hall, Public Smoking Sites, Changing Room, Toilet & Public Washing Room, Commercial & Industrial Buiding, Convertion Center & Enclosed Room
FAQ
Q: How to shipping the goods ?
A: DHL, UPS, Fedex, EMS, By Air, By Sea, customer forwarder are acceptable
Q: What's the term of payment ?
A: T/T , L / C , Wester Union, Paypal, MoneyGram, Escrow etc are negotiable
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need extra and do not pay the cost of freight.
Q: What can I do if we can not find the suitable fan model in the fan list? And We'd like to print our LOGO ,Can you make it?
A: Please contact us and we are welcome for customized fans , We can provide OEM service which including logo printing, gift box design and carton design.
