factory CCTV multi function IP Tester AHD CVI TVI SDI wifi Android system cctv IP and Analog tester monitor IPC 9800ADHS Plus

Product Overview

Description

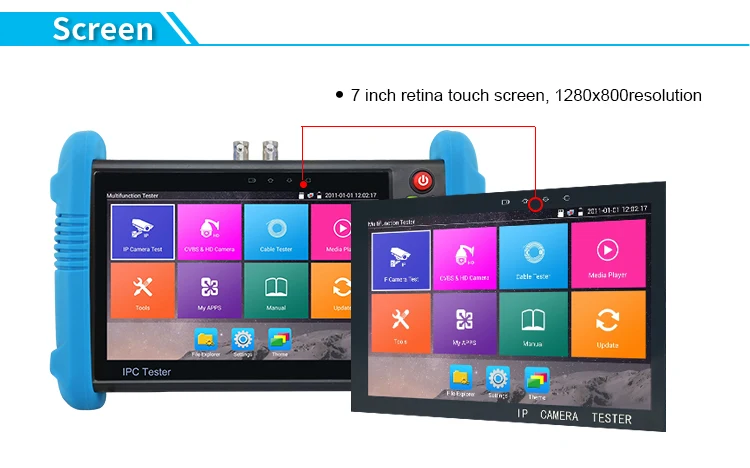

1.     New -7 inch IPS touch screen,1280*800 resolution

2.     New- H.264 and H .265 ,4K video display via mainstream

3.     New- 5MP TVI test,2560x1944P 12.5FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

4.     4MP AHD test, 2560x1440P 15F/25F/30F,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

5.     4MP CVI test,2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu 6.     IP & CVBS camera test, PTZ controller

7.     New- Rapid video, just by one key to detect all network cameras and auto display

8.     Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report 9.     New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS10.   New- Screen management, change function’s icons order, create new directory

11.   New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, H-D-M-I IN functions etc in any interface

12.   Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

13.   New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

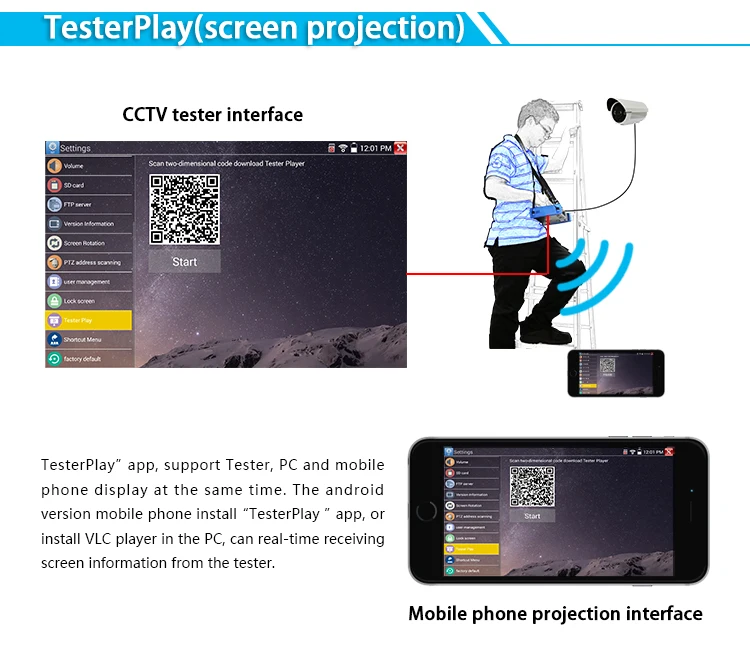

14.   TesterPlay(screen projection): tester, android version mobile phone and PC display at the same time

15.   New- Screen lock, password lock and pattern lock are optional

16.   New- H-D-M-I signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot

17.   H-D-M-I output ,support 1080P

18.   New- CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable

19.   New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

20.   New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc

21.   ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)

22.   Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot

23.   New- 4K video files and MKV/MP4 media files play

24.   PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank

25.   New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable 26.   8GB SD card including

27.   IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

28.   Display its genuine resolution of the IP camera images

29.   Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

30.   Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

31.   POE voltage measurement, PING test ,IP address scan, port flashing etc

32.   7.4 V /5400mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours
