Products Description

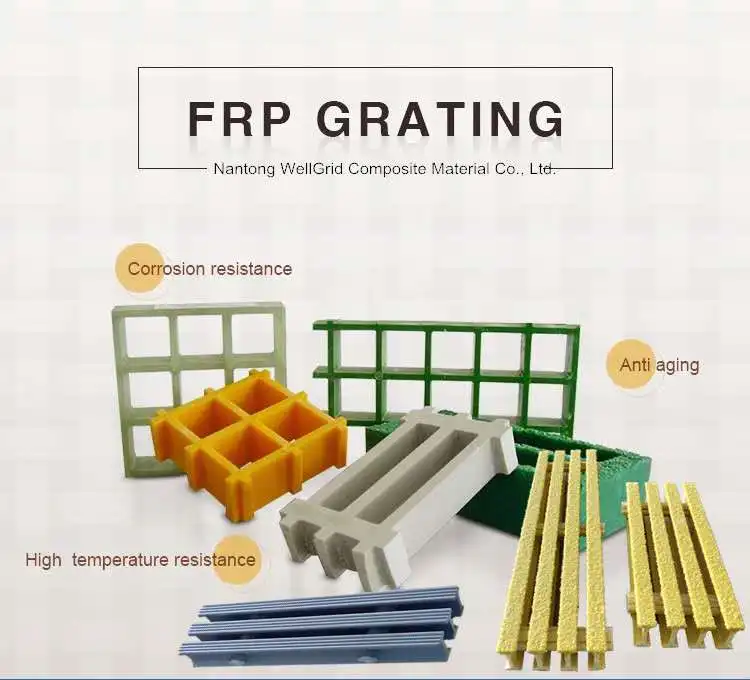

Fiberglass Gratings
Molded fiberglass grating and pultruded fiberglass grating from WellGRID provides unmatched corrosion resistance properties, especially when compared to steel flooring products.
* Many types of fiberglass grating are available, such as molded fiberglass grating, pultruded fiberglass grating, and fiberglass
covered grating

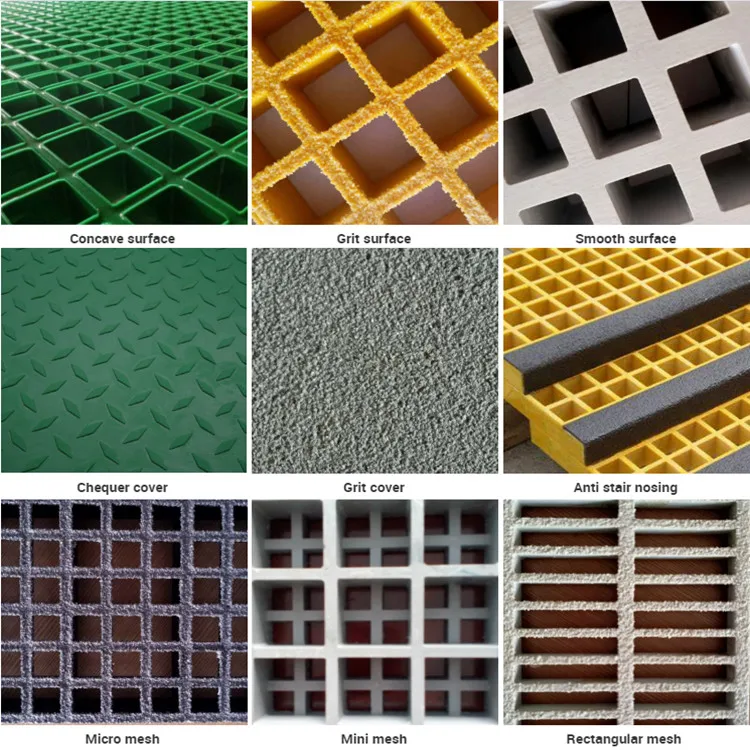

* Surface:
* Resin:that is tailored to your corrosion resistance needs
covered grating

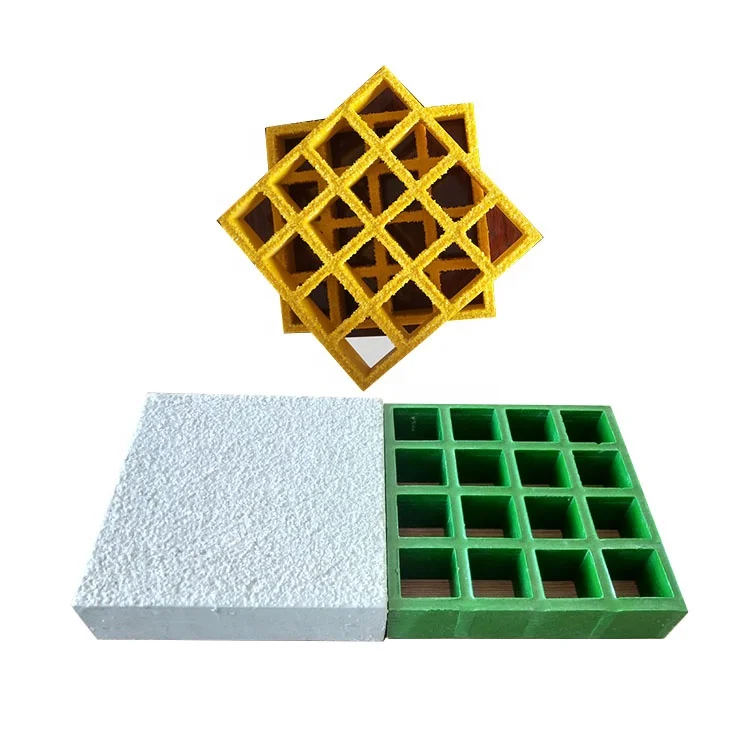

* Surface:
Meniscus top for normal applications
Gritted top for applications where maximum wear resistance and skid resistance is required.

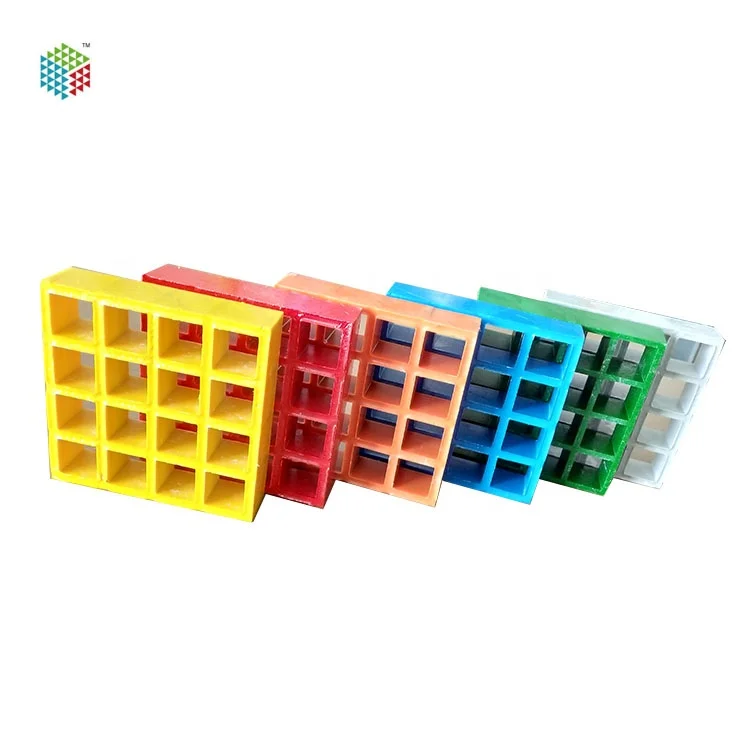

* Color: gray & yellow are common coloar. Custom colors are available to suit your fiberglass application.
* Resin:that is tailored to your corrosion resistance needs
Details

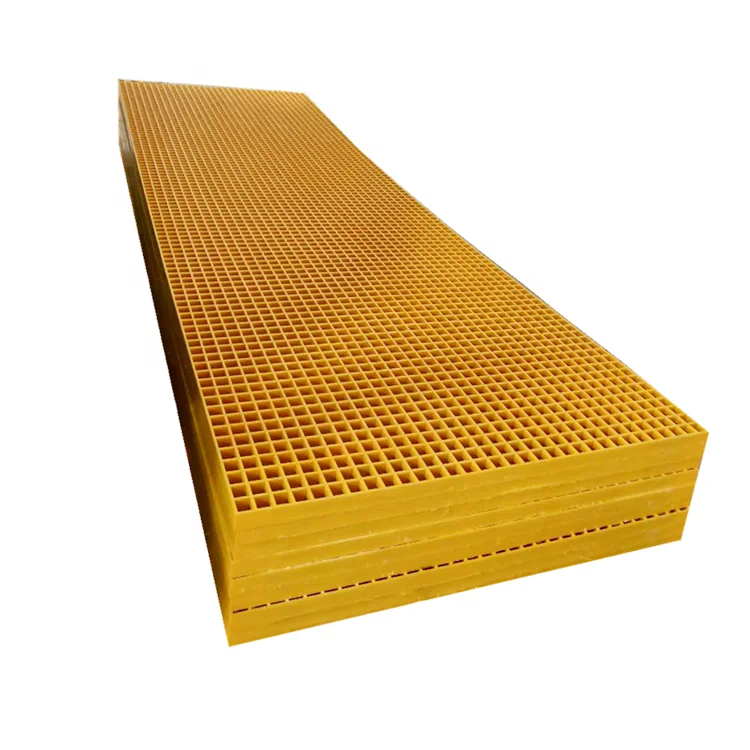

Molded Fiberglass Grating
Molded grating is that combines fiberglass rovings with thermosetting resins to form a strong, one-piece molded fiberglass panel.
Pultruded Fiberglass Grating
Pultruded grating is made using premium grade isophthalic polyester, vinyl ester.
This fiberglass product is better suited for longer spans of fiberglass flooring.
FRP Y angle
FRP embedment angle can be divided into a Y angle, which is precision designed for 1”, 1-1/2” and 2" deep gratings

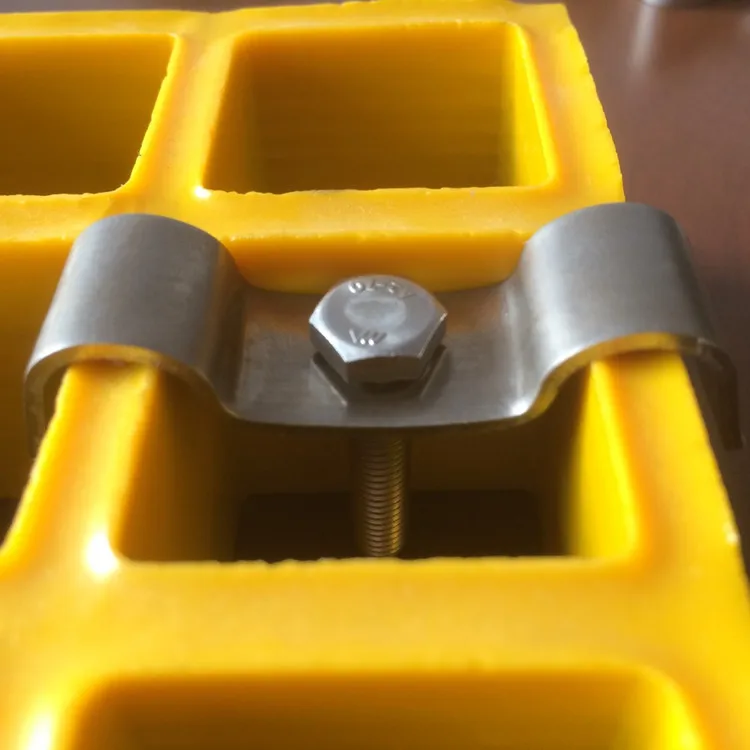

SUS Clips
All fiberglass attachments and clips are made of Type 316/304 stainless steel, and are available in 1-, 1-1/2, and 2-inch sizes.
No. | Thickness | Panel size(mm) | Mesh Size(mm) | Bar Thickness | Open Area | Unit Weight | ||||||
(mm) | (Length* Width) | (mm) | Bottom/Top | (%) | (Kg/m2) | |||||||
1 | 13~15 | 1220*3660 | 38*38 | 5.0/6.0 | 70 | 6.2 | ||||||
1220*2440 | ||||||||||||
915*3050 | ||||||||||||
2 | 25 | 1220*3660 | 38*38 or 38*38+19*19 | 5.0/6.5 | 70 | 12.5~17 | ||||||
1220*2440 | ||||||||||||
915*3050 | ||||||||||||
1000*2000 | ||||||||||||
1000*3000 | ||||||||||||
1000*4038 | ||||||||||||
3 | 30 | 1220*3660 | 38*38 or 38*38+19*19 or 38*38+12*12*12 | 5.0/6.8 | 70 | 15~22 | ||||||
1220*2440 | ||||||||||||
1525*4080 | ||||||||||||
915*3050 | ||||||||||||
1000*3000 | ||||||||||||
1000*4038 | ||||||||||||
4 | 38 | 1220*3660 | 38*38 or 38*38+19*19 or 38*38+12*12*12 | 5.0/7.0 | 70 | 19.5~26 | ||||||
1220*2440 | ||||||||||||
1525*4080 | ||||||||||||
1000*3000 | ||||||||||||
1000*4038 | ||||||||||||
Notes: Please contact us for other grating specifications | ||||||||||||
Our Company
Factory
Production site
FACTORY DISPLAY
1.Covering an area of 8000 square meters manufacturing base
2.Annual sales figure that exceeds USD3,500,000 and are currently exporting 75% of our production worldwide.
3.Over 10 years rich experience in FRP industry
4.Custom-made service
2.Annual sales figure that exceeds USD3,500,000 and are currently exporting 75% of our production worldwide.
3.Over 10 years rich experience in FRP industry
4.Custom-made service
Certifications
Packing and Delivery
Packing Details : Pallets are often used for safety transportation
Delivery Details : 10-45 days according order
Delivery Details : 10-45 days according order
Carton Box
Wood Pallet
Container Shipping

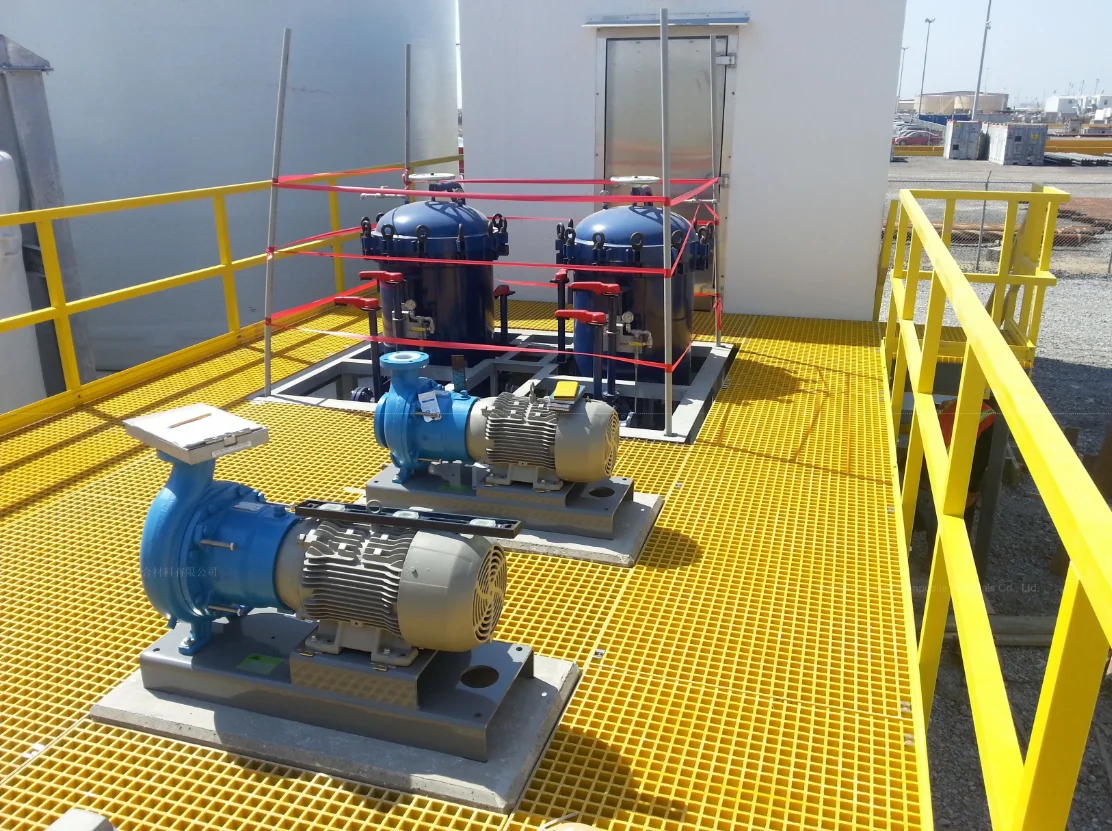

Widely Application

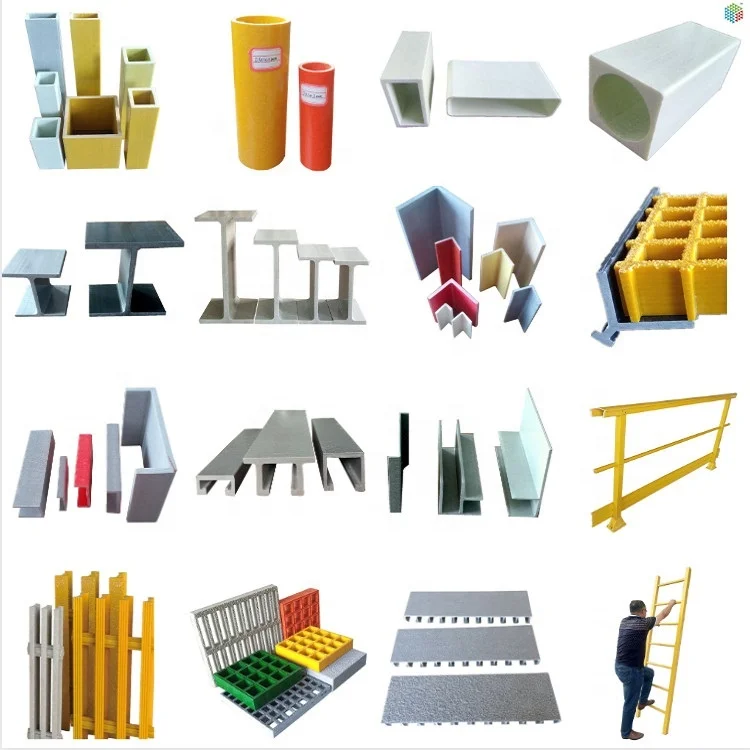

Pultruded Structural Shapes are good alternative over conventional metal structural shapes & Offers ideal solution against
corrosion problems failed in industrial environment.
CURRENTLY DEVELOPED APPLICATIONS
* Walkways & Bridges * Electrical Insulating Sections
* Cooling Tower Sections * Cable Tray Systems
* Maintenance Platforms * Ladders and Hand Rails
* Fencing & Signboards * Buildings and Sheds
* Mezzanines * Baying Platforms
* Pipe and Equipment Racks * Tank Loading Platforms
* Trash and Bar Screens * Decks
* Tank Covers and Supports
corrosion problems failed in industrial environment.
CURRENTLY DEVELOPED APPLICATIONS
* Walkways & Bridges * Electrical Insulating Sections
* Cooling Tower Sections * Cable Tray Systems
* Maintenance Platforms * Ladders and Hand Rails
* Fencing & Signboards * Buildings and Sheds
* Mezzanines * Baying Platforms
* Pipe and Equipment Racks * Tank Loading Platforms
* Trash and Bar Screens * Decks
* Tank Covers and Supports
