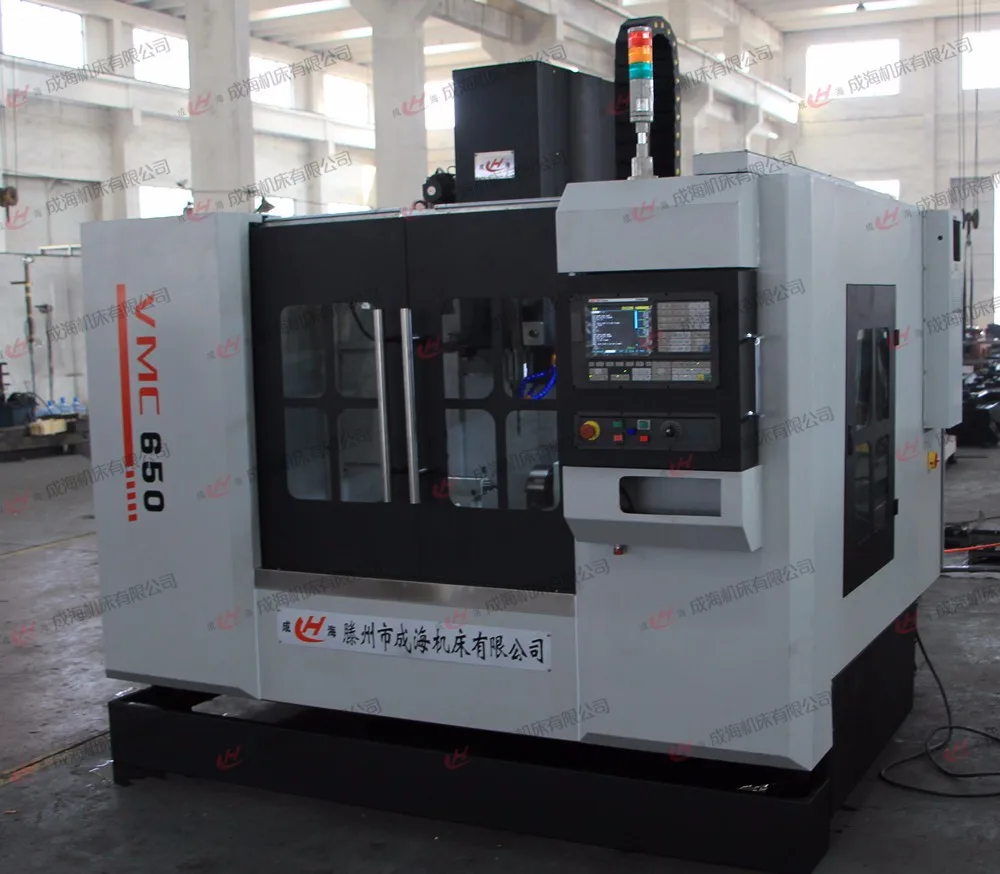

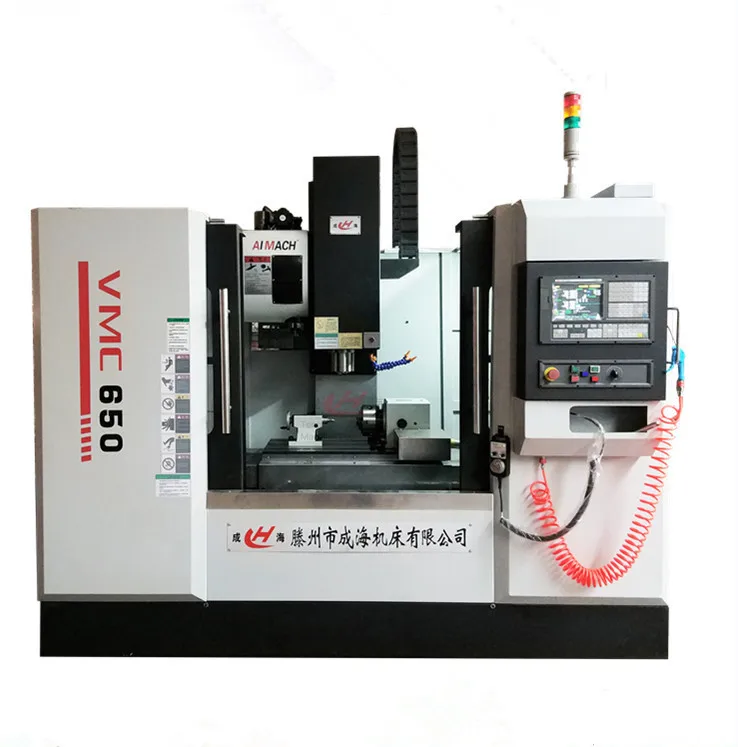

3 axis cnc milling machine VMC650

We are manufacturer of machine center, cnc milling machine, drilling machine, milling machine,

lathe and shaper. We have our own factory, so we can provide the factory price with good quality.

We always pay more attention to the quality of our machines under the ISO standard system, and our quality

control team are responsible to insure the product quality in every process. So you can trust us. Customers'

satisfaction is the eternal pursuit of our company.

Chenghai machine to ensure product quality, implementation of stringent vendor management, all of the key

components of the machine purchased directly from the country of origin, shorten delivery time, reduce production

costs and improve product quality.

1. Table Size(L*W): 800×400mm

-  X/Y/Z axis travel : 600×400×500 mm

- Max. table loading capacity: 500 kg

2. T-slots No./width/pitch: 3-16*125mm

3. Spindle Spindle taper: BT40

- Distance from spindle center to vertical column: 430mm

- Distance from spindle nose to table: 100-600mm

- Spindle speed range: 100-8000 rpm

- Motor power: 5.5 kw

4. Feed speed X/Y/Z axis rapid movement speed: 20 m/min

- X/Y/Zaxis feed movment speed: 10 m/min

5. Precision Positional precision: 0.016 mm

- Repeated positional precision: 0.006mm

6. Tool magazine Capacity :  arm type /armless type 16 tools

- Max. tool size: 150 mm

- Max. tool weight: 4kg

Machine weight : 3800 kg

- Overall dimensions: 1900×2310×2300 mm

Features:

1, base, slide, table, column, spindle box and other main parts of the use of high-strength cast iron; base for the box structure, compact and reasonable symmetrical structure to ensure that the basic pieces of high rigidity and bending Performance; A-type bridge cross-column and the internal grid-like tendons, effectively ensure the Z-axis strong cutting rigidity and accuracy; basic pieces of resin sand molding and aging treatment for the long-term use of machine tools to provide a guarantee of stability The

2, X, Y, Z guide rail are heavy 45 # / 55 # linear rolling guide, with fast, high rigidity, low friction, low noise, low temperature rise and other characteristics, with automatic forced lubrication, improve machine life ;

3, Z to plus weight balance to ensure that the spindle box movement smooth and stable; Z drive motor with loss of braking device;

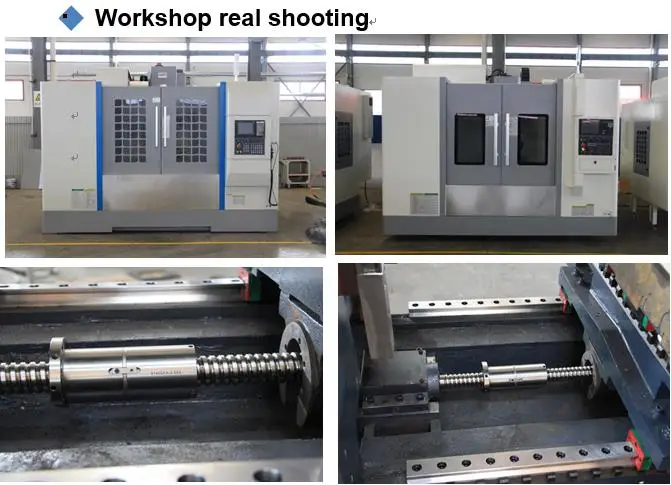

4, X, Y, Z three directions with high precision and high strength of the inner loop double nut preload large lead ball screw, feed speed; drive motor through the flexible coupling and screw directly connected, into To the servo motor directly to the power transmission to the high precision ball screw, no backlash, to ensure the positioning accuracy and synchronization of the machine;

5, the use of Taiwan's high-speed, high precision, high rigidity spindle unit, axial and radial bearing capacity, the maximum speed of up to 8000rpm;

6, the spindle with the center of the inflatable structure, the spindle quickly when the knife with the center of the high pressure gas on the spindle cone to clean, to ensure the accuracy of tool clamping and life;

7, X, Y, Z three guide rails, screw are used protective devices to ensure that the screw and rail cleaning to ensure that the machine drive and movement accuracy and life;

8, the machine outside the protection of the use of full protection structure design, easy operation, safe and reliable;

9, the use of reliable centralized automatic lubrication device, timing, quantitative lubrication of the machine automatically point intermittent lubrication, according to the working conditions to adjust the lubrication time;

10, the use of Taiwan's professional manufacturers of 16 hats-type knife library, tool change accuracy, time is short, high efficiency, millions of times running test, meet the reliability requirements; with damping structure, can reduce the impact of exercise, The life of the magazine; pneumatic drive, easy to use, the shortest path tool change;

11, the use of oil and water separation device, can be collected to the majority of lubricants separated from the coolant to prevent the rapid deterioration of coolant, environmentally friendly;

12, the machine operating system using ergonomic principles, the operating box independent design, can rotate their own, easy to operate.

Packaging: 1 set cnc machining center packed in 1 wooden case.

Delivery: Delivery time should be with 30 days after receiving deposit.

Shipping: Usually by SEA.

1. Your inquiry and email will be replied within 24hours.

2. If you need to develop products with your own specification, we can help you to work it out.

3. Always be honest, never lie to customer, and never declare anything we don't have.

4. 3 First: Customer, Quality and Service!

1. Payment Method:30% deposit T/T in advance, rest against the copy of B/L or before delivery.

2. Delivery Time:

For one set machine, will be within 15 days after deposit.

For 5-10 sets same machines, will be within 30 days after deposit.

For 5-10 sets different machine, will be more than one month.

3. MOQ:

1 set machine

4. Shipping: Usually by sea
