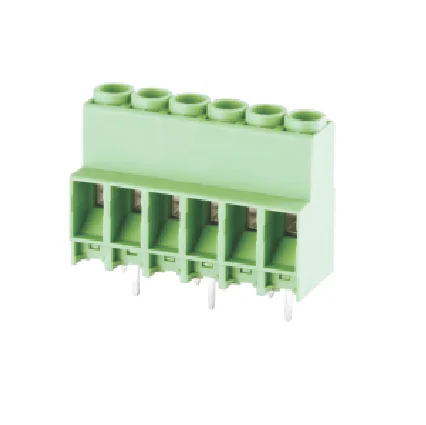

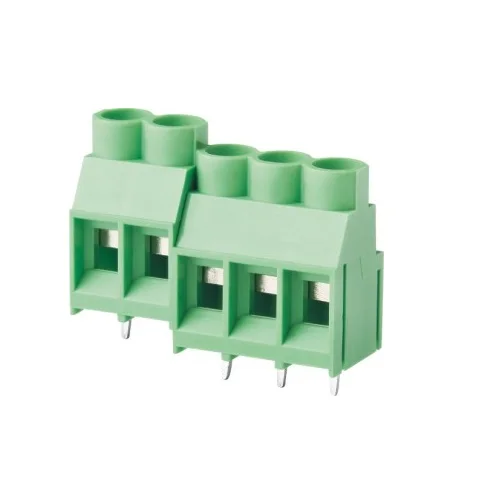

300V 30A PCB Screw connector PITCH 6.35MM height 21.30mm terminal block
300V 30A PCB Screw connector PITCH 6.35MM height 21.30mm terminal block
300V 30A PCB Screw connector PITCH 6.35MM height 21.30mm terminal block
300V 30A PCB Screw connector PITCH 6.35MM height 21.30mm terminal block

300V 30A PCB Screw connector PITCH 6.35MM height 21.30mm terminal block

Share on (60724345204):


Price:

Quantity:


Product Overview

Description











Standard Color: Green


Certificate: UL CE


Rated voltage: 300V


Rated Current: 30A


Housing: PA66 94V-0


Poles: 2-24P


Pitch 6.35mm terminal blocks

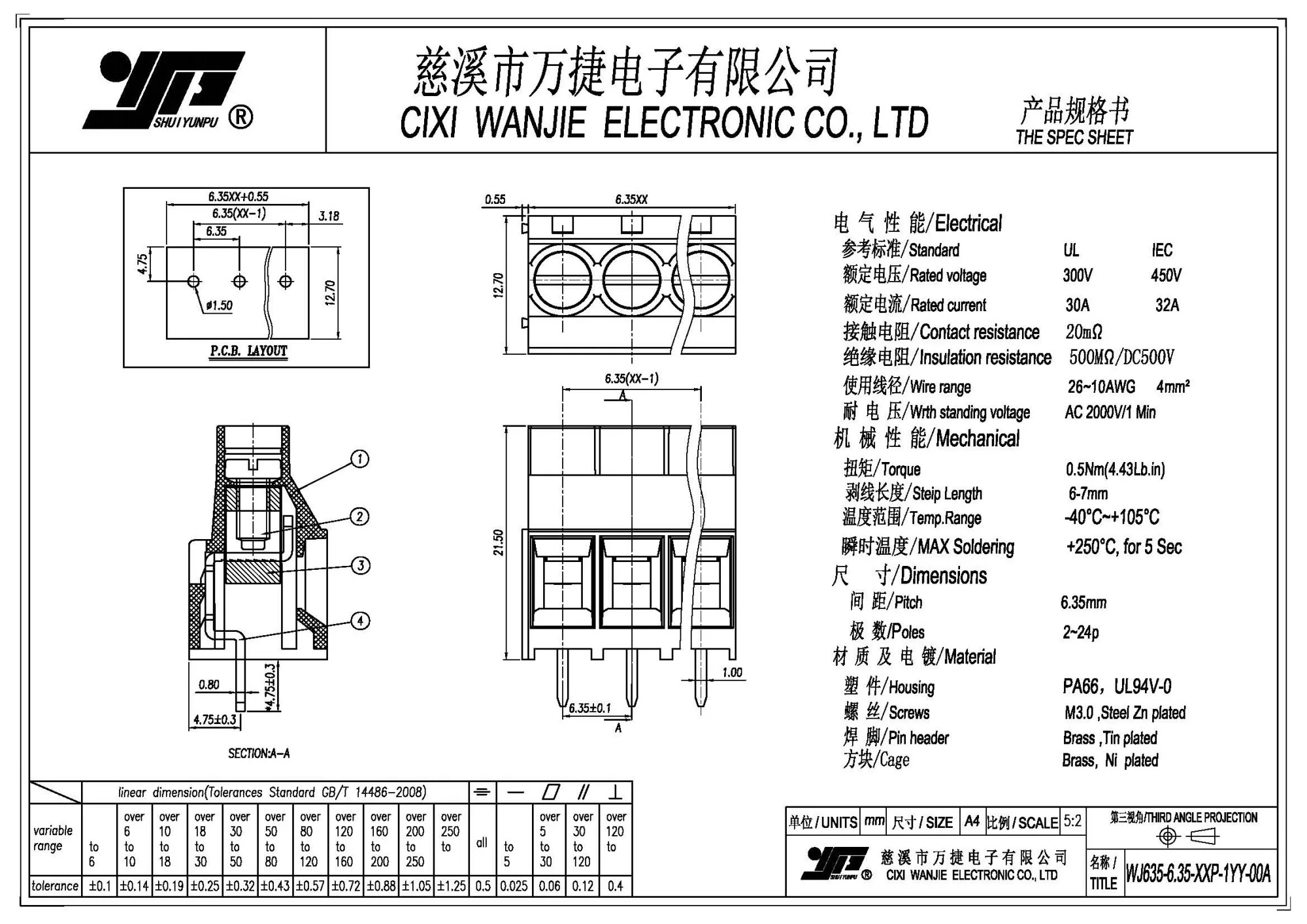

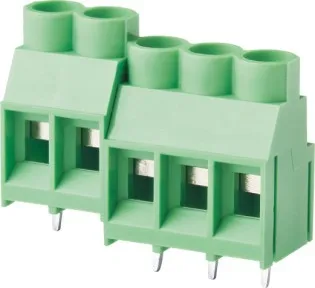

Part no.: WJ635

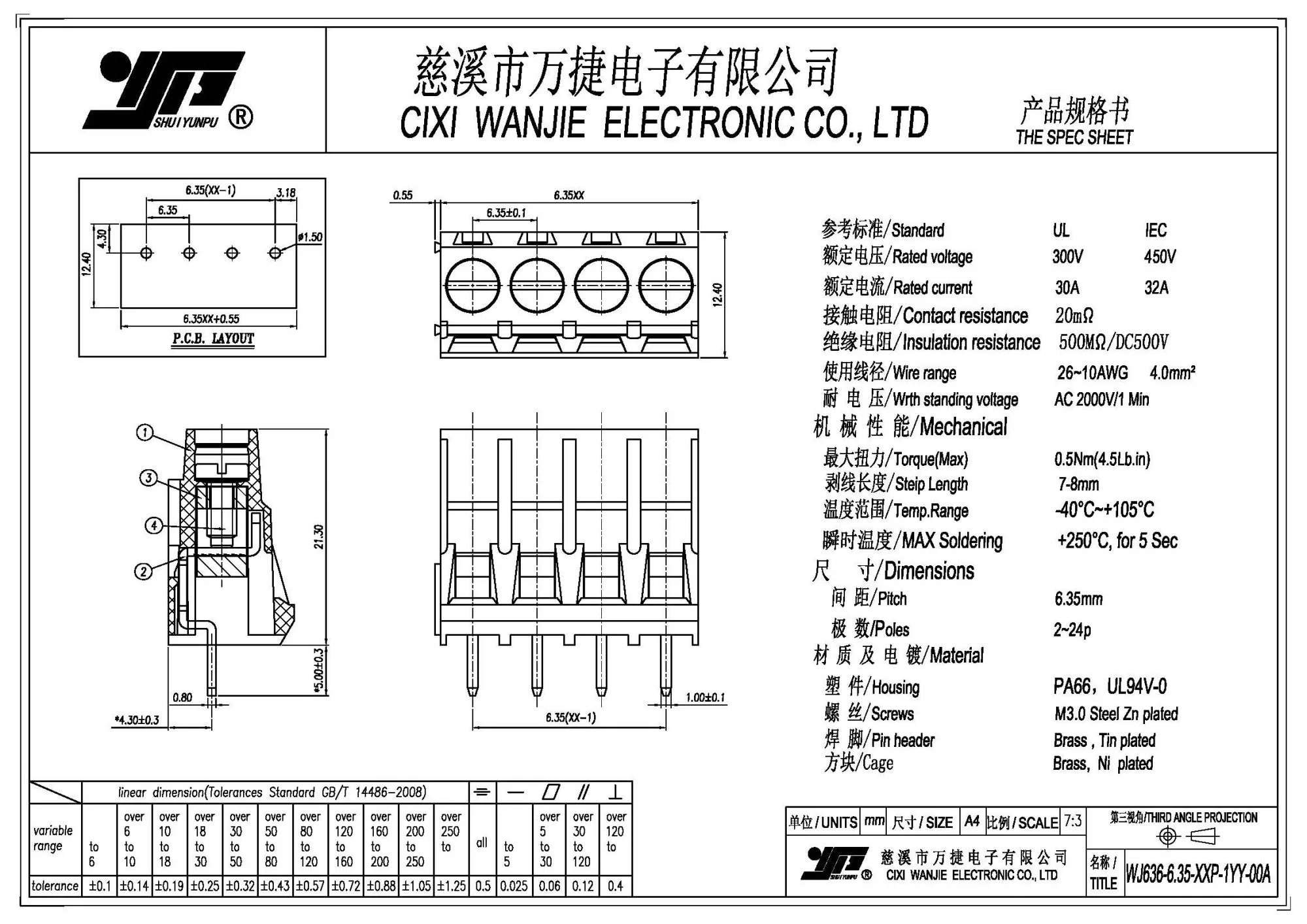

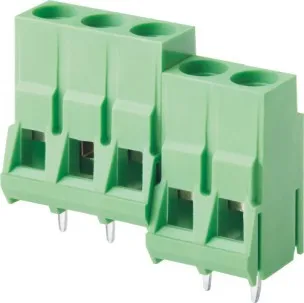

WJ636











UL/CUL
























Use Group








BCD

Rate Voltage [V]








300-300

Rated Current [A]








30-10

Wire Range [AWG]






26~10

Dielectric Voltage-Withstand






1.6KV


IEC




























Overvoltage Category








IIIIIIII

Contamination Class








322

Rated Voltage [V]








4006301000

Rated Current [A]








323232

Impulse withstand voltage [KV]








666

Conductor cross section[solid/flexible] [mm²]






0.5~4.0


Material




















Insulation Material






PA66

Flame relardant rating






UL94V-0

Conductor Material






Copper alloy

Plating of conductor surface






Sn plated


Other Data
































Pitch/Poles [mm]/[P]






6.35/2~24

Stripping Length [mm]






7~8

Screw/Torque(Max)[N.m]






M3/0.5

Operating temperature [℃]






-40~+105

Soldering temperature






260℃/5S

Pin dimensions [mm]






0.8*1.0

PCB Hole Diameter [mm]






Ø1.5
