Ferrule end surface pre domed SC UPC boot fiber optic 90 degree connector
- Category: >>>
- Supplier: Shenzhen Wirenet Telecom Technology Co. Ltd.
Share on (60724412992):
Product Overview
Description
Ferrule end surface pre domed SC UPC boot fiber optic 90 degree connector
Product Description
Fiber optic connectors are ultra reliable components featuring low insertion loss and return loss.
They come with your choice of simplex or duplex cable configuration and are made to conform to IEC, Telcordia GR-326-CORE Standard.
Environmental Reliability Test:
The performance of the Fiber optic connector has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others.
Features:
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Precision anti-rotation key and corrosion resistant body
- UL-rated plastic housing
- Telcordia style boots
- Free-floating ceramic ferrule
Items | Single mode | Multi-mode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insertion Loss | <0.2dB | <0.3dB | ||||
Return Loss | e45dB | e50dB | e60dB | e35dB | ||
Durability | <0.1dB typical change,500 matings | |||||
Operating Temperature | -40 to +75 | -40 to +75 | ||||
Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:d1um | 125um,Conectricity:1d3um | ||||
125.3+1/-0um, Conentricity:d1um | 127um,Conectricity:1d3um | |||||
125.5+1/-0um, Conentricity:d1um | 128um,Conectricity:1d3um | |||||
126.0+1/-0um, Conentricity:d1um |
| |||||
- Gigabit Ethernet;
- Active device termination;
- Telecommunication networks;
- Video;
- Multimedia;
- Industrial;
- Premise installations;
Order Choice:
- SC/PC SM one-piece, multi-piece, 3mm or 2mm boot
- SC/PC SM one-piece, multi-piece, 900um boot
- SC/APC SM one-piece, multi-piece, 3mm, 2mm or 900um boot (conical)
- SC/APC SM one-piece, multi-piece, 3mm, 2mm or 900um boot (step)
- SC/APC SM one-piece, multi-piece, 3mm, 2mm or 900um boot(conical pre-angled)
- SC/PC MM one-piece, multi-piece, 3mm or 2mm boot
- SC/PC MM one-piece, multi-piece, 900um boot

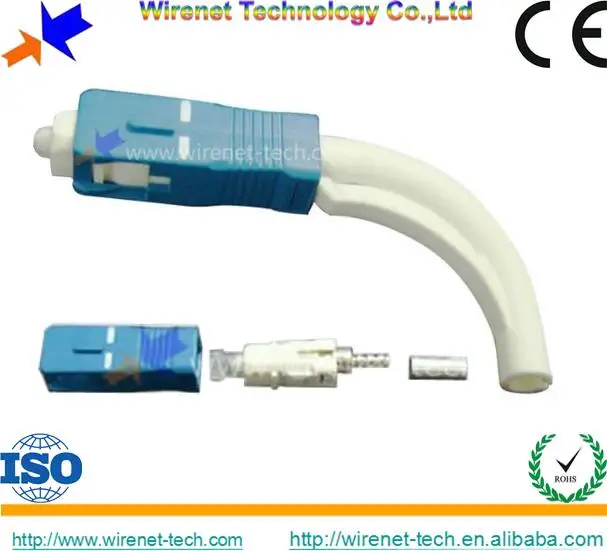

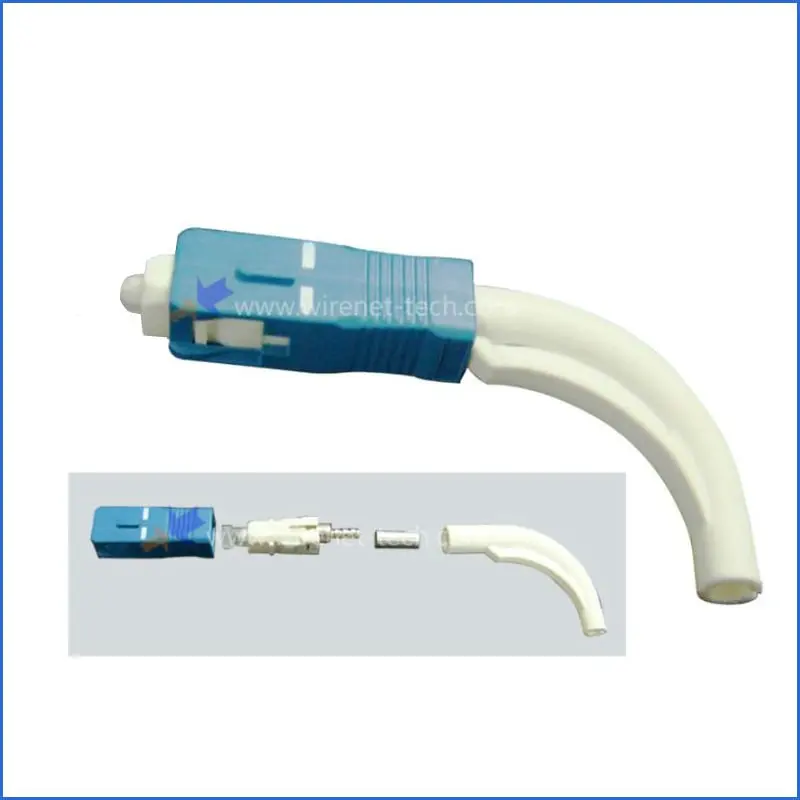

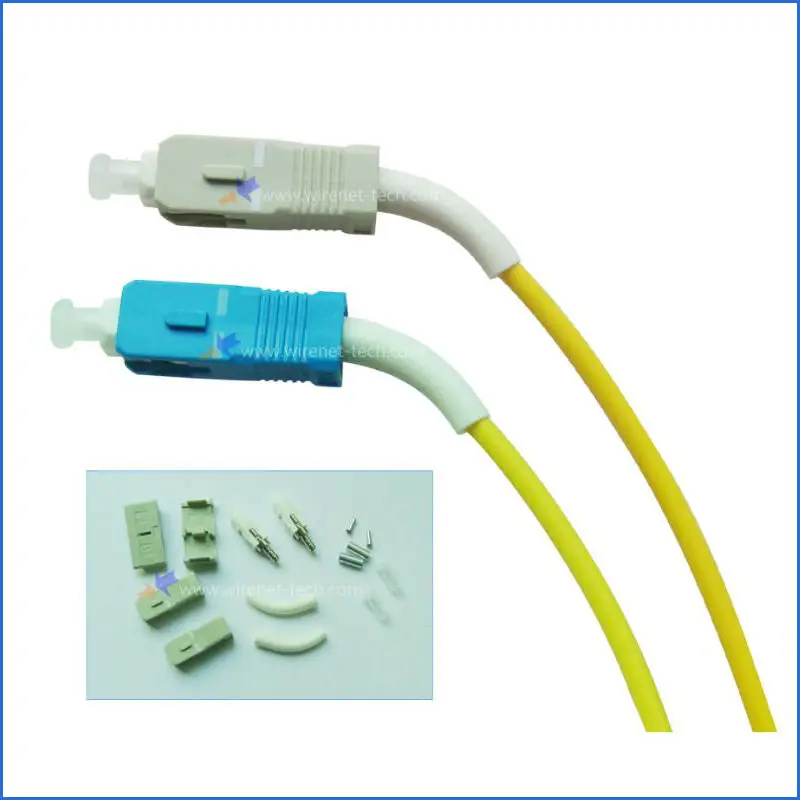

Picture:
Other kind of connectors for your reference:

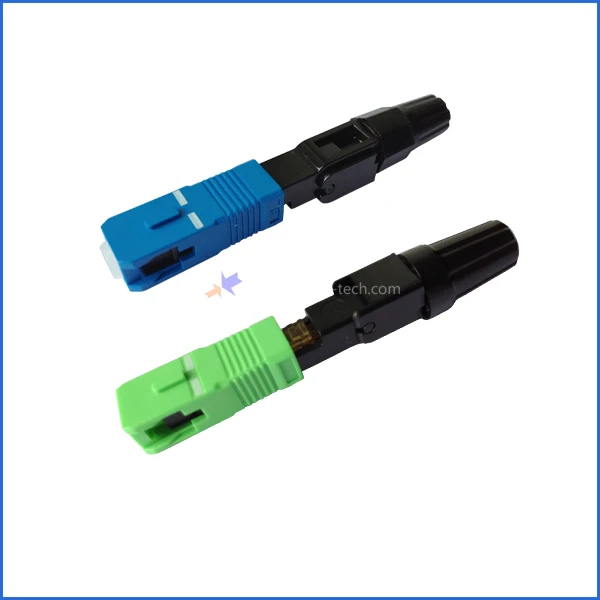

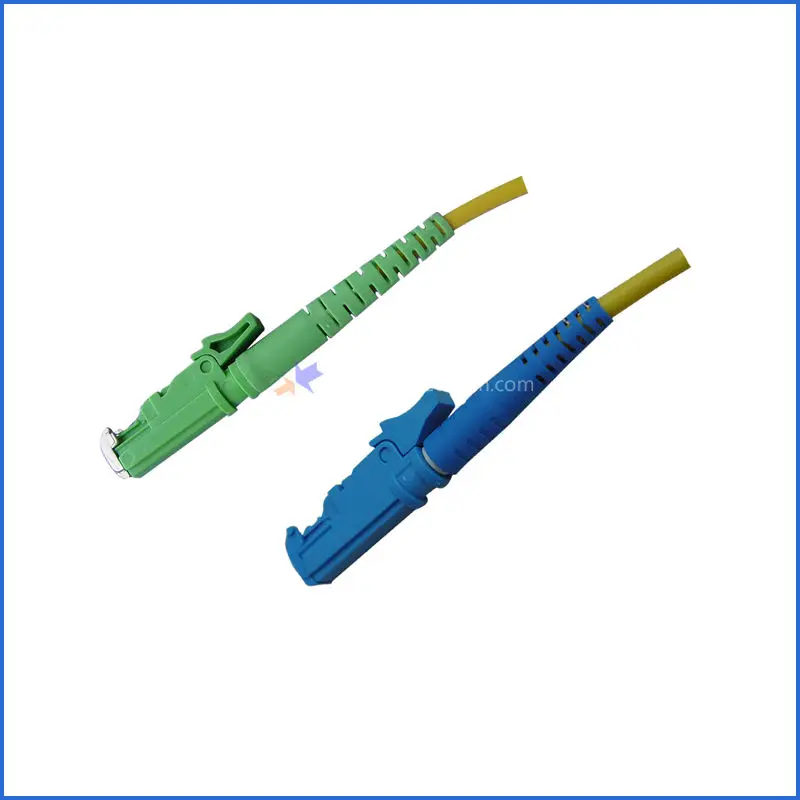

SC UPC/APC fast connector E2000 connector

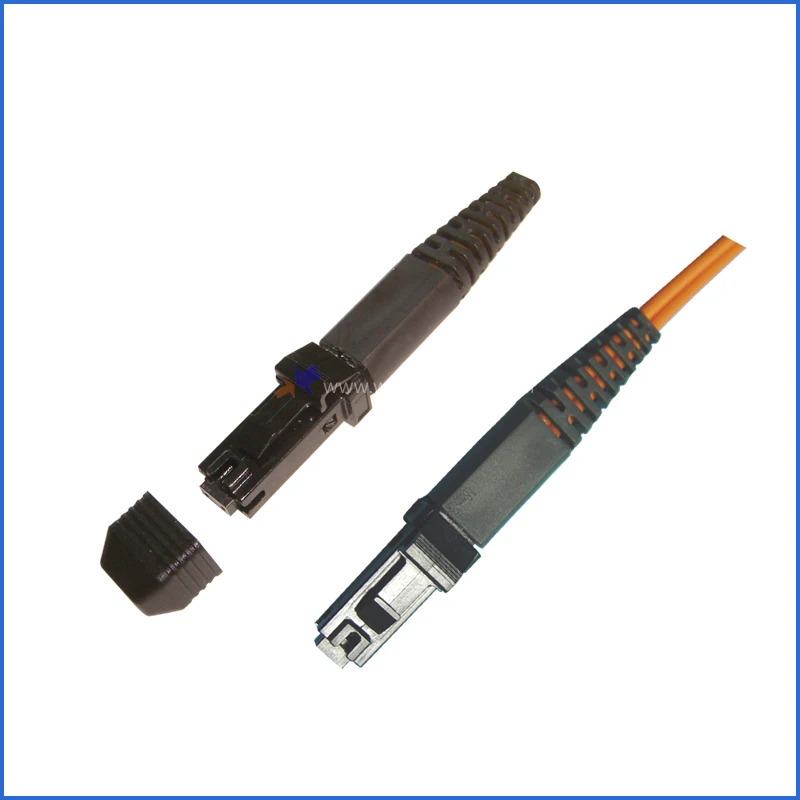

MTRJ connector SMA connector
SC connector LC connector
