hydraulic cnc pipe tube bending machine

Share on (60724428334):


Price:$40,000.00 - $50,000.00

Quantity:


Product Overview

Description


Product Description

Product Application

Zhangjiagang City Telhoo Machinery Manufacturing Co.,Ltd., (belong to Hongkong Telhoo Holding Limited.)established in 1991, is TAIWAN joint venture manufacturer for pipe processing machinery.
Our company occupies an area of more than 30,000 square meters, has strong research and development capability and is also equipped with complete equipment of high precision. On the basis of over 25 years of production experience, adopt Taiwan technology and management methods, we have successfully developed series of micro-computer controlled DW, SW pipe bending machine, pipe-end forming machine,Auto-loading pipe cutting machine,Automatic Robot loading pipe bending machine and other automatic pipe processing machinery. With the high technology and creativity, We can also do non-standard machine by your request.
Our products are widely used in shipbuilding, Auto parts, furniture, fitness
equipment, boilers, bicycles, motorcycles, petrochemical processing, plumbing, sanitation, bathing industries. and other process industries.
With new and high technology, advanced equipment, consummated crafts and complete detection means, we will provide satisfactory products and reasonable price to customers all around the world.We have exported our product to about 65 countries.

\t
SPECIFICATIONS FOR DW168CNC-2A1S AUTOMATIC PIPE BENDING MACHINE
\t
Max. pipe size for carbon steel
\t
Ø168X 14t
\t
Max. pipe size for stainless steel
\t
Ø135X 10t
\t
Availability Length of bending pipe
\t
3600mm
\t
Max R for bending
\t
550mm
\t
Max angle for bending
\t
185°
\t
Bending process for every pipe
\t
16
\t
Working rate
\t
Bend rate
\t
Ma×30°/sec
\t
Rotary rate
\t
Ma×180°/sec
\t
Feeding rate
\t
Ma×700mm/sec
\t
Working accuracy
\t
Bend angle
\t
±0.1°
\t
Rotary angle
\t
±0.1°
\t
Feeding length
\t
±0.1mm
\t
Watt of oil press electrical machine
\t
14mpa
\t
Information inputting method
\t
Axis (Y,B,C)
\t
Bending method
\t
Hydraulic
\t
Max bending group
\t
200
\t
Power of rotary Servo motor
\t
1300W
\t
Power of feeding Servo motor
\t
2000W
\t
Electrical motor power
\t
30kw
\t
Weight of machine
\t
12000kg
\t
Size L W H(CM)
\t
630X250X130
\t
Remark:The Max length of mandrel of pipe bending machine can according to customers requirement.
\t
Difference Remark:
2A1S:Rotary servo motor+feed servo motor
4A2S:Rotary servo motor+feed servo motor+bend servo motor+machine-head displacement servo motor(left+righe)
5A3S:Rotary servo motor+feed servo motor+bend servo motor+machine-head displacement servo motor(up+down,left+righe)

Main Features

1. Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
5. Rebound test: comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production

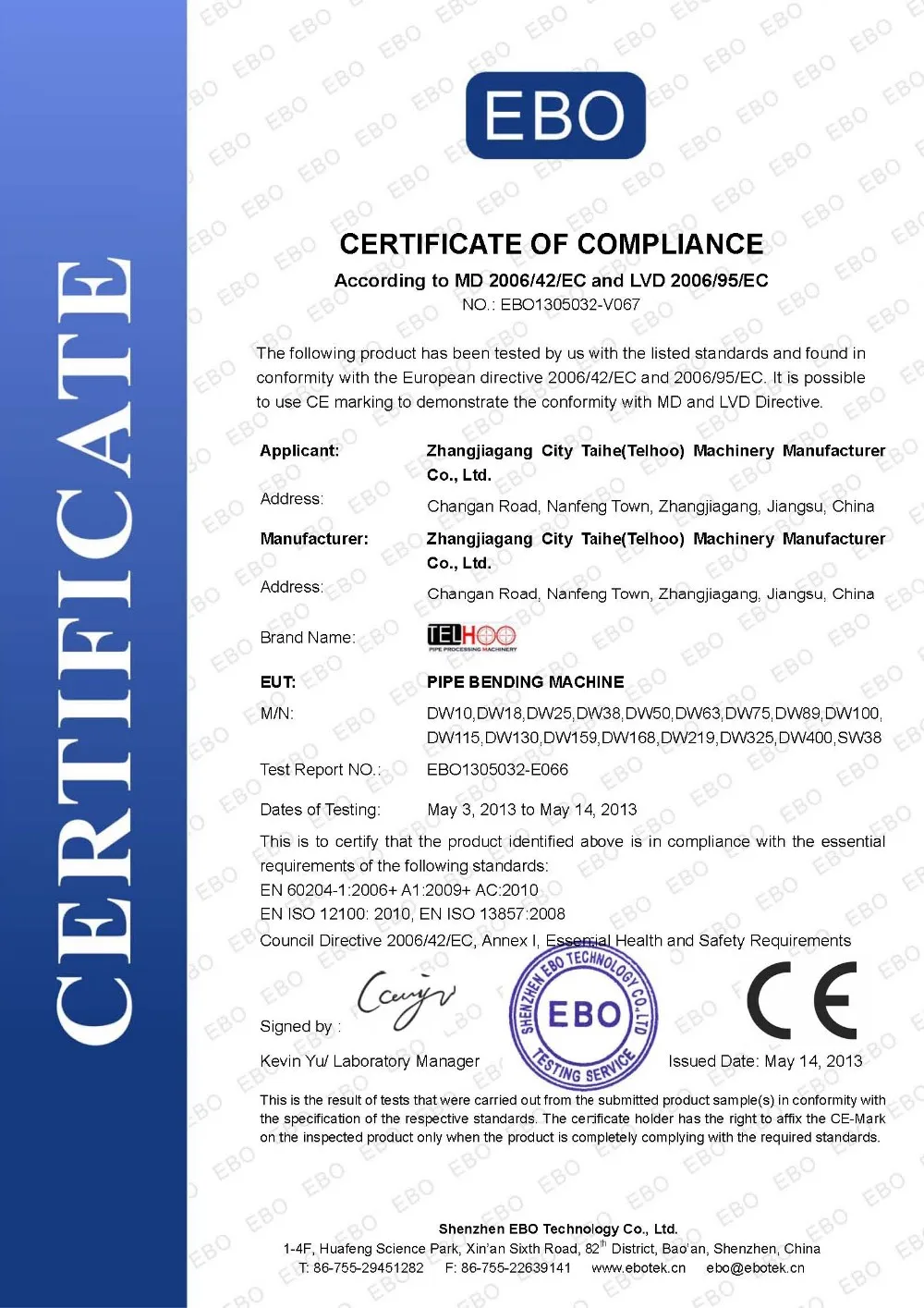

Certifications
Detailed Images

Machine Parts

Name: Servo motor
Brand: Mitsubishi
Original: Japan
High performance, simple operation, international standard

Main Features

Name: sensor
Brand: OMRON
Original: Japan
Swift input response

Machine Parts

Name: PLC (CPU)
Brand: Omron
Original: Japan
High performance, swift

Main Features

Name: Various magnetic valve
Brand: Yuken
Original: Japan
Anti-aging, corrosion-resistant

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
410X120X140cm
\t
Weight
\t
2.5T
\t
Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
