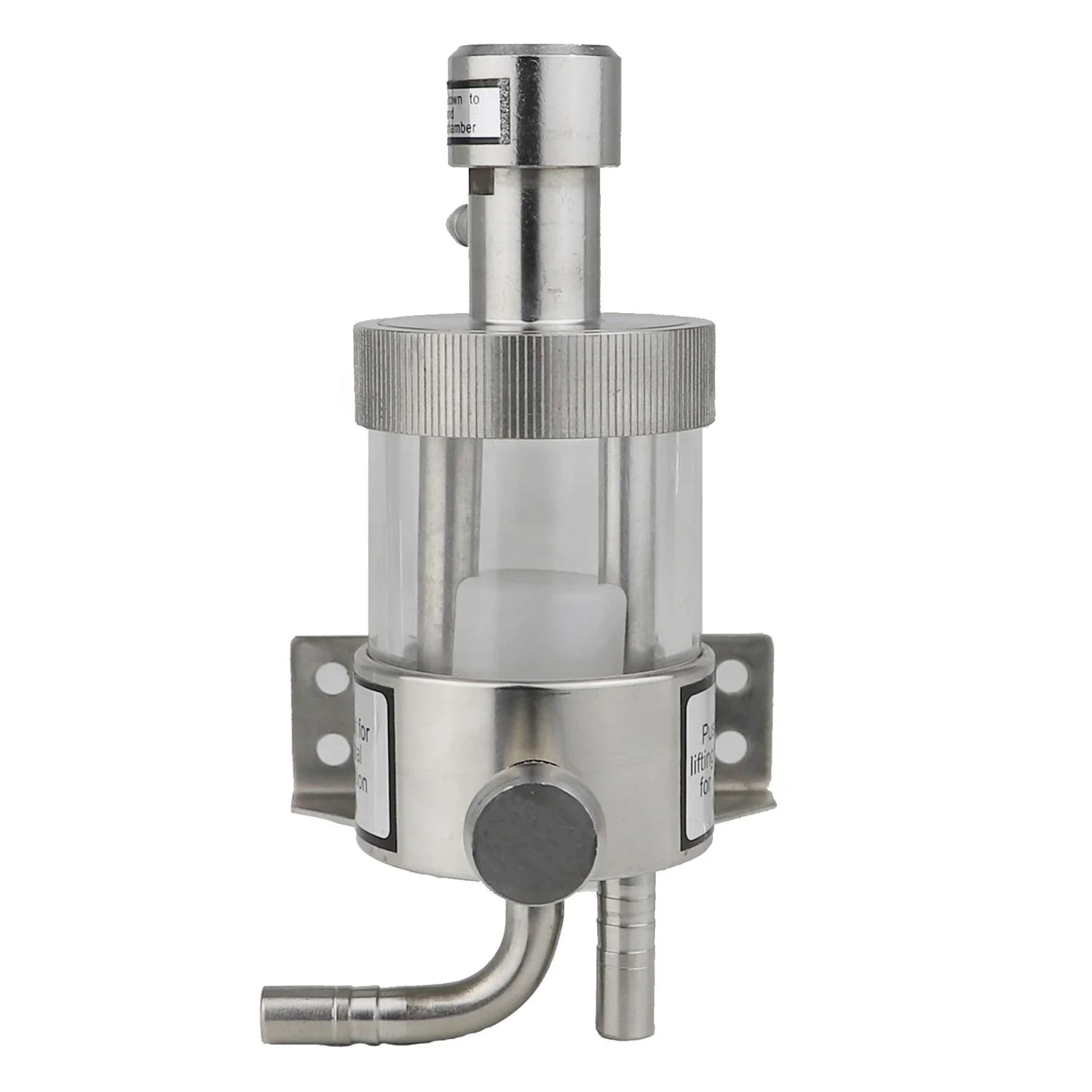

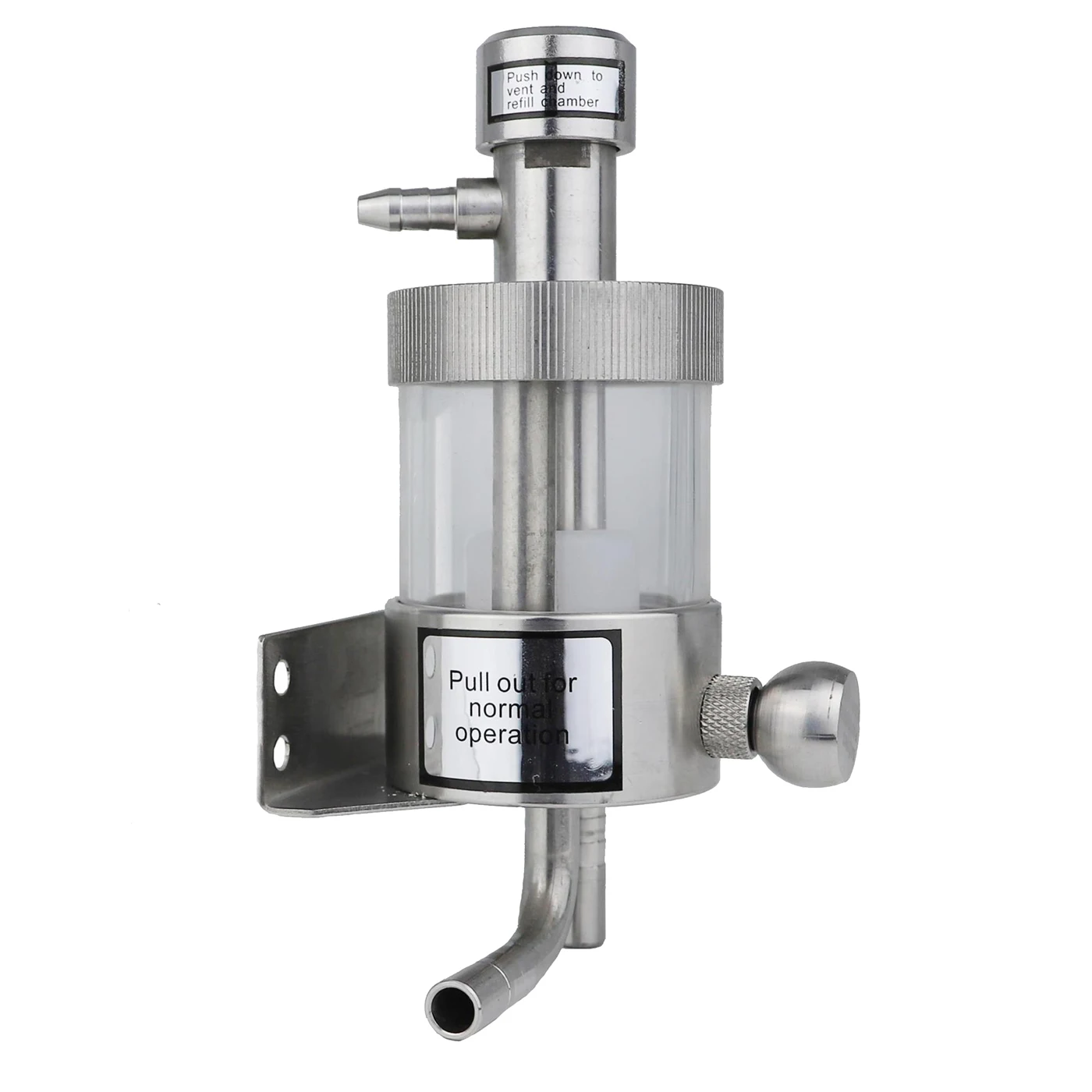

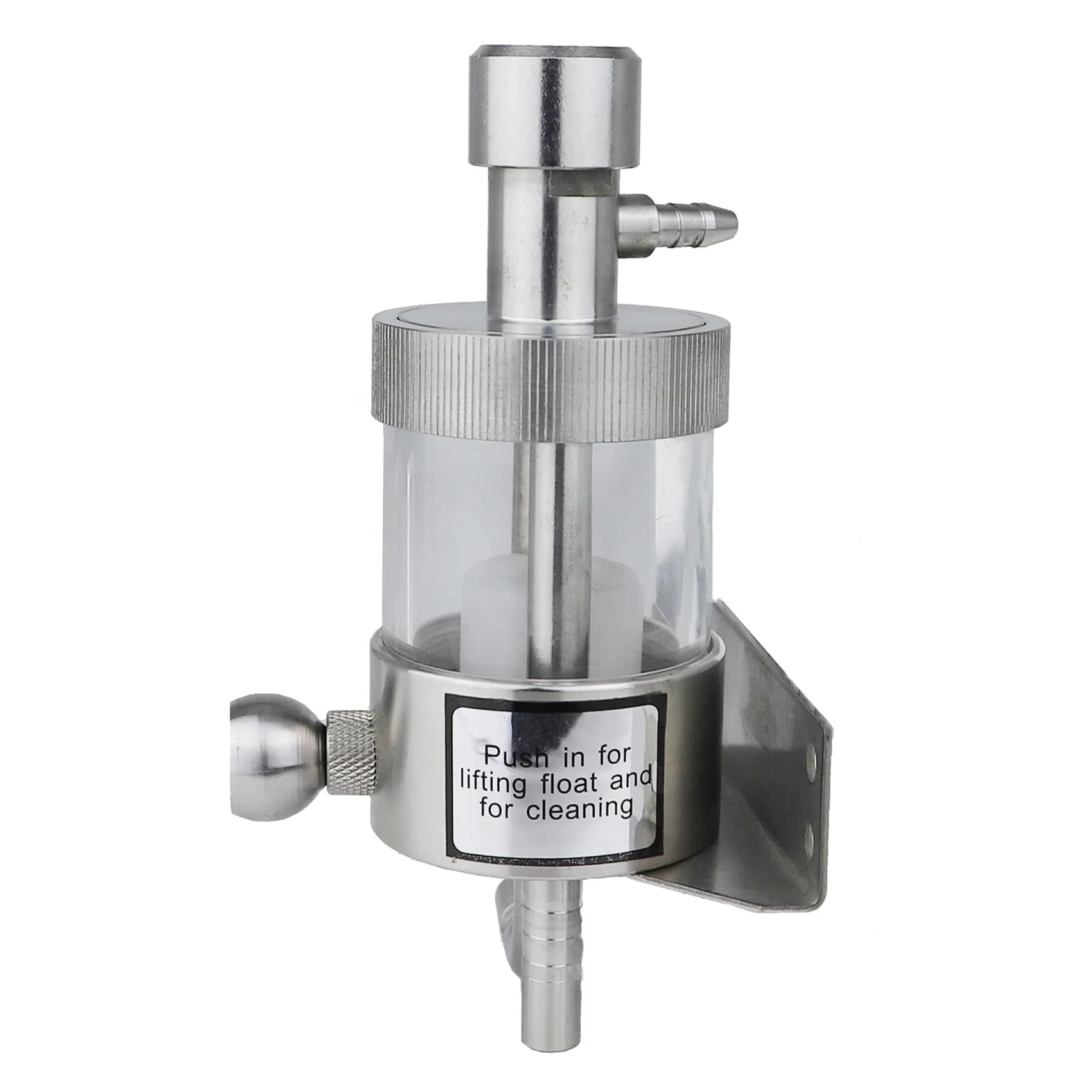

Stainless Steel Foam on Beer detector Equipment Accessories Beverage Glass Sight Beer Dispense System

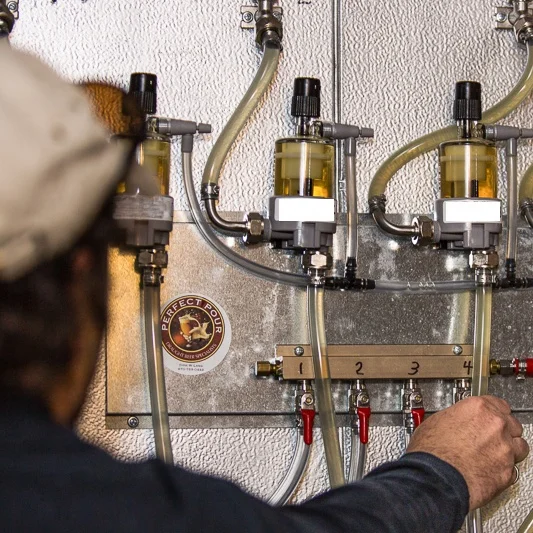

FOBs installed in a long draw draft beer system will reduce beer waste and increase beer profits. The purpose of this article is to describe how an FOB works, and to explain how using an FOB(s) can increase profits from draft beer sales when installed on a long draw beer dispensing system.
Step 1
Disconnect empty keg and tap a fresh keg
Step 2

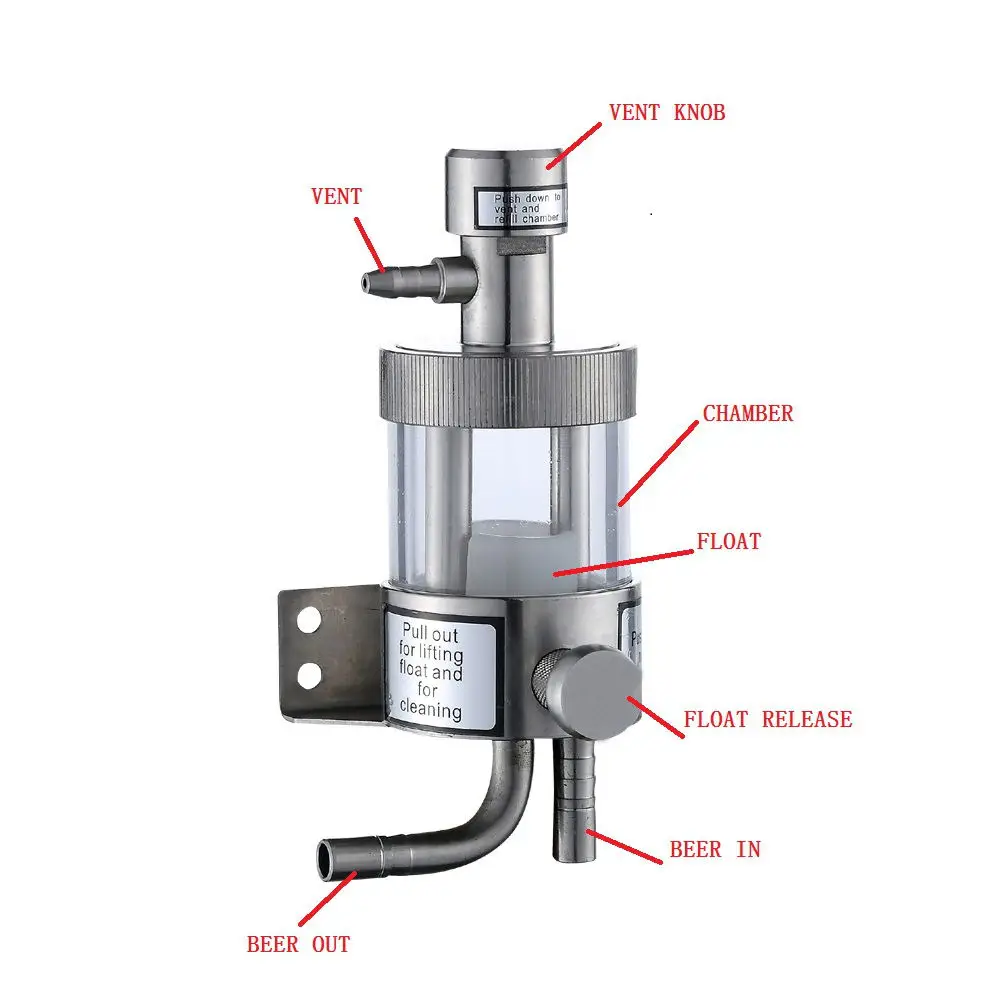

Push down and hold vent knob, and allow the chamber to refill with clear beer. While venting, a small amount of beer and foam will escape through the vent line.
Step 3
Rotate float release 180 degrees until the red mark on the bottom of the base is seen completely thru the cut out on the float re-lease. The float will rise to the top of the chamber and allow beer to flow to the faucet.
Step 4
Rotate float release 180 degrees until green mark on top of the base is seen completely thru the cut out on the float release.
CLEANING INSTRUCTIONS
Step 1
Disconnect keg and connect line to cleaning system.
Step 2
Rotate float release 180 degrees until the red mark on the base is seen completely thru the cut out on the float release. This will allow the cleaning solution to cir-culate through the 7674 in either direction.
Step 3
Push down & hold vent knob to allow cleaning solution to fill chamber and exit through vent. This will clean the chamber, vent and drain.
Step 4
Rinse with water. Repeat Step 3 while rinsing with water.
Step 5
Rotate float release 180 degrees until green mark on top of the base is seen completely thru the cut out on the float release. Follow instructions for resetting after a keg empties.
Disconnect empty keg and tap a fresh keg
Step 2
Push down and hold vent knob, and allow the chamber to refill with clear beer. While venting, a small amount of beer and foam will escape through the vent line.
Step 3
Rotate float release 180 degrees until the red mark on the bottom of the base is seen completely thru the cut out on the float re-lease. The float will rise to the top of the chamber and allow beer to flow to the faucet.
Step 4
Rotate float release 180 degrees until green mark on top of the base is seen completely thru the cut out on the float release.
CLEANING INSTRUCTIONS
Step 1
Disconnect keg and connect line to cleaning system.
Step 2
Rotate float release 180 degrees until the red mark on the base is seen completely thru the cut out on the float release. This will allow the cleaning solution to cir-culate through the 7674 in either direction.
Step 3
Push down & hold vent knob to allow cleaning solution to fill chamber and exit through vent. This will clean the chamber, vent and drain.
Step 4
Rinse with water. Repeat Step 3 while rinsing with water.
Step 5
Rotate float release 180 degrees until green mark on top of the base is seen completely thru the cut out on the float release. Follow instructions for resetting after a keg empties.
Related Products
Hot Sales: Beverage fitting, Beer nut, Stainless steel check valve, Brass check valve,Quick disconnect and OEM, Gas manifold, Beer tap, Keg coupler, FOB detector, Beer tower, Beer shank.
In order to ensure the high quality, our factory has introduced a large number of precise and modern equipments from Japan, also owns many advanced inspection and measurement instructions.
In order to ensure the high quality, our factory has introduced a large number of precise and modern equipments from Japan, also owns many advanced inspection and measurement instructions.
Certifications
Recommend Products
Company Video
* We can customize products according to customers' requirements.
Manufacturing Technique
Company profile
Taizhou Gaowei Machinery Co., Ltd. was established in 2009. It is a manufacturer that specializes in the development, manufacture and sales of fittings and parts of beverage, beer, soda dispensing equipment. Such as stainless steel fitting, brass fitting, beer faucet, keg coupler, beer tower, cleaning adaptor and so on. Which is located in Chumen town, Yuhuan city, Zhejiang province, China, near to Ningbo and Shanghai port.
We have established a new factory in 2018 in Fujian. It has operates a 10000 square meters of manufacturing facility, which is near to Xiamen port. The currently employees is over 150.
We not only have a very knowledge of stainless steel properties, but also have a very strong ability of manufacturing and processing. All stainless steel products are passivated or electro-polished to meet the standards of food and beverage companies.

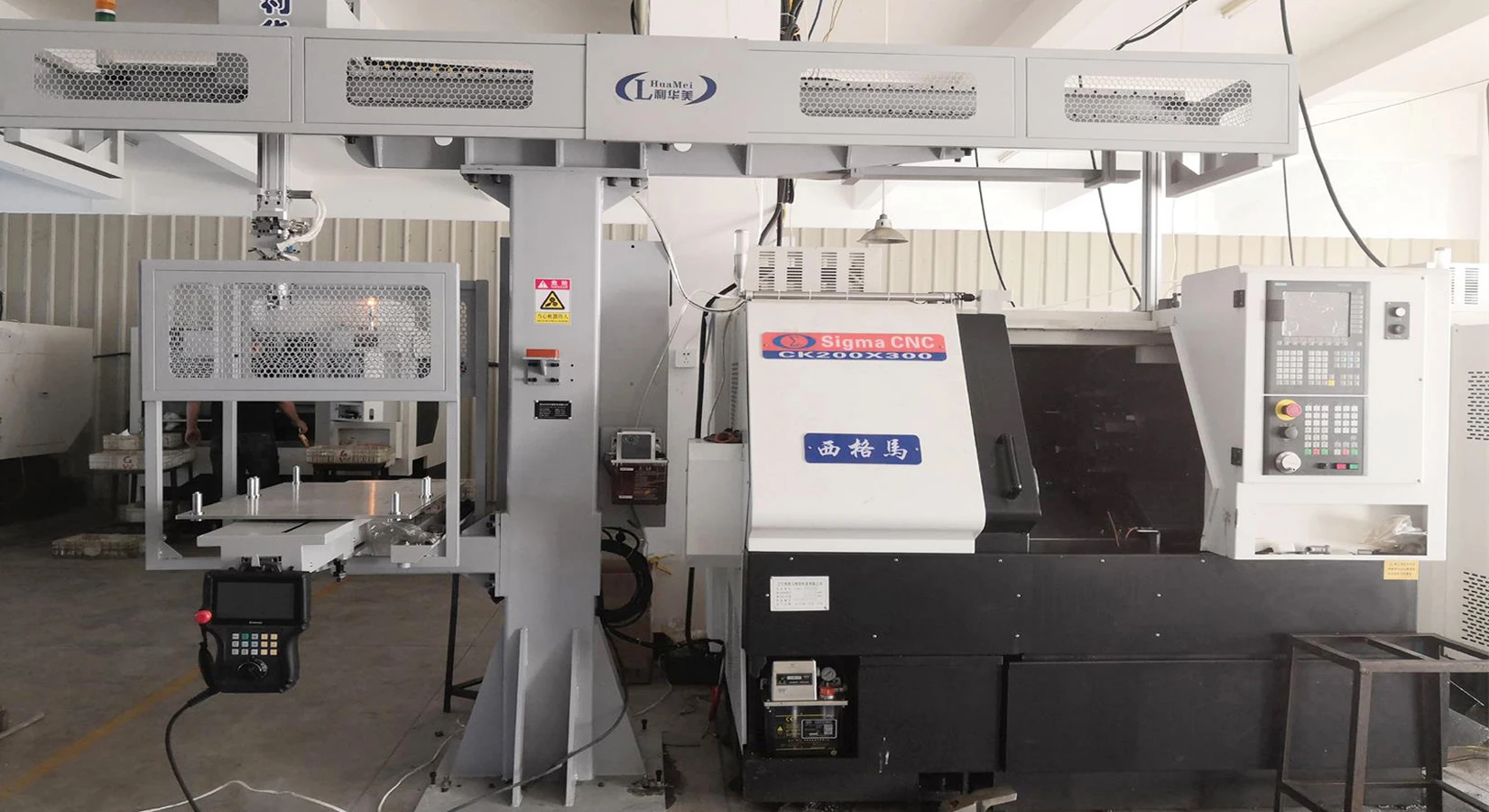

In order to ensure the high quality, our factories have introduced a large number of precise and modern equipment from Japan, such as NPL45 High precision CNC Machine, Turn-milling combined NC machine, Fully automatic Longitudinal lathes.Meanwhile, Our factories possess advanced inspection and measurement equipment, such as Rohs Analyzer, Spectrum analyzer, Image measurement instrument ect.
