100% Accuracy Forward Mounted Ultrasonic Sensor Intelligent Parking Guidance System for Indoor Car Park

100% Accuracy Forward Mounted Ultrasonic Sensor Intelligent Parking Guidance System

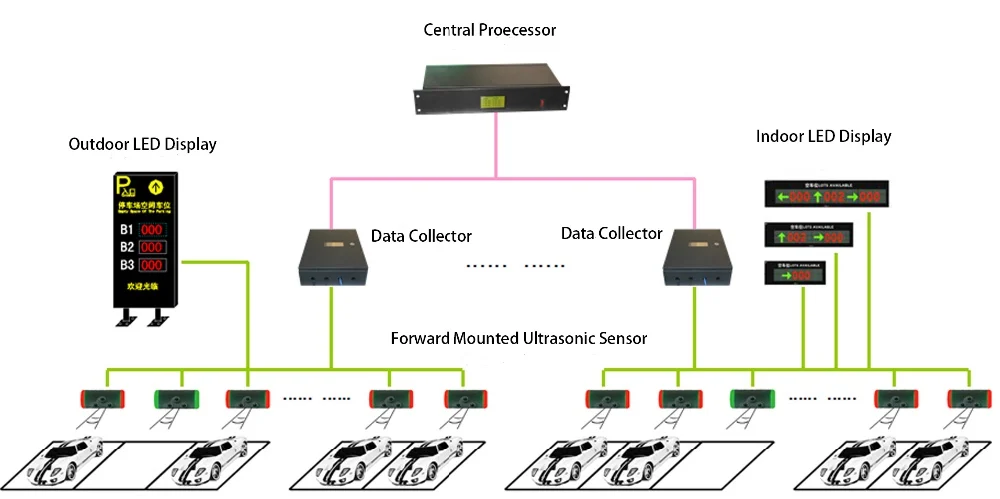

Forward mounted PGS is a ideal solution of guiding parkers to quickly find a vacant parking space in no time. Outdoor LED Display installed at entry shows parkers Qty. of vacant space of whole car park and each level, while several indoor LED Displays throughout each level shows parkers Qty. of vacant spaces in this level and shows the right direction to vacant spaces, and parkers can find a vacant space by seeing status (green/blue or red) of ultrasonic sensor forward mounted each parking space. Typically installed at indoor car park of shopping mall, airport, hospital etc., forward mounted PGS is composed of forward-mounted Ultrasonic Sensor built-in LED Indicator, LED Display, Data Collector, Center Processor, Software & accessories.

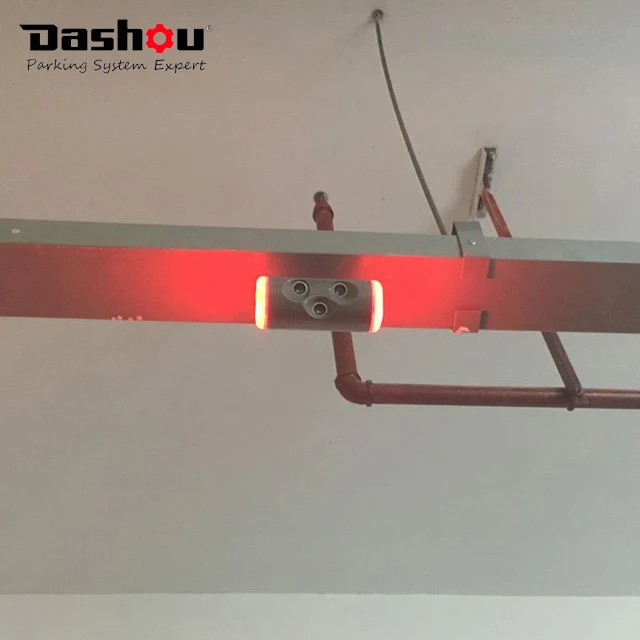

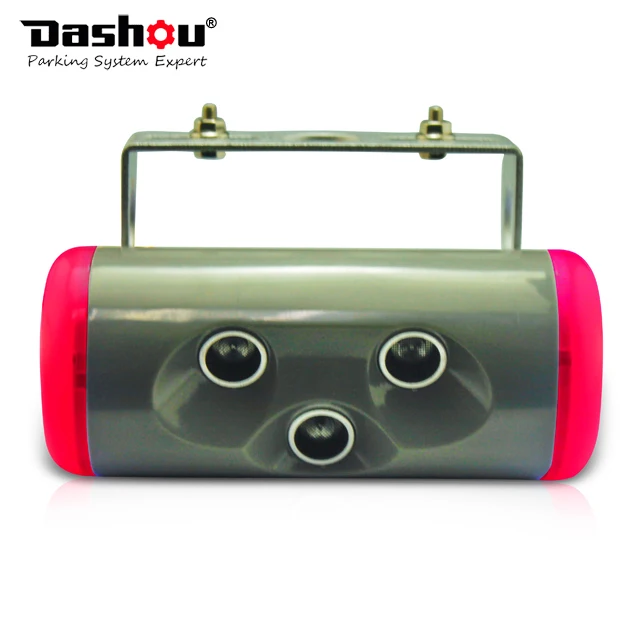

Forward Mounted Ultrasonic Sensor

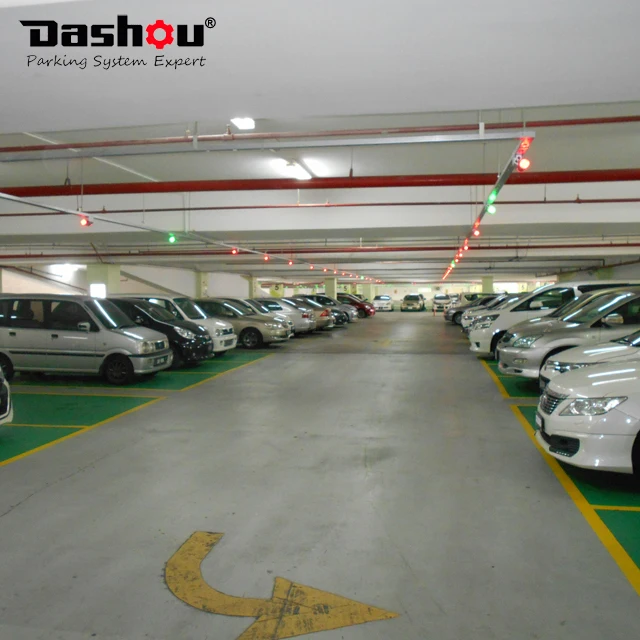

It is forward mounted over the parking space, to detect vehicles presence and show occupy or vacancy of space. Compared with normal sensor, this ultrasonic sensor is built in LED indicator, which reduces cost of cable, material and labor. Also the sensor is forward mounted over parking space, this make installation possible while parkers use parking space, reduce installation time and cost.

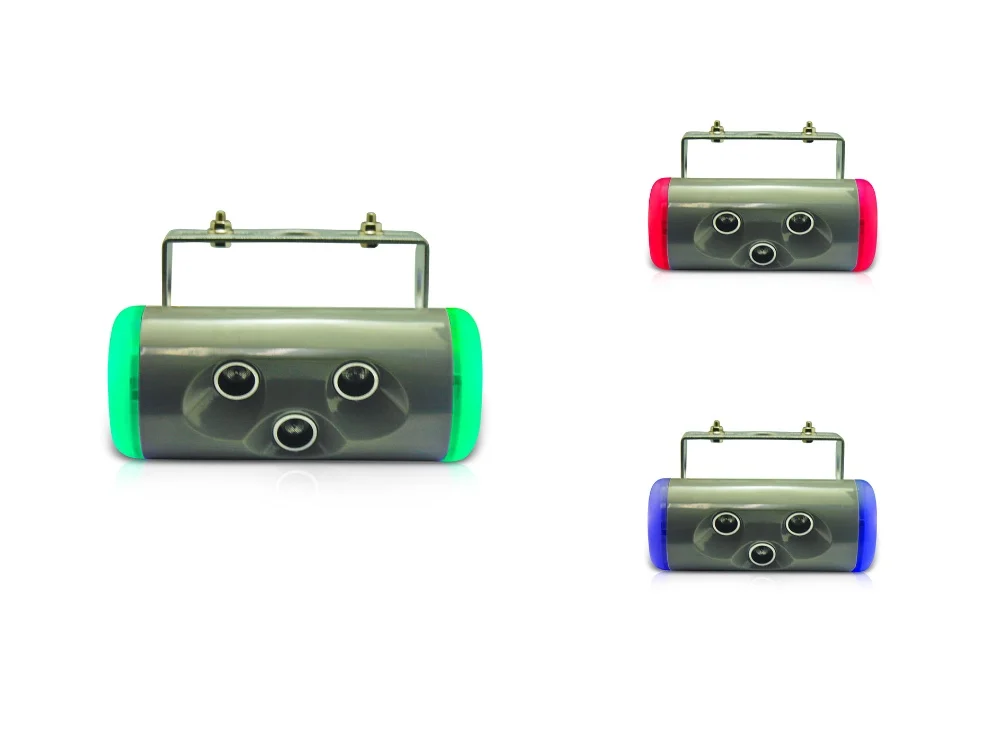

Green: Parking Space is vacant
Blue:    Disabled Parking Space is vacant
Red:     Parking Space is occupied

LED Display

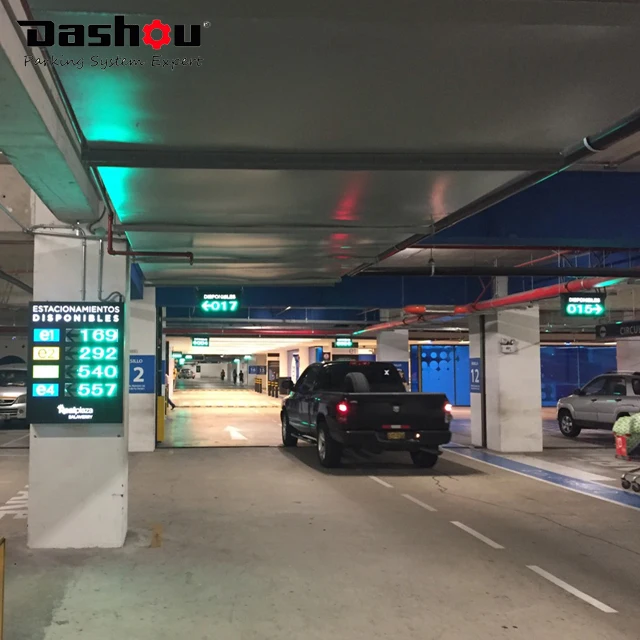

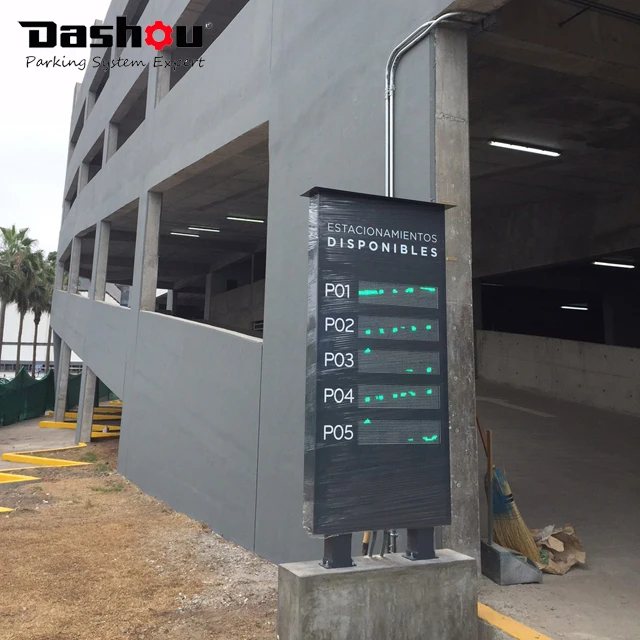

Outdoor LED Display installed at entrances shows quantity of vacant spaces of whole car park and each level ; Indoor LED Display installed at intersections shows quantity of vacant spaces in each area and floor, and guides drivers the right direction to quickly find an available parking space. LED color is optional as green, red and blue.

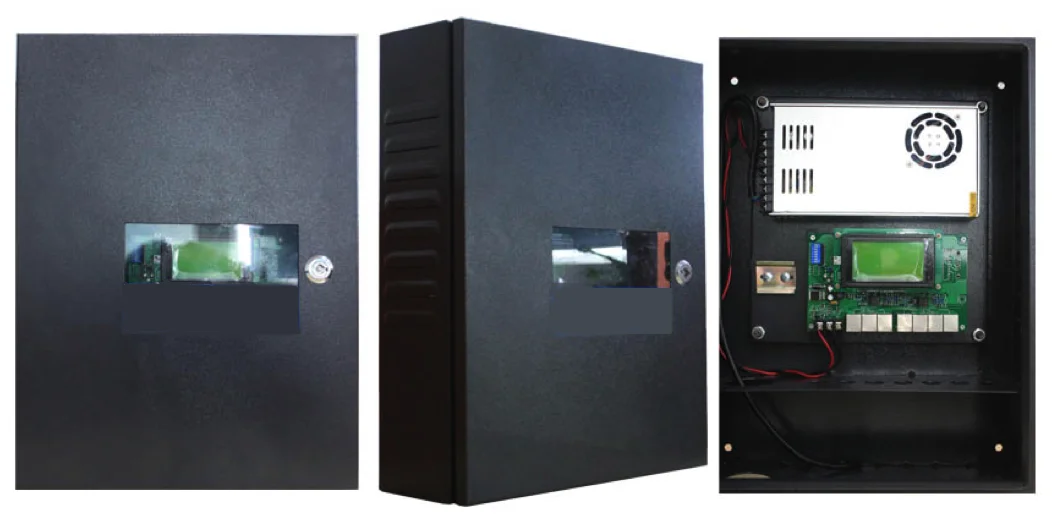

Data Collector

Data Collector works as a bridge which connects Centre Processor to Ultrasonic Sensors. It collects and transfers sensor information to Centre Processor for final processing, and also transfers availability information from Centre Processor to LED Displays.  A Data Collector manages up to 60 unit Ultrasonic Sensors and 20 unit LED displays

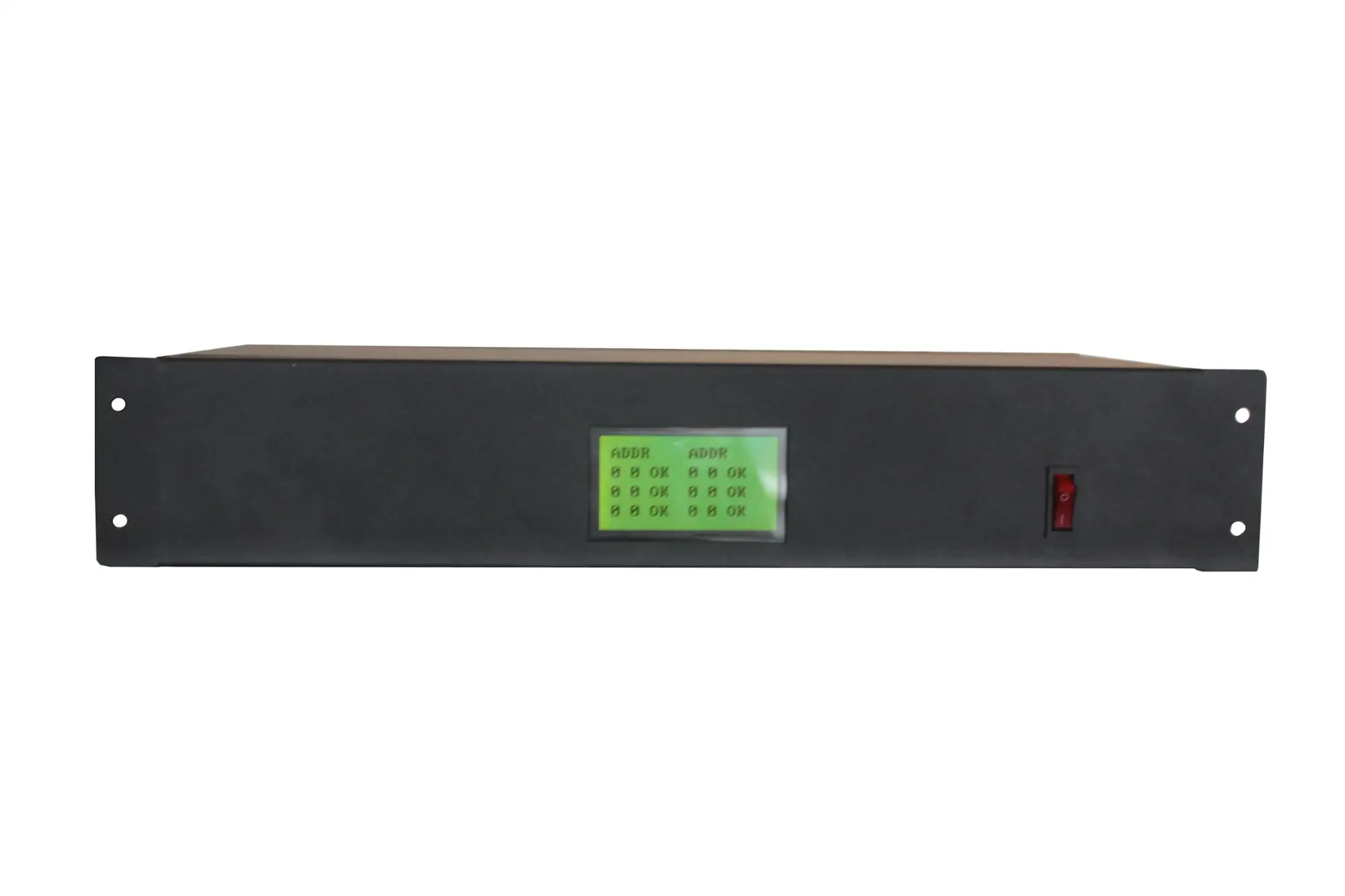

Center Processor

As the core of Parking Guidance System, Center Processor analyses data, feedbacks the information to Management Software database, and releases information to be shown on LED displays. A Centre Processor manages up to 60 Data Collectors. Its LCD screen clearly shows the status of communication: shows OK if communication is good, otherwise it shows XX
