TBS IPTV system solution with CMS Middleware software and all in one PC server base on GPON OLT network

TBS IPTV Solution is based in TBS All in one Head-end server, end-point STB and Kylone IPTV Panel. It is intended to be used in closed areas such as university campuses, hospitals, hotels, residences, apartments or any kind of premises, with GPON OLT network.
Kylone MicroCMS is an All in one framework designed to acquire streams from any kind of resources and manage, stream out contents with protocol HTTP, UDP/RTP, RTST, RTMP.
TBS Head-end Servers is an All in One PC CMS server, supporting to grab Live TV resource from DVB-S2/S, DVB-T2/T, DVB-C, ISDB-T, ATSC tuner cards, and IPTV Encoders.

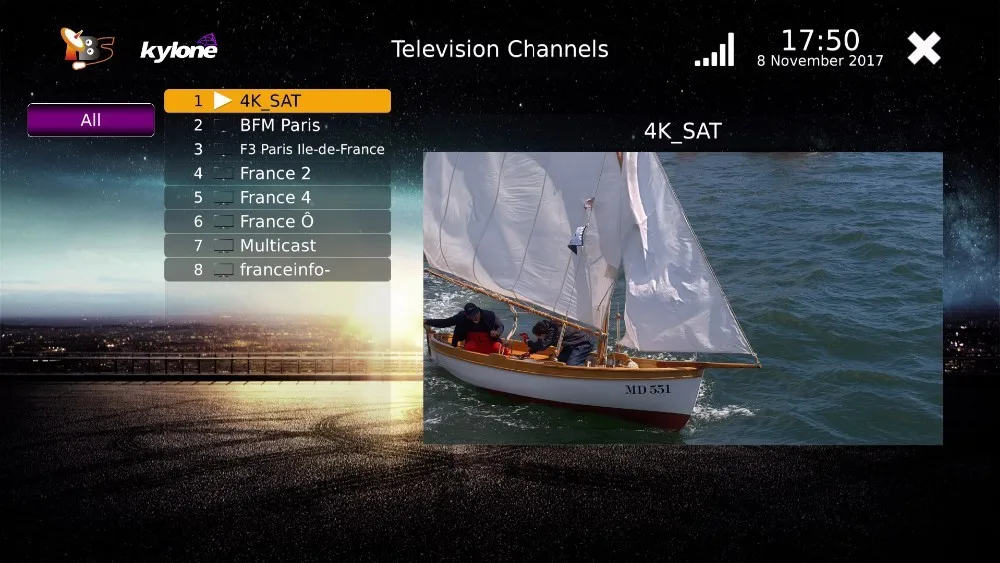

TBS End-point IPTV STB supports almost all encoding formats, which provide real live TV experience while playing HD streams at 50fps and 4K (2160p, 3840x2160) streams at 50fps.

Solution Introductio

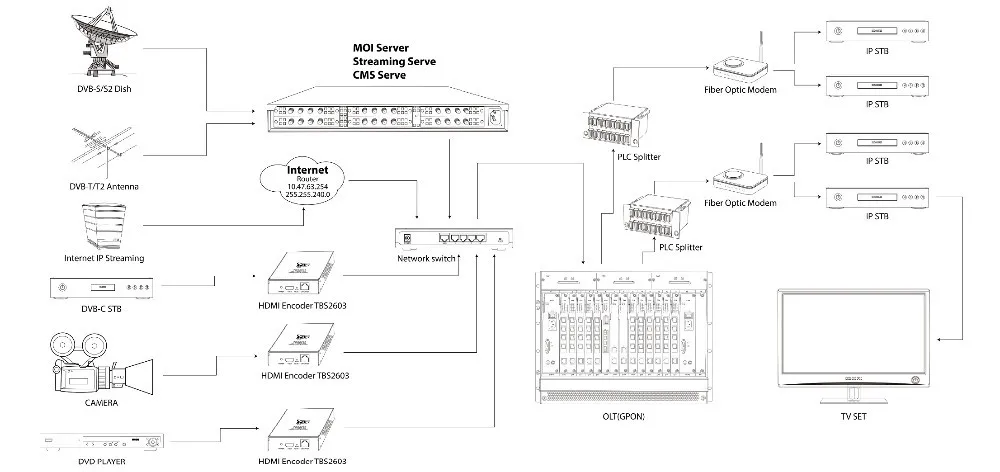

Solution Topology

Kylone CMS Middleware All in one platform

Kylone MicroCMS consists of software components like content management and streaming features onthe server side besides embedded and mobile applications on the end-user side.

1. Grab and manager digital contents.
2. Support Unicast with TCP/IP or Multicast with IGMP filtering.
3. HTTP, UDP/RTP, RTST, RTMP input or output
4. Support Low Balance
5. Wireless AP is available.

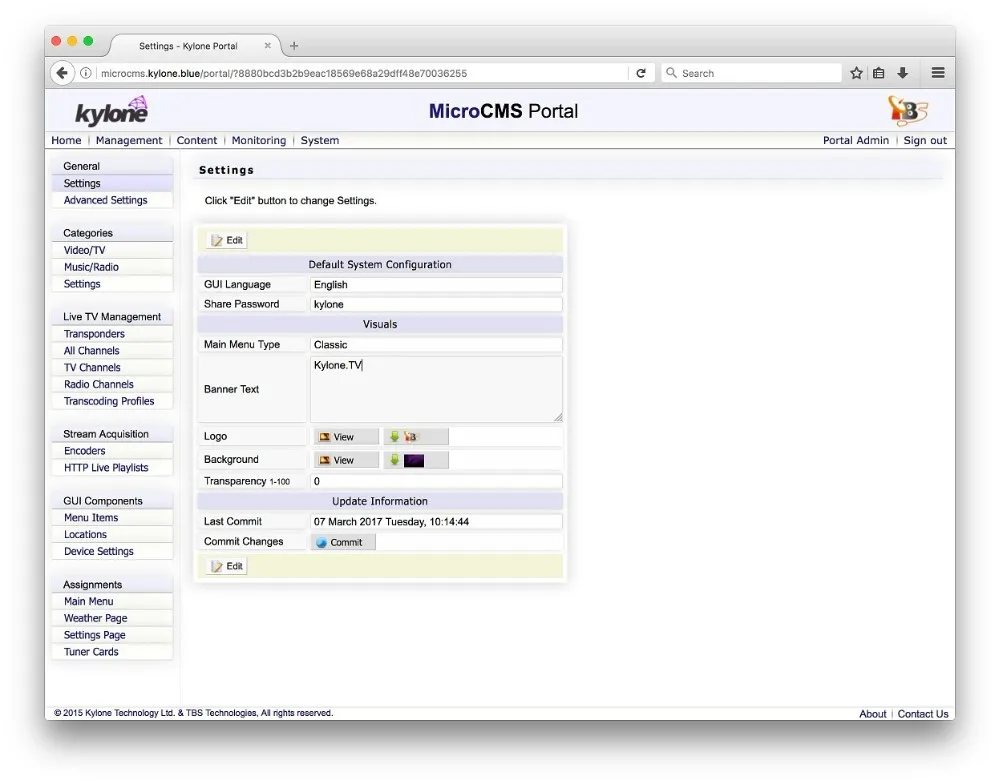

Web GUI System Management

1. Web based administration interface.
2. Profile based configuration management.
3. Configuration of name, logo and group membership of channels.
4. Network Interface selection for inbound/outbound Multicast/Unicast streaming.
5. IGMP version selection per interface.
6. Configuration backup/restore features.
7. Local event logging.

All in one PC Headend Server for TBS IPTV solution

1. Streaming DVB-S2/S, DVB-T2/T, DVB-C or ISDB-T TS via HTTP, UDP/RTP, RTMP
2. Manage Live Channels and VOD channels
3. Manage terminal device
4. Manage Hotel’s Advertisement
5. Supports Multi-language

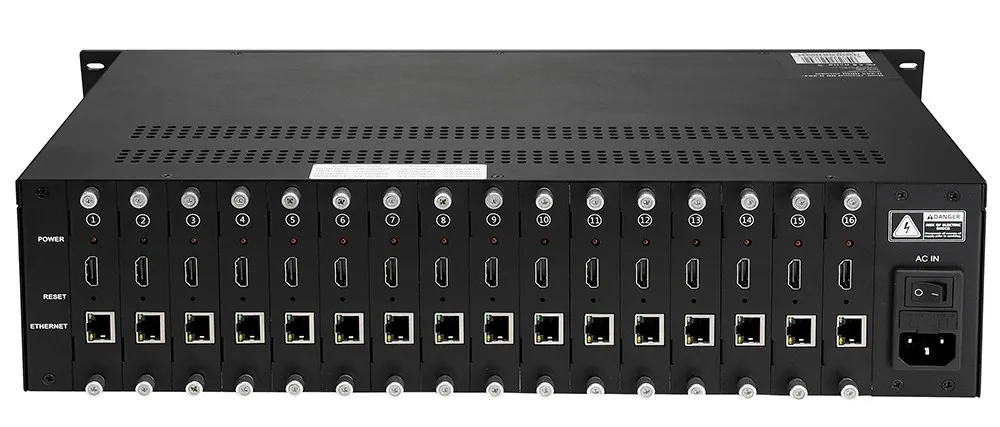

TBS 16 Inputs Video Encoder

TBS2630 is a professional Multi channel HD H.264/H.265 HDMI encoder, which is our most powerful HD audio and video encoding device with powerful functionality, supports 8/16 channels HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format.
