JPMX 303ESK Hydraulic Copper Busbar Multi Working Machine for Switchboard
- Category: Busbar Machine >>>
- Supplier: Jinan Jingpeng Cnc Machinery Co. Ltd.
Share on (60724549905):
Product Overview
Description
JPMX-303ESK Hydraulic Copper Busbar Multi Working Machine for Switchboard
Product Description

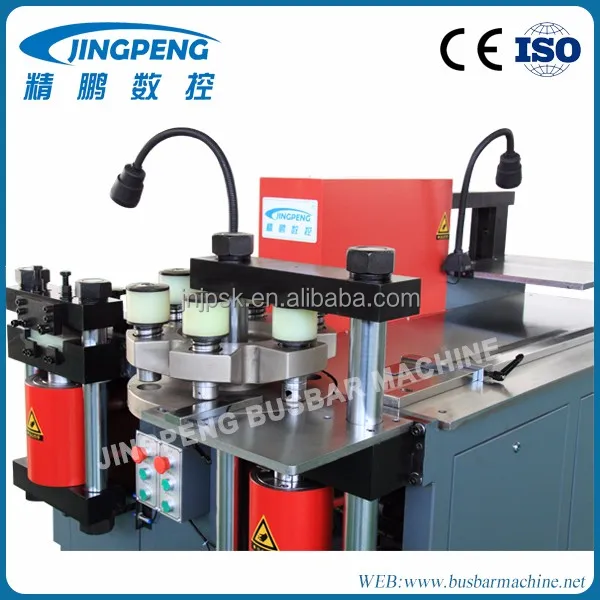

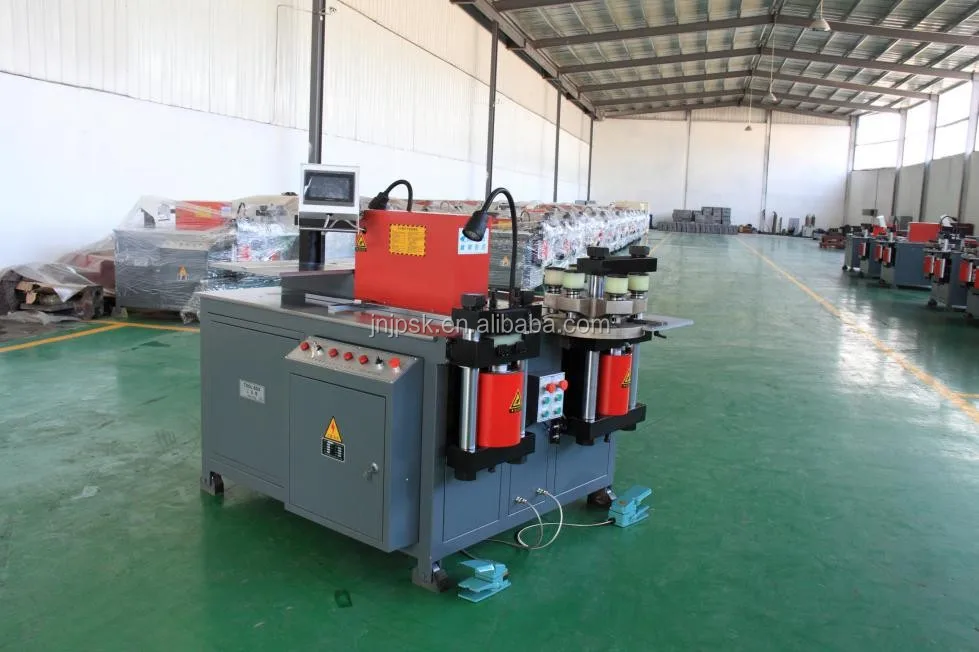

Appearance of the Copper Busbar Multi Working Machine:
Functions:
**Punching Round, oval, square, rectangular, irregular holes for copper and aluminum busbar;
**Bending copper and aluminum busbar (vertical direction and horizontal direction);
**U-bending for copper and aluminum busbar;
**Cutting copper and aluminum busbar;
**Twisting copper and aluminum busbar;
**Cutting corner of copper and aluminum busbar;
**Embossing copper and aluminum busbar;
**Cable connector processing;
**Bending copper round bars.
Features:

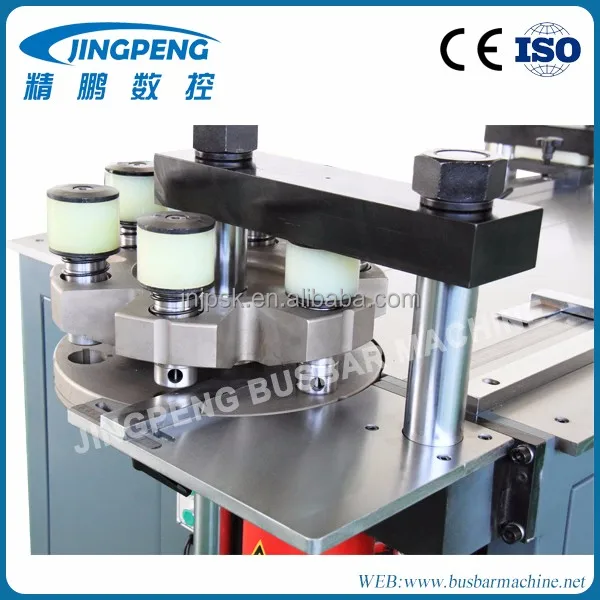

1. Punching station: Turret punch unit installed with 6 punching dies, no need to change punching dies frequently, save time, reduce die change error, longthen the lifetime of punching dies.
2. Cutting station: Two scissors shearing struction. There is no waste busbar generated. The cutting edge is smooth and neat.
3. Bending station: NC control the precision of bending angel. It can bend copper and aluminum busbar in vertical direction and horizontal direction. Through using the customized dies. The bending station can bend copper and aluminum round bars, twisting copper and aluminum flat bars, press cable joint etc.

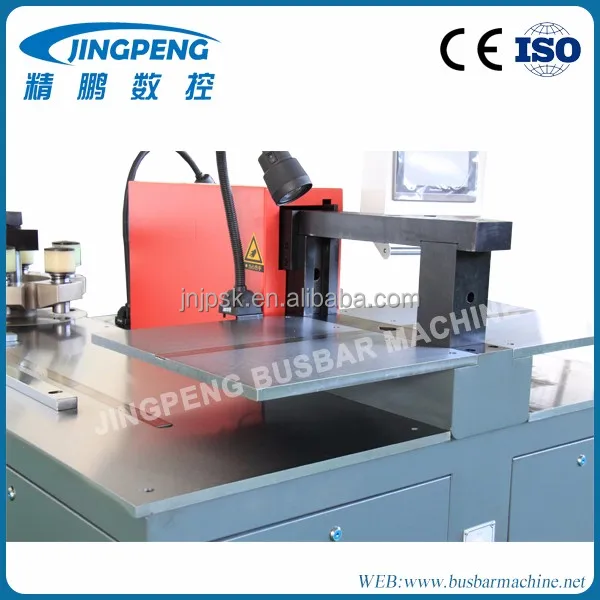

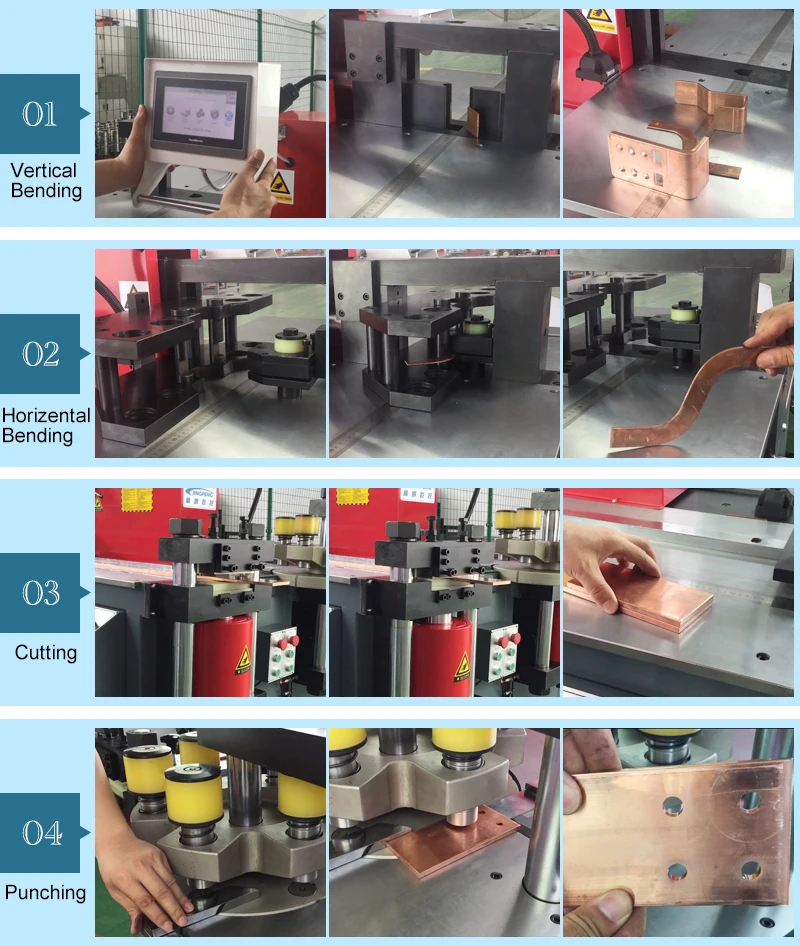

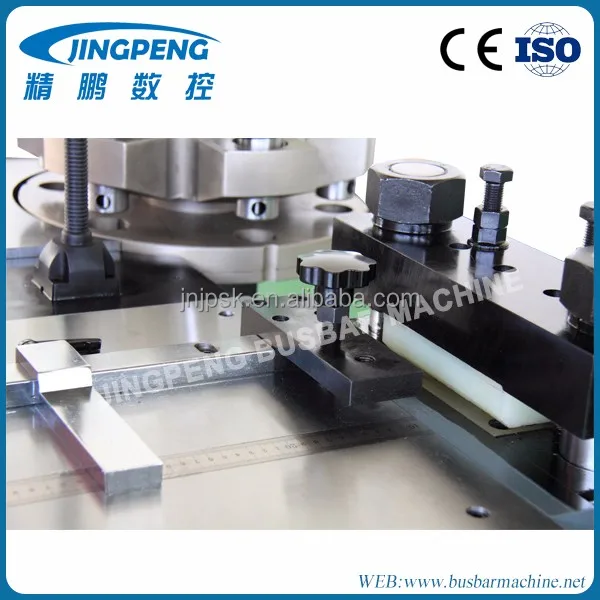

Details of Each Working Units of the busbar bending cutting punching machine:

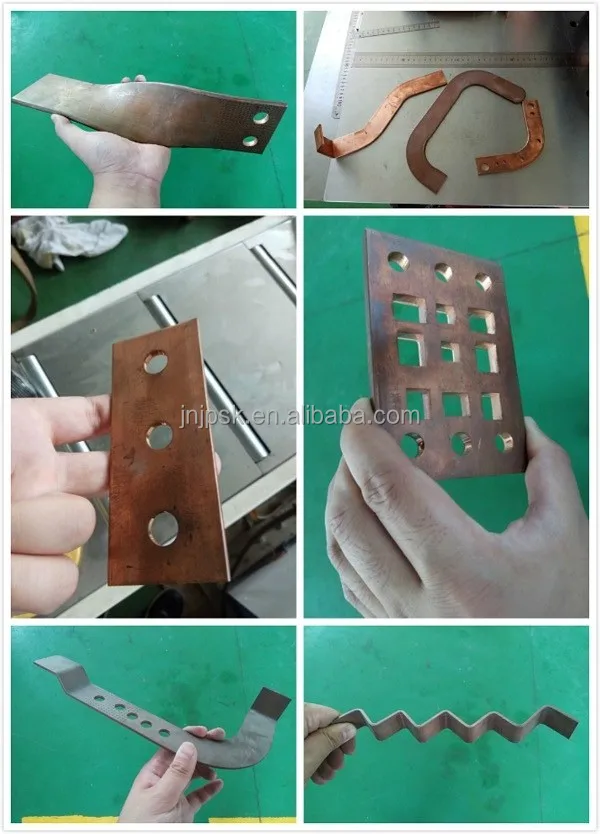

Hydraulic copper busbar processing machine - busbar sample
Details parameters of the hydraulic copper busbar processing machine:
| Function | Item | MODEL | ||
| JPMX-303SK | JPMX-303ESK | JPMX-503ESK | ||
| Punching | Max. Punching Force (KN) | 300 | 300 | 500 |
| Punching Diameter Range (MM) | Ø4.3-Ø25 | Ø4.3-Ø25 | Ø4.3-Ø34 | |
| Max. Thickness (MM) | 12 | 12 | 16 | |
| Max. Width (MM) | 150 | 150 | 200 | |
| Shearing/Cutting | Max. Shearing Thickness (MM) | 12 | 12 | 16 |
| Max. Shearing Width (MM) | 150 | 150 | 200 | |
| Honrizental Bending | Max. Bending Force (KN) | 300 | 300 | 500 |
| Max. Thickness (MM) | 150 | 150 | 200 | |
| Max. Width (MM) | 12 | 12 | 16 | |
| Vertical Bending | Max. Width (MM) | 100 | 100 | 120 |
| Max. Angle (Degree) | 90° | 90° | 90° | |
| Out Dimension | MM | 1670*1200*1200 | 1770*1400*1300 | 1980*1550*1460 |
| Power | KW | 3*4kw | 3*4kw | 3*5.5kw |
| Weight | KG | 1200kg | 1360kg | 2200kg |
| CNC Precision | Bending Precision | ±1° | ±1° | ±1° |
| Repeat Bending Precision | ±0.5° | ±0.5° | ±0.5° | |
Packaging & Shipping
Packaging:
Machine will be sprayed and wrapped with plastic water proof film and then in standard export wooden box.
Our Services
1. Independent quality control department, 3 times of quality checking;
2. 100% percent of pass before shipping
3. one year of warranty
One year for product warranty except for spare parts. Before the end of warranty, if any, parts broken naturally, not sabotaged intentionally, we will change the parts free of charge, but the broken parts have to be sent back to us .We will provide a lifelong technology service to solve any problems for you.
Our advantage:
1. we can do the designs according to the customers' requirement.
2. we can do OEM as per customer’s requirement.
3. we are the factory, we can offer you high quality with the most competitive price.
4. we can offer your a good after-sell service.
5. we have strong professional technical team.
6. We can make delivery within 7-20 days after receiving your deposit.
Company Information
Our certificate: ISO9001:2008, CE, Patent.
FAQ
1. What is your payment terms?
40% TT as deposit, balance be paid when goods are ready for loading before shipment.
2. What is your delivery time?
Usually within 15 days after the deposit.
3. How long with the " SUPERSEPTEMBER" last?
During September 20th to October 19th. 2020
