X Racer Xracer V3.1 F303 Flight Controller V3.1 DSHOT compatible for FPV Mini Racing Quadcopter QAV X Martian

X-Racer Xracer V3.1 F303 Flight Controller V3.1 DSHOT compatible for FPV Mini Racing Quadcopter QAV-X Martian

Description:

The newest version of the X-RACER F303 is Version 3.1. We have listened to your requests for SPI and we have changed the MPU 6050 over to MPU 6000 in order to give you those faster loop times that you have been asking for. We have tried to keep the changes minimal with this and have left all of the previous changes that many requested the same. This board still comes with the through holes for Vbat, RSSI, and the buzzer. It also comes with the dedicated SBUS and RGB LED connections. X-Racer is designed for racers and acro pilots so we keep the design simple and durable. Have fun with it!

FEATURES:

Built in high capacity black box featuring 16mb flash memory. This will allow you to store an entire days worth of flights while you are out in the field burning through multiple batteries and flights. Next generation F3 processor for efficient flight calculations and those lower loop time youve been reading about.

The size of the flight controller follows the form thats so typical in all the others allowing you to mount to the majority of the frames out on the market without the need of changing mounting holes on most base plates.

8 PWM I/0 lines for ESCs and added options you may choose.

Supports Sbus, SumH, SumD, Xbus, PPM, PWM recievers but has a recommended and weight saving direct connection specifically for Sbus, which is our recommended connection for flight control.

Buzzer port for audible warnings and lost model alarm audible location.

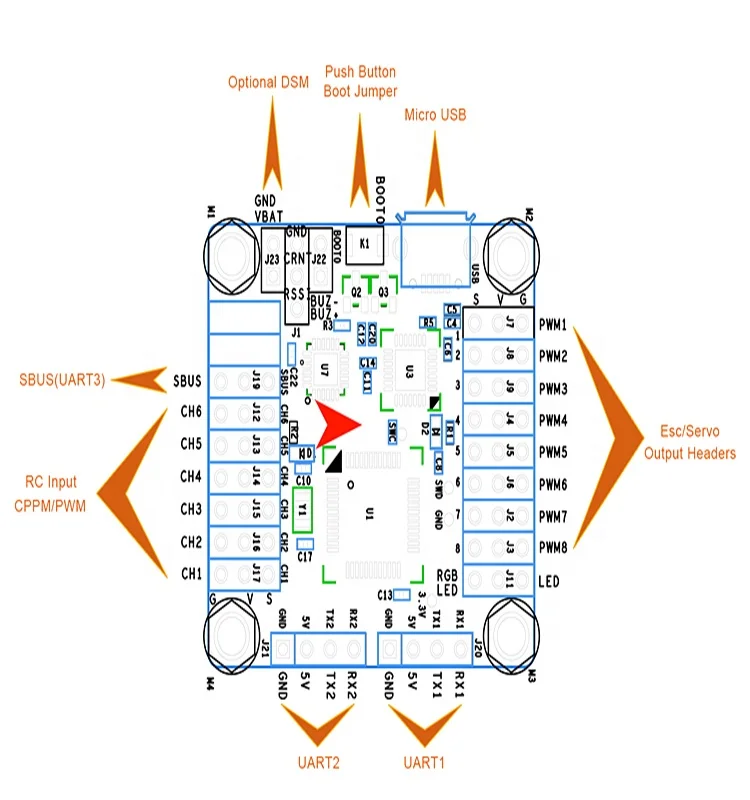

Convienent pin outs for easy, reliable soldering.

Only available in Acro style, no barometer or magnetometer.

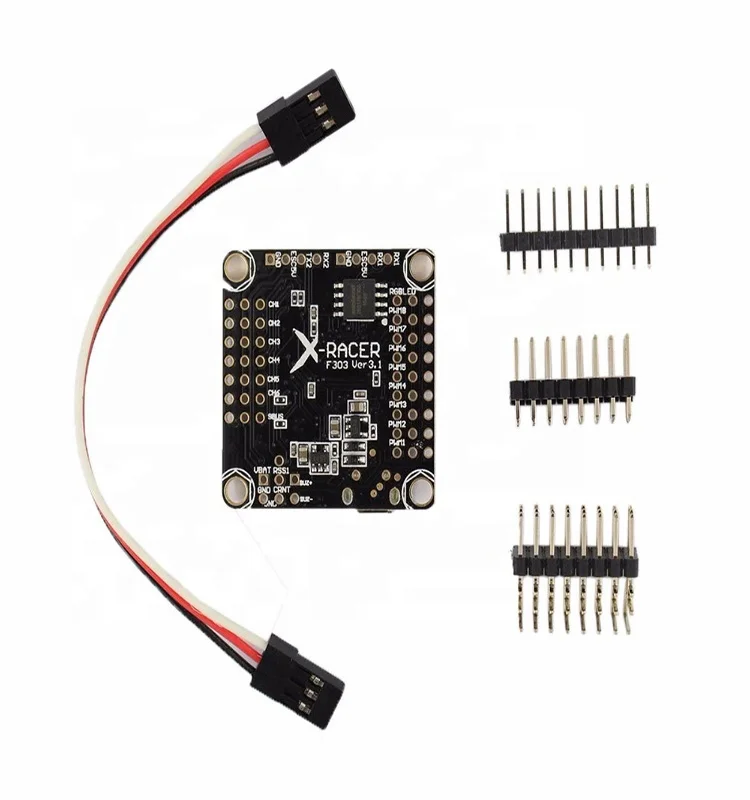

1pcs brand new X-Racer v3.1 flight controller

1pcs pin



Attention: The X-Racer v3.1 is an updated design using a new gyro and it no longer uses the SPRACINGF3 firmware. Firmware for the X-racer V3 "X_RACERSPI" is on Betaflight and it is DSHOT compatible.
