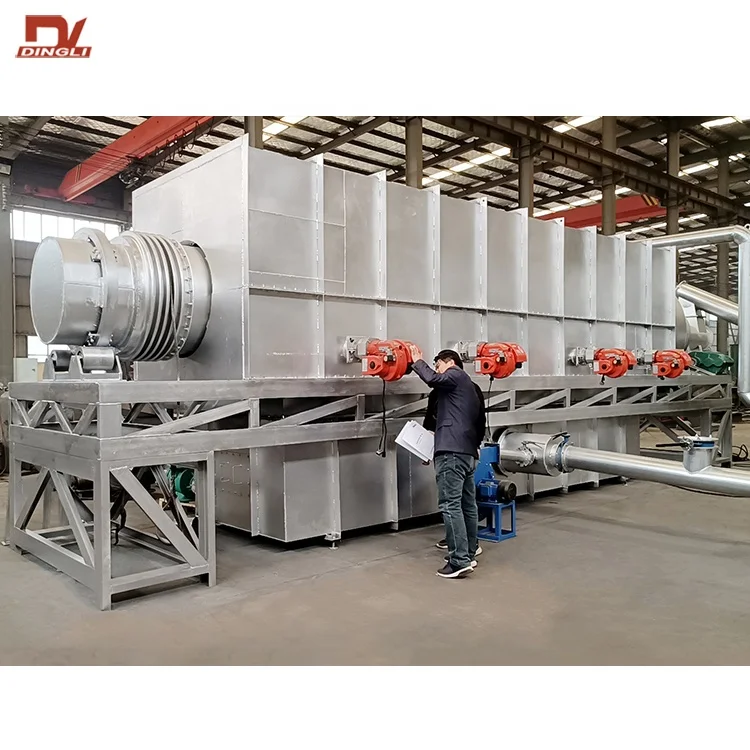

Environment Friendly Biochar Making Machine Retorting Biochar Charcoal Machine Price
- Category: Carbonization Stove >>>
- Supplier: Zhengzhou Dingli New Energy Technology Co. Ltd.
Share on (60724564182):
Product Overview
Description
Product Introduction

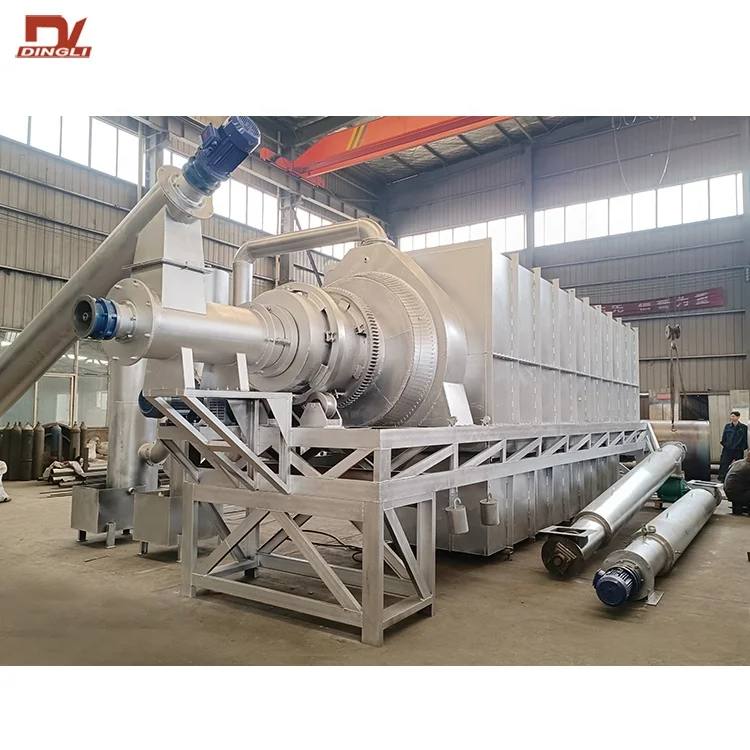

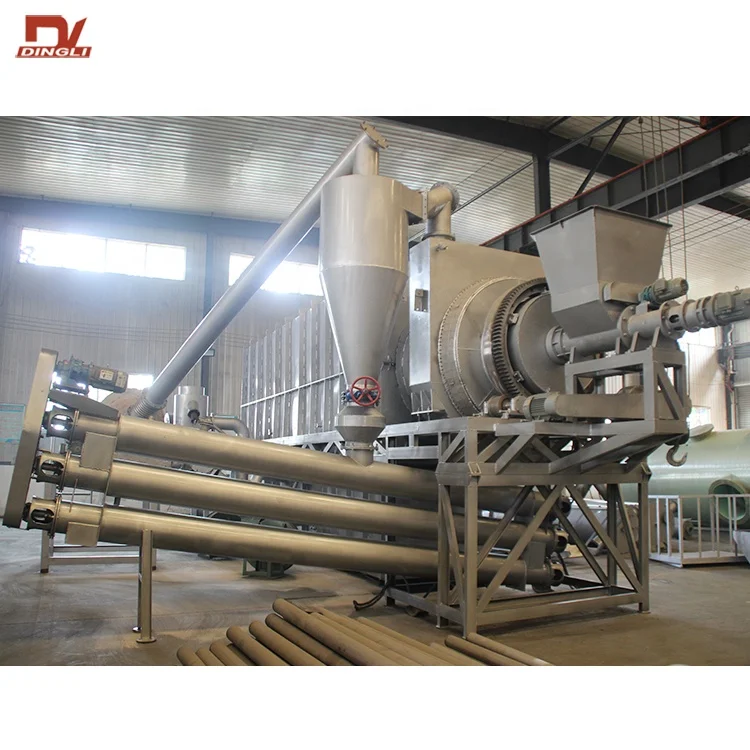

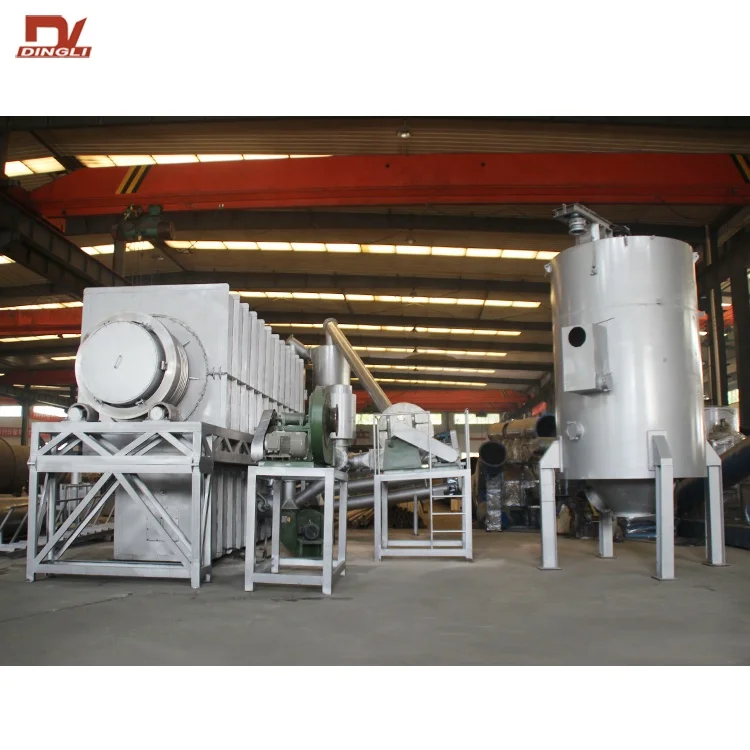

Environmentally-friendly drum continuous carbonation machine uses the carbonized flue gas purification into combustible gas generated in combustion itself. it can continuous product 24 hours. It has an advantages of zero pollution, zero emission, save labor, high capacity, energy-saving consumption, the high degree of automation and advanced technology. Which is suitable for large-scale production, with high carbonation rate, high carbon production rate, energy saving, environmental protection, high efficiency advantages.
This machine is suitable for all kinds of forestry and agriculture powder particles. For example, sawdust, wood chip, bamboo, coconut shell, cherry shell, jujube, walnut shell, apricot shell shell shell, peanut shell, rice husk, cotton stalk, straw, the bean curd, etc.
Main Features
1) Gas preparation through the early stage of the new type of gasifier.

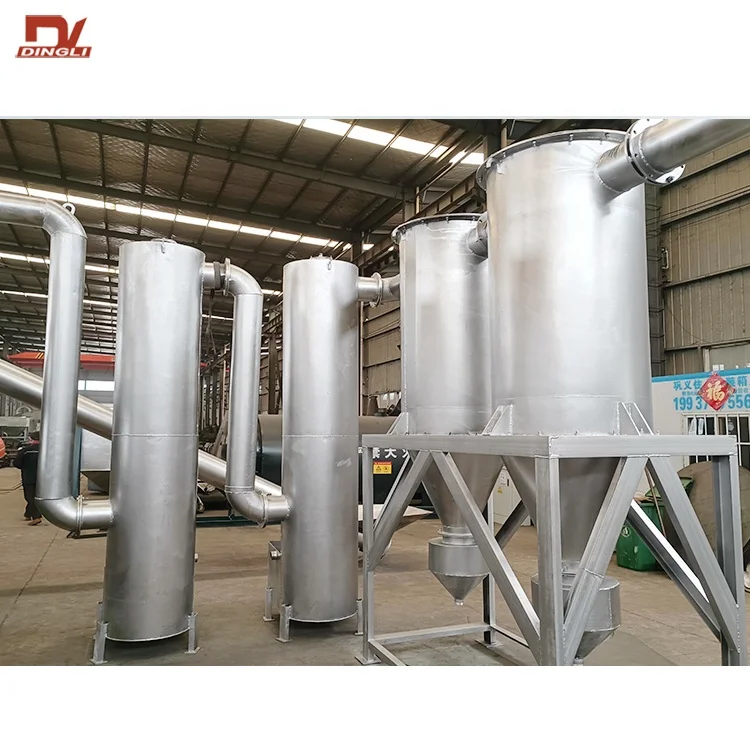

2) Matching a flue gas purification, heat exchange system, and cooling system. Making the heat steam into water. Flue gas can be converted combustible gas to combustion cycle.
3) Configuration a frequency conversion feeding machine, which is automatic feeding. The speed of feeding can be adjustable.
4) Matching a rotary drum carbonization host,in order to satisfy the production requirements.
5) Configuration a cooling discharging machine to cooling the final products and export final product.
6) Configuration a control cabinet.The temperature and speed can be easy to control. The continuous rotary drum carbonization equipment uses a PLC automatic control cabinet.
7) The equipment have a carbonized color display. The production status should be showing clear.
Model | diameter(mm) | The drum length(m) | host RPM(revolutions per minute) | Carbon capacity(kg/h) | Power(kw) | Dimension(m) |
DLTJ1210 | 1200 | 10 | 2-5 | 200-300 | 40-50 | 11*2.0*2.8 |
DLTJ1410 | 1400 | 10 | 2-4 | 400-500 | 50-70 | 11*2.2*3.0 |
DLTJ1612 | 1600 | 12 | 2-4 | 600-800 | 70-80 | 11*2.5*3.3 |
DLTJ1912 | 1900 | 12 | 2-3 | 900-1100 | 90-110 | 13.5*2.8*3.6 |
DLTJ2212 | 2200 | 12 | 2-3 | 1200-1500 | 110-130 | 13.5*3.0*4.0 |
Process & Principle
Below is Carbonizing Process
First the biomass material is ignited in the gasifier.
The flue gas produced by burning after spraying, cooling, purification process, it produces the pure combustible gas (carbon monoxide, methane, ethane, etc.).
As the early stage of the carbonization of heat source, through early warming of the carbonizer, to feed the material when the heat reaches the special temperature.
The combustible gas that carbonation process of flue gas by spraying, cooling, purification process into burned secondary. According to this methods of circulation, sufficient to achieve a self-sufficient, then achieve the effect of energy saving.
The flue gas through purification, to reach the environment production and flue gas emissions free. Which is reached to the standards of waste gas emptying.
The temperature of carbonization reach a 600 ℃ to 900 ℃ in the process. According to the characteristics of material, the temperature can be adjusted according to the requirements.
Below is Working Principle
Below is Dingli Group Packaging & Shipping:
Your device will be packed well in container and suit for long ocean shipping.
Below are Dingli Customers Visiting:
Dingli Charcoal Production Line has exported to over 80 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: What is your Business Model? Trading company or factory?
A:We are a 15 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train.
The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.
We will pick you up at airport. Welcome to visit our factory.
Q: What is the Quality of your products?
A: Dingli Group products come with best quality, and our products passed CE certification, exported to lots countries around the word, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What is the Installation of your products?
A: Dingli Group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.
Q: What should I provide to get the suitable quotation?
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
You can send inquiries from this page.Once we get your answers,we can provide you the best quotation immediately.
Remarks: The price will depend on different models.
