Product Overview

Description

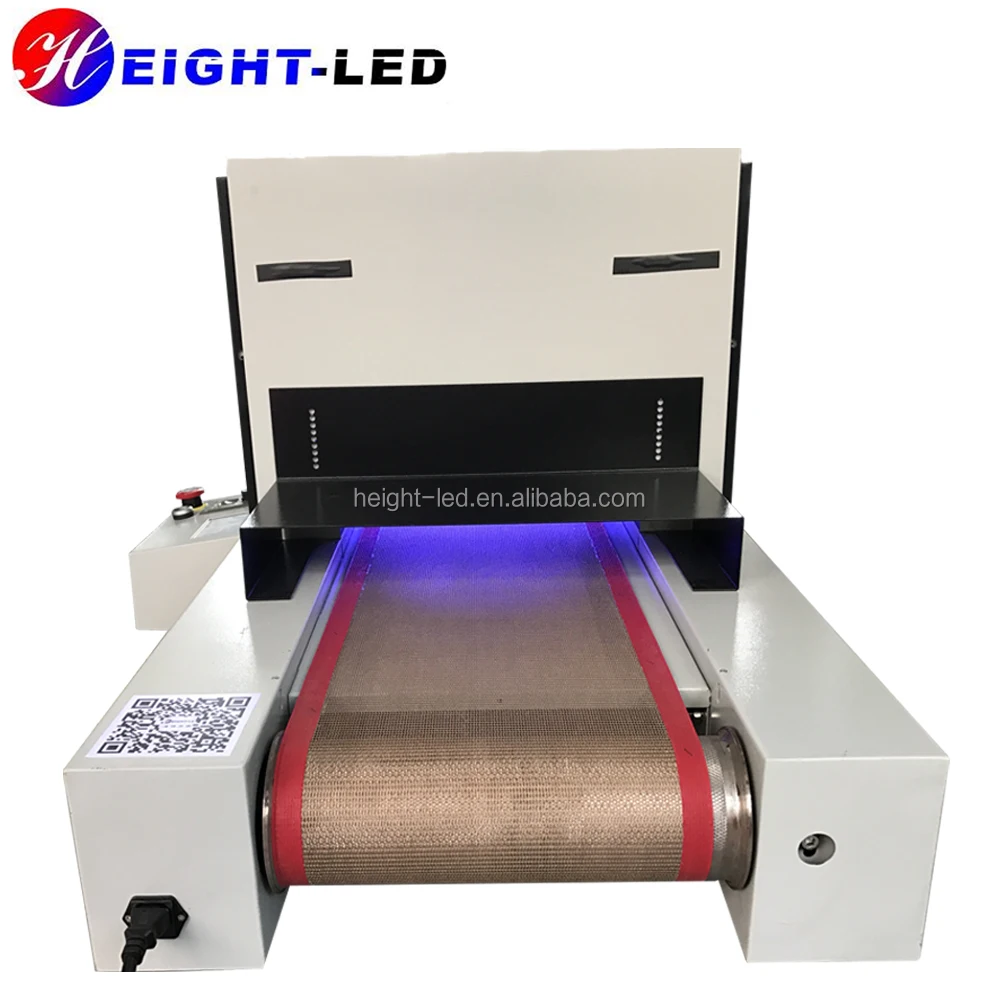

HTLD mini desktop high power cheaper led uv coating machine with conveyor belt


Product Description

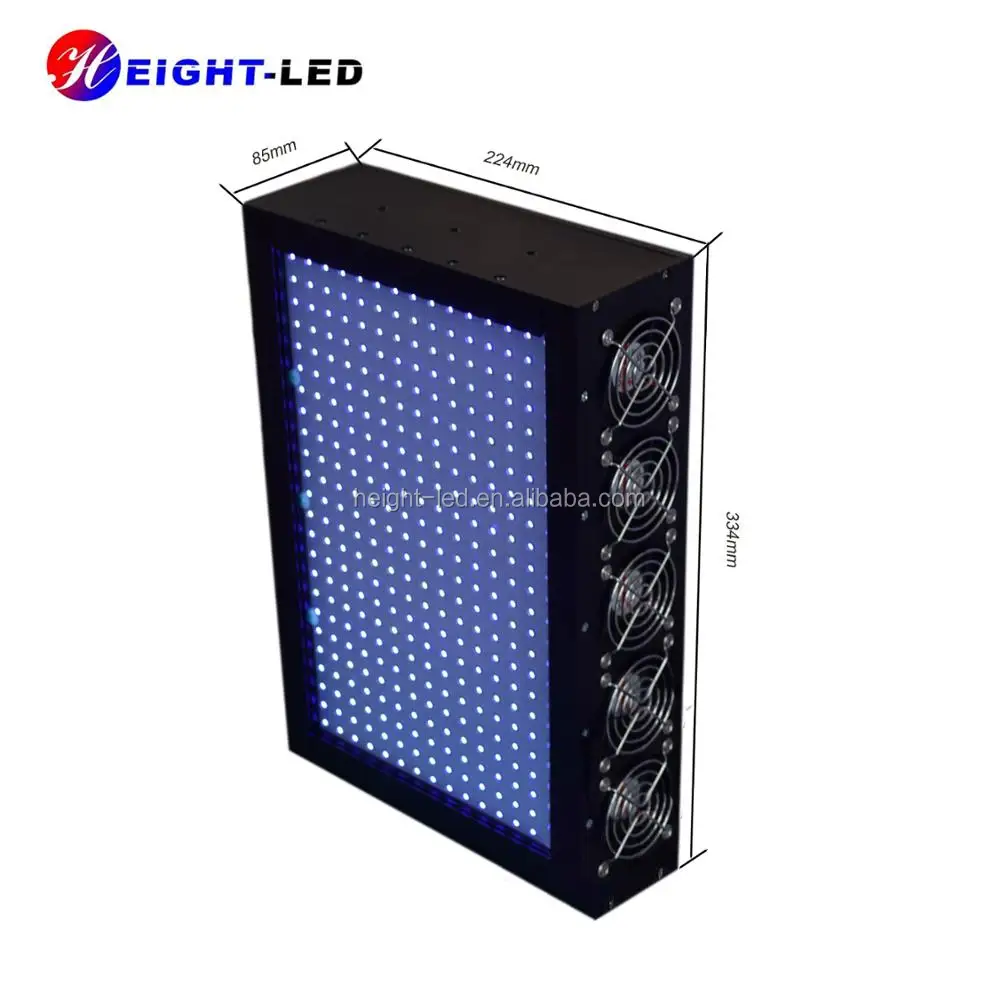

Technical Data of the uv led light head


Wavelength(±5mm)
365nm/385nm/395nm/405nm
Curing area
300*200mm / other sizes available
Electronic power
1100w
Input voltage
220VAC 50Hz/60HZ
Cooling method
Air cooling
Life
25000H
Conveyor speed
100-400mm adjustable
Irradiation distance
10-100mm adjustable
Optic power
800mW/cm2(10mm irradiation distance)
Recommend irradiation distance
10-100mm


Product feature:
1. Instant ON/OFF, No preating required.
2. Adjustable curing distance, UV output intensity and conveyor speed.
3. Energy saving and environmental protection.
4. infrared sensor to stop, protect your products.
5. No infrared radiation, cold light source, suitable for all types of heat-sensitive material curing.
6. Chain conveyor belt with adjustable width.


Control system features:
1. Panel display, touch operation, real-time monitoring of the head of the working
2. Intensity adjustable from 0-100%
3. Temperature monitoring
4. Infrared sensor control, work mode seiection
5. Whole machine size: L1200*W820*1100mm


Product Application


Main Application:
PCB/PCBA Conformal Coating curing
SMT component protection and reinforcement
Medical instrument uv glue curing




Our Advantages


UV LED and Mercury Lamp Parameters Comparison


Project
Mercury UV Lamp
LED UV Lamp
Life
≤1000 Hours
≥20000 Hours
Applicability
can not be used in thermal materials
Almost all materials
Start
Slow start,completely cooling when start again
Instant ON/OFF
Volume
Large volume
Small volume,easy to carry and install
Stability
not good
good
Maintenance
Difficult
Easy
Energy consumption
High
low consumption about 1/6 of mercury lamp
Thermal effects
High temperature
Cold light source
Switch
Constant light
Arbitrary switch
External control
No
I/O signal
Safety
Explosive
Stable
Ozon
A lot
No
Environment
Harmful gases
No harmful gases


Certifications




Company Profile


Shenzhen Height-LED Opto-electronics Technology Co., Ltd located in Shenzhen, Guangdong, China. Starting in 2007, Height-LED engaged in UV LED curing UV ink, UV adhesive UV paint, UV varnish and other UV sensitive materials. Height-LED has extensive experience programs and combined with a number of research institutes, brother-companies, agents and OEM related products.Height-LED UV LED curing solutions provider.








Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




FAQ


Q1: Why choose HTLD UV LED curing system?
A:The team has over 12 years combined experience in UV LED curing industry and can meet the requirements of each client.

Q2: What's the application of HTLD UV LED curing system ?
A:HTLD UV LED curing system can be used for curing UV glue, UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials.

Q3: What is the major advantages of UV LED curing system’s than other UV curing system?
A:Extra-long life, energy saving and environment friendly.

Q4: Which wavelength do I need?
A:It depends on your UV sensitive materials.

Q5: What's the emitting window do I need?
A:It depends on your product’s size that need to be cure.

Q6: What's the Peak Irradiance do I need?
A:It depends on your UV sensitive materials and your Production efficiency.

Q7: The common emitting window and Peak Irradiance can not meet my requirements?
A:Do not worry! Any sizes of emitting window and Peak Irradiance can be customized .

Q8: Where is your company located?
A: 2/F, Towel B, Sanhe international science and technology Building, Da Lang Road,Long Hua District, ShenZhen, Guang Dong Province, China.

Q9: I do not know how to choose a set of uv led curing system.
Please click bellow.
