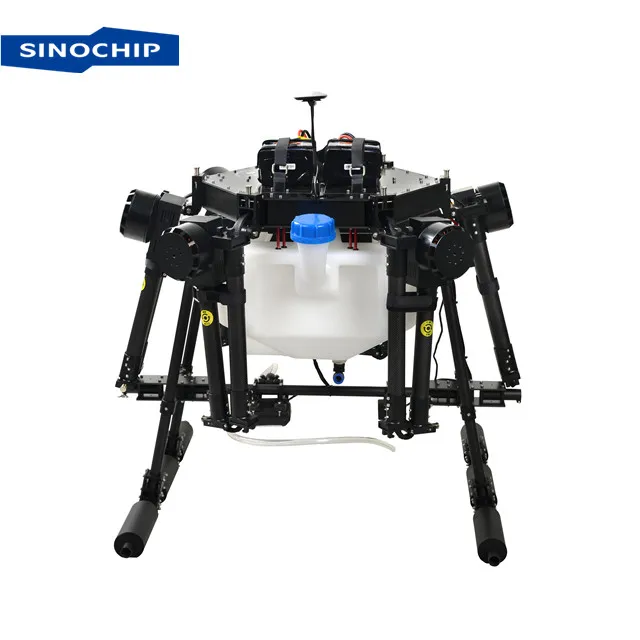

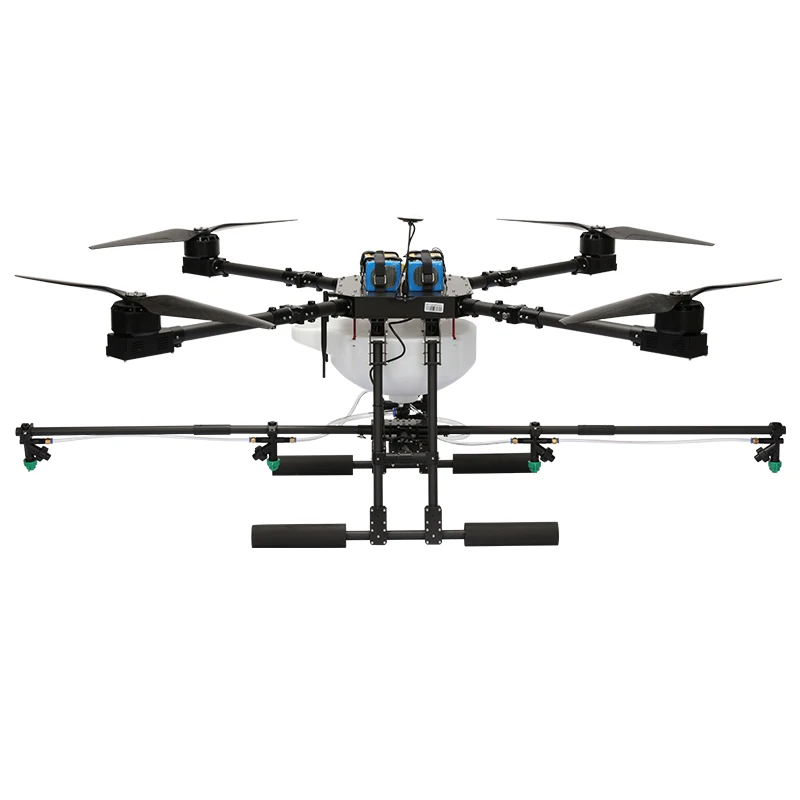

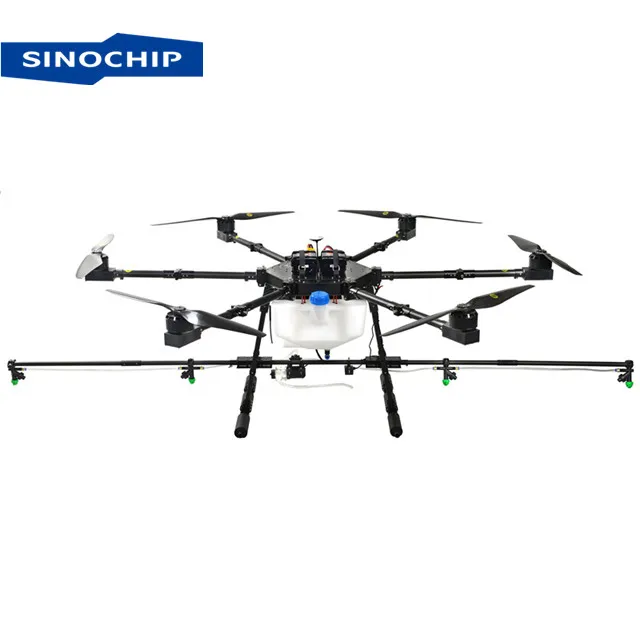

20L payload crop pesticides spraying GPS agricultural drone made in Shenzhen

Aircraft frame

Size Spreaded L*W*H

2120*2120*710 mm

Size Folded L*W*H

710*710*710 mm

Material of Chassis

Carbon Fiber

Material of Propeller

Carbon Fiber

Product Weight

23 kg

Container Material

Rigid Plastic

Container Volume

20 L

Work Efficiency

2000-2600 square meters per minute

Flying

Spray Hour

10~15 min

Fly Time (no load)

18~25 min

Flying Speed

3~10 m/s

Operate distance

2 km

Landing approach

Vertical take-off and landing

Anti-wind

<8.0m/s (28.8km/h)

Spraying

Spray droplet diameter

60~180μm

No. of Nozzles

4 pcs

Spray Flow Rate

1.8~2.2 L/min

Spray Speed

0~10 m/s

Spray Width

3~6 M

Spray Height

1-3 M

Battery

Battery Type

lipo battery

Battery Capacity

22000mAh*2pcs

Charging Time

1.0-1.5h

Recharge Cycles

300-500times

Others

Working Temperature

 0 ℃-50 ℃

Cooling Method

Air Cooling

Motor

Brushless
