24V 36V DC to 12V 3A DC Voltage Converter Step Down Transformer 24Vdc 36Vdc to 12Vdc Buck Module DC24V to DC12V
24V 36V DC to 12V 3A DC Voltage Converter Step Down Transformer 24Vdc 36Vdc to 12Vdc Buck Module DC24V to DC12V
24V 36V DC to 12V 3A DC Voltage Converter Step Down Transformer 24Vdc 36Vdc to 12Vdc Buck Module DC24V to DC12V

24V 36V DC to 12V 3A DC Voltage Converter Step Down Transformer 24Vdc 36Vdc to 12Vdc Buck Module DC24V to DC12V

Share on (60724603280):


Price:$3.39 - $3.99

Quantity:


Product Overview

Description


24V 36V DC to 12V 3A DC Voltage Converter Step Down Transformer 24Vdc 36Vdc to 12Vdc Buck Module DC24V to DC12V

















































































ModelF55J12V3A2S
Input rated voltageDC 24V 36V
Input voltage rangeDC 20-55V
Efficiency>85%
Output voltageDC 12V
Output current3A Max
Output rated power
36W Max
Voltage regulation< 1%
Load regulation< 2%
Working temperature

-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use,


or to enhance heat dissipation)


Module Properties

non-isolated buck module(buck)


Rectification synchronous rectification
Waterproof rating
IP68
Full load temperature rise:50°c
ProtectionOver-current, Over-temperature,Input Reverse Polarity Protection
NW65G

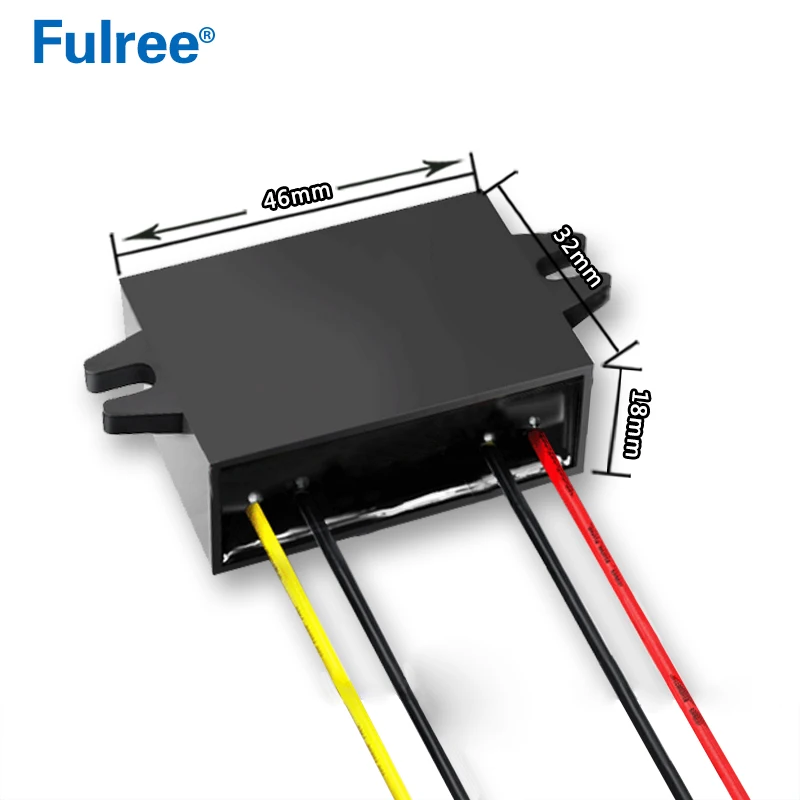

Product size 46*32*18MM

Other output current


option for 48V to 12V


 5A 10A, 15A, 20A,25A(pls contact with our sales manager if need)

Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.












46X32X18MM-4.jpg46X32X18MM
