Heat Oven Tunnel Thermal Shrink Wrapping Packing Machine

Product Overview

Description

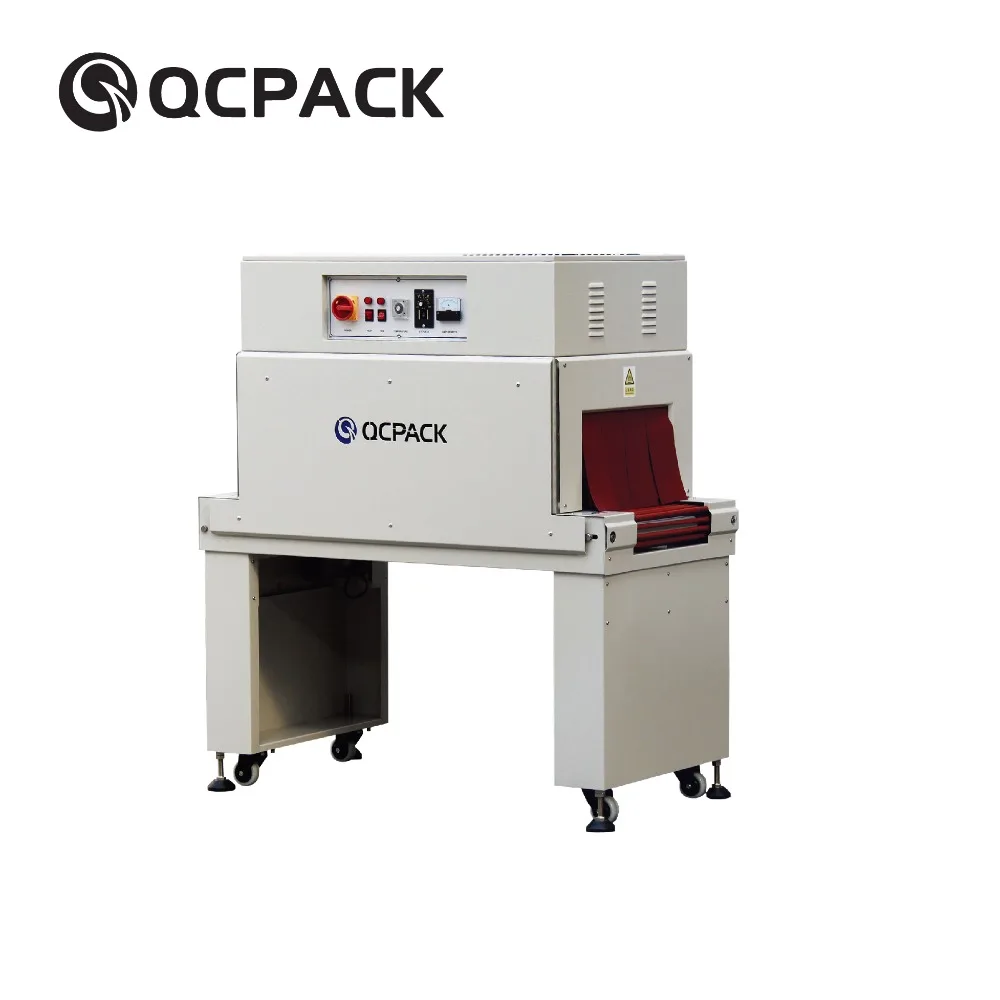

BTA-450+BM-500 Heat Oven Tunnel Thermal Shrink Wrapping Packing Machine

1.Machine



Usage: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.



Application:  This machine has an imported PLC automatic program control, easy operation, safety protection and alarm function that effectively prevents incorrect packaging. It is equipped with an imported horizontal and vertical detection photoelectric, which makes it easy to switch selections. The machine can be connected directly with the production line, no need additional operators.





2.Packaging Sample

1. BTA-450 is a fully automatic unmanned operation L type sealing machine which is widely used in mass production packaging line with high efficiency.



2.It adopts the most advanced PLC controller, which equipped with safety protection and alarm function. The sealing system can give the continuous and smooth sealing order without replacement, very stable running. The operation and maintenance are very simple.



3. Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution. The sealing balance itself is also equipped with automatic protection function which effectively prevent from accidental cutting;

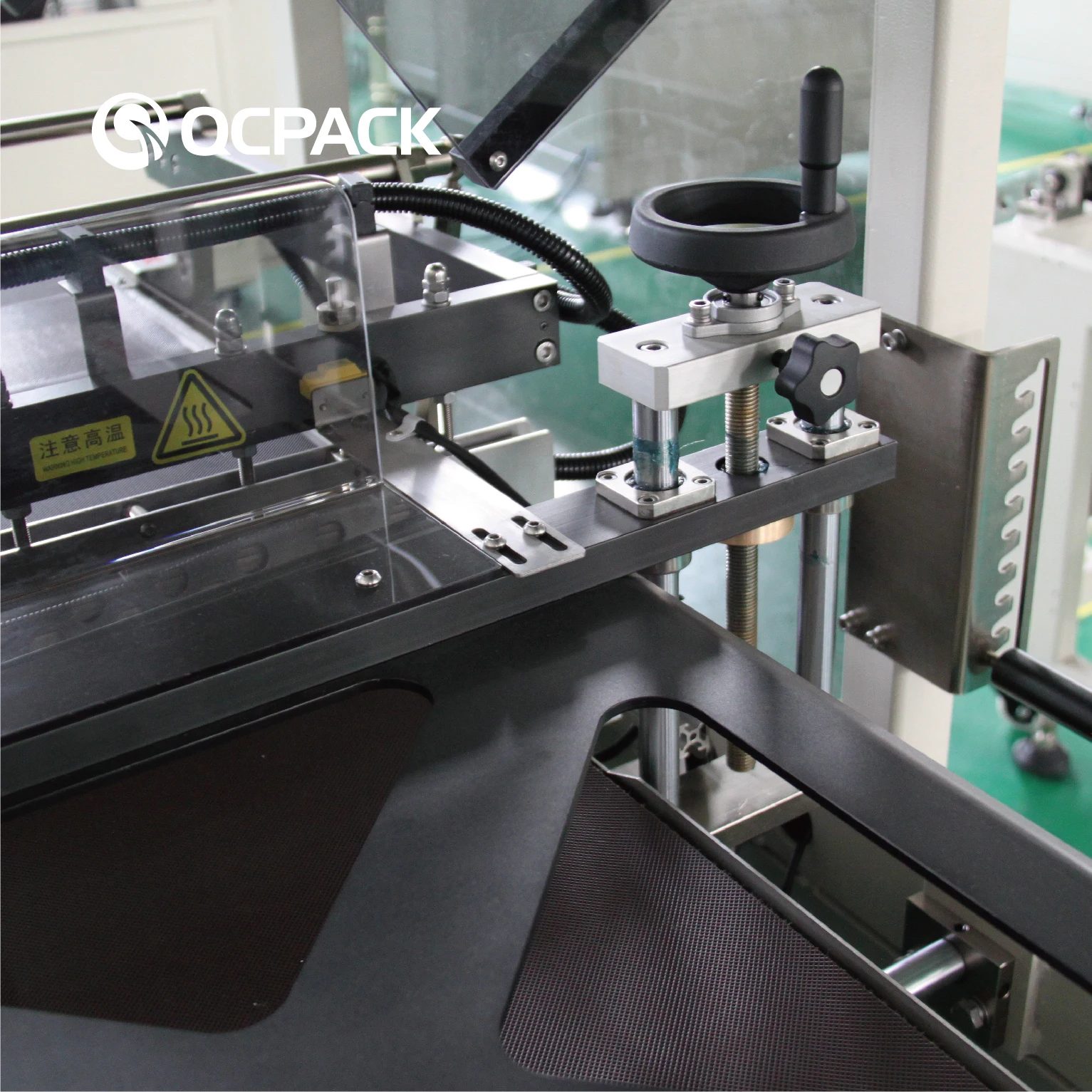

4. Manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items. When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers;



5. Automatically-feeding: the length can be auto adjusted by the sensor and time replay. Matched the reduction motor makes the waste film automatically rolling;

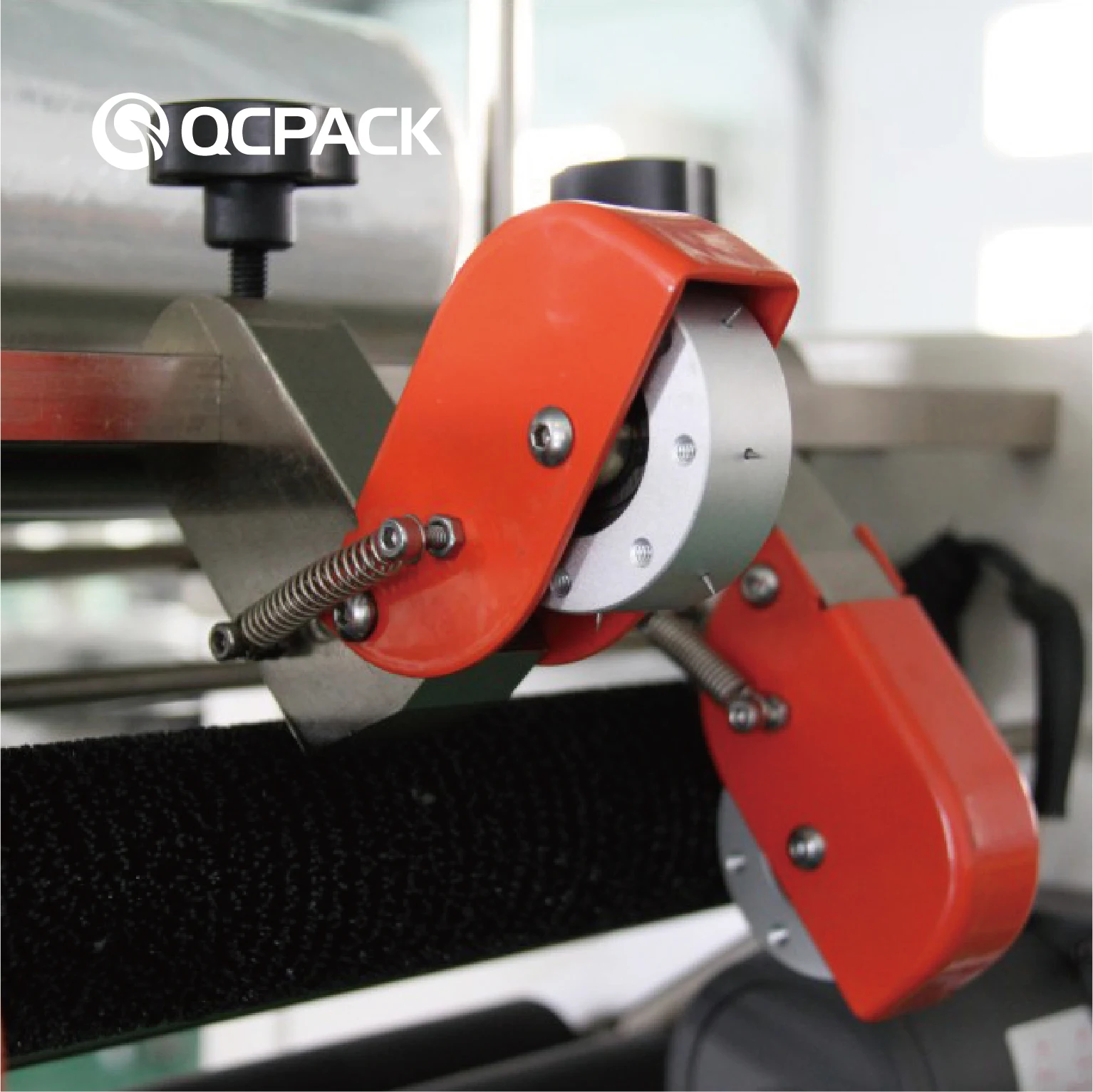

6. Automatic film feeding punching deice is to drill away the air and make sure the packing result is good;



7.  ­Equipped with imported USA Banner photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items;



8. Using original OMRON digital temperature controller. Sealing blade temperature is extremely sensitive and accurate and we can be arbitrarily set. Do not worry about hurting the product for imprecise temperature.



3.Videos FYI: (please contact me to share machine videos with you.)



4.Technical Parameter

Model	BTA-450	BM-500
Max. Packing Size	(L+H)≤500 (W+H)≤430 (H)≤150 mm	(L)700x(W)400 x(H)200 mm
Max. Sealing Size	(L)550x(W)450 mm	(L)1000x(W)450 x(H)250 mm
Packing Speed	25-35 packs/min.	0-15 m/min.
Electric Supply & Power	220V / 50Hz   1.3 kw (customized)	380V / 50Hz   12 kw(customized)
Air Pressure	5.5 kg/cm3	/
Weight	500 kg	260 kg
Overall Dimensions	(L)1800x(W)800 x(H)1600 mm	(L)1300x(W)700 x(H)1400 mm

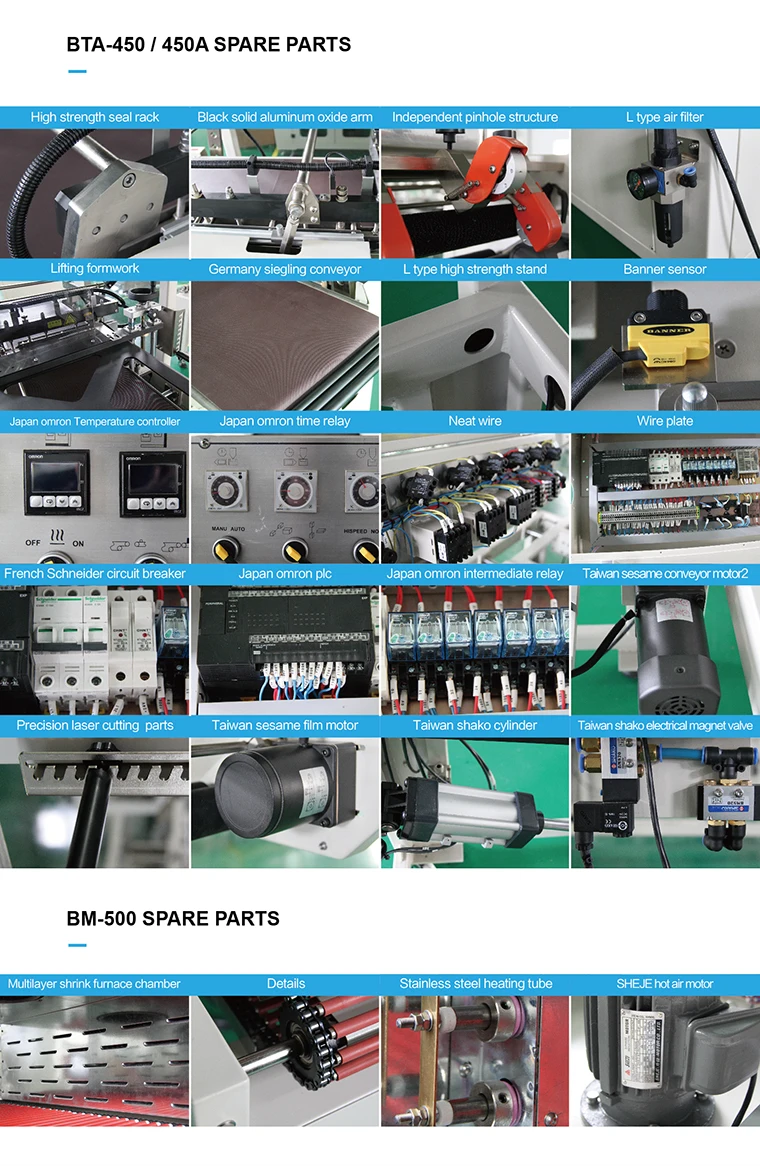

5.Machinery component:

If you want more information about this Heat Oven Tunnel Thermal Shrink Wrapping Packing Machine, please feel free to contcts us.
