Product Overview

Description

Product Description

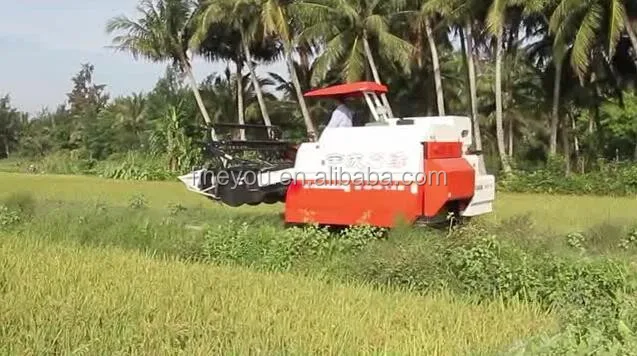

Paddy rice Combine harvester


1, High-performance diesel engine, energy saving, strong power.

2, Lengthening threshing drum, threshing cleaner, the loss rate is small.

3, Unique design of the reverse system, easy to remove the blockage.

4, Inverted "V" type chassis, large ground clearance, infinitely variable speed, adapt variety of rotten mud, off-road performance tough.

5, Large capacity granary, built-in stirring shaft and vibration plate, large diameter unloading grain barrels, put food fast, easy maintenance.

6, Multi-functional, it can be used for "rice, wheat, rape, soybeans, sorghum, corn" harvest.

7, Variety of configurations optional: granary size; electromagnetic hydraulic power steering; side-mounted or high rotation unloading system.

SPECIFICATIONS FOR PADDY COMBINE HARVESTER
STRUCTURE STYLE
TRACK SELF WALKING,FULL FEED

SIZE
LENGTH TOTAL (mm)
4950
WIDTH TOTAL (mm)
2570
HIGHNESS TOTAL (mm)
2640
weight
(kg)
2900
engine
model
4L88
style
warer cooling diesel engine with turbo 4cylinder 4 stroke
displacement (L[cc])
2.834[2834]
rated output/rotary speed (ps[kw]/rpm)
85[63]/2400
start
motor start
walking section
Crawler
size
90*51*450
central distance(mm)
1150
grounding presure
20
(kpa[kgf]/cm2)
terrain clearance (mm)
305
shifting
hydrostatic [HST]
number of shifting
3 HST
TRAVELING SPEED
FOWARD (m/s)
LOW SPEED:0～0.97 MIDDLE SPEED:0～1.37
BACKWARD (m/s)
HIGH SPEED:0～1.85
VEER STYLE
BRAKE

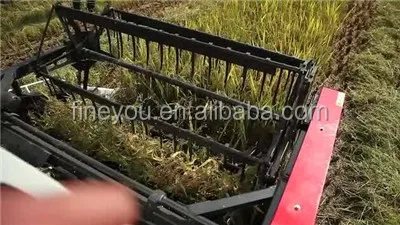

HARVESTING SECTION
GRAINLIFTER
REEL
GRAINLIFTER
DIAMETER×WIDTH (mm)
900×1820
shifting
UNIFORM SPEED
ADJUSTING
Hydraulic
CUTTING WIDTH (mm)
2000
BLADE WIDTH (mm)
1905
CUTTING HEIGHT RANGE (cm)
40-130
lodging resistance
accordant cutting：lower than 85° reverse cutting lower than 70°

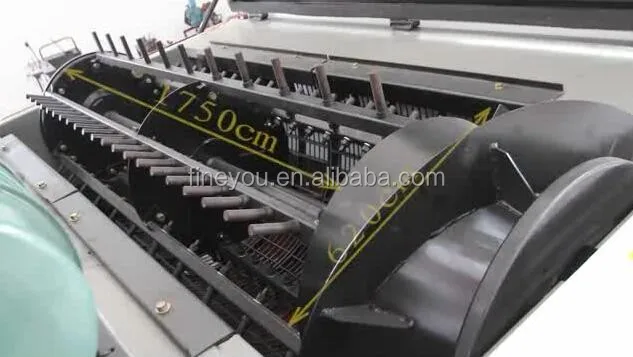

threshing section
thresher
thresh system
axial-flow type
thresh teeth
arc
diameter×width (mm)
620×1790
speed (rpm)
560/600
2nd convey
screw conveyor
sift way
vibrating screen·winnowing[3 grade airflow sorting]
concave net(4 piece) (m2)
1.621
grain discharge
capacity (L)
850
grain tank
output door
crop can be use
cole, paddy,wheat
working efficiency
(acre/hour)
0.8～1.3
rice harvester
rice combine harvester
price of rice harvester
rice harvester
rice combine harvester
price of rice harvester
rice harvester
Certifications
rice combine harvester
Our Service
price of rice harvester

SERVICE

1, Training how to install the machine, training how to use the machine, free technical support for lifetime.
2, Warranty period of one year since machine arrives destination port. Our machine adopts modular design, if there have any damaged parts we will send you the free part, you just need pay the freight.
3, Big order, Module replacement even product design.
4, Engineers available to service overseas for Major clients.

Our Company
rice harvester
Packing & Delivery
rice combine harvester
Packaging
Size
4950 (L) * 2570 (W) * 2640 (D)
Weight
2.9 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

1. What about your Warranty period and how do I fix it, if he was damaged?
Warranty period of one year since machine arrives destination port. The quality of our products is very good, damage under the condition of reasonable operation is rare. If it happened, our machine adopts modular design, it’s easy for you to change one parts. We will send you the free part. We still offer free lifetime technical support.

2. How to buy your products and Does this payment safety for me?
We use T/T (Telegraphic transfer) payment: 30% as order money, 70% balance payment shall be paid after delivery. That can protect you to receive our products, on time and with high quality.
Of course, Alibaba platform provides a perfect credit guarantee system, we can follow Alibaba platform security means to achieve the transaction. To put it simply, your expenses will be paid to the Alibaba platform. Only after you confirm receipt of the goods and in good condition then the money will be paid to our company's account.

3. What can you offer for customers?
Free OEM, Marketing support and Regional protection.
We also provide purchasing agents in Chinese market of various products and assume the risk of goods and transport, to provide legal protection in the Chinese region. Provide warehouse and overall freight service. Our strong network of Chinese companies and experience in the agricultural machinery industry in China can ensure efficient, low-cost and high-quality procurement.
