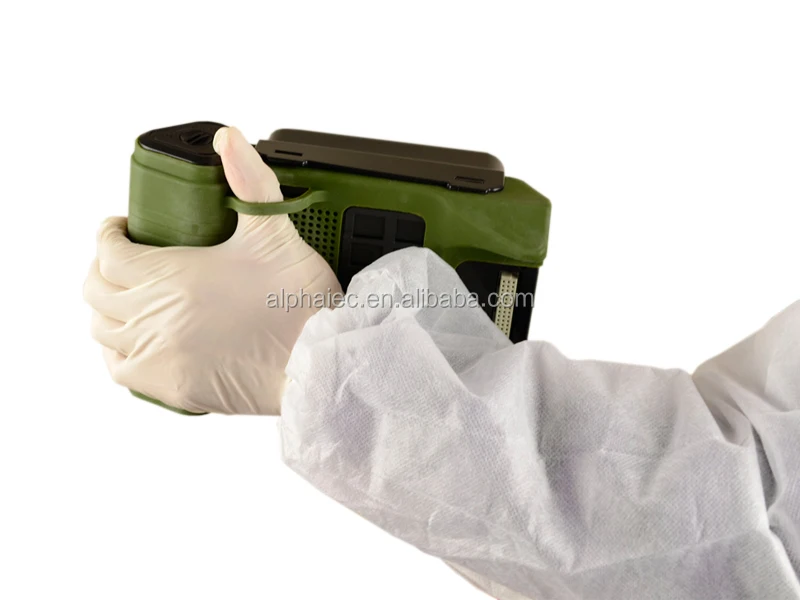

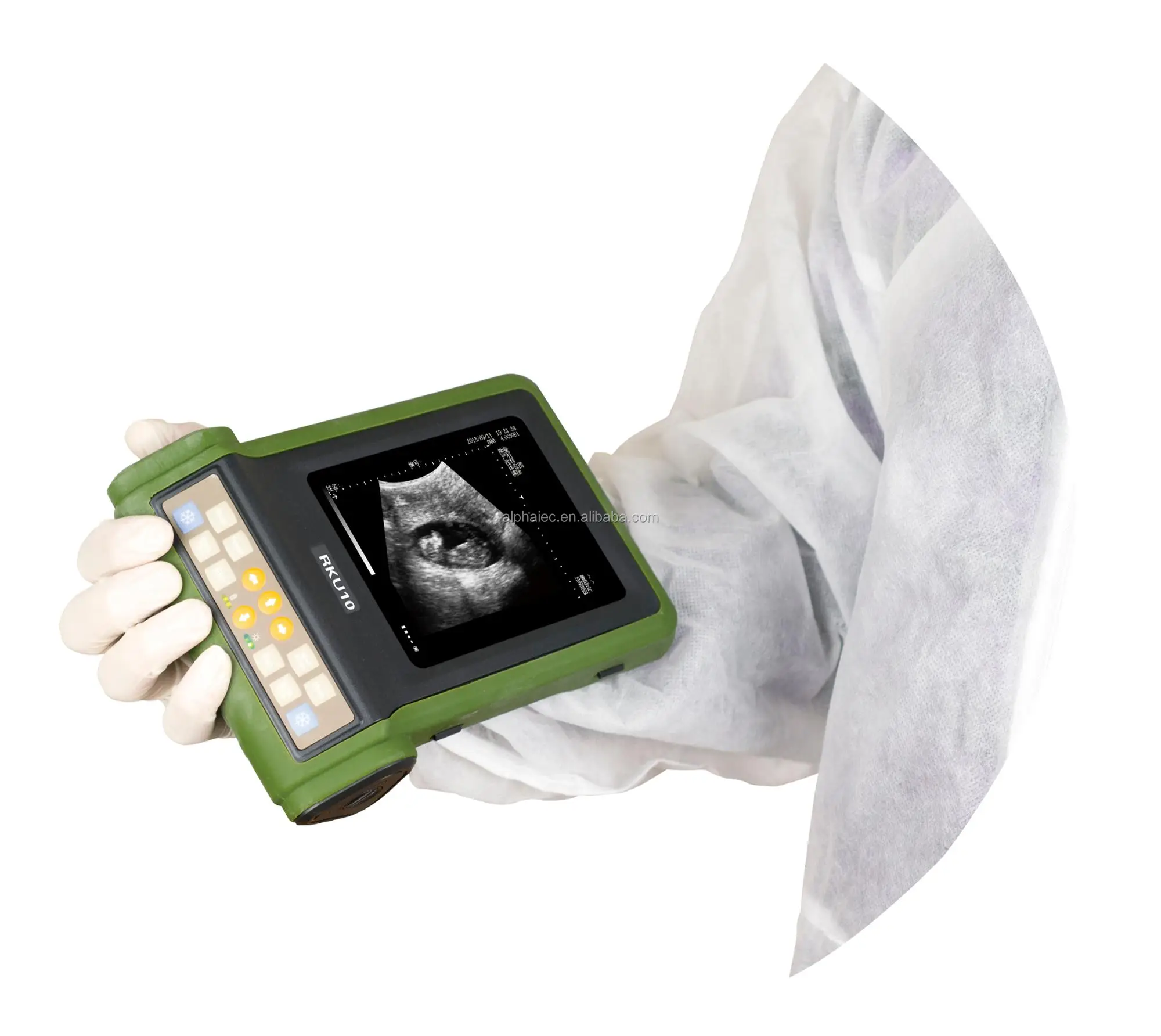

Kaixin portable ultrasound scanner machine for veterinary

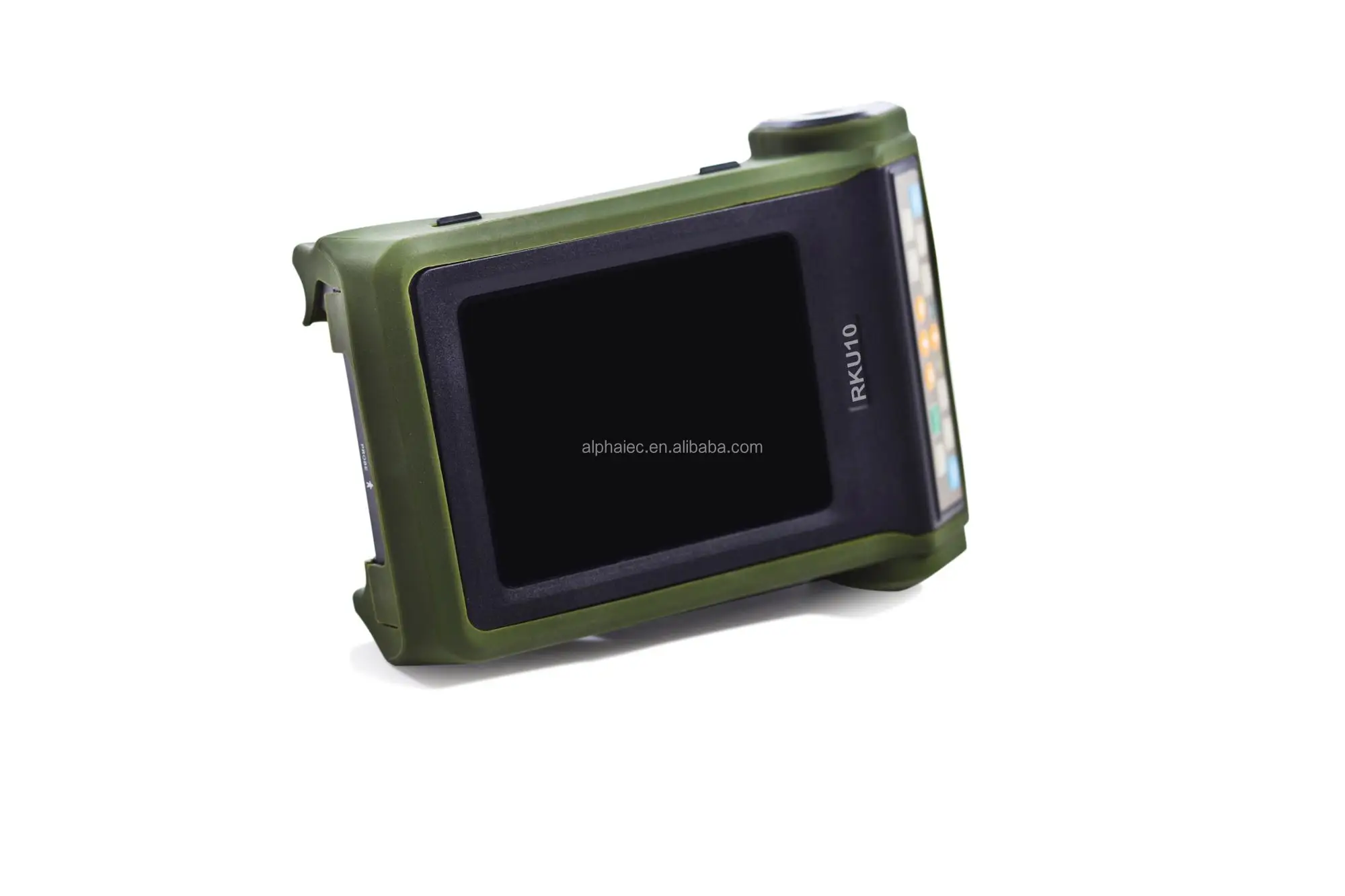

 RKU10 Full digital B mode ultrasonic diagnostic instruments

Tech Specification
---adopt 5’7 high resolution LED display, with high brightness, high contrast, wide viewing angle, suitable for outdoor use
---English language
---single probe socket, auto identify probe
---Body mark:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio
---Display mode:B,2B,4B ,B/M,M
---Gain:0~127dB
---Contrast:27~90dB
---Gray:256
---Focus: 1,2,3,4
---Magnification:0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.0
---Multi frequency:4 different frequencies of each probe
---Depth: 8 steps, 240mm,
---Frame correlation:0,1,2,3
---IP:0,1,2,3
---IE:0,1,2,3
---Character brightness:select between160,192,224,255
---Key sound: on/off
---compressing curve:7 kinds

FUNCTIONS:
---Local zooming
---Depth hoist
---Image up/down, left/right, black/white
---Pseudo color: 8 kinds
---Four different angles / switchable width ;
---100 frames permanent storage
---Cine loop:256 frames
---Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.
---the gravel software package with real-time position line measurement
---Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
---Cardio measurement:Depth, slope, heart rate, cycle;
---OB measurement:Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age birth
---Back-fat and lean automatic calculation function;
---OB Report;
---USB port for large capacity storage,and laser color printer to print image & report;
--- With green energy-saving function
---Grid measurement:6 differen
---Video output:PAL/NTSC
---Power supply:AC110/230 -15%~+10%, 60/50Hz±1Hz;
---Battery:large capacity(5200MAh) battery 1PC, more than 6 hours work
---N.W.:1.1kg;
---Dimension:212×154×58mm(L×W×H)

Standard configuration
----main unit: 1 PC
----6.5MHz linear rectal probe: 1 PC
----power supply adapter:1PC
----internal battery:1PC
----leather case:1PC

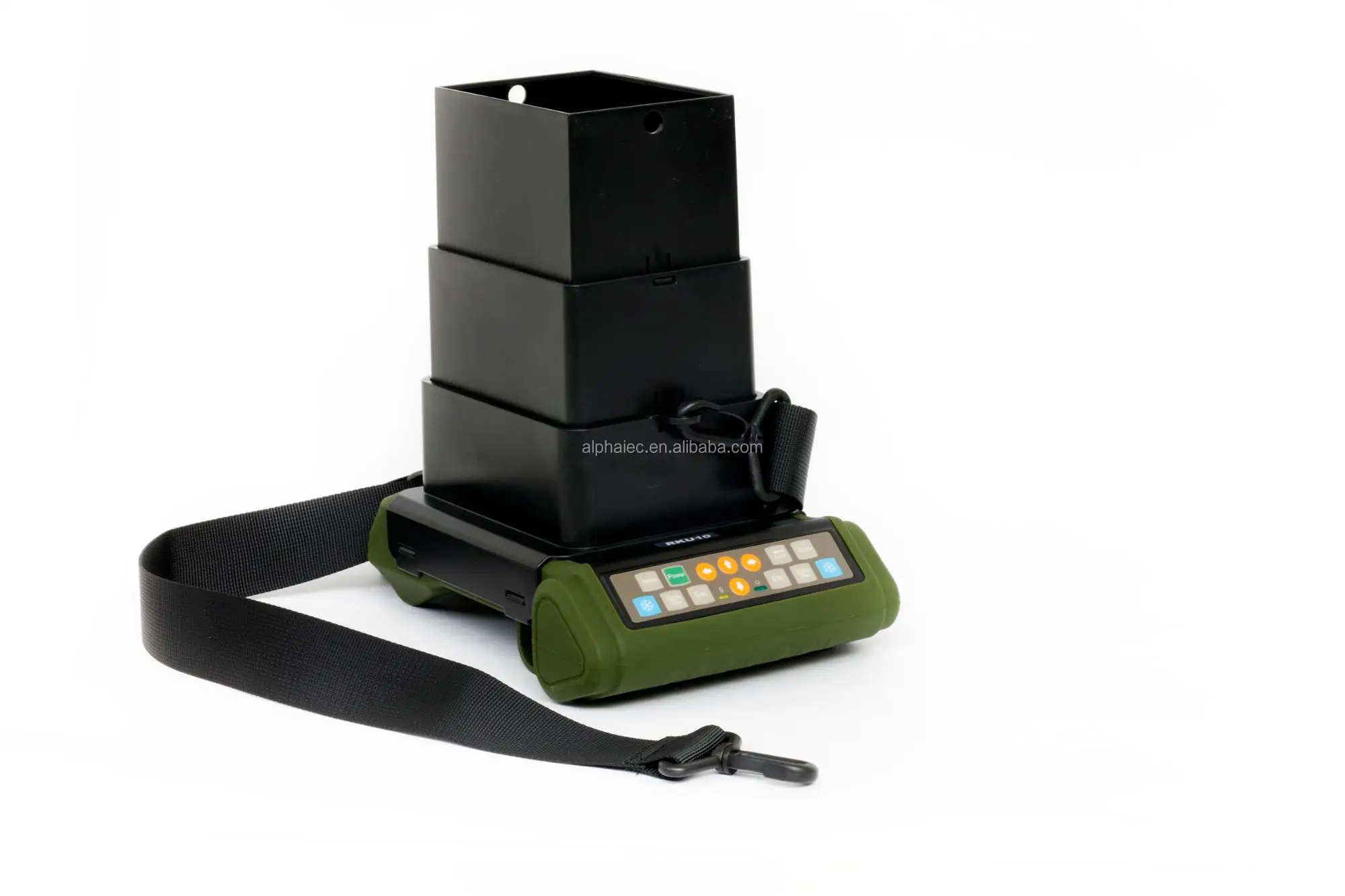

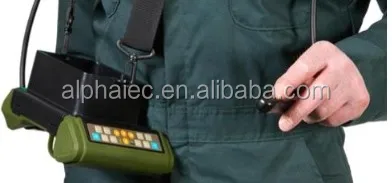

----base charger, neck-belt, sunshine cover, silica gel cover, plastic sealed case

Optional Configuration:
1. 4.0MHz convex rectal probe
2. 6.5MHz micro-convex small animal probe
3. 3.5MHz convex probe
4. 6.5MHz extra-cavity probe
5. 7.5MHz linear probe
6. 3.5MHz micro-convex cardio probe
7. Thermal printer (MITSUBISHI P93W)
8. extra battery(5200mAH)
9. Laser color printer(HP Color LaserJet CP1515n,HP Color LaserJet CP1525n)

Optional configuration:

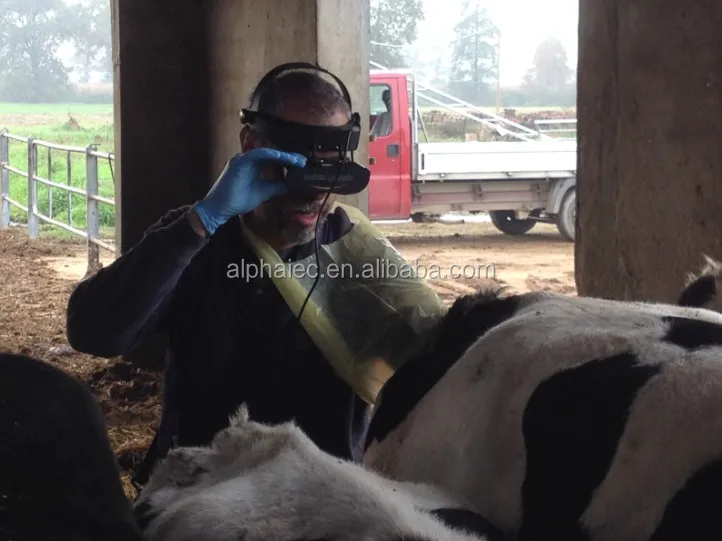

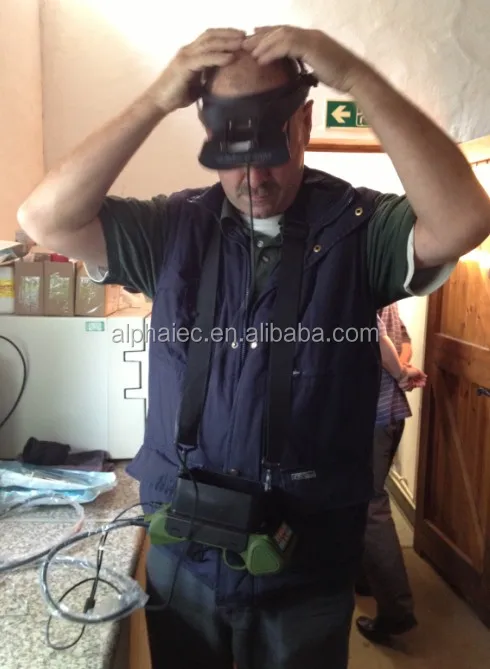

·Goggle
·Battery(5200mAH)

goggle is optional
