Micro positioning system motion linear motor electric motor rotation direction precision rotation stage motorized rotary stage
Company Information
Specification
we can customize any models products according to your sizes or quality requirements
• ERS series rotation stage uses the rolling axis with independent design and production, high machining accuracy, high reaction speed, short delivery time. All key components are made of grinding, to realize the light load, high precision, high cost performance.
• Standard stepper motor and RS232 interface, cooperate with our company's independent inquiry PMC series motion controller
• The rotating through multi-channel process, all products are with high precision.
• The servo motor is exchangeable
• Simple structure, high reliability, long life, widely application.
• Operation place: rotating scanning, rotation measurement, space automatic tracking, rotation marking, dividing non-contact processing, etc.

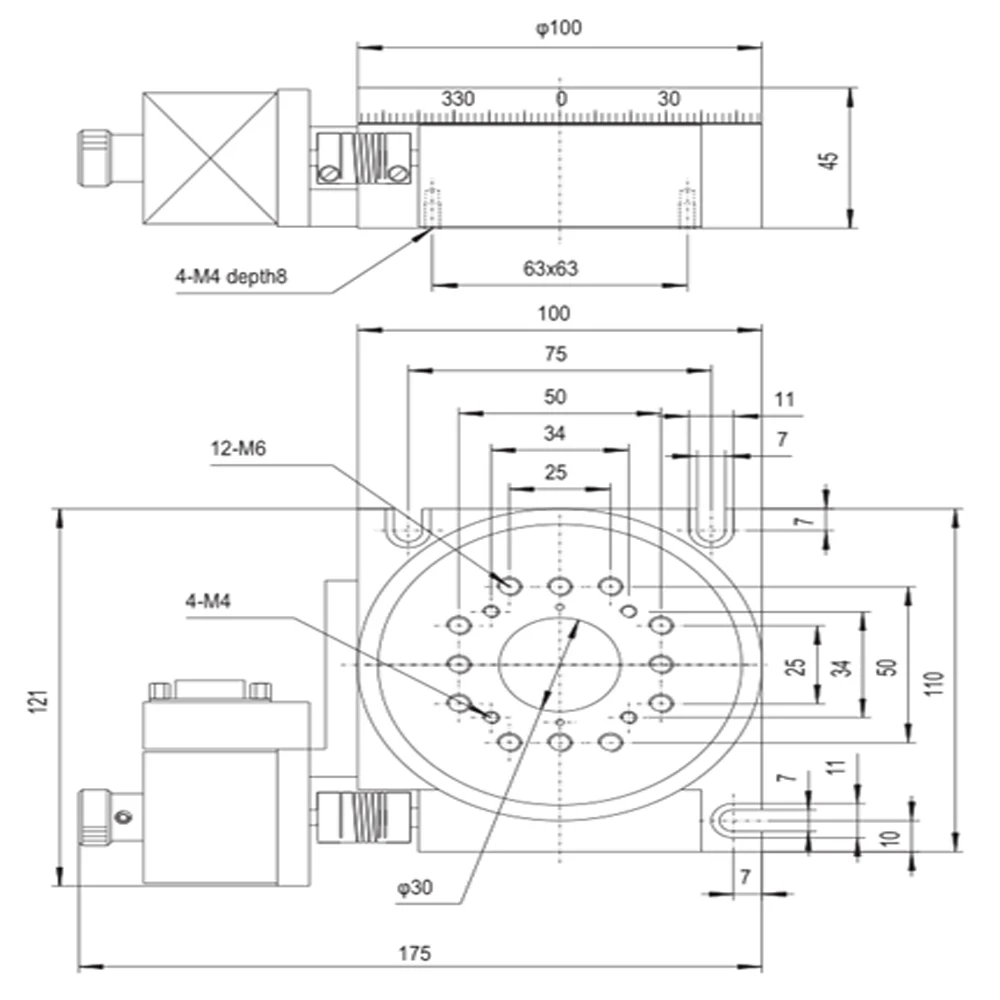

Model | ERS100 | ERS200 | ERS400 |
Travel | 360° | 360° | 360° |
Reduction Ratio | 1:180 | 1:180 | 1:720 |
Main Material | Aluminum | Aluminum | Aluminum |
Surface Treatment | Black Anodized | Black Anodized | Black Anodized |
Lead Rail | Bearing | Bearing | Bearing |
Maximum Speed | 25°/s | 25°/s | 5°/s |
Resolution (8subdivide)(μm) | 0.00125° | 0.00125° | 0.003125° |
Scale Division | 2°/Standard | 2°/Standard | 2°/Standard |
Repeated Positioning Accuracy | 0.01° | 0.01° | 0.01° |
Drive Motor | 42Stepper Motor | 57Stepper Motor | 57Stepper Motor |
Step Angle | 1.8° | 1.8° | 1.8° |
Central Loading | 10kg | 20kg | 30kg |
