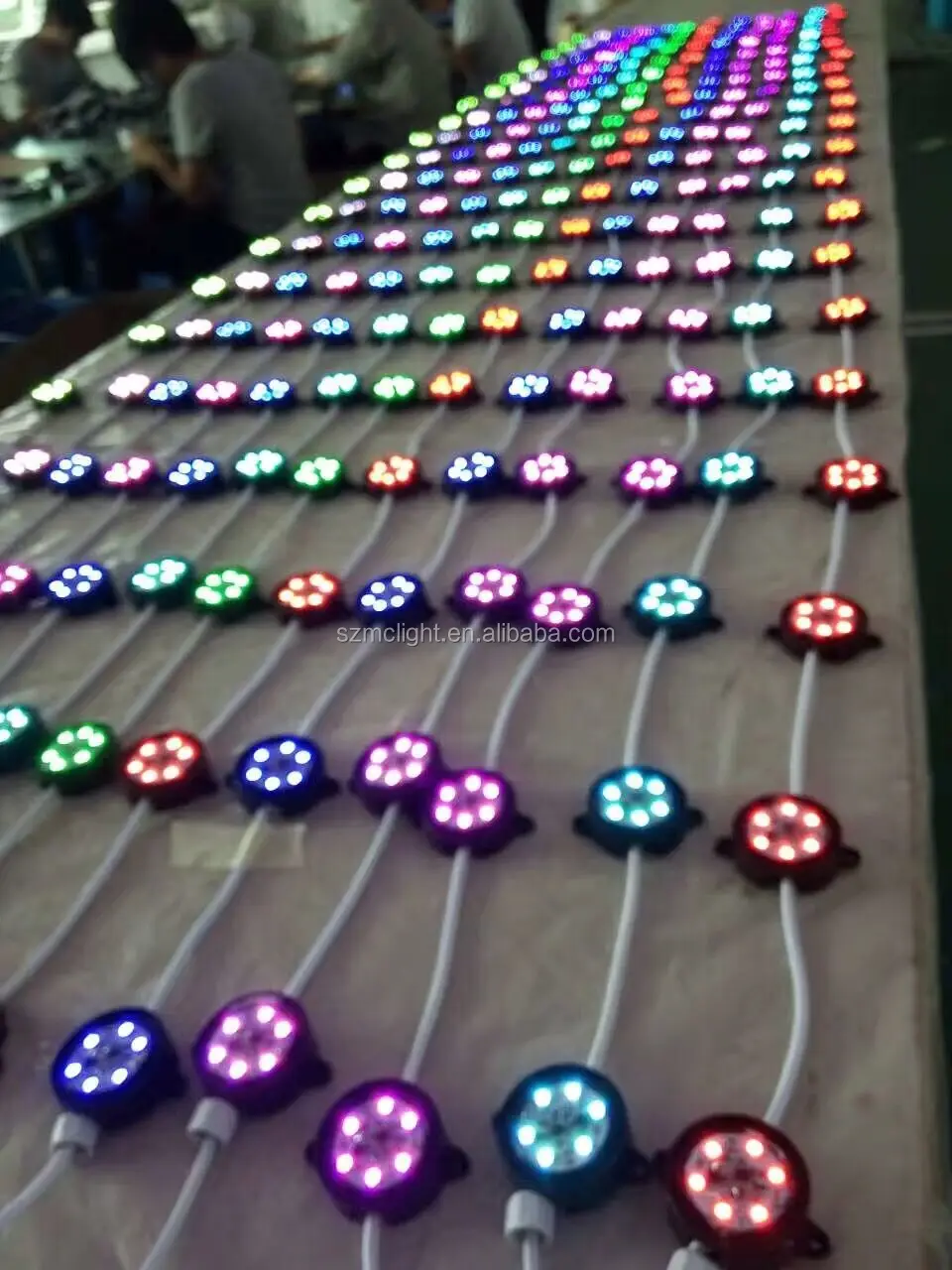

Hot selling 6pcs DMX waterproof smd5050 rgb led pixel light IP68 with diameter 50mm
- Category: >>>
- Supplier: Shenzhen Mingchen Lighting Co. Ltd.
Share on (60724698438):
Product Overview
Description
Hot selling 6pcs DMX waterproof smd5050 rgb led pixel light IP68 with diameter 50mm
Features
1. With quality famous-brand LED Inside(Cree, Bridgelux, Edison LED for option)
2. Lifetime: 50, 000h(17 years with 8 hours per day)
3. Proprietary design for excellent thermal management and lumen maintenance.
4. Wide voltage and constant current design
5. The products are in accordance with CE, RoHS, and FCC testing standards
6. Warranty: 2-3years

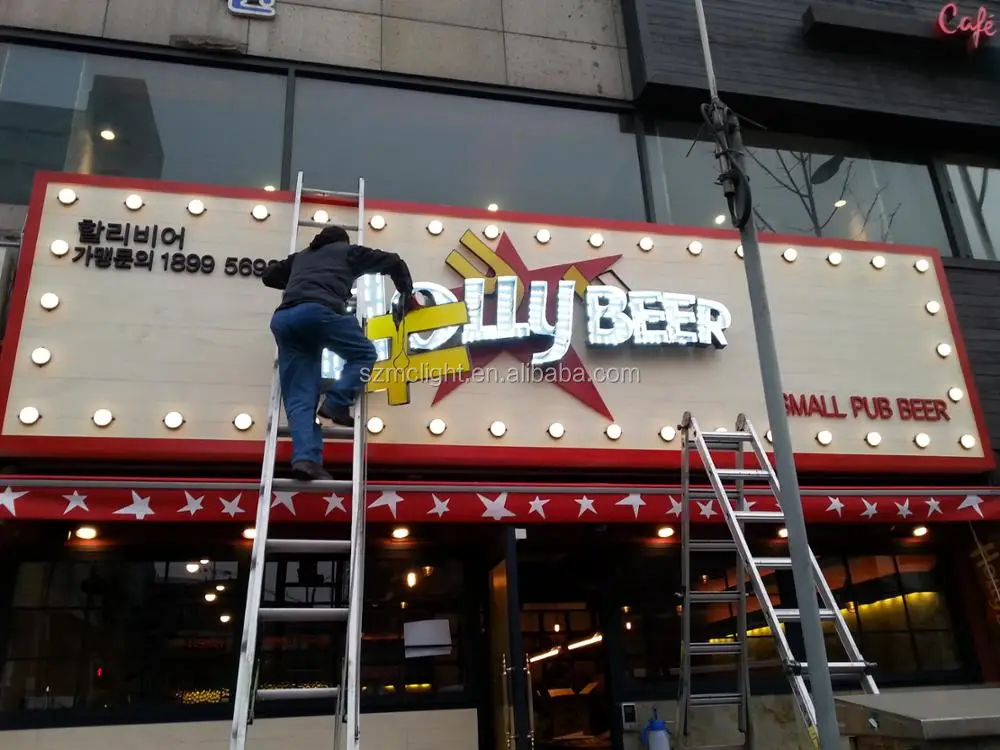

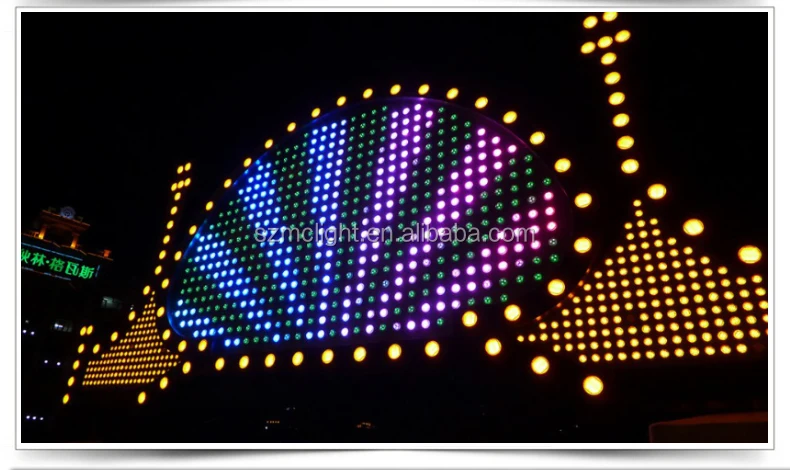

LED Pixel Light applications
--KTV
--Bars
--Nightclubs
--Light Shows
--TV Production
--Entertainment Center
--Themed Environments
--Interior and Exterior Electronic Screen
Technical Data
Hole Mount Punching Size | 50mm Diameter |
LED chip type | SMD RGB 5050 LED |
LED chip quantity | 7 leds/pcs |
Wattage | 2w/ocs |
Beam angle | >140 degree |
Working voltage | DC12V/24V |
Working current | 80mA |
Working temperature | -30-60 centigrade |
Lifespan | >50,000hrs |
Color | Multiple Colors |
Protection Grade | waterproof IP68 |
Diagram
Connection
Date connecting:
Noted:we can customized led pixel light according to customers'request,our engineers can help csutomers make any effects for lighitng project.when finish your order,we send instruction installation and connection and program for customer'projects.everything is well.
Installating Notes
1.All the testing or installing have to be performed by a qualified person ;
2.The red lines are positive ,the white lines are negative ,the green lines are data lines ,
3.Have to connect the femle port of the lamp to the controller ; the female port with extra power wirelines ;connect the green line to data port ; white line to the GND port ; please exactly follow the control diagram above ;
4.The power of controller have to be the same as the lamp,if not match with each other,the lamp will not work ;
5.The led lamp is DC24V , cann’t light it with AC driver or over DC24V driver;or the led lamp will be burned ;
6.When connecting the power wirline , please use 1pcs main power wirelines and connect from the first lamp’s ; then 20pcs as a cell , and connect all the power lines every cell to the main power wireline , the max. qty every main power wireline are 120pcs and connect the main power wireline to the power supply directly ;
7.Before turning on the power , have to check every connecting and make sure all is correct .
2.The red lines are positive ,the white lines are negative ,the green lines are data lines ,
3.Have to connect the femle port of the lamp to the controller ; the female port with extra power wirelines ;connect the green line to data port ; white line to the GND port ; please exactly follow the control diagram above ;
4.The power of controller have to be the same as the lamp,if not match with each other,the lamp will not work ;
5.The led lamp is DC24V , cann’t light it with AC driver or over DC24V driver;or the led lamp will be burned ;
6.When connecting the power wirline , please use 1pcs main power wirelines and connect from the first lamp’s ; then 20pcs as a cell , and connect all the power lines every cell to the main power wireline , the max. qty every main power wireline are 120pcs and connect the main power wireline to the power supply directly ;
7.Before turning on the power , have to check every connecting and make sure all is correct .
