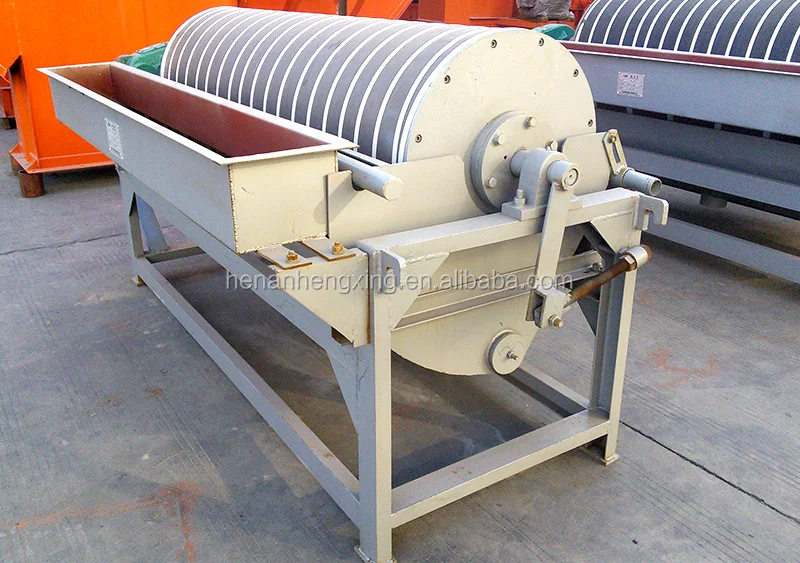

Magnetite Ore Mining Magnetic Separator Price, Magnetic Separator For Separating, Magnetic Separator For Magnetite Sand
Product Description
Introduction of Manufacture Ilmenite Ore Wet High-intensity Magnetic Separator
Magnetic separator is also called magnet separator, which is suitable for separating magnetic minerals with less than 3mm particle size such as magnetite, limonite, hematite, manganese siderite ore, ilmenite, wolframite, manganese ore, manganese carbonate, manganese oxide ore, iron ore, kaolin, rare earth, etc. It also can be used for the iron removal of coal, non-metallic minerals, building materials and other materials.
The magnetic separation of minerals is supported by magnetic and mechanical force in the magnetic field of magnetic separator. magnetic separation. The magnetic separator can effectively reduce production costs for enterprises, reduce energy consumption and maximize the economic benefits of ore dressing plants.
Application of Manufacture Ilmenite Ore Wet High-intensity Magnetic Separator
Application Fields: The wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials with below 3mm particle size.
1. The coarse separating of lean iron ore after rough or medium crushing. So as to eliminate waste rocks, improve the grade of ores and reduce the load of next procedure.
2. The separation of raw ore in closed-circuit roasting assignments which has not been fully restored to burn again.
3. For the iron removal mixed in porcelain clay of ceramic industry in order to improve the quality of ceramic products.
4. The iron removal operations in burning coal, sand casting, refractory and other sectors.
Features of Manufacture Ilmenite Ore Wet High-intensity Magnetic Separator
Magnetic system is compounded of ferrite and permanent magnets the average magnetic induction intensity of cylinder surface is 100600mT.
The same cylinder can be equipped with three types of tank adapting to different dressing Process.
Small area taken good separation for magnetic mineral reduce the load of next Process.

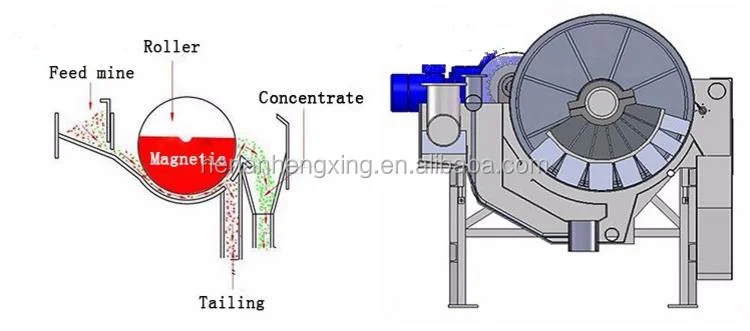

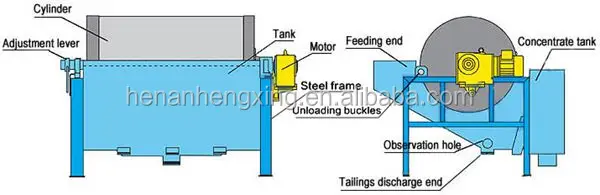

Working Method of Manufacture Ilmenite Ore Wet High-intensity Magnetic Separator

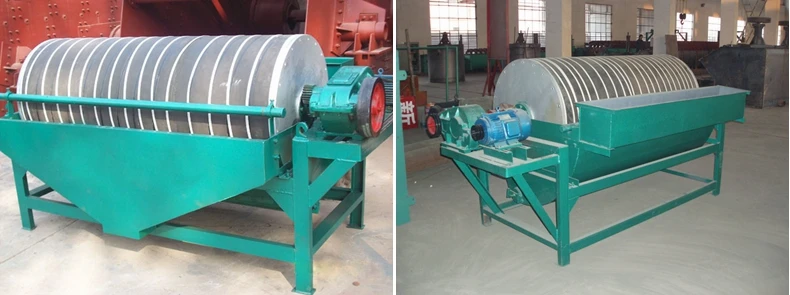

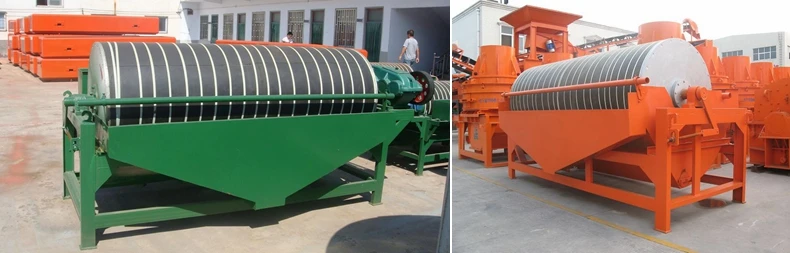

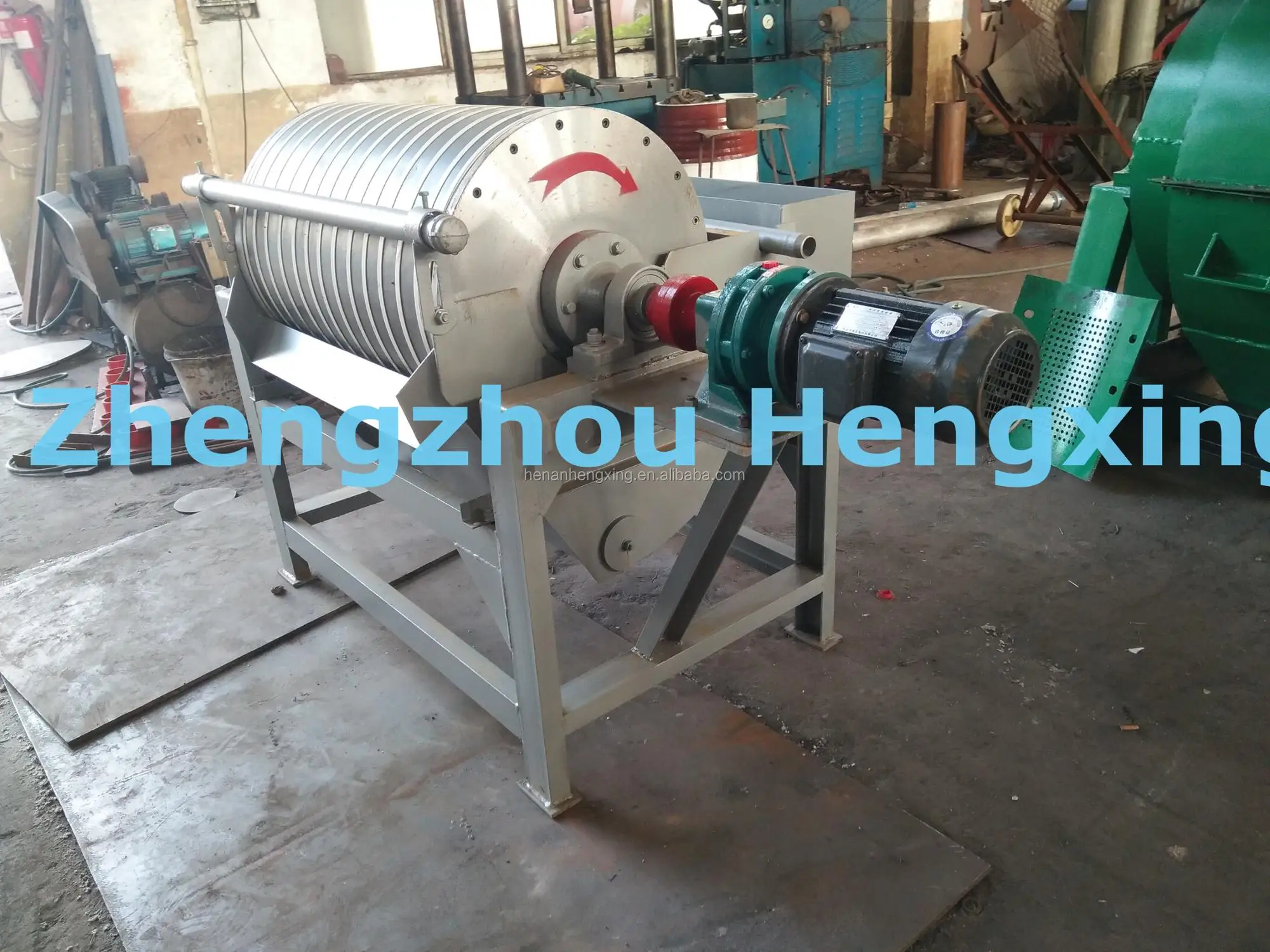

Factory Picture of Manufacture Ilmenite Ore Wet High-intensity Magnetic Separator

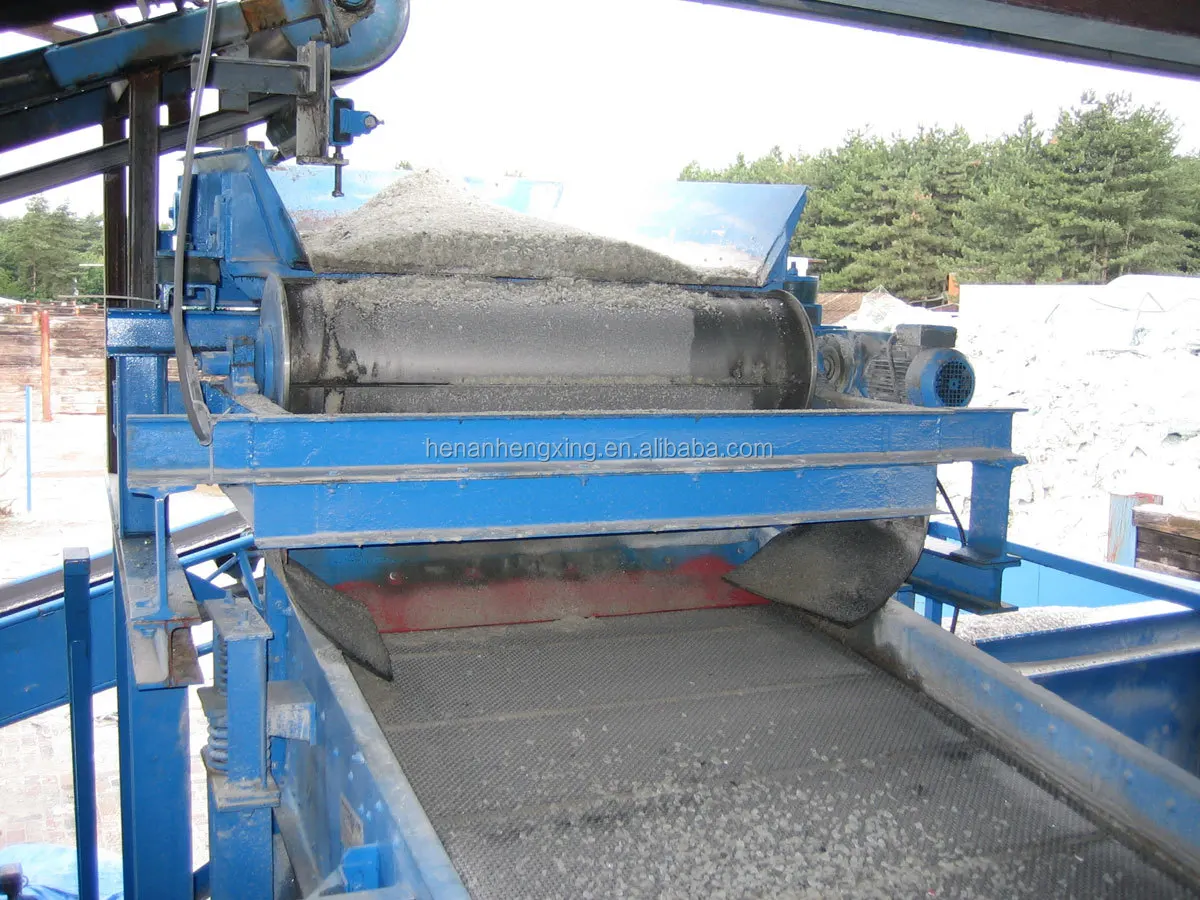

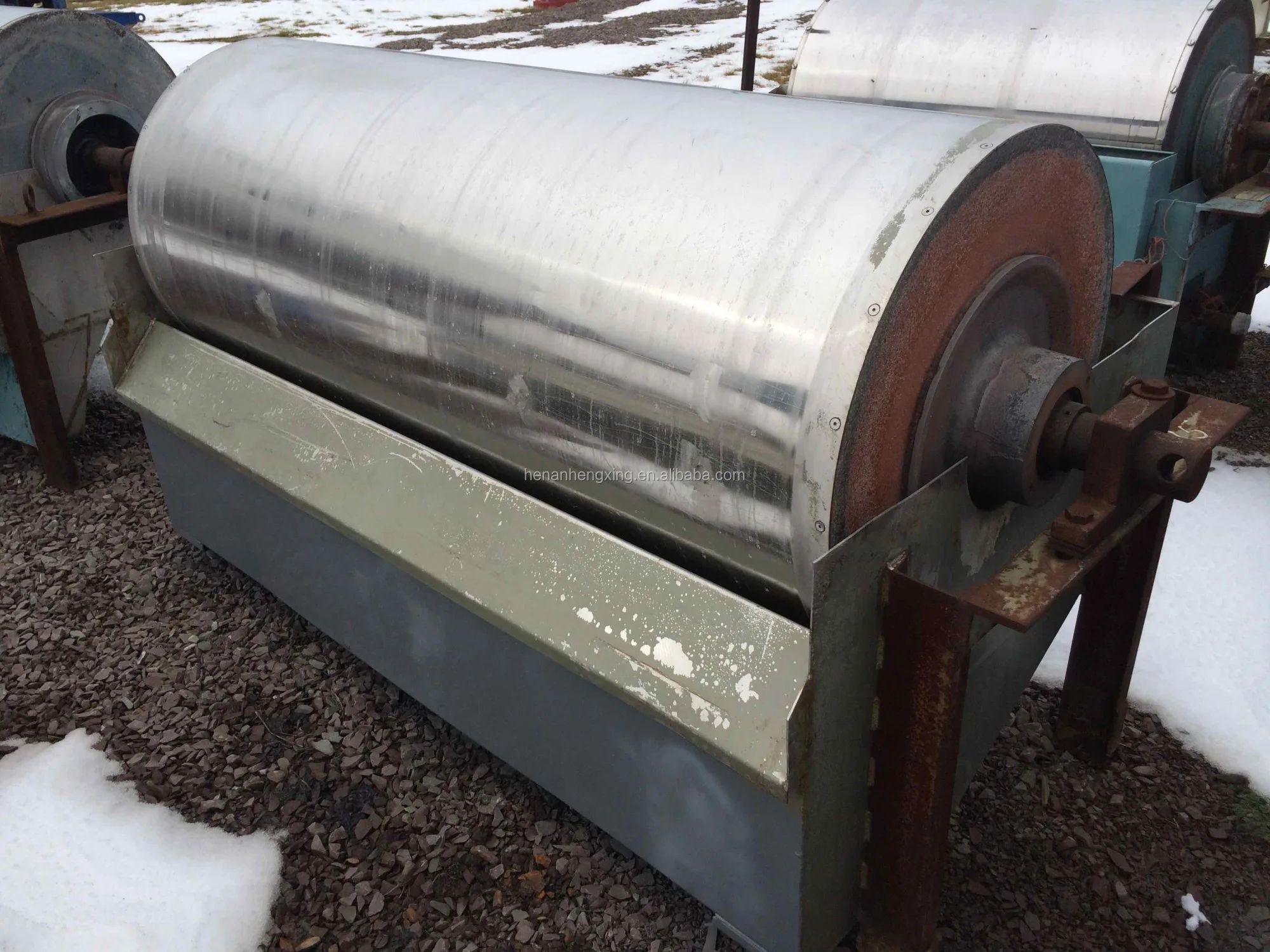

Working Site of Manufacture Ilmenite Ore Wet High-intensity Magnetic Separator
Data of Top Manufacture Ilmenite Ore Wet High-intensity Magnetic Separator
Specification | Magnetic field strength (Gs) | Working capacity (t/h) | Motor power (kw) | Weight(kg) |
CTB600×900 | 1450 | 8-15 | 11 | 910 |
CTB600×1800 | 1500 | 15-25 | 2.2 | 1340 |
CTB750×1800 | 1550 | 30-45 | 3 | 2050 |
CTB900×1800 | 1650 | 35-60 | 4 | 3000 |
CTB1050×2400 | 1650 | 60-95 | 5.5 | 5020 |
CTB1200×3000 | 1650 | 80-150 | 7.5 | 7800 |
CTB1500×3000 | 1650 | 120-200 | 11 | 9600 |

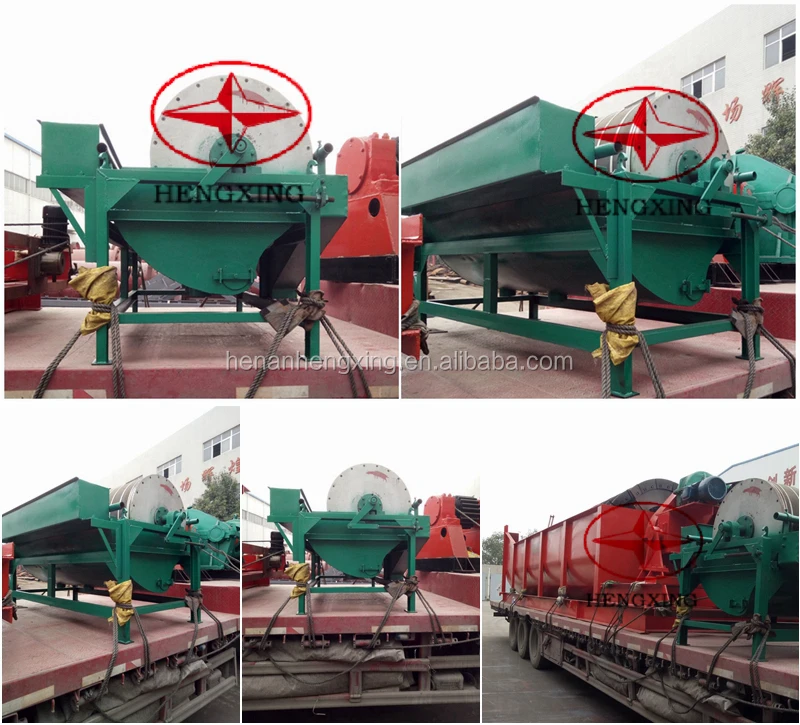

Packaging & Shipping
Company Information
Zhengzhou HengXing Heavy Equipment Co.,Ltd
Zhengzhou Hengxing is a joint stock corporation integrating scientific research, manufacture, marketing and exporting with the main target at the large and medium sized series of heavy duty equipments for mining, ore selecting, wall materials, formed coal, metallurgy and ect. The company located at Zhengzhou National High-Tech Development Zone.
We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. These products include Stone Crushers, Jaw Crushers, Cone Crushers, Hammer Crushers, and Sand making Machines, Sand Washing machines, Rod Mills, Powder making Machines, Ore Dressing Machines, Briquette Machines and complete Cement Output Lines. Our products have been sold to areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
Our Workshop and Building
Our Production Capacity
Our Services
Our mission is providing our clients timely, rapidly, and efficiently services.
√ Rapid Reply
To the issue you propose, or the feedback, we are sure to make reply soon.
√ Providing Solution Design:
According to the results of communication with you, we will provide a design solution for you speedly.
√ Inspection Our Factory and Machines:
If you have interests, welcome to visit our factory and inspect the machine.
√ Order execution:
Provide equipment layout draw, foundation draw and detailed equipment manauls. Timely report you the manufacturing schedule and related photos.
√ Delivery fast:
We can arrange fast, safe shippment on time.
√ After-sales service:
If you need, we will dispatch engineer to the site to guide installation, debugging and training operators. Installation and operation workers are offered if you need
